Powder large element water-soluble fertilizer screw belt mixer production equipment

Longjun Machinery, a manufacturer of large-scale element liquid water-soluble fertilizer production equipment, produces various specifications of mixing tanks, mixers, dispersers, mixers, grinders, 304, 316L and other materials. It is equipped with high-speed mixers, low-speed mixers, scraping wall mixers, etc., and can be customized according to different requirements.

Longjun Machinery specializes in producing various types of screw belt mixers, gravity free mixers, plow blade mixers, stainless steel mixing tanks, electrically heated mixing tanks, stainless steel emulsification tanks, horizontal sand mills, colloid mills, emulsifiers, high-speed dispersers, liquid filling machines, powder filling machines, kneading machines, three roll grinders, dual planetary mixers, and other products.

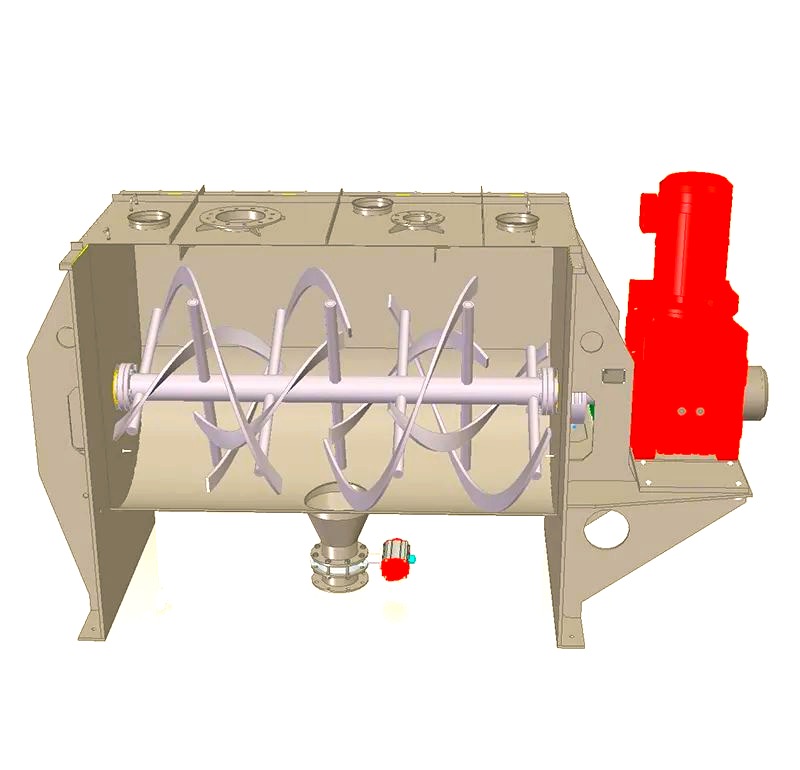

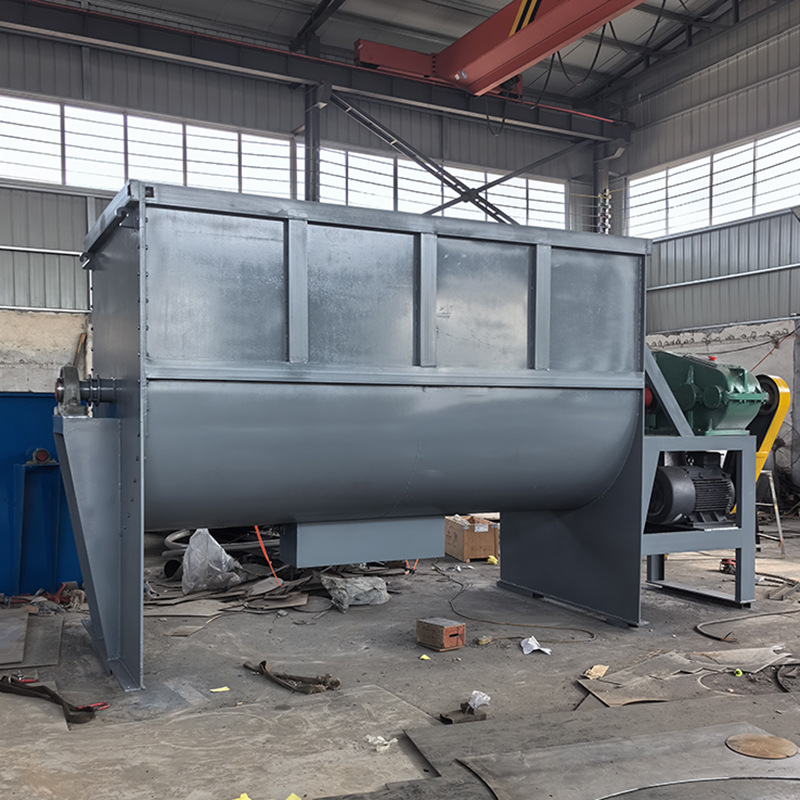

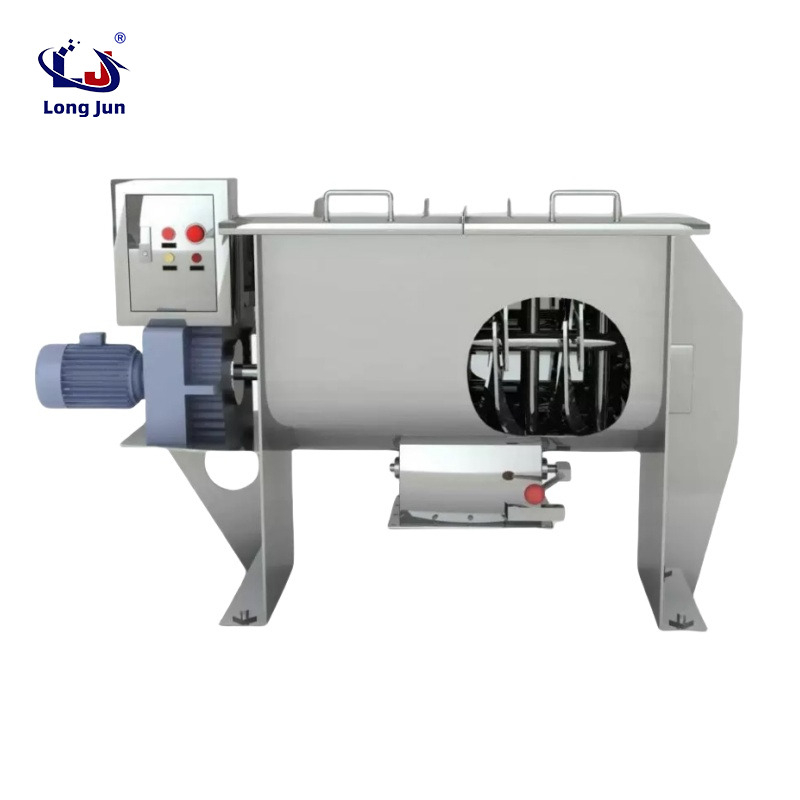

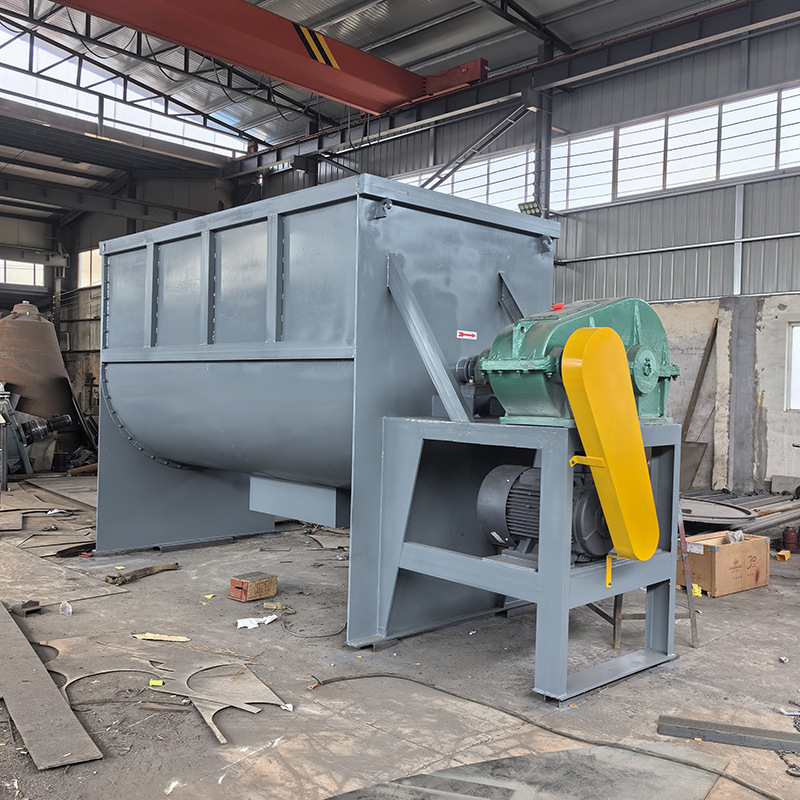

The powder ribbon mixer consists of a U-shaped container, ribbon stirring blades, and transmission components; The U-shaped long cylinder structure ensures low resistance movement of the mixed material (powder, semi fluid) inside the cylinder. The forward and reverse rotating screw strips are installed on the same horizontal axis to create a low-power and high-efficiency mixing environment. The spiral shaped blades are generally made into double or triple layers, with the outer layer of spiral collecting the material from both sides to the center, and the inner layer of spiral conveying the material from the center to both sides, which can create more vortices in the flow of the material, accelerate the mixing speed, and improve the mixing uniformity; The belt pulley is used to drive the cycloidal reducer, and compared to the high torque of the gear reducer, the elastic connection of the belt transmission has the advantage of protecting the transmission components during overload.

The mixing tank body and mixing tank cover can be connected by flange sealing or welding. The mixing tank body and mixing tank cover can be equipped with process pipe holes for feeding, discharging, observation, temperature measurement, pressure measurement, steam distillation, safety venting, etc. according to process requirements.

There are two heating methods to choose from: electric heating and thermal oil heating. Electric heating is convenient, but the heating speed is slow and the energy consumption is high; Heating with thermal oil requires the configuration of an oil pot, thermal power, and pipelines, which requires a large investment but has a fast heating rate and low energy consumption. The cooling process can directly inject cooling water into the jacket, which has a large heat exchange area and fast cooling speed. The motor is directly connected to the mixing spindle through a cycloidal pinwheel reducer, which has a simple structure, high operational reliability, and easy maintenance.

The upper part of the mixing tank cover is equipped with a transmission device (motor or reducer), which drives the mixer inside the mixing tank through the transmission shaft.

The shaft seal device can adopt various forms such as machine seal, packing, labyrinth seal, etc. (determined according to user needs).

The production equipment of stainless steel powder water-soluble fertilizer ribbon mixer is applied in industries such as coatings, pharmaceuticals, building materials, chemicals, pigments, resins, food, and scientific research. This device can be made of materials such as carbon steel and stainless steel according to the process requirements of the user's product, and equipped with heating and cooling devices to meet different process and production needs. The heating forms include jacket electric heating and coil heating. The equipment has a reasonable structural design, advanced technology, durability, and is easy to operate and use. It is an ideal chemical equipment with low investment, fast production, and high returns.
