Large Powder Oil Heating Double Screw Belt Horizontal Mixer

Standard design (customizable):
Contact material: 304 stainless steel, 316 optional
Inner surface: polished 180 grit
Supporting steel: 304 or 316 stainless steel
External surface: glass bead sandblasting
Emission: Pneumatic driven swing flushing valve
Working capacity: 3 to 10000 cubic feet
Driver: Hollow hole SEW Eurodrive
Loading: Loading the lid with welded grille
Safety: Magnetic safety switch on the main cover
【 Application Industry 】:
Horizontal belt mixer is used for mixing powder and powder, mixing powder with a small amount of liquid, suitable for industries such as food, building materials, plastics, chemicals, coatings, agriculture, etc., such as food powder, dry powder mortar powder, fertilizers, seeds, spices, coffee powder, etc.

Quantity:
Availability:





Inquire Add to Basket

Model:
3000L
Brand:
Longjun

Product Description

Product Description

Large powder oil heating double screw belt horizontal mixer

The price is for reference only. The actual price is subject to the communication between the two parties!!!

The horizontal mixer is used for mixing two or more types of powders, such as pepper powder, seasoning powder, milk powder, flour, pharmaceutical dry powder, chemical powder, laundry powder, putty powder, paint powder, and other solid solids (i.e. powder and powder) and solid slurry (i.e. powder and slurry).
Features of horizontal mixer:
1. The horizontal mixer has a high mixing uniformity and low residue, making it suitable for mixing more than two types of materials.
2. The horizontal mixer is equipped with a reducer, featuring low noise, low energy consumption, high efficiency, and durability.
3. "S" type single screw belt or double screw belt is used to mix materials quickly and evenly without storing materials.
4. Open cover at the top, beautiful and generous appearance, no dust flying during operation, and no waste of materials.

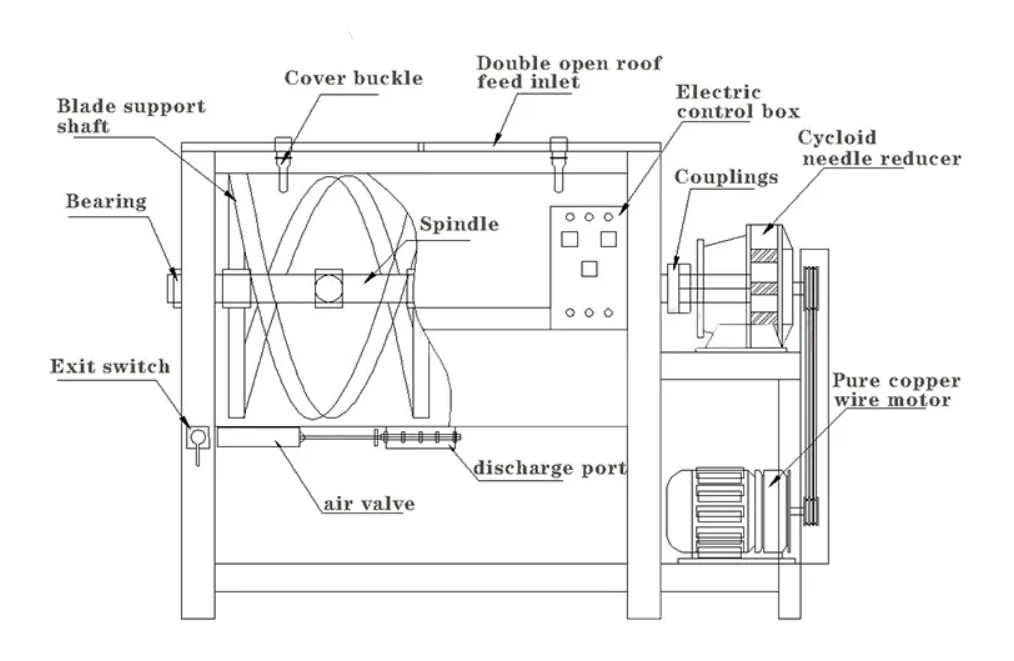

微信图片_2025-08-10_120244_924

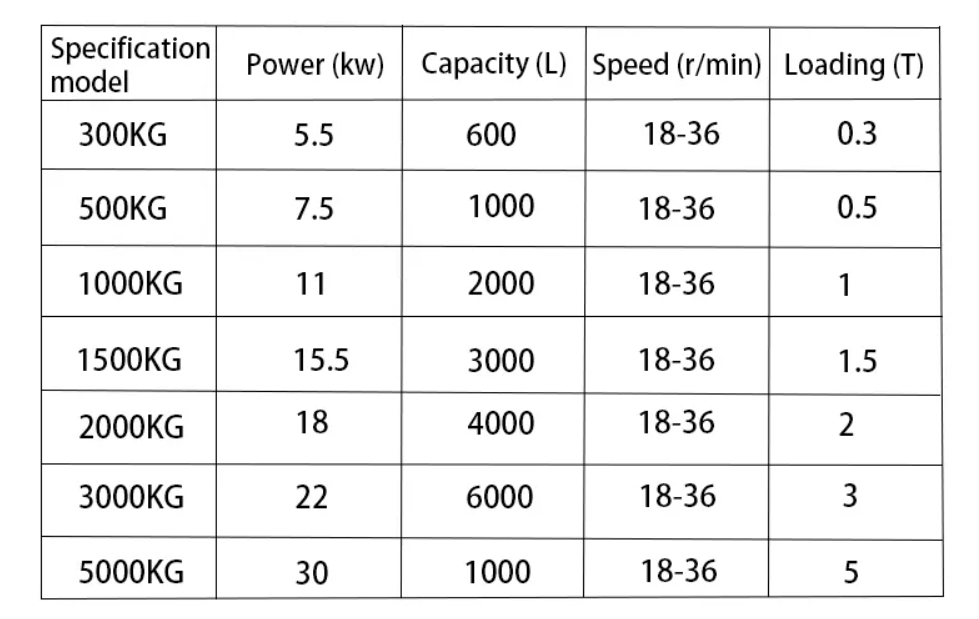

微信图片_2025-08-10_120304_317

微信图片_2025-08-10_105943_050

The horizontal screw belt mixer is applied to the mixing of solid (i.e. powder to powder) and slurry (i.e. powder to slurry) in pesticides, veterinary drugs, food, chemicals, biology, aquaculture, ceramics, refractory materials, plastics, compound fertilizers, etc. It is also particularly suitable for mixing viscous materials.

FAQ:

Q1: Is the mixer suitable for food grade or pharmaceutical applications?

Yes, it uses SS304 contact parts for mirror polishing, which is very suitable for a hygienic processing environment.

Q2: What kind of security protection does it have?

It is equipped with an interlocking safety grid system. If the lid is opened and the grille is not properly positioned, the machine will automatically stop to prevent accidents.

Q3: How can the emission system minimize product loss to the greatest extent possible?

The DN200 pneumatic gate valve and optimized bottom design ensure complete discharge without material accumulation.

Q4: Can I adjust the mixing speed according to the viscosity of different materials?

of course. The mixer uses variable frequency control (VFD) to provide adjustable speed from 0 to 35rpm.

Q5: Apart from mineral salts, what other materials can this blender handle?

It is also suitable for powders, granules, and fine crystals in the chemical, plastic, building materials, food, and agricultural industries.
