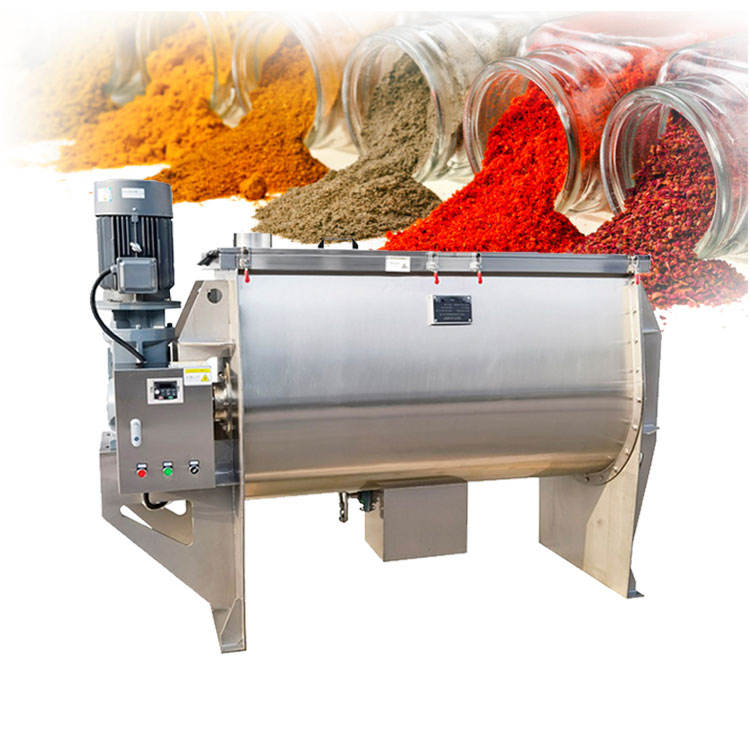

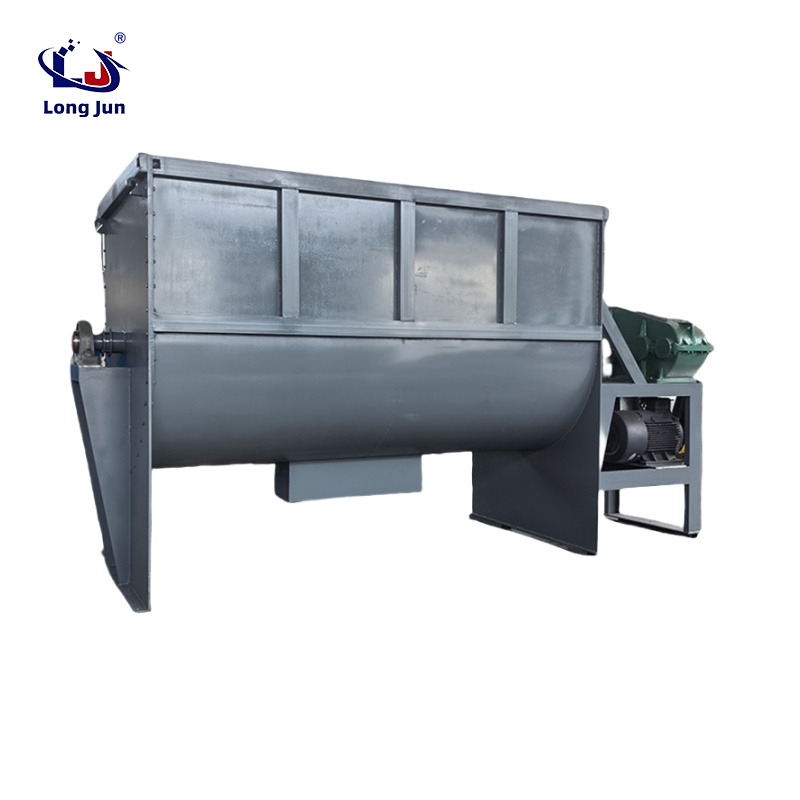

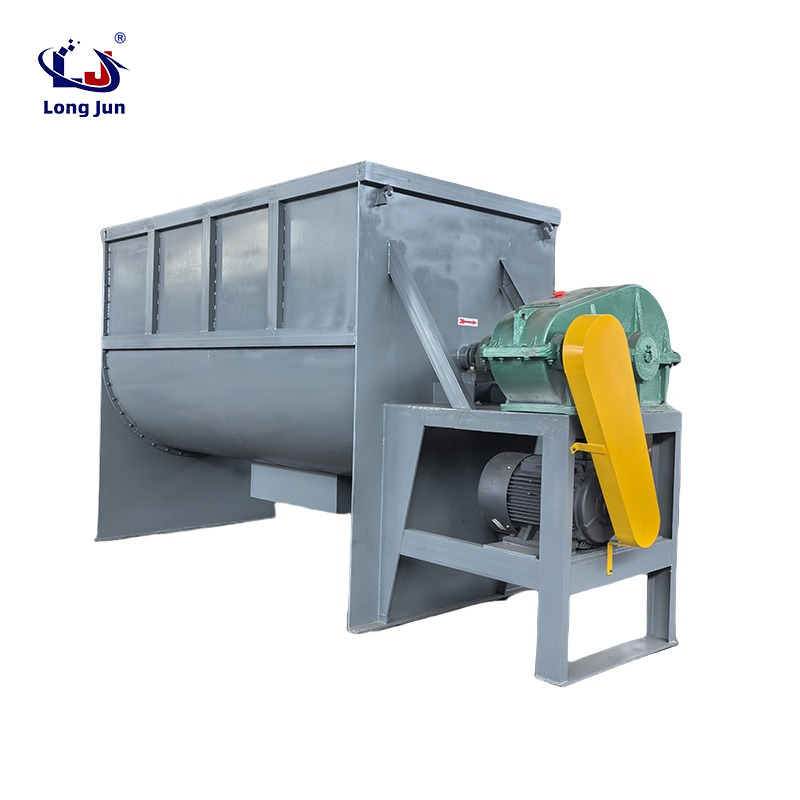

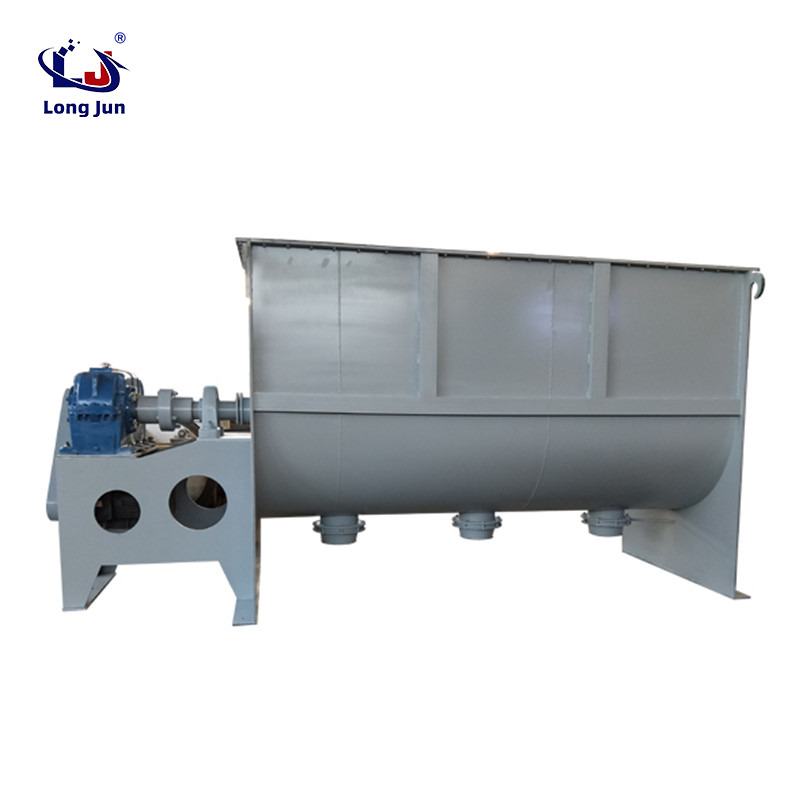

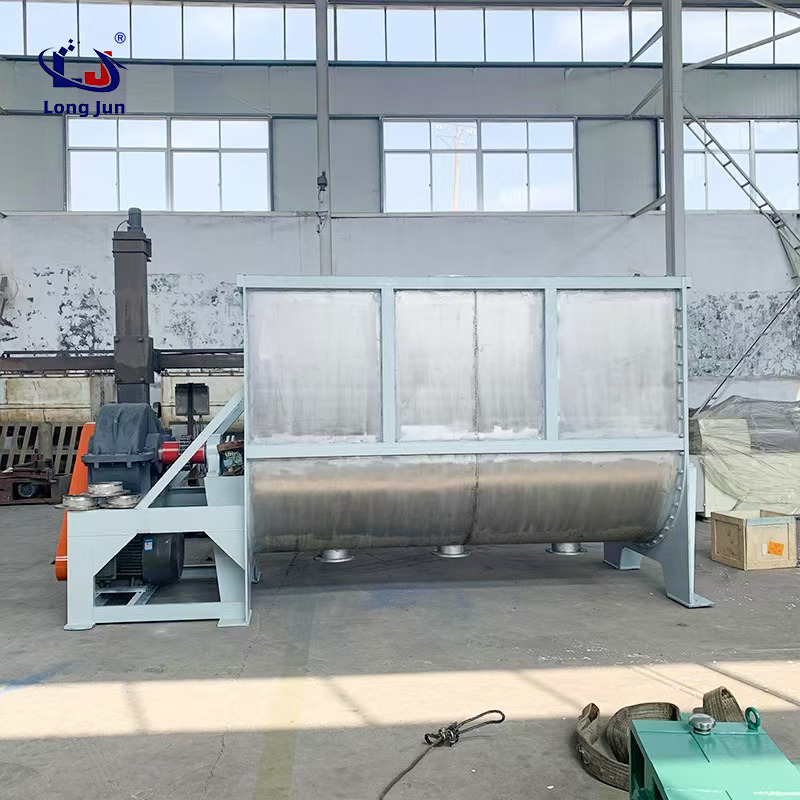

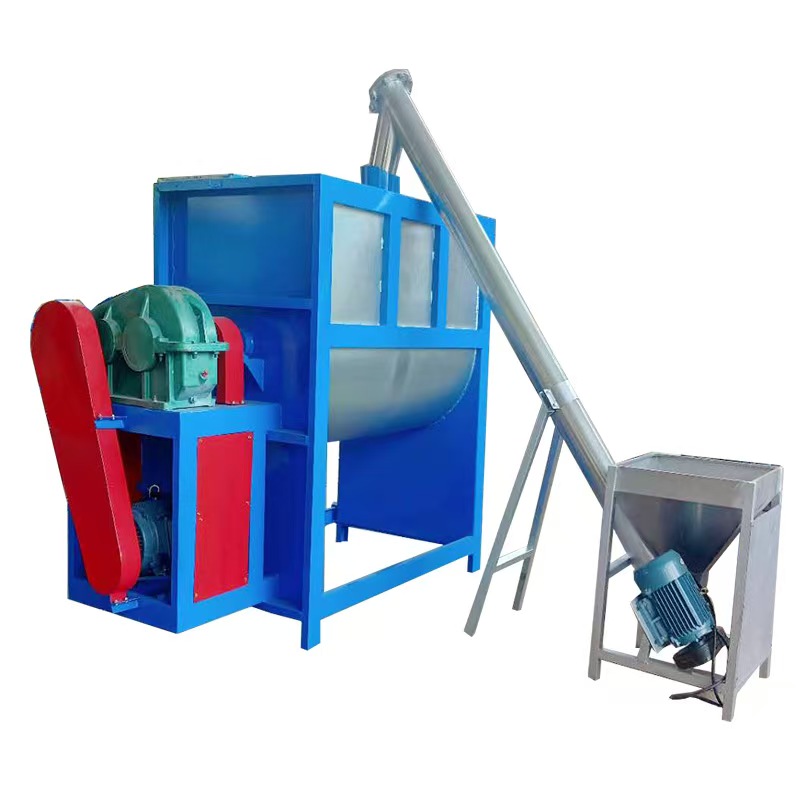

Dry powder horizontal screw belt mixer product introduction:
The structure of the horizontal double screw belt mixer consists of a U-shaped cylinder, screw belt stirring blades, and transmission components; Its function is to mix various ingredients of powder and liquid evenly, with characteristics such as wide applicability, good mixing uniformity, low material residue, and easy maintenance. It is an ideal equipment for powder material mixing processing.
working principle:

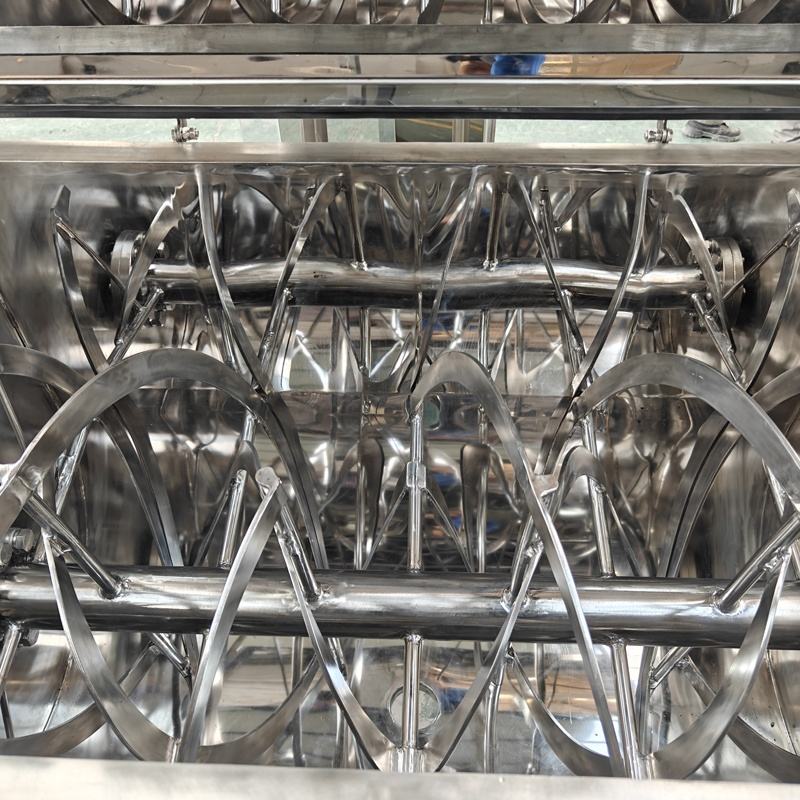

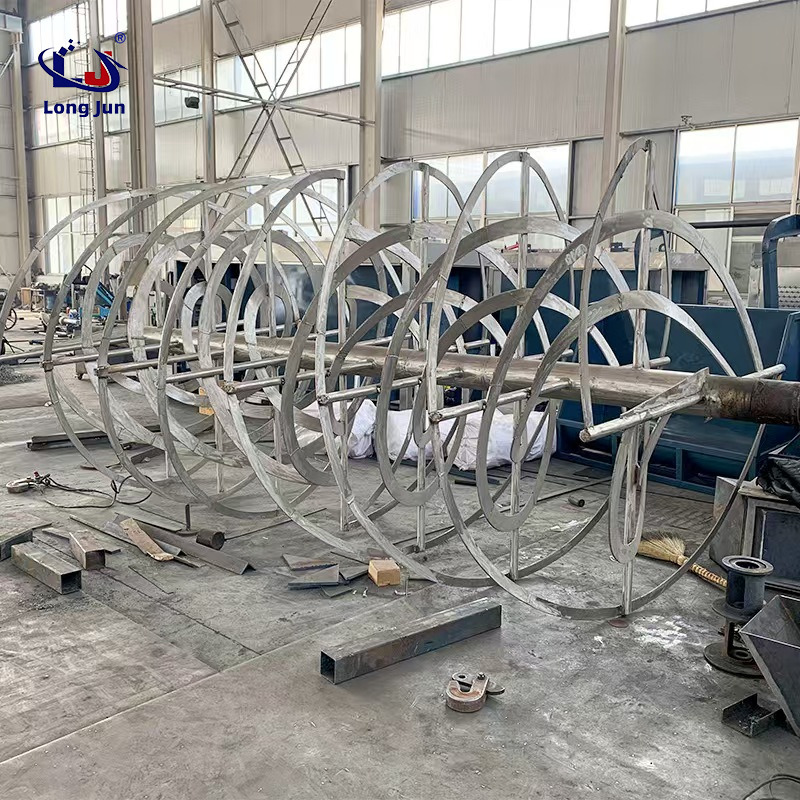

The U-shaped cylinder of the horizontal double screw belt mixer is equipped with a double-layer screw belt wound agitator shaft. The outer screw belt, driven by power, pushes the material from both ends of the U-shaped bin to the center, while the inner screw belt pushes the material from the middle to both ends, forming convective mixing. A discharge port is opened at the center of the bottom of the cylinder, and the outer screw belt drives the material inside the cylinder wall to the central discharge port to ensure discharge.
The high-efficiency mixing machine for dry powder particles consists of a mixing bin, a stirrer, and a driving device. A double-layer helical stirrer shaft is installed inside the U-shaped tubular bin. The outer helical belt is driven by power and its winding form is coordinated with the rotation direction to push the material from both ends of the U-shaped bin to the central area, while the inner helical belt pushes the material from the middle to both ends, forming convective mixing.
Technical Parameters
| Spec | WLDH-100 | WLDH-300 | WLDH-500 | WLDH-1000 | WLDH-1500 | WLDH-2000 | WLDH-3000 | WLDH-4000 | WLDH-6000 | WLDH-8000 | WLDH-10000 |
| Total volume(L) | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 |
| Mixed amount/batch (L) | 30-60 | 90-180 | 150-300 | 400-600 | 450-900 | 600-1200 | 900-1800 | 1200-2400 | 1800-3600 | 2400-4800 | 3000-6000 |
| Power (Kw) | 1.5-4 | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| Rotating speed (RPM) | 65 | 65 | 65 | 46 | 38 | 33 | 28 | 28 | 28 | 24 | 21 |
Main uses of multifunctional mixer
Powder dry powder screw belt mixer is a new type of high-efficiency and high-precision mixing equipment, widely used in pharmaceuticals, food, chemical industry, and other industries. It can be used for mixing powders with each other, mixing powders with small amounts of liquid, and mixing powders with particles.
Multi functional powder particle mixer, high-efficiency powder particle mixer, WLDH series screw belt mixer
