| Quantity: | |
|---|---|
1000L
Longjun

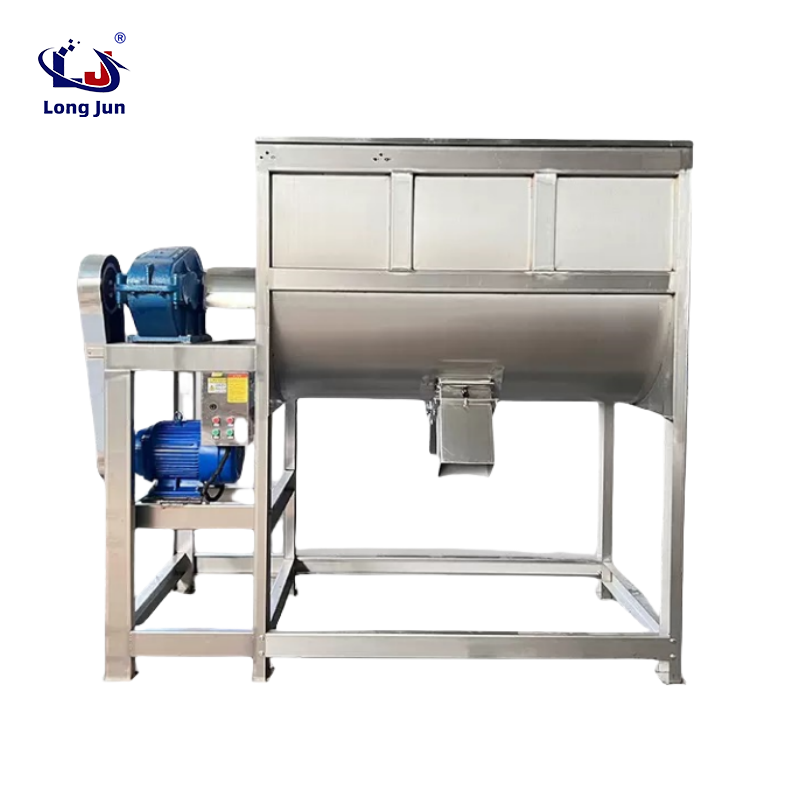

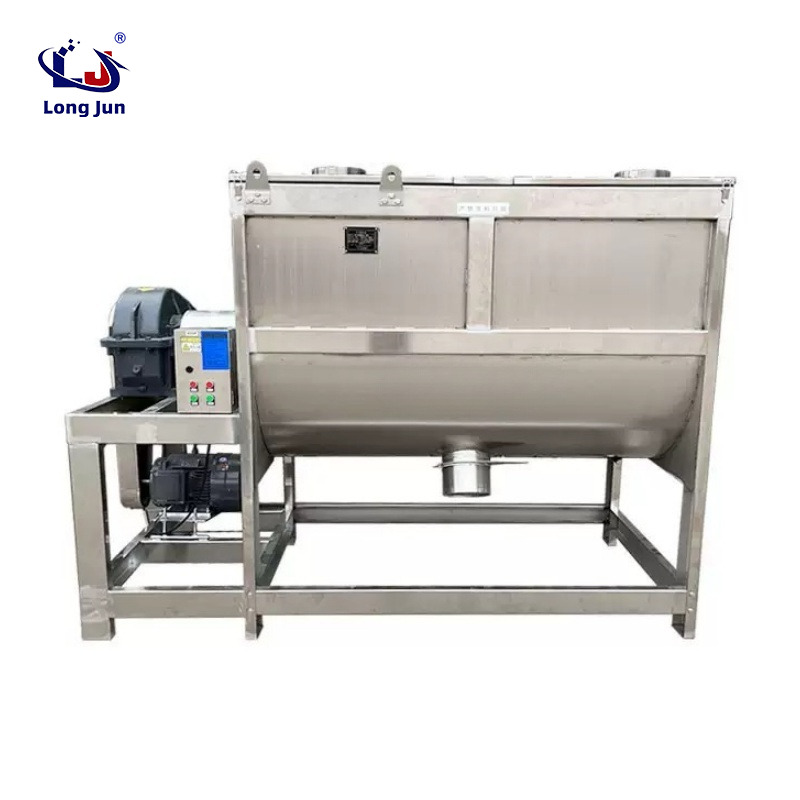

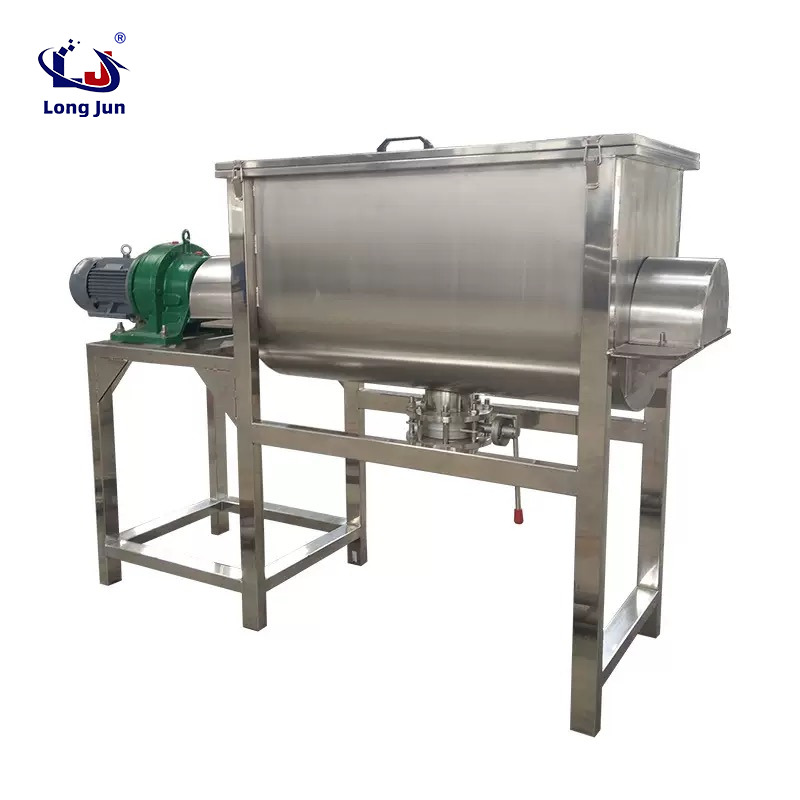

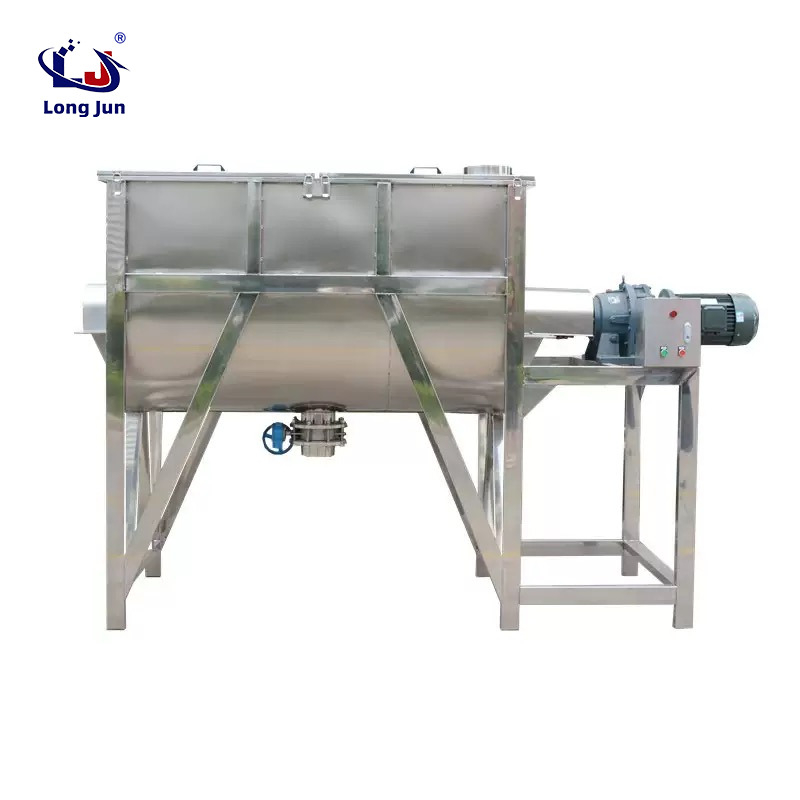

A horizontal mixer is an efficient equipment designed specifically for the uniform mixing of various particles, powders, flakes, and granules. This machine adopts a horizontal body and a spiral belt mixer, which has the advantages of small footprint, easy operation, simple maintenance, high uniformity, less residue, good sealing, no vibration, and less dust.
application
1. The horizontal mixer is mainly used for mixing objects such as corn, chili powder, spices, feed, flour, soybean powder, and feed additives.
2. Horizontal mixers are widely used in industries such as chemical, food, construction, plastics, fertilizers, and agriculture,
Environmental industry, cosmetics, and personal care. The application of horizontal mixers spans multiple industries, where efficient and consistent ingredient mixing is crucial for product quality, productivity, and customer satisfaction.

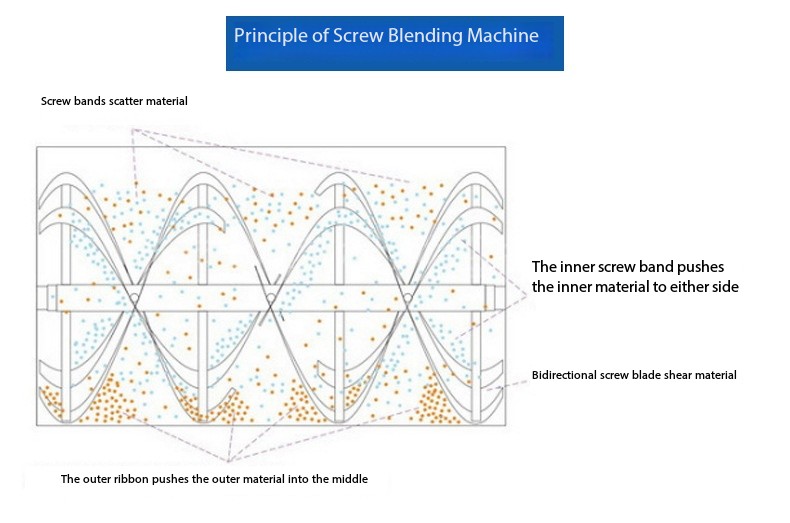

The screw belt mixer is applied to the mixing of solid (i.e. powder to powder) and solid slurry (i.e. powder to adhesive liquid) in putty paste, real stone paint, dry powder, putty, medicine, food, chemicals, feed, ceramics, refractory materials, etc., especially suitable for the mixing of viscous materials. This mixer is not suitable for mixing materials with high fiber content and significant density differences. For industries such as putty, real stone paint, biology, medicine, and food, it is recommended to use stainless steel material. In general, when mixing dry powder sand slurry containing vitrified microbeads, it is recommended to use a horizontal screw belt mixer. The motor is directly connected to the mixing spindle through a cycloidal pinwheel reducer, which has a simple structure, high operational reliability, and easy maintenance.
| Model | Capacity | Size of mixing tank(m) | Thickenss of machine's body | Thickness of the rlbbon | Power(kw) | Reductor |
| XD-300 | 300L | 1.05*0.5*0.6 | 3mm | 6mm | 3 | 200 |
| XD-500 | 500L | 1.2*0.65*0.7 | 3mm | 6mm | 4 | 250 |
| XD-700 | 700L | 1.22*0.73*0.85 | 3mm | 8mm | 5.5 | 250/350 |
| XD-1000 | 1000L | 1.5*0.8*0.95 | 4mm | 8mm | 7.5 | 350 |
| XD-1500 | 1500L | 1.8*0.9*1.05 | 4mm | 8mm | 7.5 | 350 |
| XD-2100 | 2100L | 2*1*1.15 | 4mm | 8mm | 11 | 350 |
| XD-3200 | 3200L | 2.2*1.2*1.35 | 4mm | 8mm | 11-15 | 350 |
| XD-4300 | 4300L | 2.51.26*1.45 | 4mm | 8mm | 15-18.5 | 350 |
| XD-6400 | 6400L | 2.9*1.5*1.65 | 6mm | 10mm | 22 | 500 |
| XD-8000 | 8000L | 6mm | 10mm | 37 | 650 | |
| XD-10M | 10m² | 3.7*1.6*1.9 | 6mm | 12mm | 37 | 650 |
| XD-10M-2 | 10m² | 8mm | 14mm | 37 | 650 | |
| XD-15M | 15m² | 4.5*1.85*2.05 | 8mm | 14mm | 45 | 750 |
| You can customize 201 bracket carbon steel, all 201, contact 304 bracket 201, all 304 materials | ||||||
frequently asked questions
Q1: Is the mixer suitable for food grade or pharmaceutical applications?
Yes, it uses SS304 contact parts for mirror polishing, which is very suitable for a hygienic processing environment.
Q2: What kind of security protection does it have?
It is equipped with an interlocking safety grid system. If the lid is opened and the grille is not properly positioned, the machine will automatically stop to prevent accidents.
Q3: How can the emission system minimize product loss to the greatest extent possible?
The DN200 pneumatic gate valve and optimized bottom design ensure complete discharge without material accumulation.
Q4: Can I adjust the mixing speed according to the viscosity of different materials?
of course. The mixer uses variable frequency control (VFD) to provide adjustable speed from 0 to 35rpm.
Q5: Apart from mineral salts, what other materials can this blender handle?
It is also suitable for powders, granules, and fine crystals in the chemical, plastic, building materials, food, and agricultural industries.
