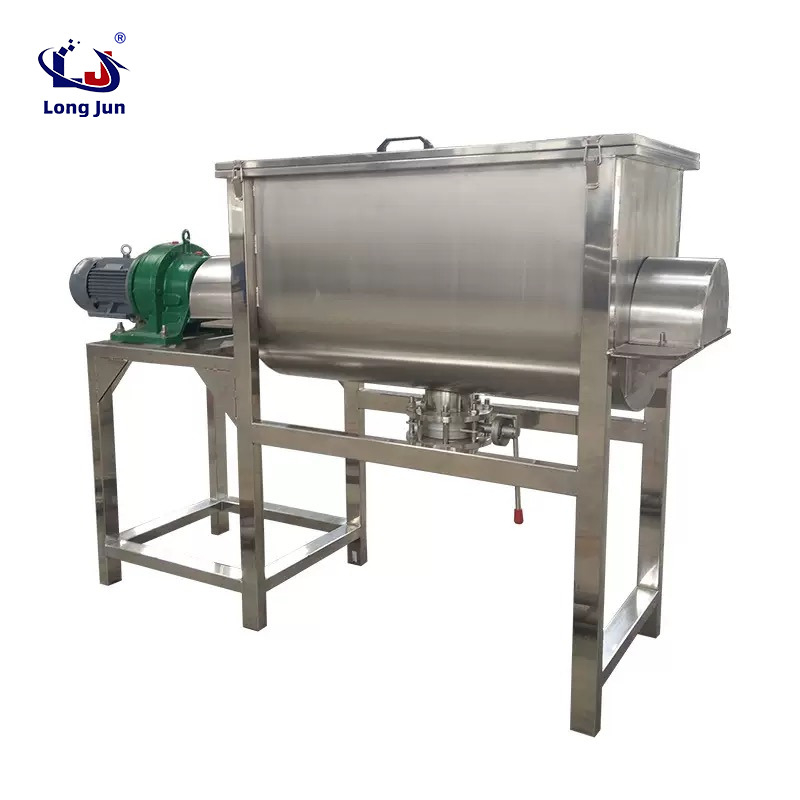

Small belt mixer powder 100L horizontal belt mixer

Product introduction of mixer:

1. Overview:

It has the characteristics of efficient and rapid mixing of materials, and can be used for mixing powder with powder, powder with liquid. It can also be used as a reaction equipment and drying equipment.

2. Working principle:

There is a U-shaped horizontal cylinder, a mixing shaft, and inner and outer double-layer screw belts on the shaft. The stirring shaft rotates, causing the inner and outer spiral belts to flip the material over a large range. The inner spiral belt moves the material to both sides, while the outer spiral belt moves the material from both sides inward, causing the material to mix back and forth. Another part of the material is pushed by the spiral belt and moves radially along the axial direction, forming a convective cycle. The stirring of the above motion enables the material to achieve rapid and uniform mixing in a short period of time.

3. The main application areas of horizontal screw belt mixer:

Widely applicable for solid to solid (i.e. powder to powder) and powder to slurry mixing in industries such as chemical, pharmaceutical, food, compound fertilizers, health products, dyes, pigments, rubber, building materials, milk powder, feed, additives, aquaculture, biotechnology, fine chemicals, ceramics, refractory materials, rare earths, plastic glass, as well as new materials, nuclear energy materials, etc.
