| Quantity: | |
|---|---|
1000L
Longjun

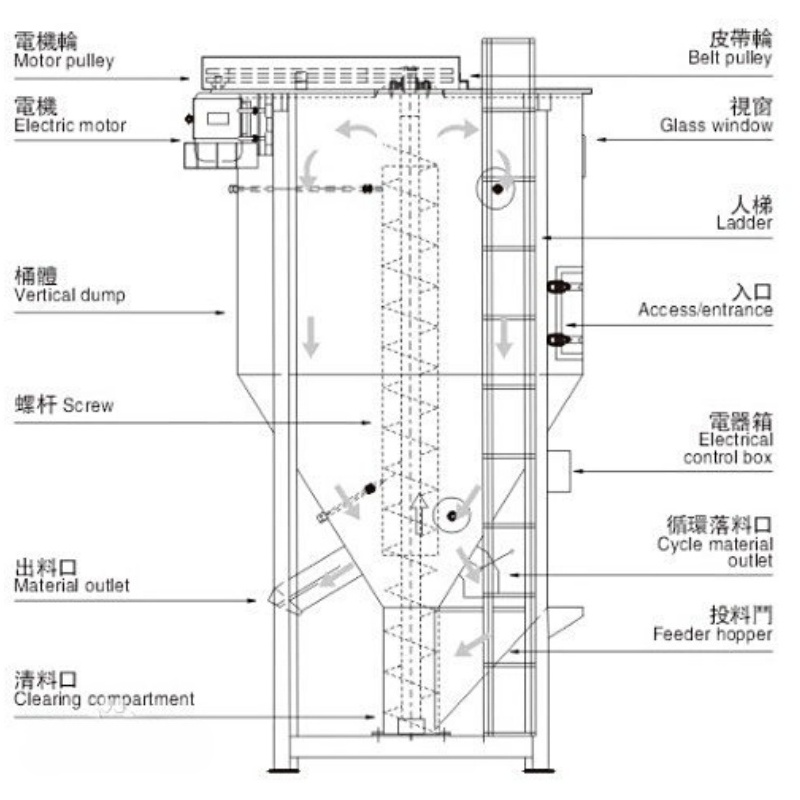

Working principle of vertical mixer:
The job of a vertical mixer is to quickly rotate the screw to lift the raw materials from the bottom of the barrel from the center to the top, and then scatter them in an umbrella shape, returning to the bottom. This way, the raw materials roll and mix up and down in the barrel, and a large amount of raw materials can be evenly mixed in a short time.
Vertical mixers are used for chemical, powder, plastic sheet materials, crushed materials, plastic pellets, new and old plastic materials, as well as for mixing and homogenization with added colorants.
Mainly used for mixing raw materials, the tray is lined with polypropylene or stainless steel plates, making it less prone to sticking. Wear resistant, using cycloidal pinwheel reducer has the characteristics of compact structure, easy operation, uniform mixing, and convenient unloading and conveying. Used in conjunction with organic fertilizer equipment production lines.
Product Parameters:
| Model/Item | Driving motor power/kw | Heating power/kw | Output/kg | Overall dimensions/mm |
| VM-500 | 4 | 15 | 500 | 1200x2650 |
| VM-1000 | 4 | 20 | 1000 | 1500x2800 |
| VM-2000 | 5.5 | 20 | 2000 | 1800x3250 |
| VM-3000 | 7.5 | 30 | 3000 | 2000x3750 |
| VM-5000 | 7.5 | 40 | 5000 | 2400x4200 |
| VM-6000 | 11 | 50 | 6000 | 2500x4500 |
| VM-8000 | 11 | 60 | 8000 | 2750x5100 |
| VM-10000 | 11 | 70 | 10000 | 3000x5350 |
Remarks: all the information above is only for reference; pls feel free to contact us for the accurate data.
