1000L
Longjun
Plastic granule horizontal mixer supporting power: 5.5 kW
Mixing time 20 minutes/ton
Mixing uniformity 99%
Material release time 10 minutes/ton
Mechanical dimensions 2300 * 1800 * 1200
Reducer model 250, speed 26 revolutions per minute
Processing category:
Various dry and wet materials, chemical raw materials, feed, powder, and materials with a moisture content of 100% that can be mixed.

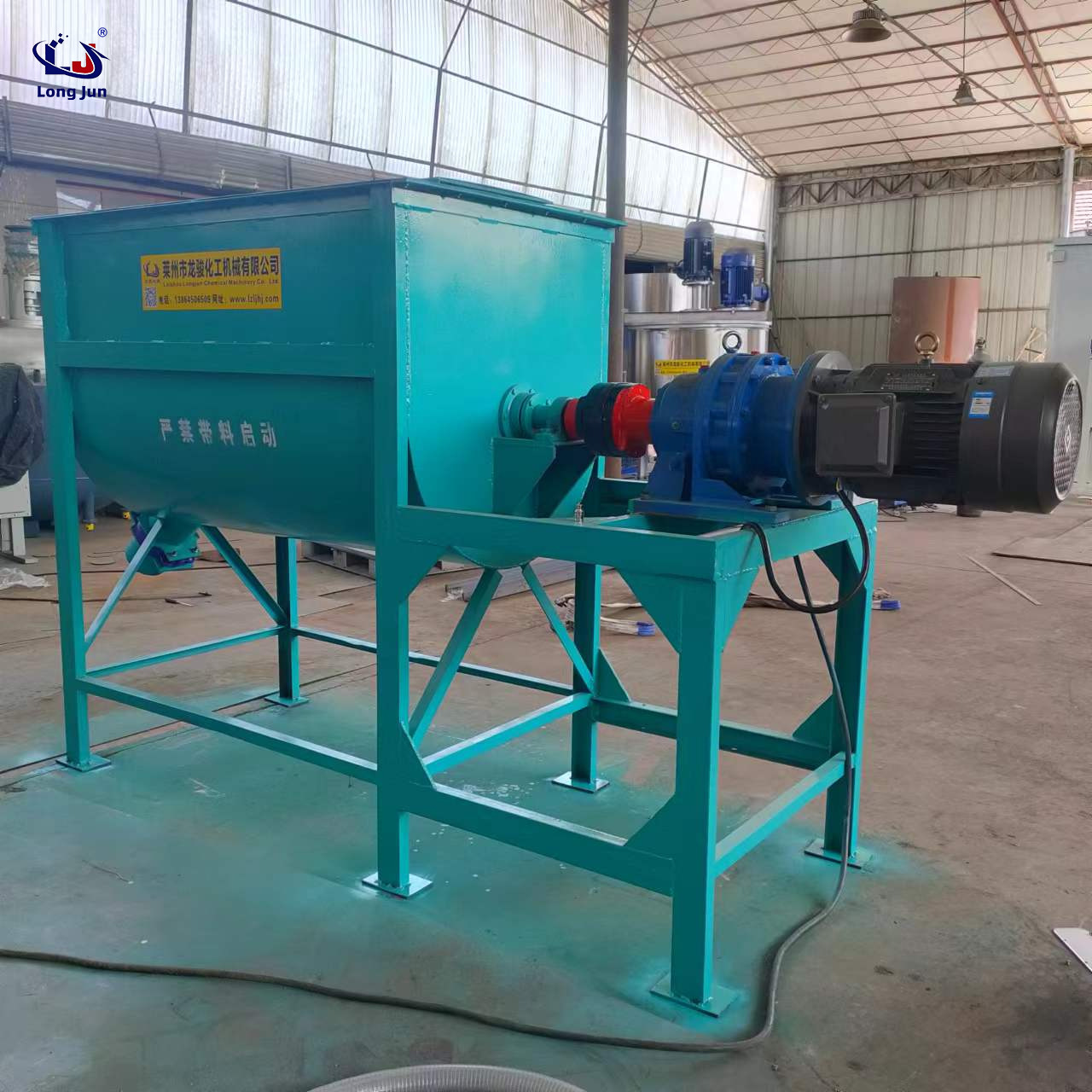

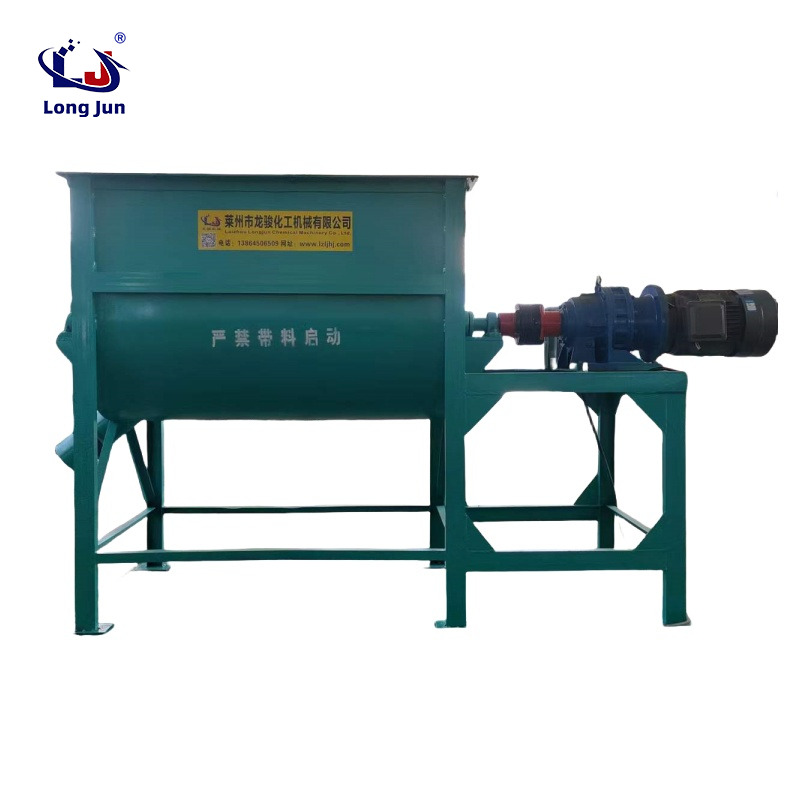

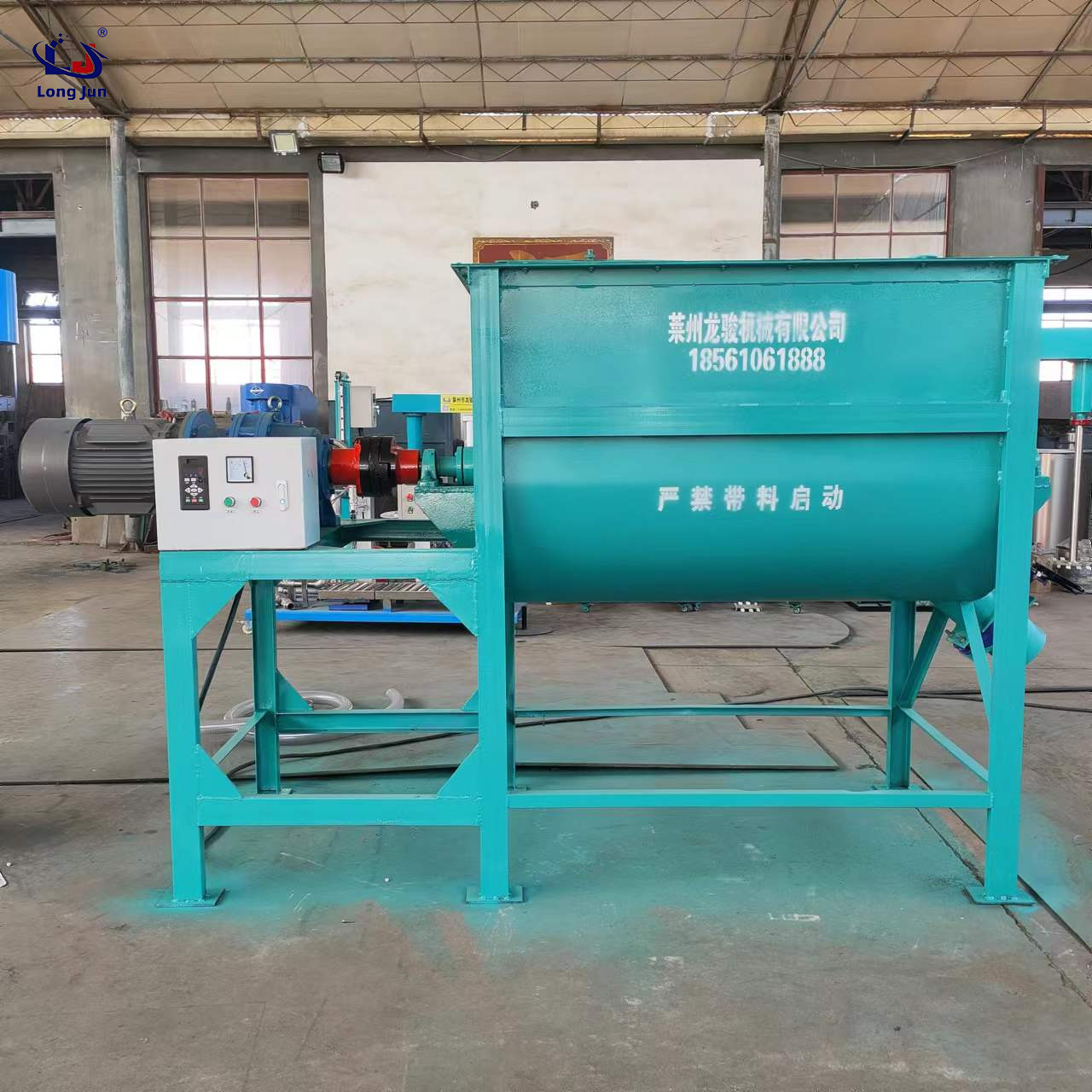

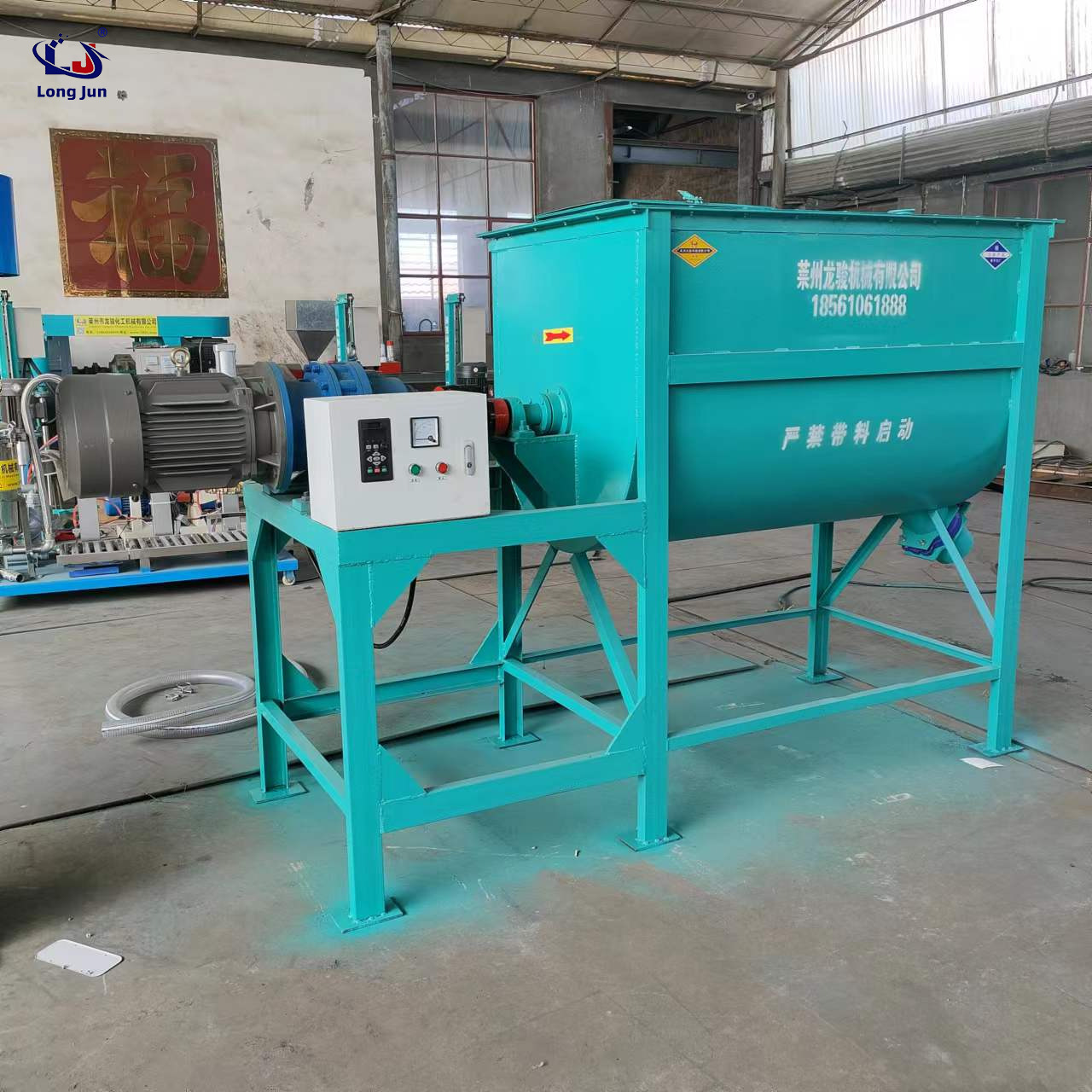

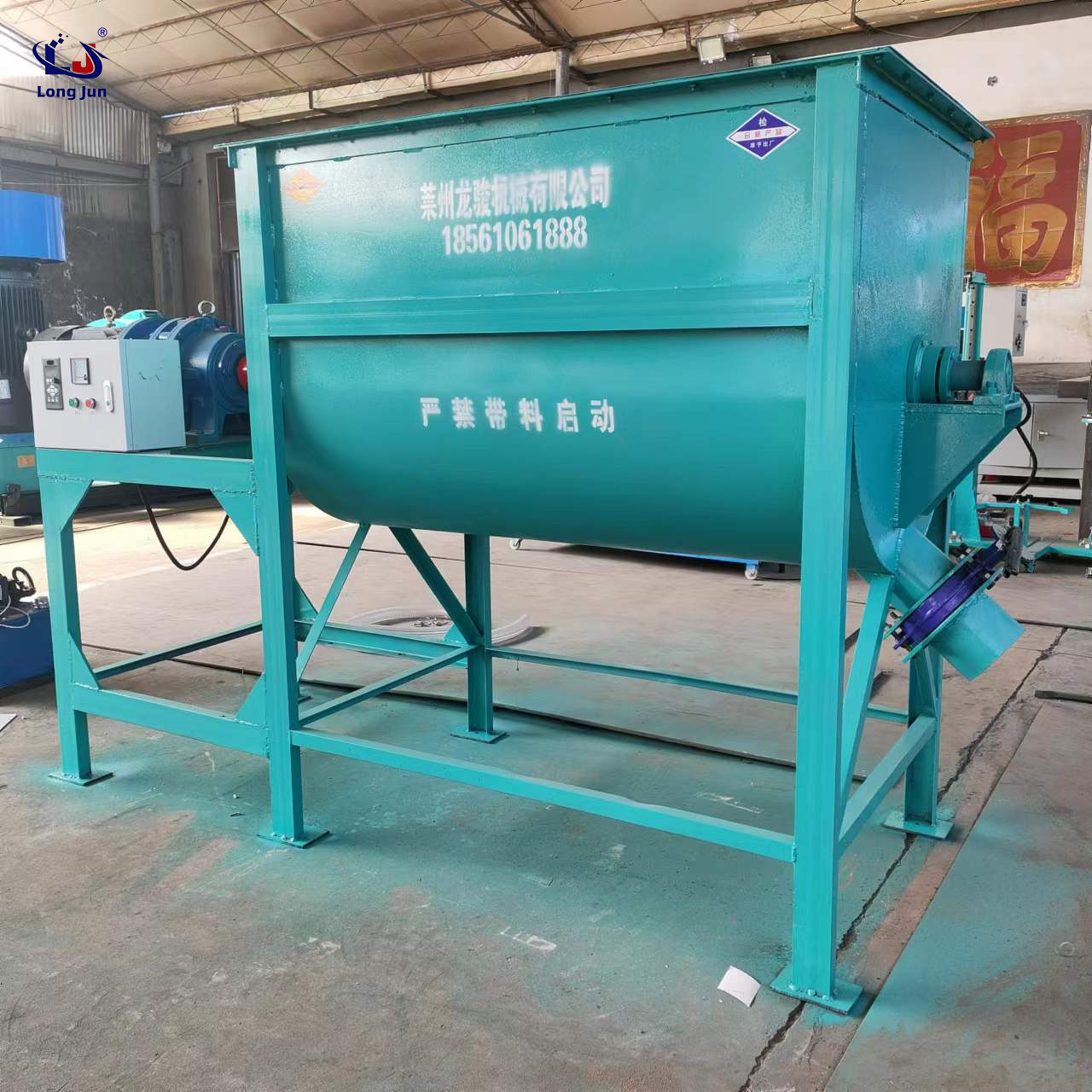

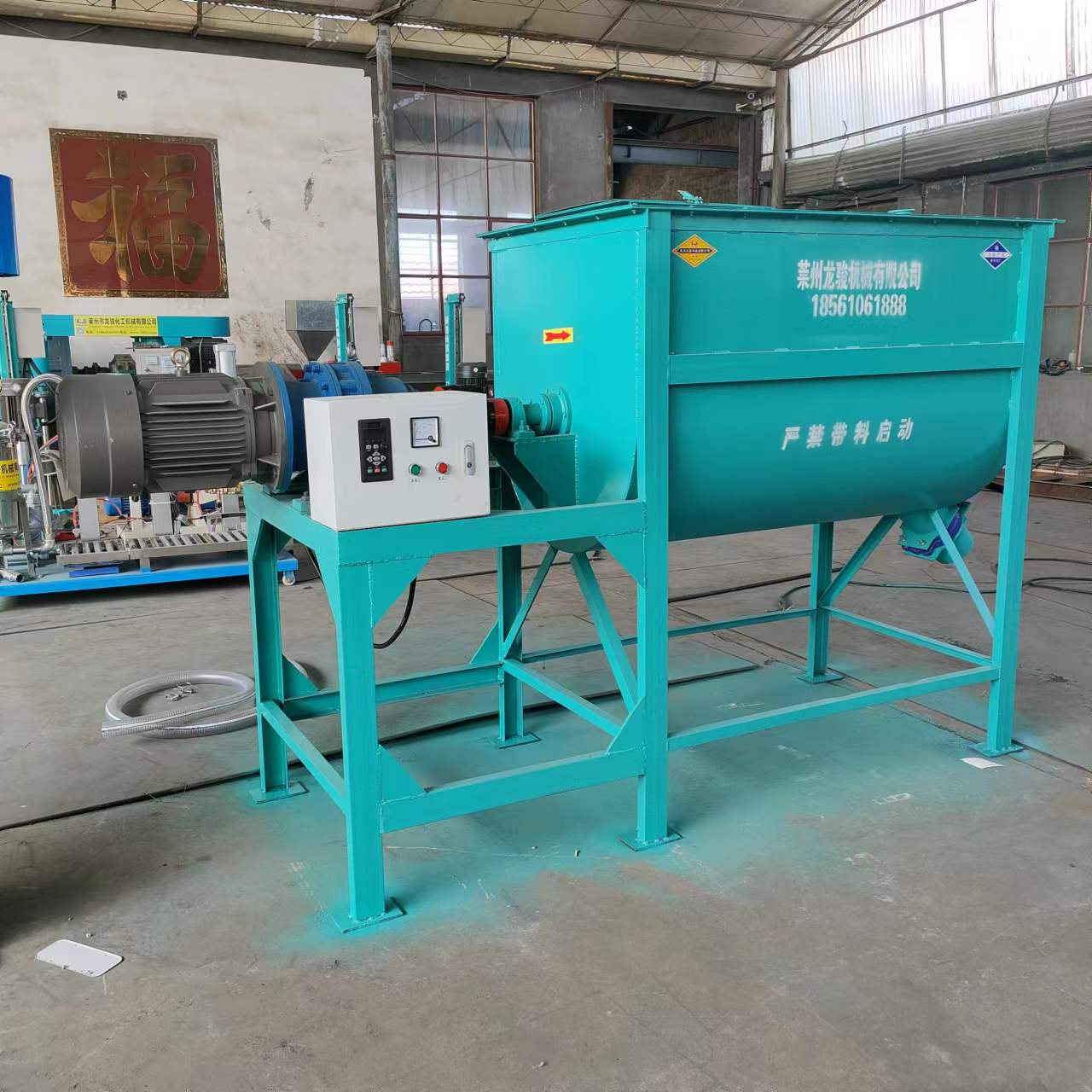

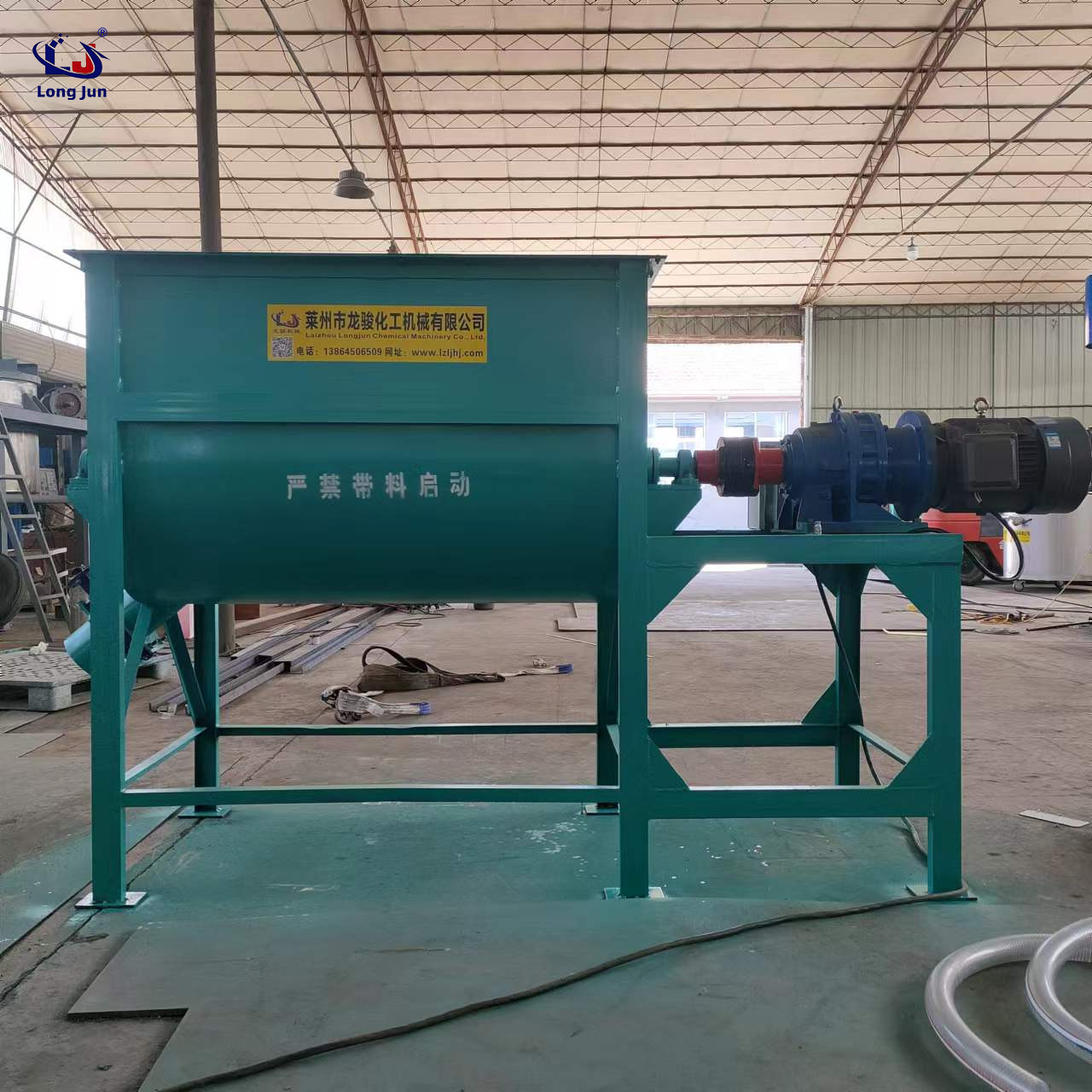

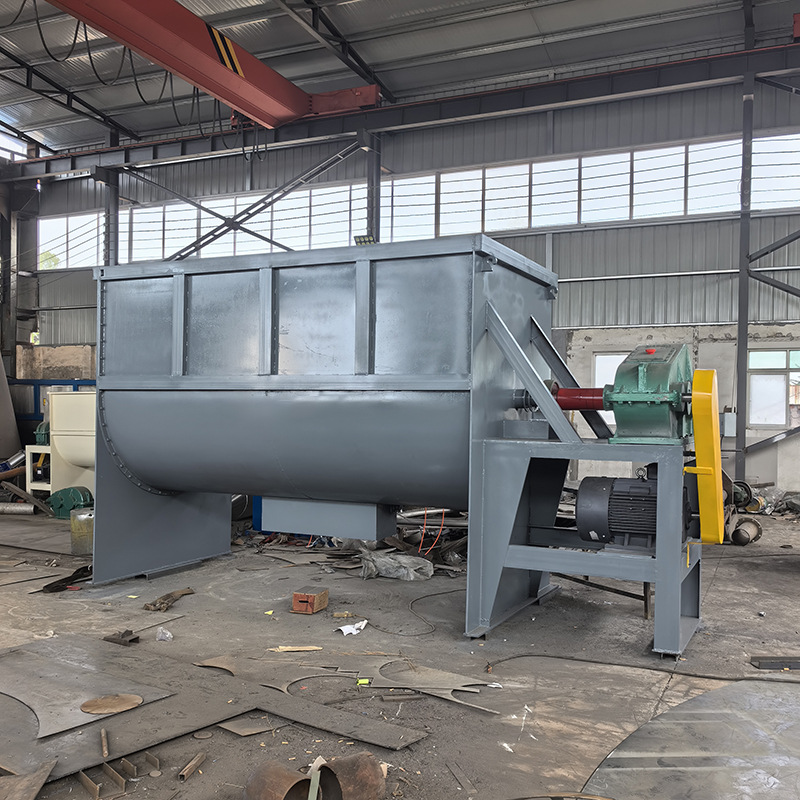

The plastic particle horizontal mixer adopts a U-shaped semi cylindrical horizontal placement form, with one layer of screw belt inserted in the middle, bearings at both ends of the U-shaped cylinder, connected to the mixing motor through a reducer, and equipped with a feeding elevator and filling machine. Equipped with a foot operated valve, convenient and time-saving. The material is mixed uniformly through a layer of spiral belt and external blade stirring in the form of overall motion. (Please ensure that the main motor switch is matched with a reverse switch)
Plastic color mixing machine - Longjun Machinery
DESCRIPTION
1. Plastic color mixing machine - Longjun Machinery is suitable for mixing and coloring large quantities of plastic pellets, glue, and new and old materials (single layer without heating).
2. Suitable for mixing and drying (double-layer heating) of plastic particle powders such as PVC, TPR, TPE, PP, PE, etc.
3. Double layer heating can reach a high temperature of up to 300 ℃.
4. A3 board inner wall or SUS304 inner wall can be selected.
5. Imported electric temperature control parts from famous manufacturers (Japan or Taiwan, China) are used.
6. Adopting imported brand reducers or gearboxes for safe, smooth, and reliable reduction.
7. Optional spiral feeder for easy operation by personnel.
8. Special and larger models can be customized according to the actual needs of customers.
DESCRIPTION
1. Suitable for mixing and coloring large quantities of plastic pellets, glue, and new and old materials (single layer without heating).
2. Suitable for mixing and drying (double-layer heating) of plastic particle powders such as PVC, TPR, TPE, PP, PE, etc.
3. Double layer heating can reach a high temperature of up to 300 ℃.
4. A3 board inner wall or SUS304 inner wall can be selected.
6. Reduce speed with imported brand reducers or gearboxes, ensuring safety, stability, and reliability.
Technical Parameters:
| Spec | WLDH-100 | WLDH-300 | WLDH-500 | WLDH-1000 | WLDH-1500 | WLDH-2000 | WLDH-3000 | WLDH-4000 | WLDH-6000 | WLDH-8000 | WLDH-10000 |
| Total volume(L) | 100 | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 4000 | 6000 | 8000 | 10000 |
| Mixed amount/batch (L) | 30-60 | 90-180 | 150-300 | 400-600 | 450-900 | 600-1200 | 900-1800 | 1200-2400 | 1800-3600 | 2400-4800 | 3000-6000 |
| Power (Kw) | 1.5-4 | 3-5.5 | 4-11 | 7.5-15 | 11-18.5 | 15-22 | 18.5-30 | 22-37 | 37-55 | 37-55 | 45-75 |
| Rotating speed (RPM) | 65 | 65 | 65 | 46 | 38 | 33 | 28 | 28 | 28 | 24 | 21 |
