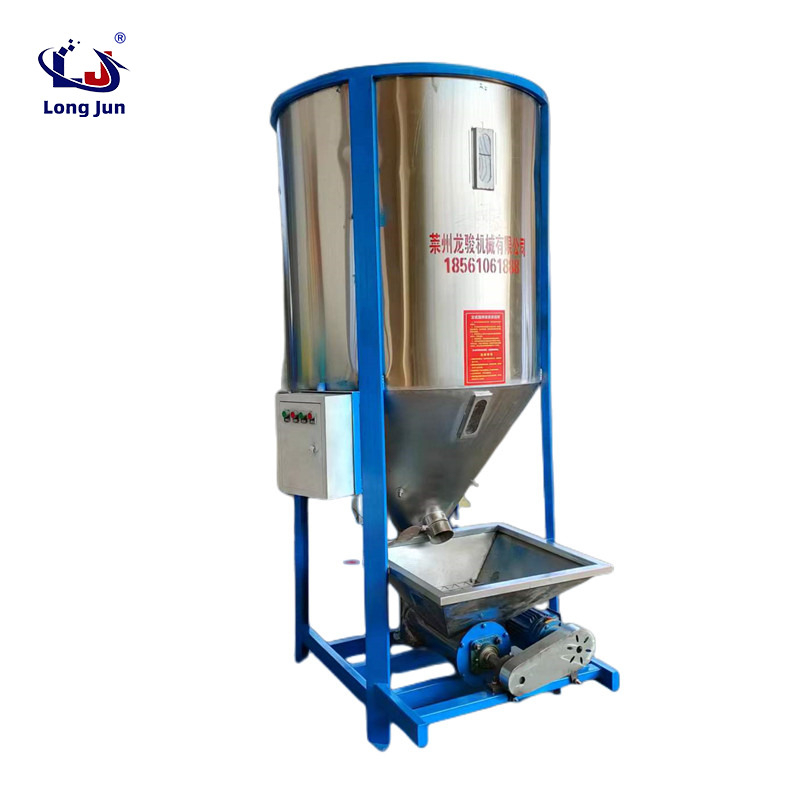

Plastic Mixing Tank Vertical Color Mixer for Particle Material

The job of a vertical mixer is to quickly rotate the screw to lift the raw materials from the bottom of the barrel from the center to the top, and then scatter them in an umbrella shape, returning to the bottom. This way, the raw materials roll and mix up and down in the barrel, and a large amount of raw materials can be evenly mixed in a short time. Used for chemical, dry powder, plastic sheet materials, crushed materials, plastic pellets, new and old plastic materials, as well as adding colorants for mixing and homogenization.

Quantity:
Availability:





Inquire Add to Basket

Model:
1000L
Brand:
Longjun

Product Description

Features:
1.Major sections : barrel,screw ,spray system, feeding parts, discharging part and driven unit.
2. Sizes : available from 300Liter to 5000 Liters.
3. Material: Carbon Steel, Stainless Steel 304, Stainless Steel 316L
4,Discharge : Butterfly valve or blade valve. The drive of valve can be divided into manual, pneumatic, and electric.
5,Speed: Controls such as variable frequency drives, motor starters and operator stations are available.
6. Temperature :mixer can be equipped with heating, if temperature control is required
7. Application : Powder mixing, Animal feed mixing, Plastic flakes mixing, Plastic granules mixing, etc.

Stainless Vertical Mixing Plastic Pellet Industrial Hot Mixer Machine Helical circular mixture, fast and evenly stirring Suitable for all kinds of plastic raw materials and color powder or granules Fully stainless steel contacting parts, rust free and easy to clean Installed with power control device to ensure safety Customizable for drying type model Vertical stirrer are able to perform even mixture for large volume of materials in short mixing time by utilizing the paddles rotation to gather the material from the bottom of dump center to the top, shed the material flow back to the bottom and complete the mixing function in short period of time .

b2de9c82d158ccbf0d74c76718d8bc3eb03541a6_副本

Product Parameters:

Model/Item	Driving motor power/kw	Heating power/kw	Output/kg	Overall dimensions/mm
VM-500	4	15	500	1200x2650
VM-1000	4	20	1000	1500x2800
VM-2000	5.5	20	2000	1800x3250
VM-3000	7.5	30	3000	2000x3750
VM-5000	7.5	40	5000	2400x4200
VM-6000	11	50	6000	2500x4500
VM-8000	11	60	8000	2750x5100
VM-10000	11	70	10000	3000x5350
