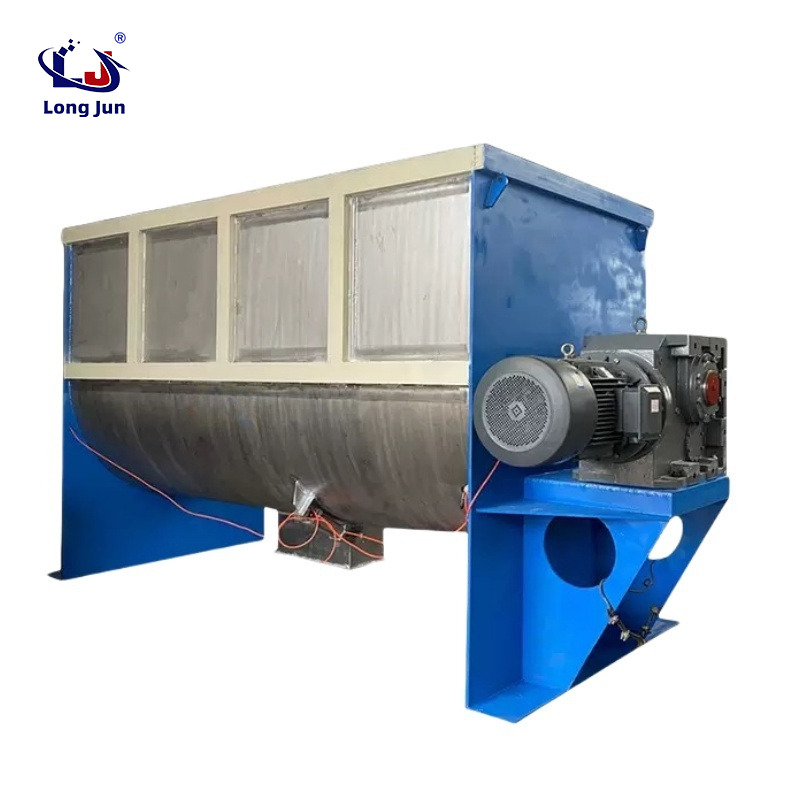

10T Horizontal Ribbon Blender for Powder

Introduction to horizontal ribbon mixer with graphite ribbon mixer

Scope of application:

The horizontal screw belt mixer is a new and efficient mixing equipment introduced from abroad, with an automatic temperature control system for heating temperatures ranging from 0-300 degrees. It has been innovatively designed by our professional personnel and is widely used in the mixing of powders and liquids in chemical, building materials, dyes, pigments, coatings, plastics, glass, additives, rubber, pharmaceuticals, food, health products, feed, biotechnology, ceramics, durable materials, compound fertilizers, rare earths, nuclear energy materials, battery materials and other projects.

Working principle of 10T ribbon mixer graphite ribbon mixer:

The horizontal screw belt mixer is used to flip the material within the range of the cylinder under the action of the inner and outer screw belts on the mixing shaft. The inner screw belt pushes the material from the middle to the two sides, and the outer screw belt pushes the material from the two sides to the center. The material that permeates back and forth moves and changes radially under the rotation of the screw belt, forming a convective cycle. Due to the stirring of the above motion, the material is quickly and uniformly mixed in a short time. Therefore, it is a high-efficiency mixing equipment with wide applications, strong adaptability, and good effects.

Characteristics of horizontal screw belt mixer:

1. The horizontal screw belt mixer is not affected by particle size and density under feasibility factors.

2. It has a good mixing effect on dry and wet materials or viscous materials.

3. The smooth mixing process reduces the damage to fragile materials.

4. Installing a flying knife structure can have a crushing effect on materials (optional for dry mortar or fiber materials).

5. The horizontal screw belt dry powder mixer is characterized by easy installation, low price, high uniformity of mixing, and wide applicability.

6. Heating temperature range of 0-300 degrees, automatic temperature control.

Technical Parameters

The horizontal screw belt mixer is driven by the inner and outer diameter screws installed on the mixing shaft to flip the material inside the drum, allowing the mixer to flip the material over a large area inside the drum. In terms of the structure of the mixer, the spiral is designed as an inner and outer, left and right opposite spiral. When the mixer is working, the inner spiral drives the material near the axis to rotate around the axis, pushing it from the inside to both sides in the axial direction. The outer spiral drives the material near the cylinder wall to rotate around the axis, pushing it from both sides to the inside in the axial direction. This causes the material to circulate and shear mix inside the cylinder, achieving rapid and uniform mixing of the material in a short period of time.

Powder mixing machine and horizontal screw belt mixer have the characteristics of simple and reasonable structure, easy maintenance, low power, safety and reliability, high mixing uniformity, no residue, and good sealing. Suitable for mixing powder additives and trace elements in multiple industries, clean, hygienic, and non oxidizing.

Powder mixing machine and horizontal screw belt mixer are mainly used for feed, chemical, pesticide, fuel, food, edible salt, traditional Chinese medicine powder, sugar, flour, etc. They have good sealing properties, are easy to pour due to transmission and gear drive, and can rotate 360 degrees left and right

frequently asked questions

Q1: Is the mixer suitable for food grade or pharmaceutical applications?

Yes, it uses SS304 contact parts for mirror polishing, which is very suitable for a hygienic processing environment.

Q2: What kind of security protection does it have?

It is equipped with an interlocking safety grid system. If the lid is opened and the grille is not properly positioned, the machine will automatically stop to prevent accidents.

Q3: How can the emission system minimize product loss to the greatest extent possible?

The DN200 pneumatic gate valve and optimized bottom design ensure complete discharge without material accumulation.

Q4: Can I adjust the mixing speed according to the viscosity of different materials?

of course. The mixer uses variable frequency control (VFD) to provide adjustable speed from 0 to 35rpm.

Q5: Apart from mineral salts, what other materials can this blender handle?

It is also suitable for powders, granules, and fine crystals in the chemical, plastic, building materials, food, and agricultural industries.
