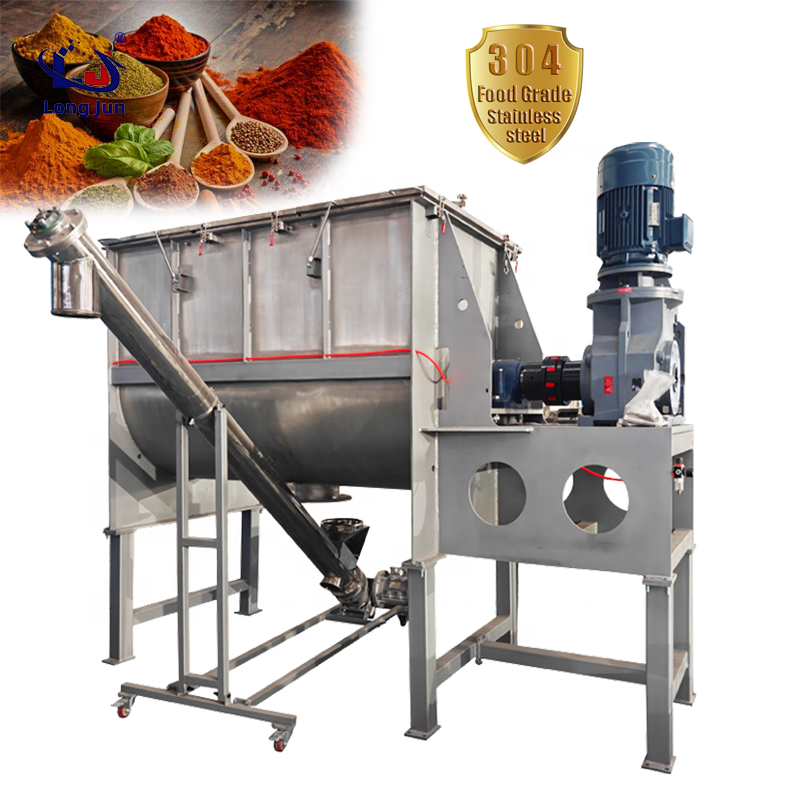

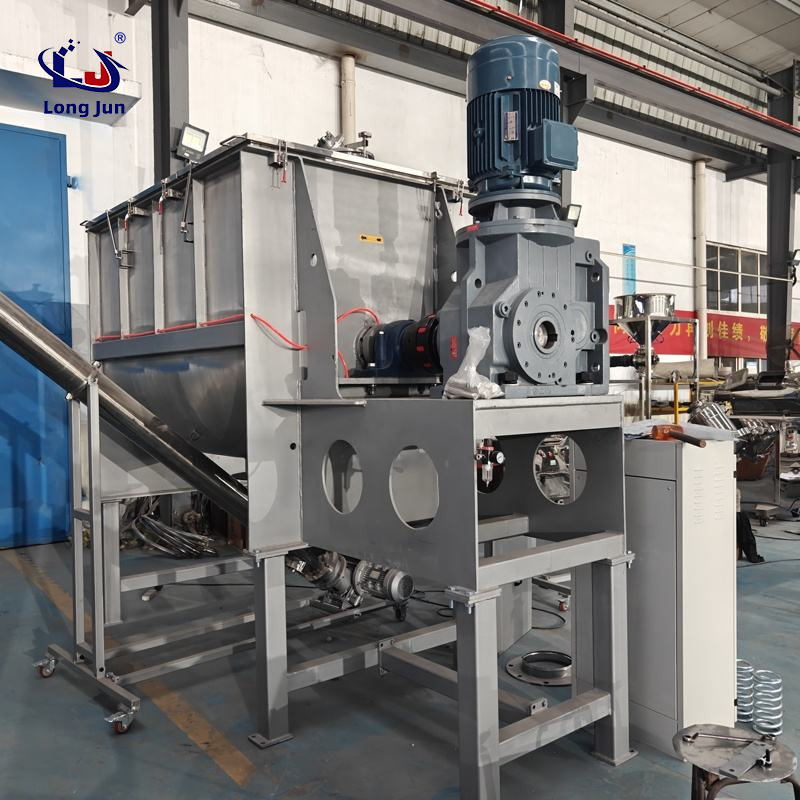

Food grade horizontal belt mixer with bottom screw conveyor

The horizontal screw belt mixer is a widely used single axis mixer, with double layered screw belts wound in a spiral form on the main shaft of the semi open tubular cylinder in a certain proportion. The spiraling spiral belt is attached to the main shaft and can push the material to move in the direction of the spiral belt.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

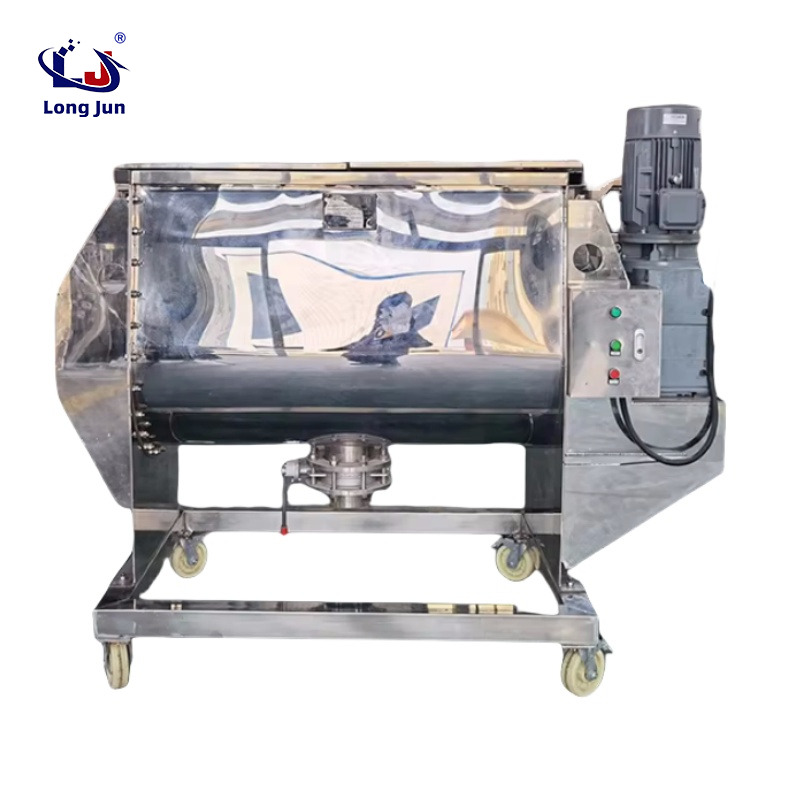

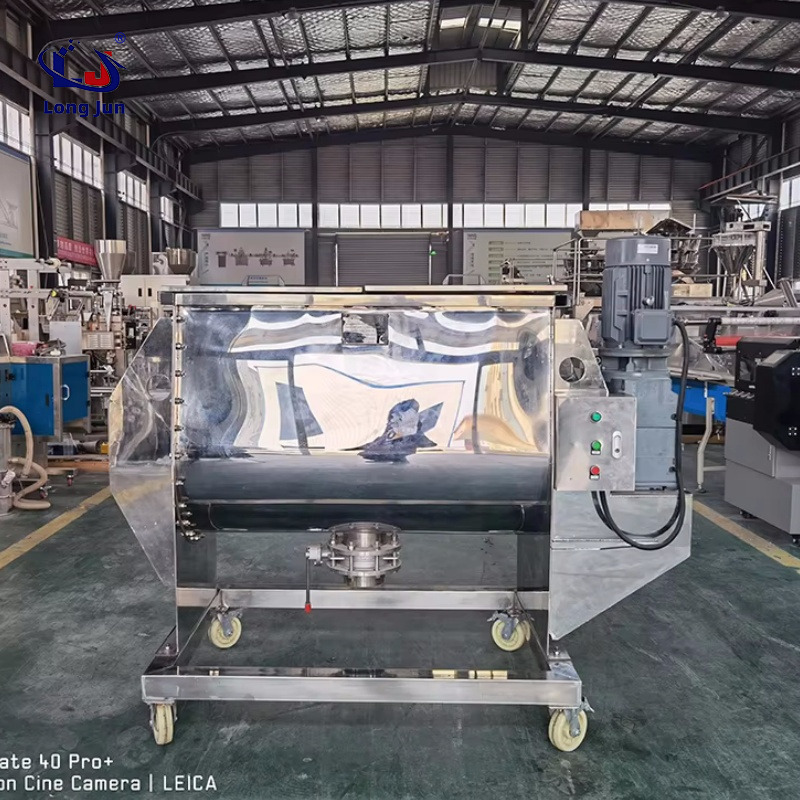

This is stainless steel mixer with food safety grade.

Usually it is suitable for food powders such as milk, flavored powders, sugar/salt mixtures, etc.

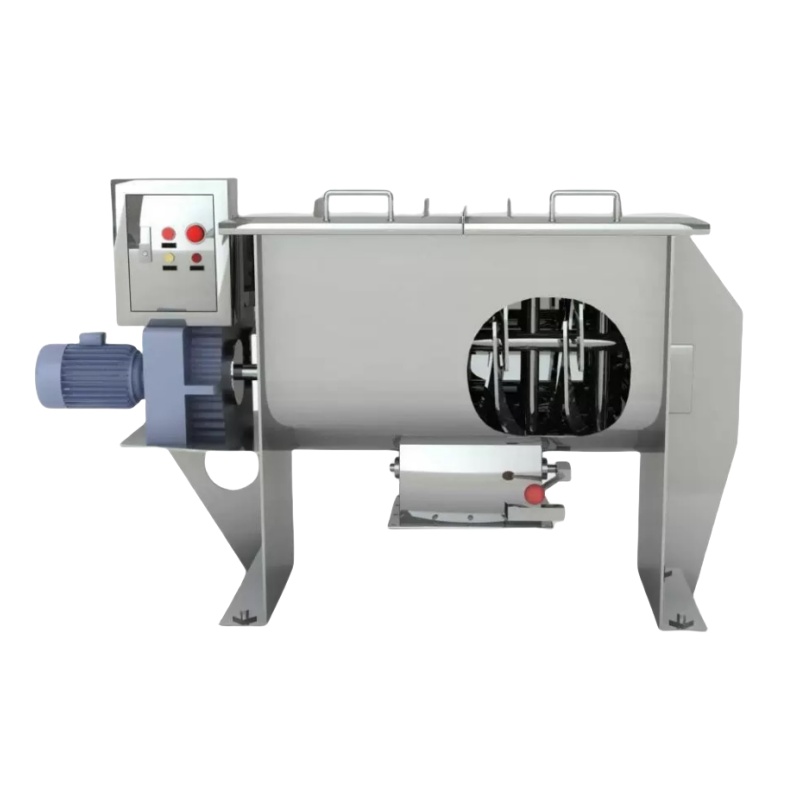

The machine is configured with a U-shaped mixing chamber with an internal mixing shaft and ribbon agitator.

5_副本

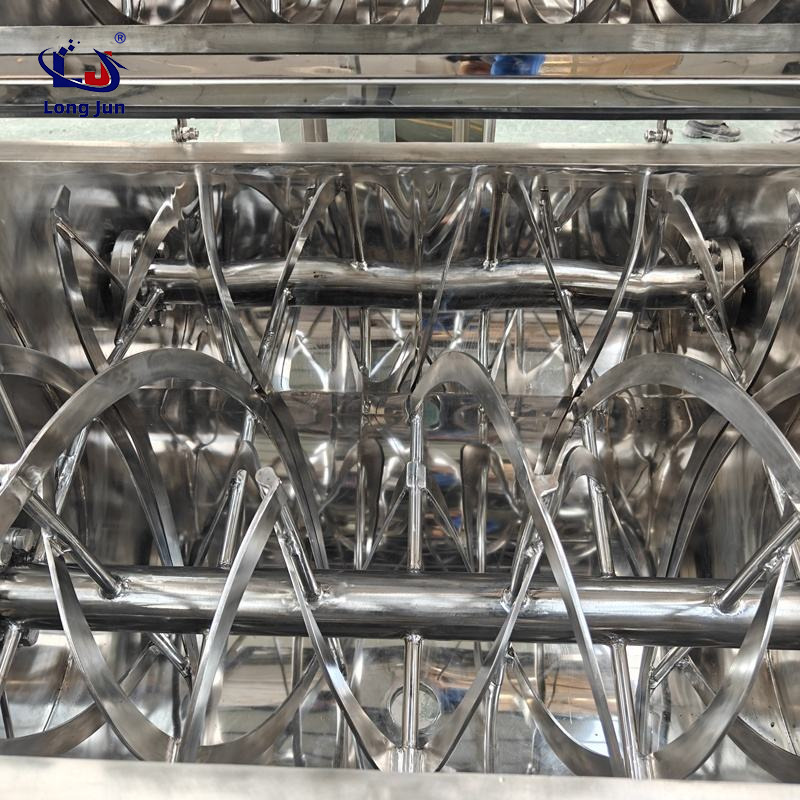

The working principle of the horizontal spiral belt mixer is to form vortices through the reverse rotation of the inner and outer double-layer (or three-layer) spiral belts. The outer spiral is used for centripetal aggregation, and the inner spiral is used for centrifugal conveying, achieving convective mixing. It has the characteristics of fast mixing speed and high uniformity.

Laizhou Longjun Machinery Co., Ltd. is an enterprise that integrates scientific research, development, production, and sales. It is a backbone enterprise in the national chemical machinery industry and plastic machinery industry. Located by the charming scenery and abundant resources of Laizhou Bay, it is situated in Shahe Town, a prosperous economic center of Laizhou, with excellent geographical location and convenient transportation.

Since its establishment, the company has been committed to the research and development of equipment for industries such as coatings, paints, food, chemicals, petroleum, cosmetics, rubber, silicone glue, glass glue, light clay, grout, real stone paint, dyes, resins, inks, leather additives, plastics, etc. Its products include more than 80 varieties in eight series including reaction series, kneading machine series, mixing series, grinding series, dispersion series, emulsification series, filtration series, extrusion series, etc. The product is sold in various places and exported to more than 20 countries around the world.

Our company undertakes the design and manufacturing of complete sets of equipment for chemical product assembly lines.

General Manager Zhao Xuchen and all employees welcome friends from all walks of life to visit and cooperate with us for common development!



Equipment modelEffective volume (L)Total power (kW)Speed (r/min)Overall size (mm)Equipment weight (KG)
WLDH-100502.2581190x740x770380
WLDH-150803532030x630x980450
WLDH-300150
532320x730x1130560
WLDH-5003007.5492800x920x1320680
WLDH-100060011423180*1020x15501200
WLDH-150080015423310x1120x16401600
WLDH-2000100018.5423750x1290x18202200
WLDH-3000150018.5374220x1400x19903300
WLDH-4000200022374220x1500x21003800
WLDH-5000300030314700x1610x22604300
WLDH-6000350037314420x2150x24705500
WLDH-8000420045275520*2360*27206800
WLDH-10000500055275720x2520x28407900
WLDH-12000600055235840x2850x29408800
WLDH-15000800075236000*3040x30507900
WLDH-200001000090196100x3300x315013500
WLDH-3000015000110176500x3500x350015000
