High Performance Sigma &Ribbon Mixer
You are here: Home » Products » Ribbon Mixer » Horizontal double belt mixer Industrial Rice noodles liquid mixer

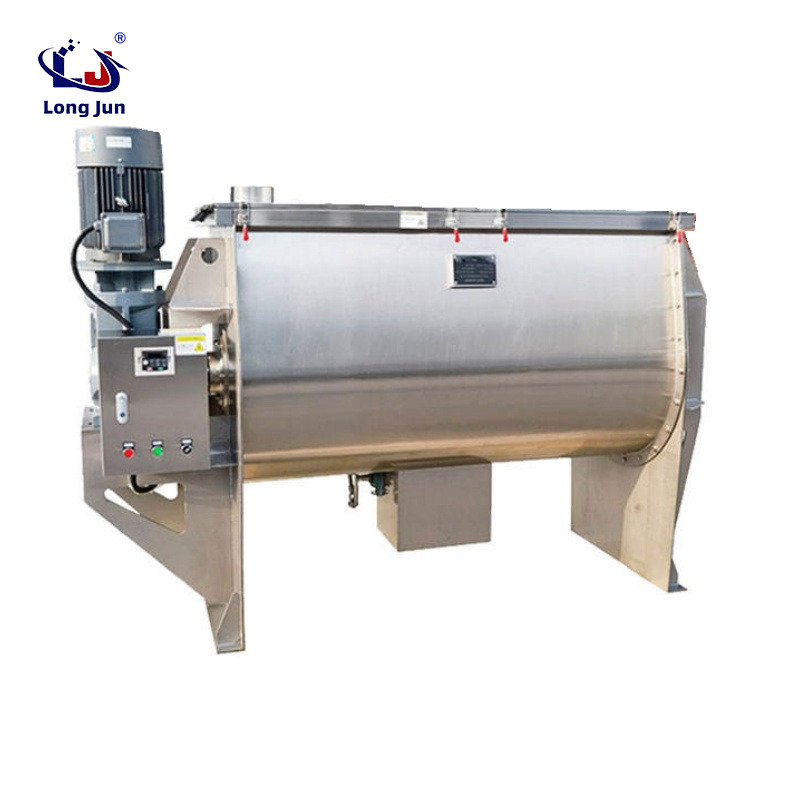

Horizontal double belt mixer Industrial Rice noodles liquid mixer

Horizontal Ribbon mixer is a brand-new mixer. It is characterized in high efficiency, high degree of homogeneity, high load coefficient, low energy consumption, low pollution, little destruction to frangible material. It is suitable for mixing a wide range of materials such as powder-powder, power-liquid, especially for paste, thick materials.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

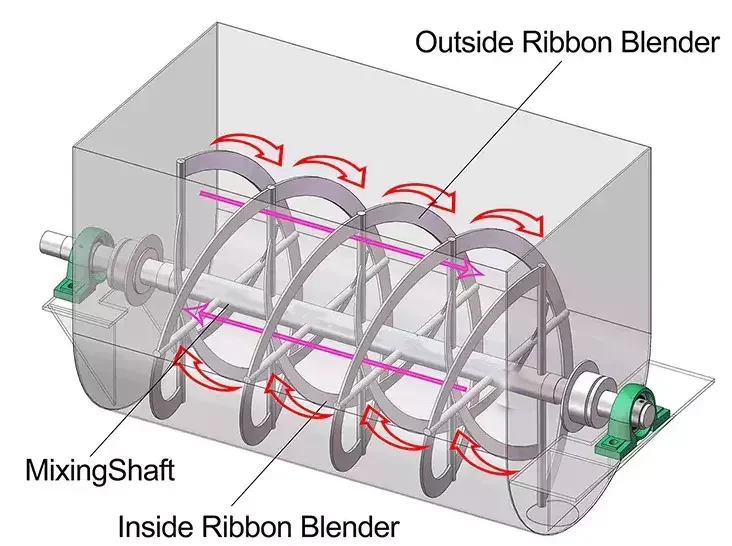

Working Principle.

Under the drive of straight league reducer,Mixer rotor does directional rotation.In the process of spinning,on the one hand, the ribbon pushes the material along the axial movement, on another hand, ittakes the material up into the ribbon up front, and the outer ribbon makes the material always middle cylinder to the campaign, the inner ribbon makes the material movement from middle to both ends, so this formed in the course of sports material two circular logistics, in the process of circulating,material has
been fully mixed.
Model
LJ-200
LJ-500
LJ-1000
LJ-1500
LJ-2000
Volume(L)
80-100
200-250
400-500
600-700
800-1000
Spindle speed(rpm)
42
42
42
42
42
Power(kw)
3
5.5
7.5
11
15
Weight(kg)
450
800
1200
1500
1800

Application:

The horizontal ribbon blender is widely used in chemical, food, and construction line. It can be used to mix powder with powder, powder with liquid, and powder with granule.

H245729aa2a7641a89425458a57aab768h_副本



The main equipment of Longjun mechanical mixer includes VH type mixer, conical mixer, spiral belt mixer, double spiral belt mixer, vertical spiral belt mixer, plow blade mixer, double spiral conical mixer, double spiral mixer, zero gravity mixer, electrically heated double spiral mixer, water heated double spiral mixer, steam heated double spiral mixer, etc.


Equipment modelEffective volume (L)Total power (kW)Speed (r/min)Overall size (mm)Equipment weight (KG)
WLDH-100502.2581190x740x770380
WLDH-150803532030x630x980450
WLDH-300150
532320x730x1130560
WLDH-5003007.5492800x920x1320680
WLDH-100060011423180*1020x15501200
WLDH-150080015423310x1120x16401600
WLDH-2000100018.5423750x1290x18202200
WLDH-3000150018.5374220x1400x19903300
WLDH-4000200022374220x1500x21003800
WLDH-5000300030314700x1610x22604300
WLDH-6000350037314420x2150x24705500
WLDH-8000420045275520*2360*27206800
WLDH-10000500055275720x2520x28407900
WLDH-12000600055235840x2850x29408800
WLDH-15000800075236000*3040x30507900
WLDH-200001000090196100x3300x315013500
WLDH-3000015000110176500x3500x350015000
