The metal powder spiral belt mixer mixes materials efficiently and quickly. Under the movement of the spiral belt of the stirring shaft, the inner and outer spiral belts flip the materials over a large range. The inner spiral belt moves the materials to both sides, while the outer spiral belt moves the materials from both sides inward, causing the materials to permeate and mix back and forth. Another part of the materials is pushed down by the spiral belt, without axial or radial movement, thus forming a convective cycle. Due to the stirring of the aforementioned motion, the material achieves rapid and uniform mixing in a relatively short period of time.
| Quantity: | |
|---|---|
Powder food is a dry solid food made through dehydration, grinding and other processes, and its form must comply with specific quality control standards, including moisture content (usually less than 5%), particle size distribution (50-500 microns), particle shape and other parameters. The main categories include dairy products (milk powder), cereal products (wheat flour), seasonings (chili powder), and fruit and vegetable deep processing products (fruit powder), etc

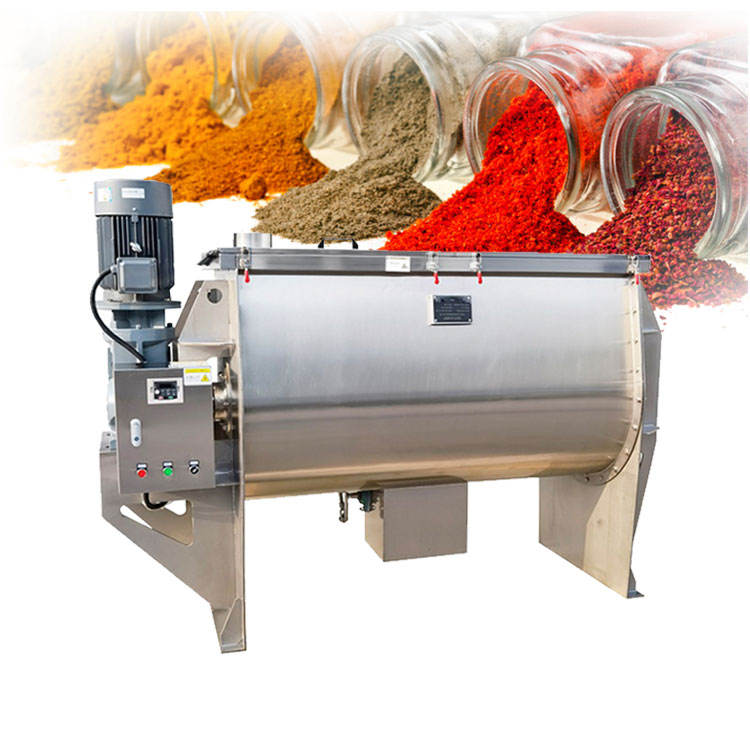

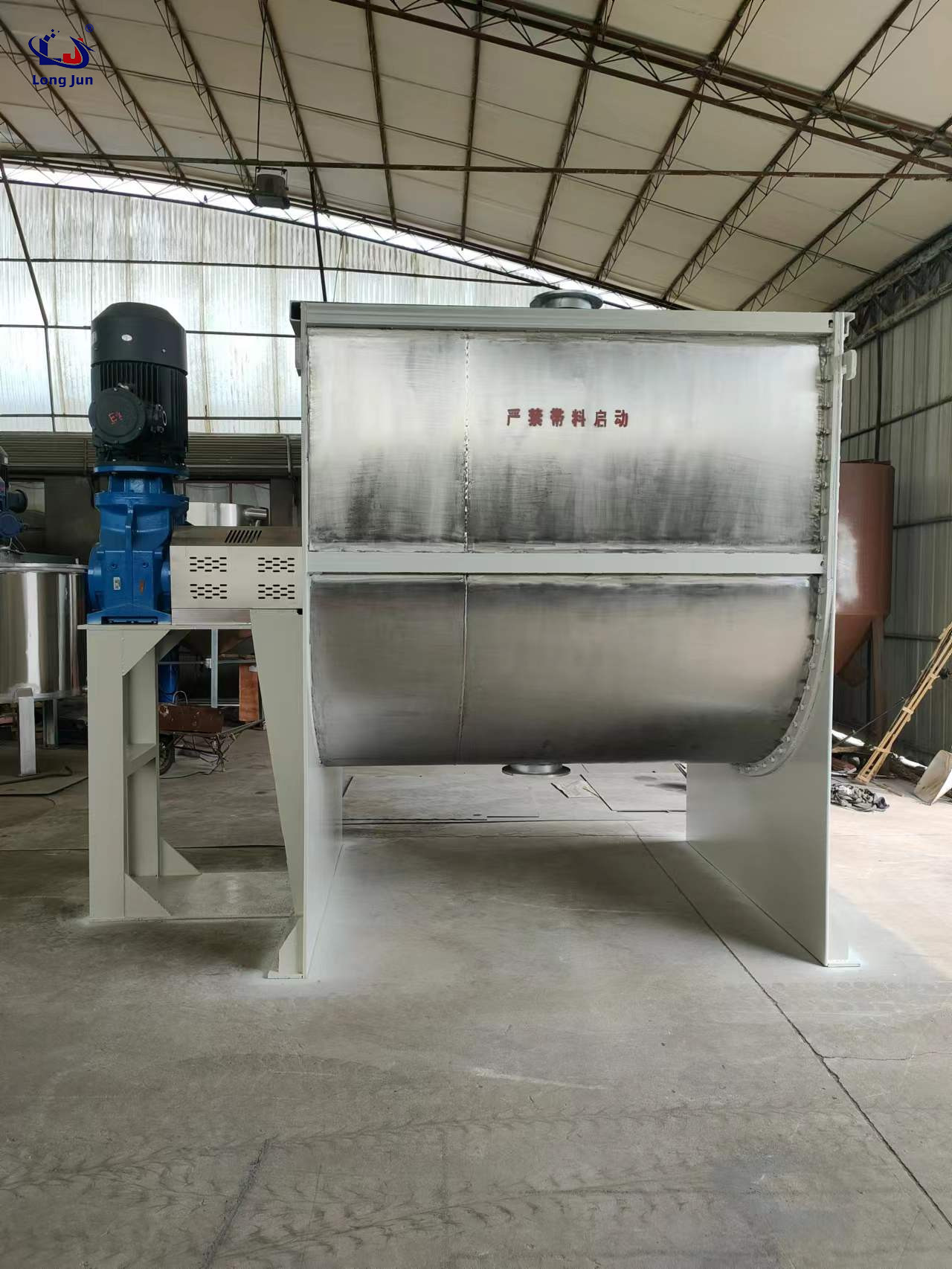

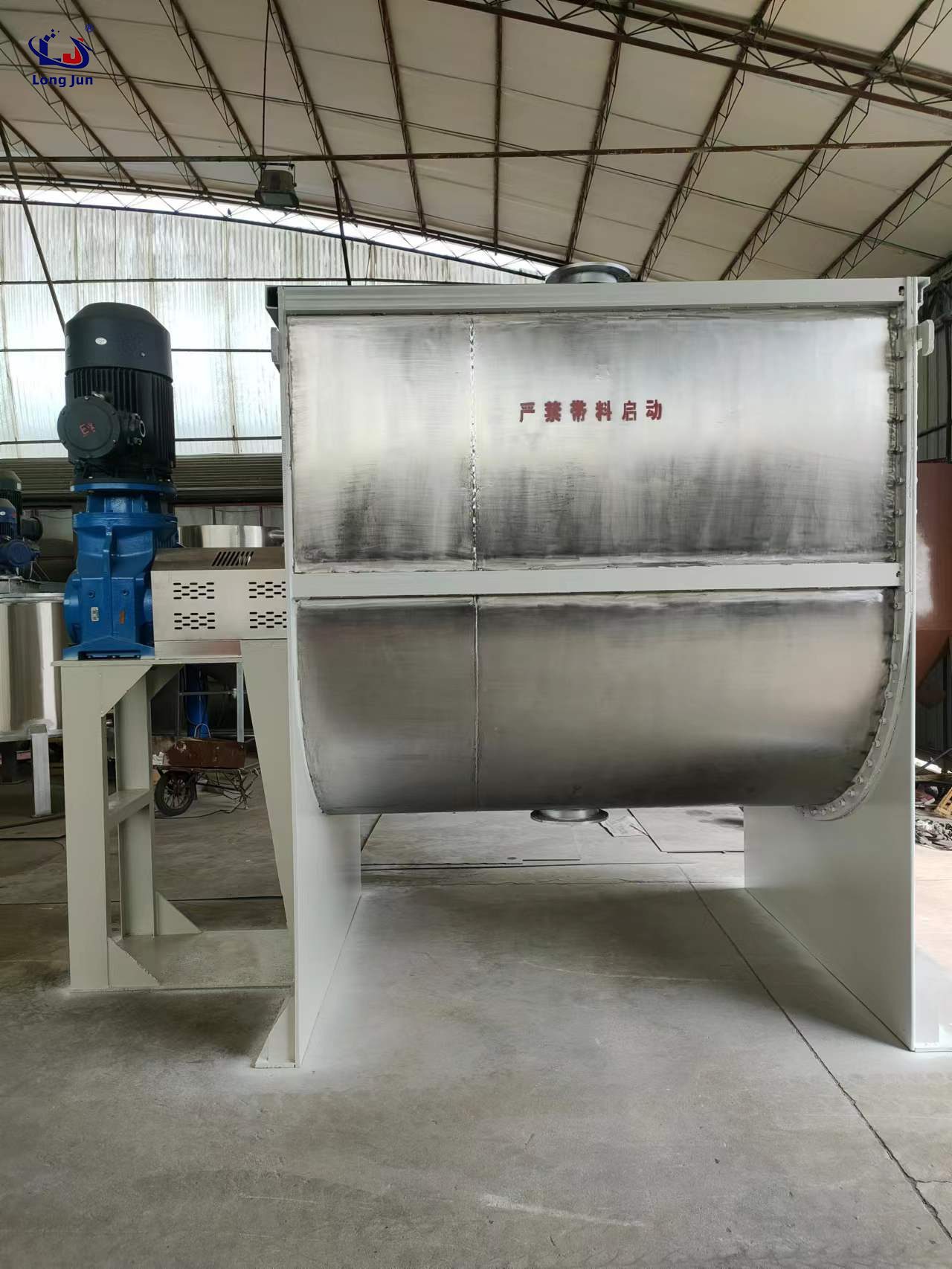

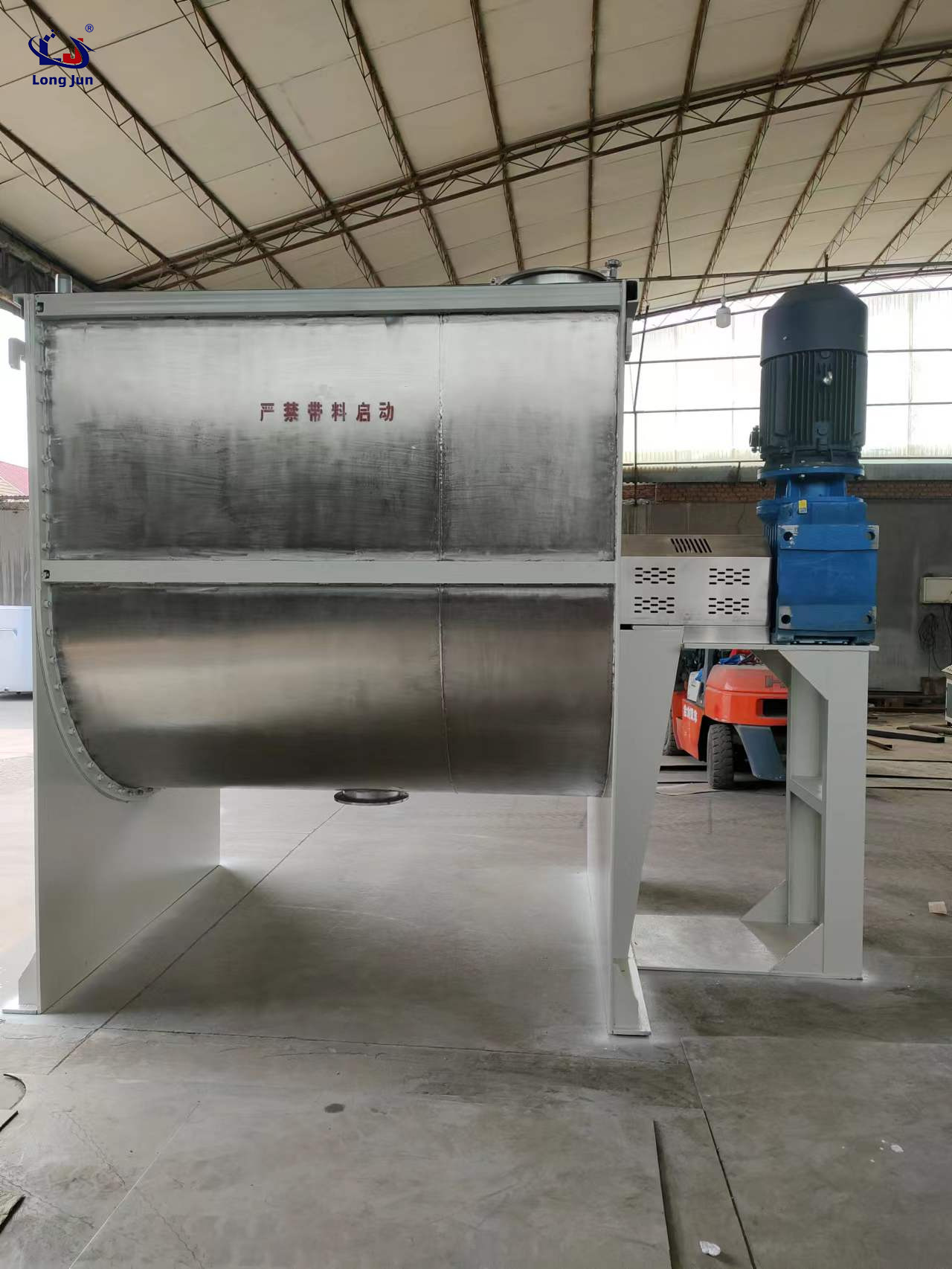

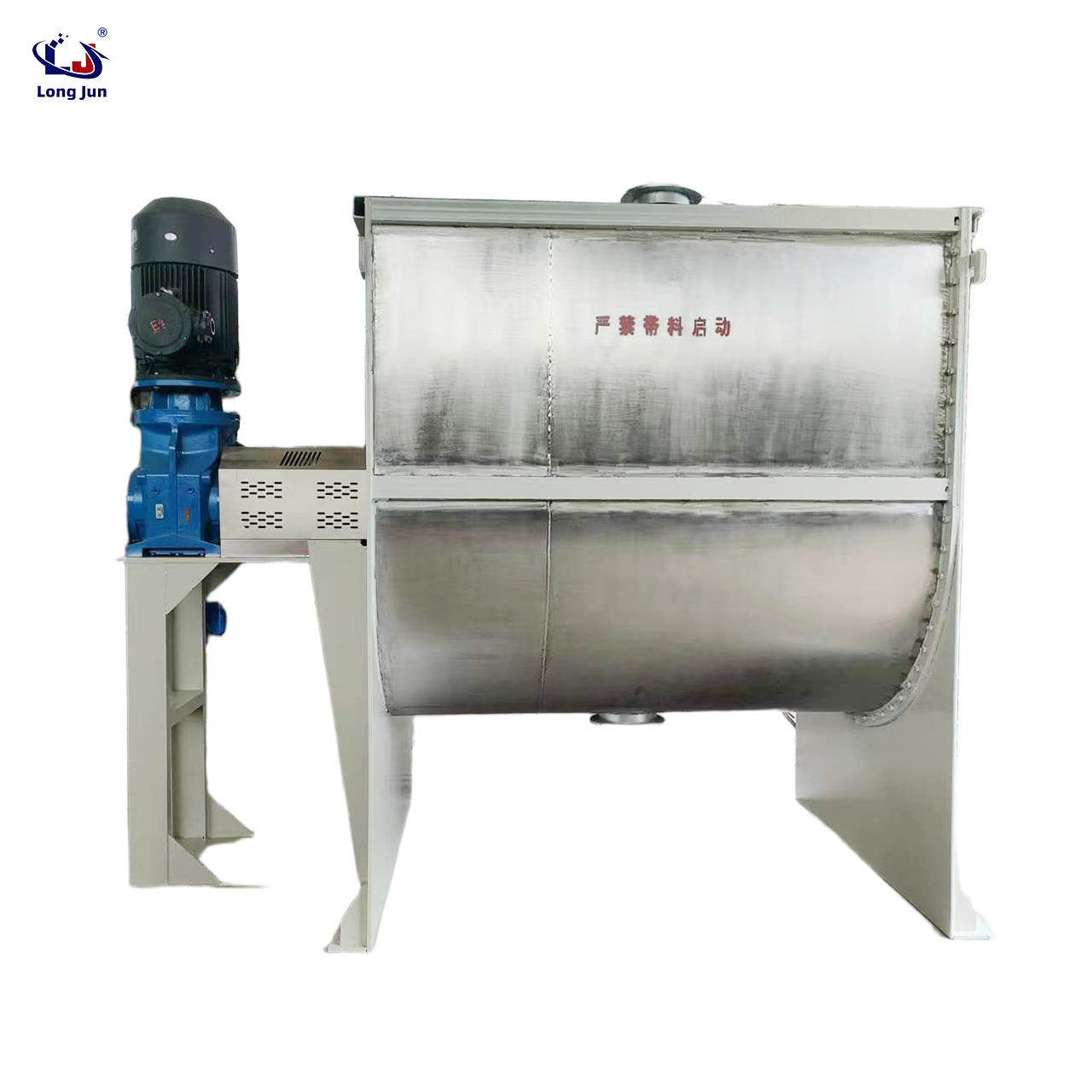

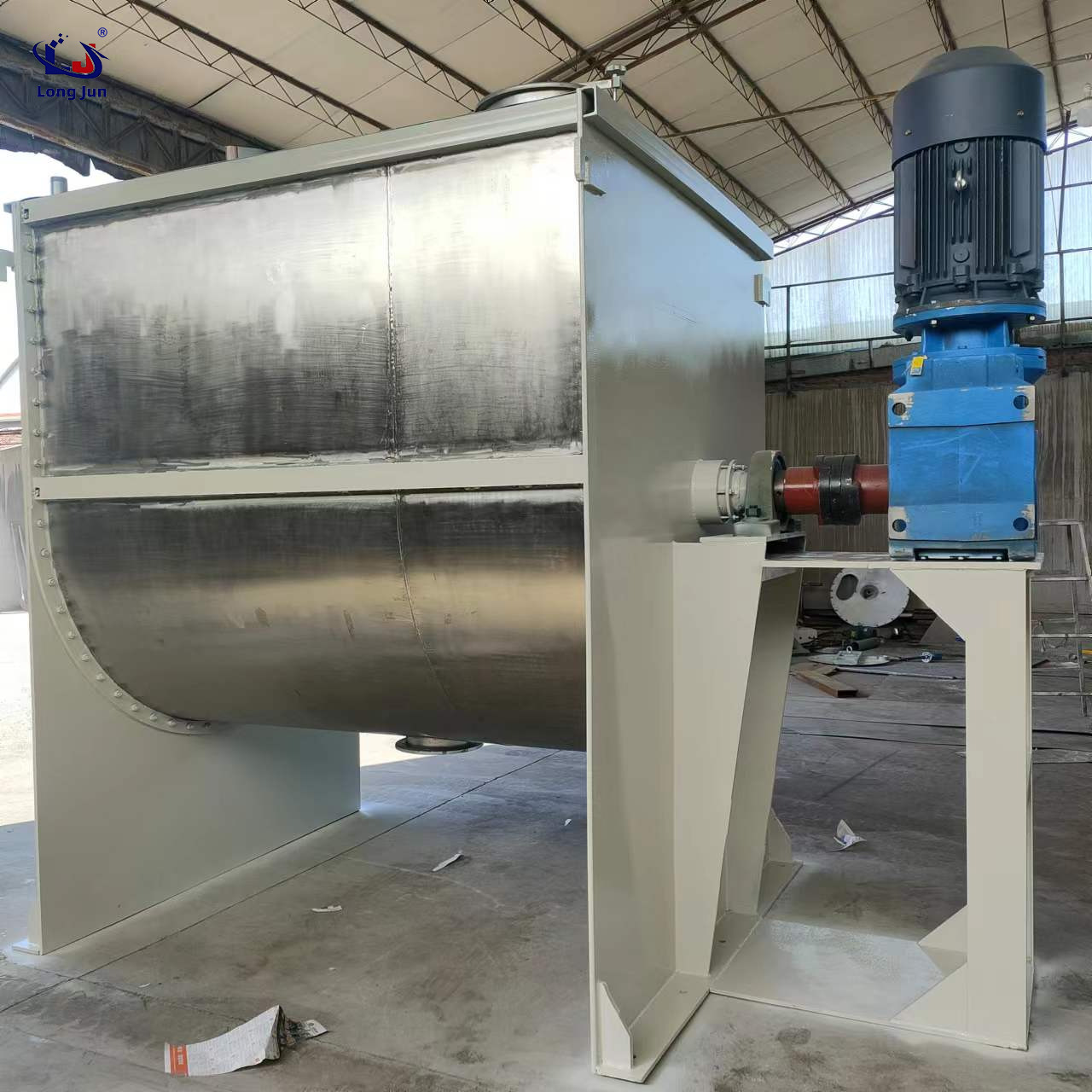

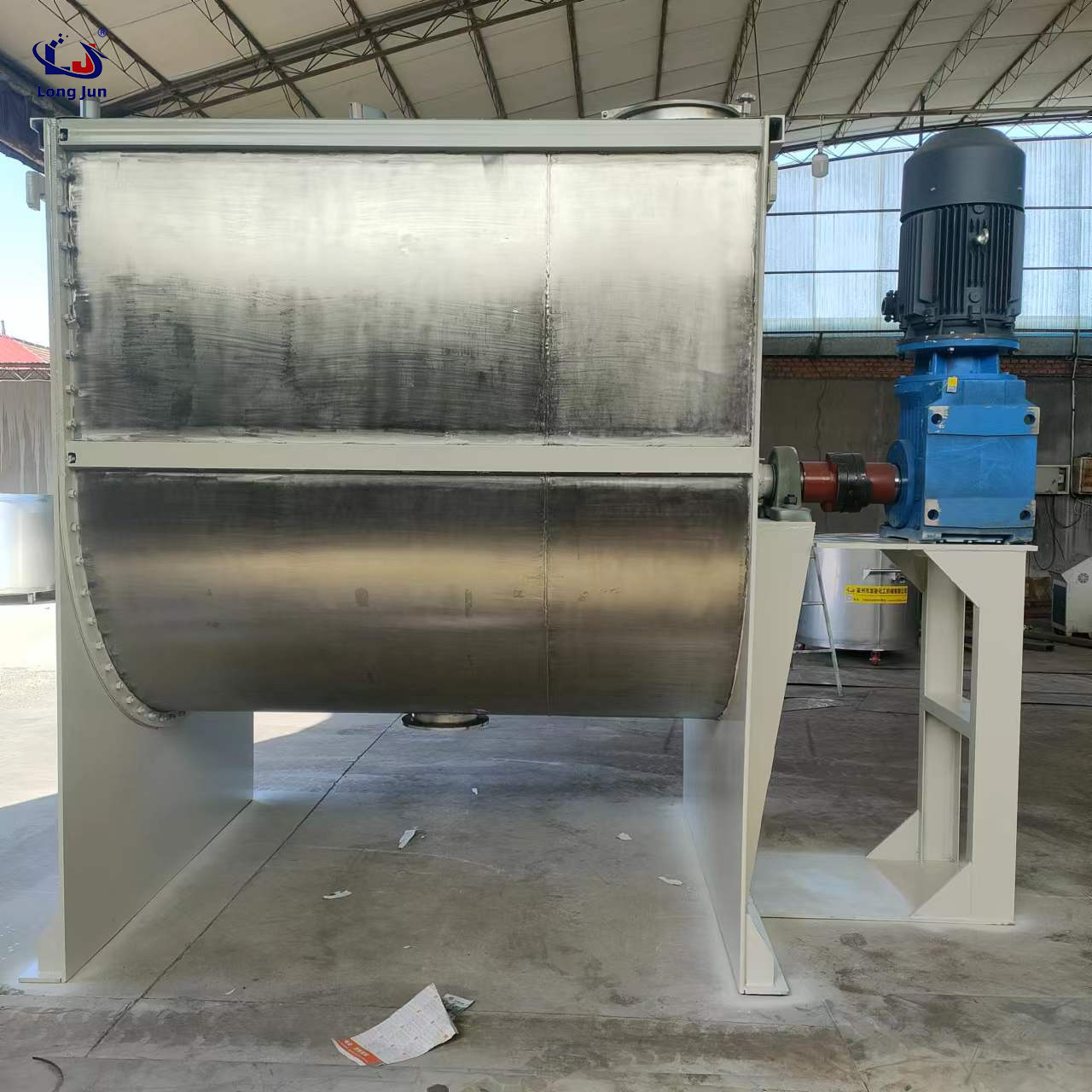

The horizontal spiral belt mixer unit adopts a horizontal cylinder structure, equipped with inner and outer two-layer spiral belts and flying blade components. The material forms a composite motion under the action of the reverse rotor, achieving rapid and uniform mixing through shear stirring and diffusion stirring. The equipment is divided into 1000 type and 2000 type according to the model, and has an adjustable spiral belt structure that adapts to different material viscosities. The main types include plow blade type, screw belt type, non gravity type, and double helix conical dry powder mixer.
The commonly used dry powder mixing units include: plow blade dry powder mixer, screw belt dry powder mixer, strong dry powder mixer, non gravity dry powder mixer, double spiral cone dry powder mixer, etc
1. The dry powder mixing unit is a horizontal cylinder with a unique structure of two layers of spiral belts inside and outside. It operates smoothly, has reliable quality, low noise, long service life, easy installation and maintenance, and has multiple mixer structures. It is a multifunctional mixing equipment with a wide range of uses.
2. The mixing speed is fast, the mixing uniformity is high, especially for viscosity. A scraper can be installed on the spiral belt, which is more suitable for thick and paste like mixing.
3. Under the mixing requirements of different materials (special materials must be cleaned after each mixing), different spiral belt structures and heating and drying jacket types are used.
