| Quantity: | |
|---|---|
2000L
Longjun
working principle:

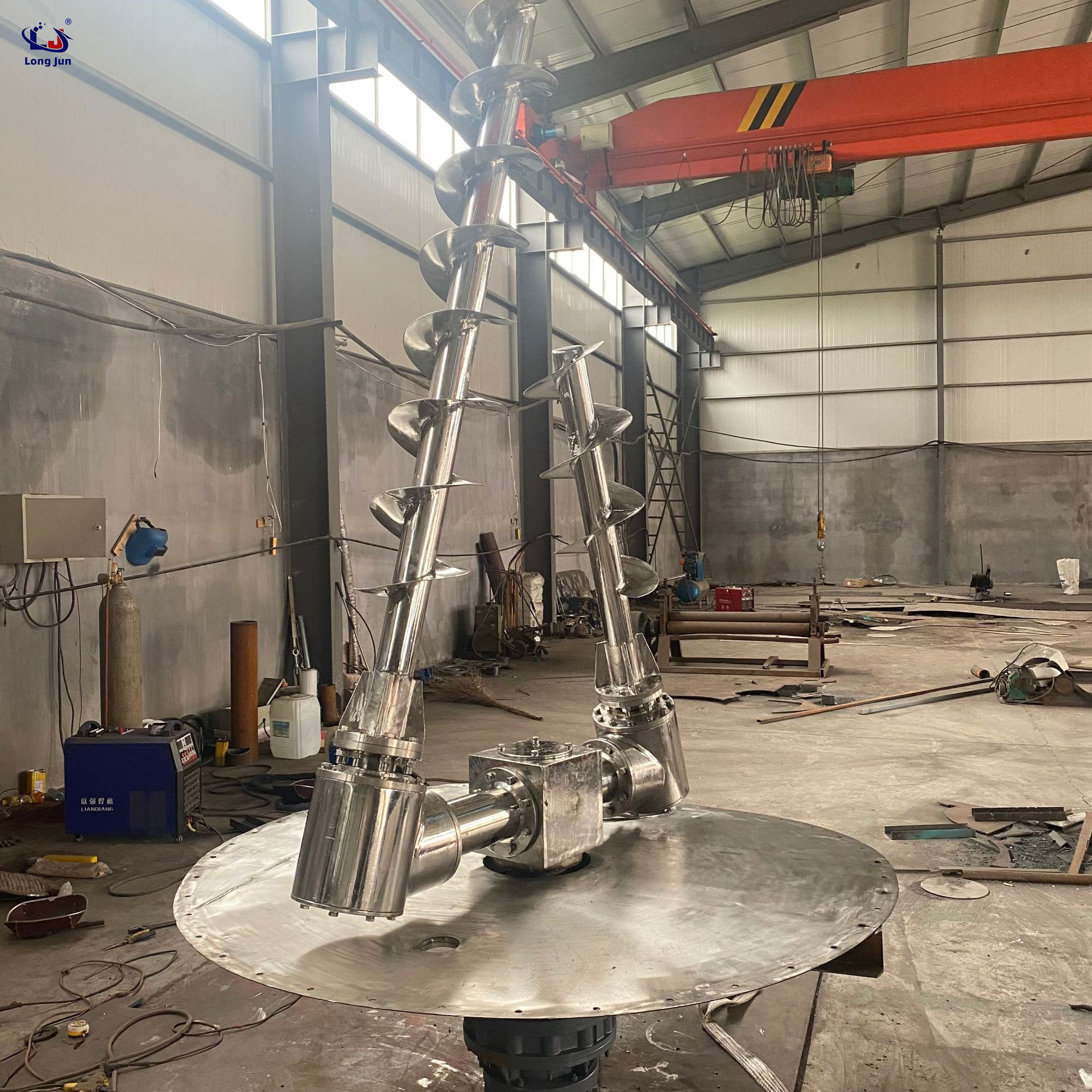

The DSH series double helix conical mixer cylinder has two asymmetric helices rotating on their own to lift the material upwards, and the rotating arm moves slowly around the revolution; The material outside the spiral enters the screw column to varying degrees, achieving continuous updating and diffusion of the material in all circumferential directions. The two streams of material lifted to the upper part then converge towards the central cavity, forming a downward material flow that fills the gap at the bottom, thus creating a triple mixing effect of convective circulation; The standard conical spiral mixer has two stirring spirals. In practical applications, single (one long spiral), double (one asymmetric spiral for each length), and three (two short and one long symmetrically arranged) spirals can be used according to the equipment specifications; In theory, the more stirring spirals there are, the better the mixing effect; The equipment generally adopts a plum blossom shaped "displacement valve", which is tightly attached to the bottom of the long spiral, effectively reducing mixing dead corners. The driving form is available in manual and pneumatic modes; According to user needs, butterfly valves, ball valves, star shaped unloaders, edge discharges, etc. can also be installed.
Double helix cone mixer application industry:

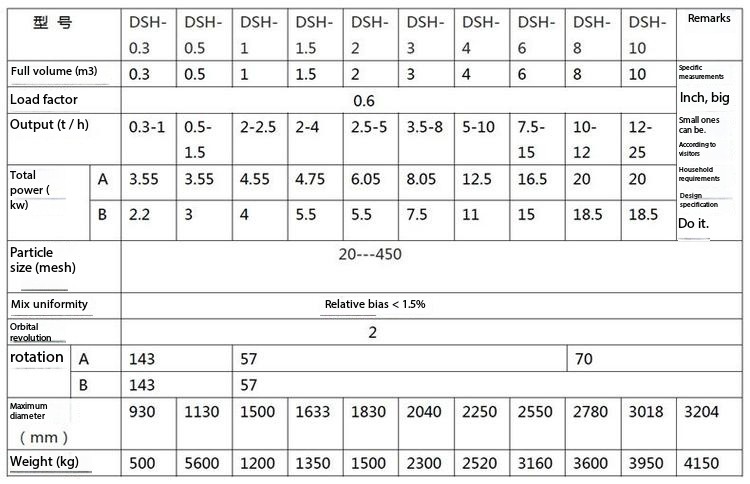

Technical parameters of double helix cone mixer:
working principle:
The DSH series double helix conical mixer cylinder has two asymmetric helices rotating on their own to lift the material upwards, and the rotating arm moves slowly around the revolution; The material outside the spiral enters the screw column to varying degrees, achieving continuous updating and diffusion of the material in all circumferential directions. The two streams of material lifted to the upper part then converge towards the central cavity, forming a downward material flow that fills the gap at the bottom, thus creating a triple mixing effect of convective circulation; The standard conical spiral mixer has two stirring spirals. In practical applications, single (one long spiral), double (one asymmetric spiral for each length), and three (two short and one long symmetrically arranged) spirals can be used according to the equipment specifications; In theory, the more stirring spirals there are, the better the mixing effect; The equipment generally adopts a plum blossom shaped "displacement valve", which is tightly attached to the bottom of the long spiral, effectively reducing mixing dead corners. The driving form is available in manual and pneumatic modes; According to user needs, butterfly valves, ball valves, star shaped unloaders, edge discharges, etc. can also be installed.
Double helix cone mixer application industry:
Technical parameters of double helix cone mixer:
