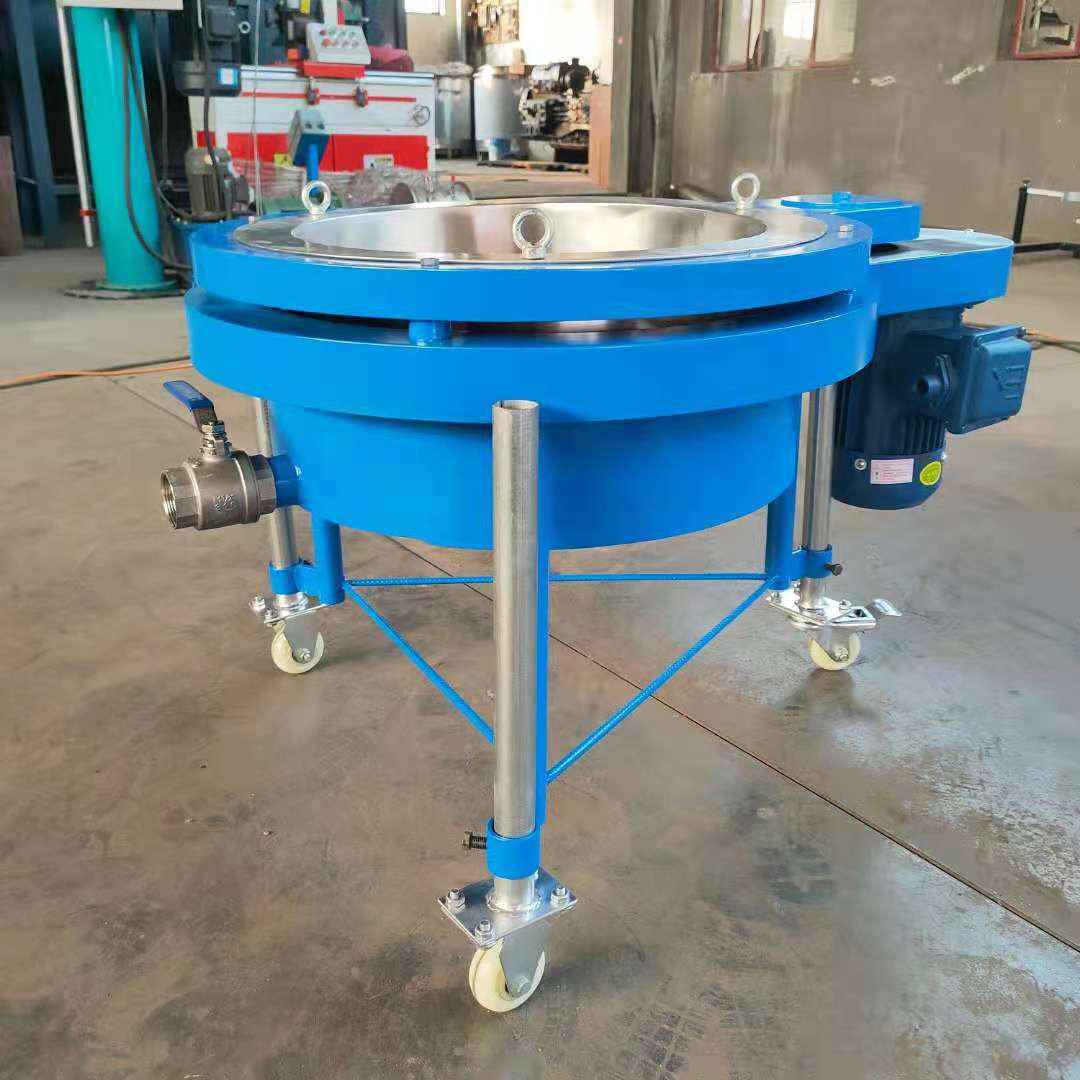

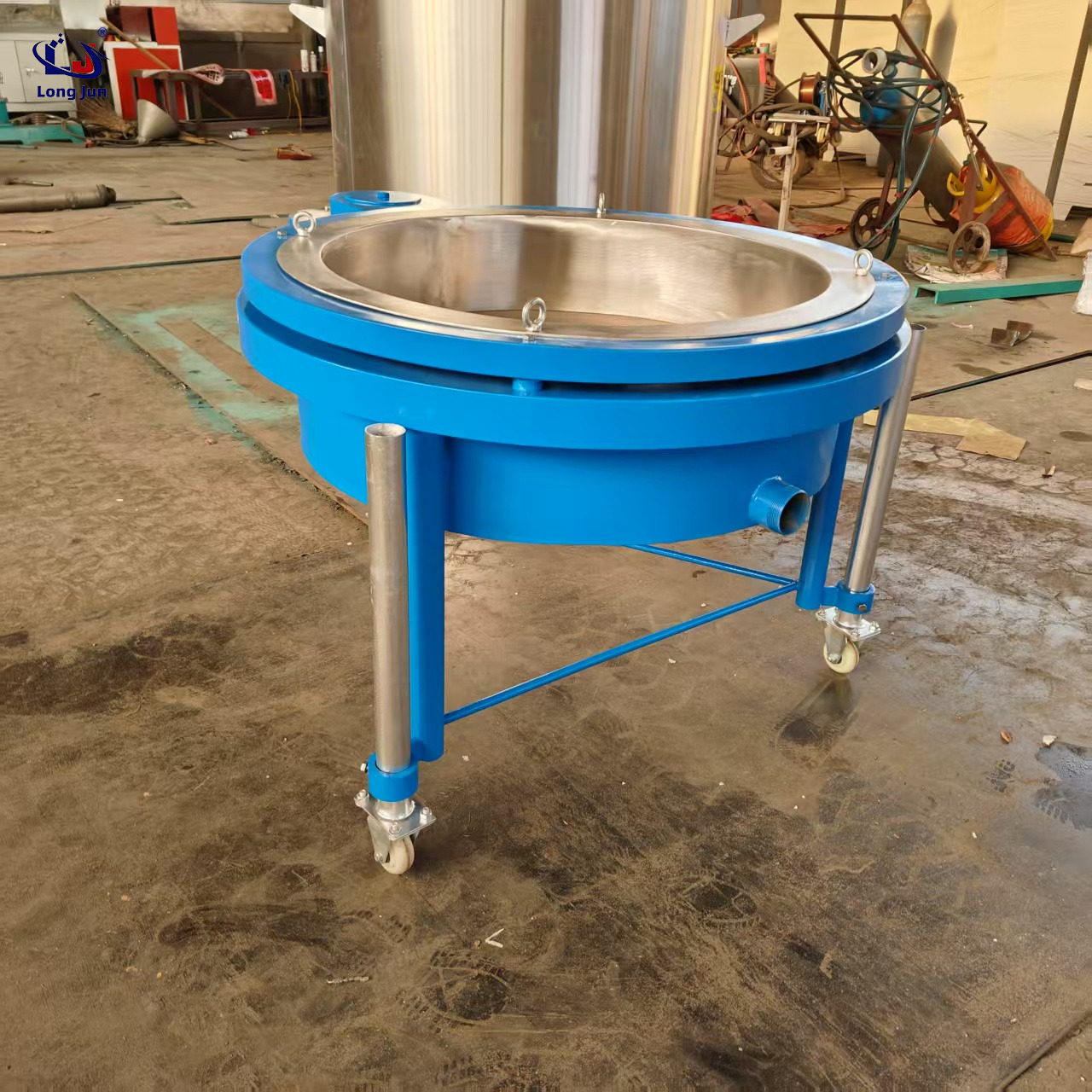

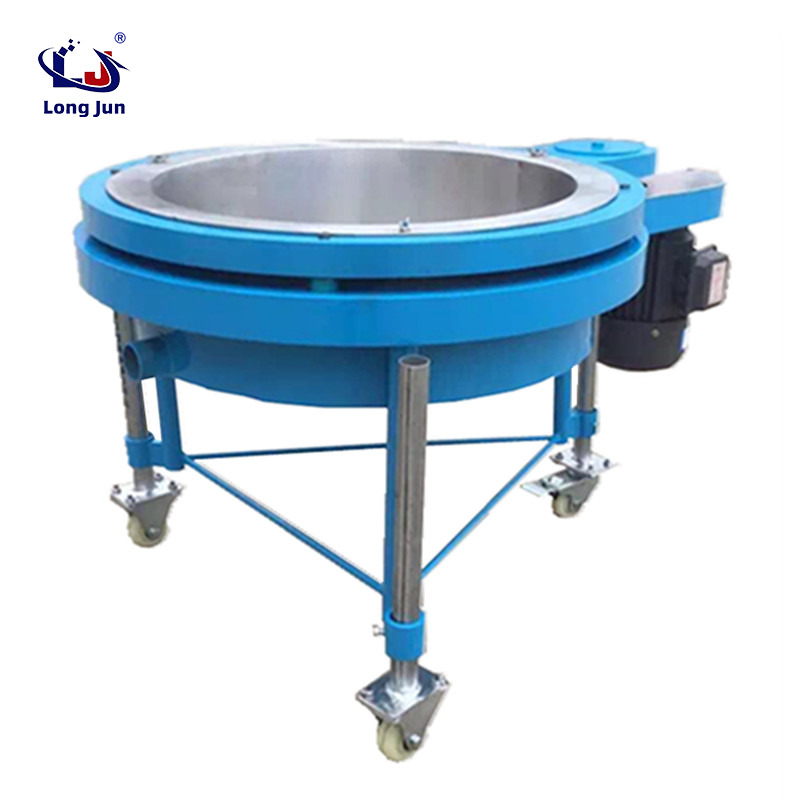

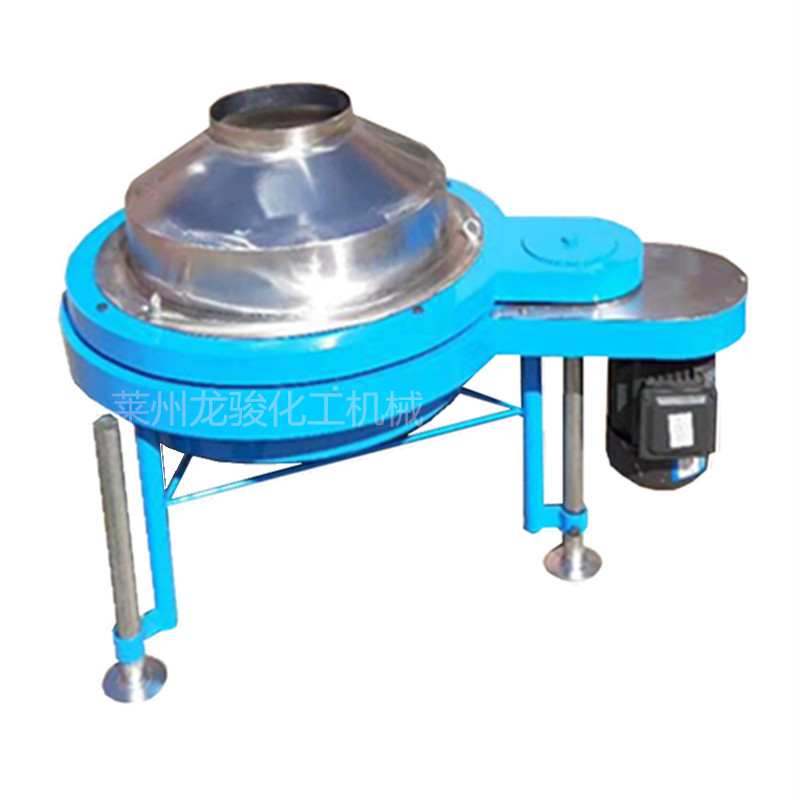

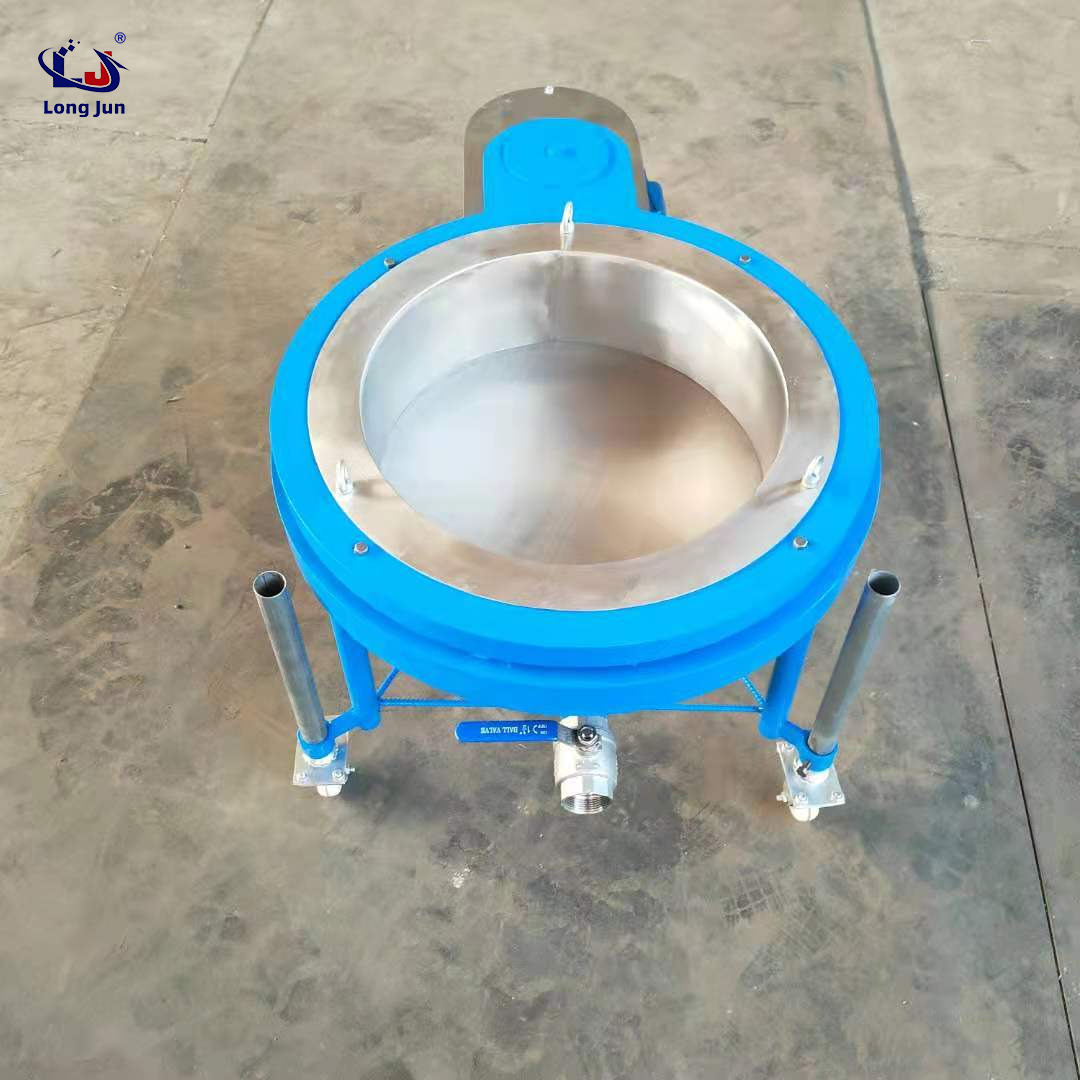

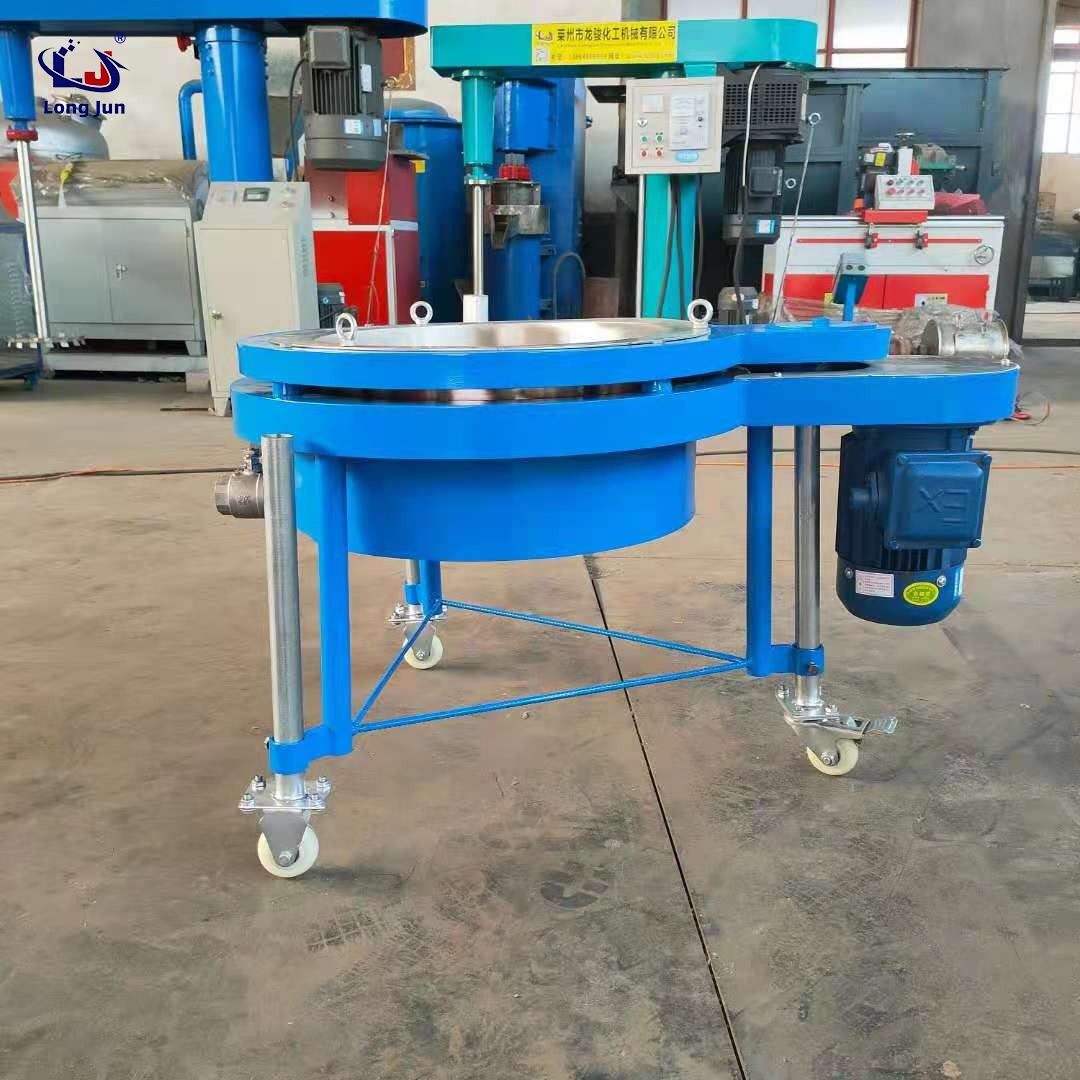

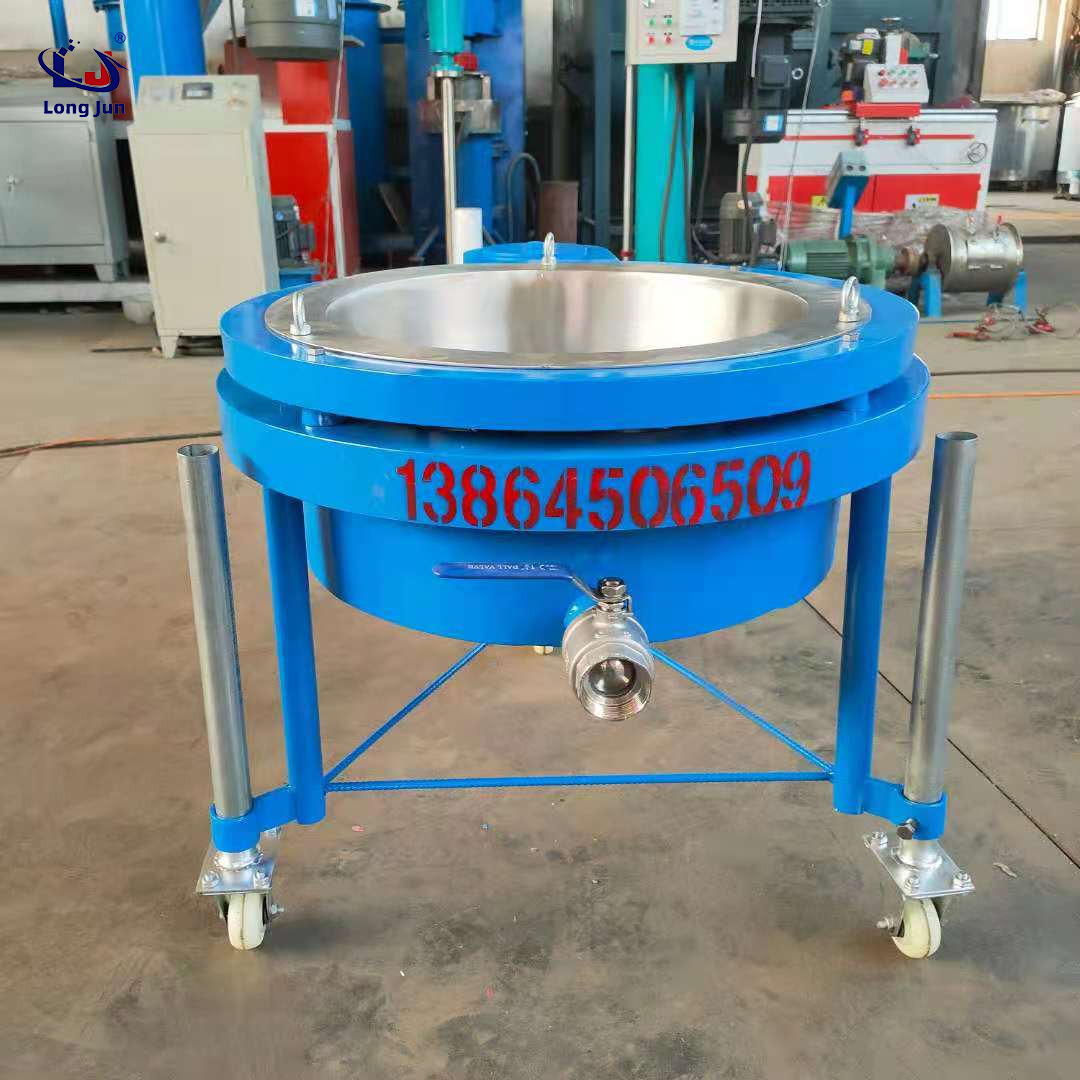

Our involute coating vibrating screen (also known as 3D paint vibrating screen) is a premium screening and filtration solution purpose-built for industrial business buyers in the paint and coating manufacturing sector. This advanced paint purification vibrating screen delivers precision separation and purification for liquid and powder paint materials, solving common industry pain points including mesh clogging, powder flying, and low screening efficiency. With a compact footprint, flexible mobility, and user-centric design, it fits seamlessly into both batch and continuous production lines, supporting stable, high-volume manufacturing operations.
The core excitation source of this involute trajectory paint screening equipment is a vertical motor, fitted with eccentric heavy hammers at its upper and lower ends. This unique structure converts the motor’s original rotational motion into horizontal, vertical, and inclined three-dimensional movement, which is then transmitted to the material on the screen surface. Driven by this motion, materials form an outward-expanding involute movement trajectory across the screen. By adjusting the phase angle of the upper and lower heavy hammers, operators can freely modify the material’s movement path to achieve fine screening or probabilistic screening, adapting to diverse material properties and production requirements.
This liquid paint filtering vibrating screen features an innovative frame design, enabling screen mesh replacement in just 5 minutes to minimize production downtime. Its compact structure requires minimal floor space, with a movable design for flexible deployment across production workshops, and a fully enclosed structure for easy cleaning and residue-free material changeovers.
Engineered to handle all powder and adhesive paint materials, the equipment eliminates mesh clogging and powder flying issues, ensuring consistent screening accuracy. It supports up to 5 screen layers, with 3 layers recommended for optimal efficiency, delivering high-precision separation for both coarse and fine material grading.
Constructed with premium stainless steel, the stainless steel paint screening machine offers extended screen mesh service life, strong operational continuity, and excellent corrosion resistance, making it suitable for long-term use in harsh chemical production environments.
Beyond core paint and coating purification, this versatile vibrating screen is widely used in ink production, adhesive and sealant processing, cosmetic cream filtration, fine chemical powder and liquid separation, food and beverage liquid screening, and pharmaceutical powder grading, catering to diverse industrial manufacturing needs.
Place the equipment on level ground, fix the support feet, and complete reliable grounding of the motor. Ensure the screen mesh is installed tightly and the eccentric hammers are properly fixed before power-on.
Adjust the phase angle of the upper and lower hammers according to material properties before startup. Feed materials evenly through the central inlet, avoid overloading, and shut down the equipment before cleaning or adjustment.
Clean the screen mesh after each production run to prevent residue buildup. Inspect motor bearings and lubricate them every 3 months, and replace worn screen meshes or sealing parts in a timely manner to maintain screening efficiency.
We support a customizable mesh range of 2 to 500 mesh, tailored to your specific material properties and screening precision requirements.
The equipment supports a maximum of 5 screen layers, and we recommend using no more than 3 layers to ensure optimal screening efficiency and output.
Yes, it is fully compatible with water-based and solvent-based liquid paints, powder coatings, and high-viscosity adhesive materials, with zero mesh clogging and no powder flying during operation.
