500L
Longjun

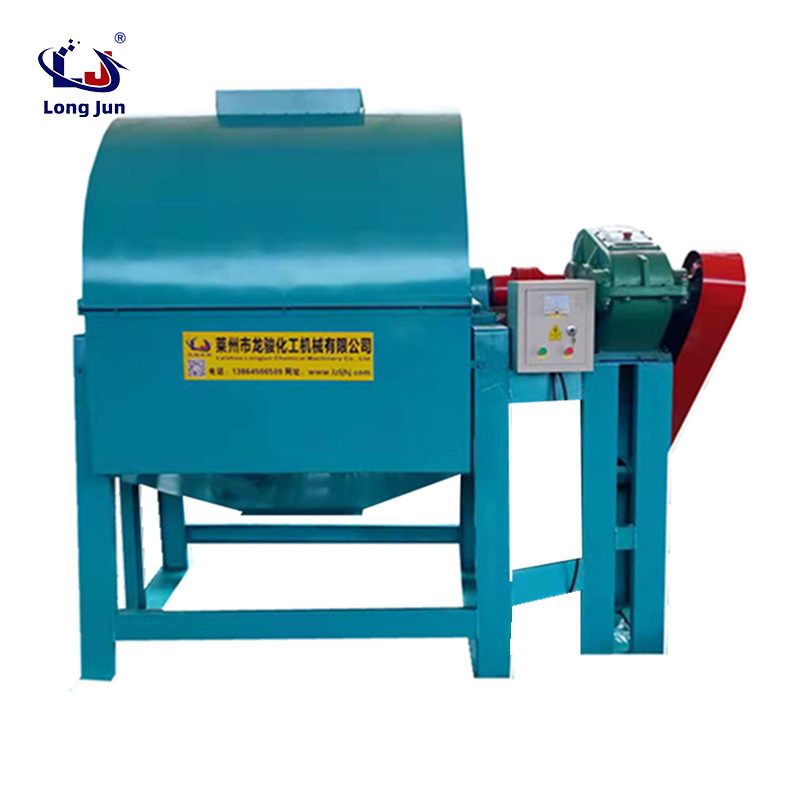

Alumina Lined Ball Mill (also named ceramic lined alumina ball mill) is a high-efficiency, energy-saving horizontal grinding equipment engineered for precision material mixing and ultra-fine size reduction. As a core processing solution for industrial manufacturing plants, this mill adopts a compartmentalized barrel design, fitted with premium wear-resistant ceramic lining plates and high alumina grinding ball stones. Driven by an external gear system, it supports both dry and wet grinding operations, with product fineness precisely controlled by adjusting lining plate types and grinding duration. It is perfectly suited for product trial production and small-to-large scale manufacturing, delivering stable performance, low investment cost and outstanding energy-saving effects for processing factories.

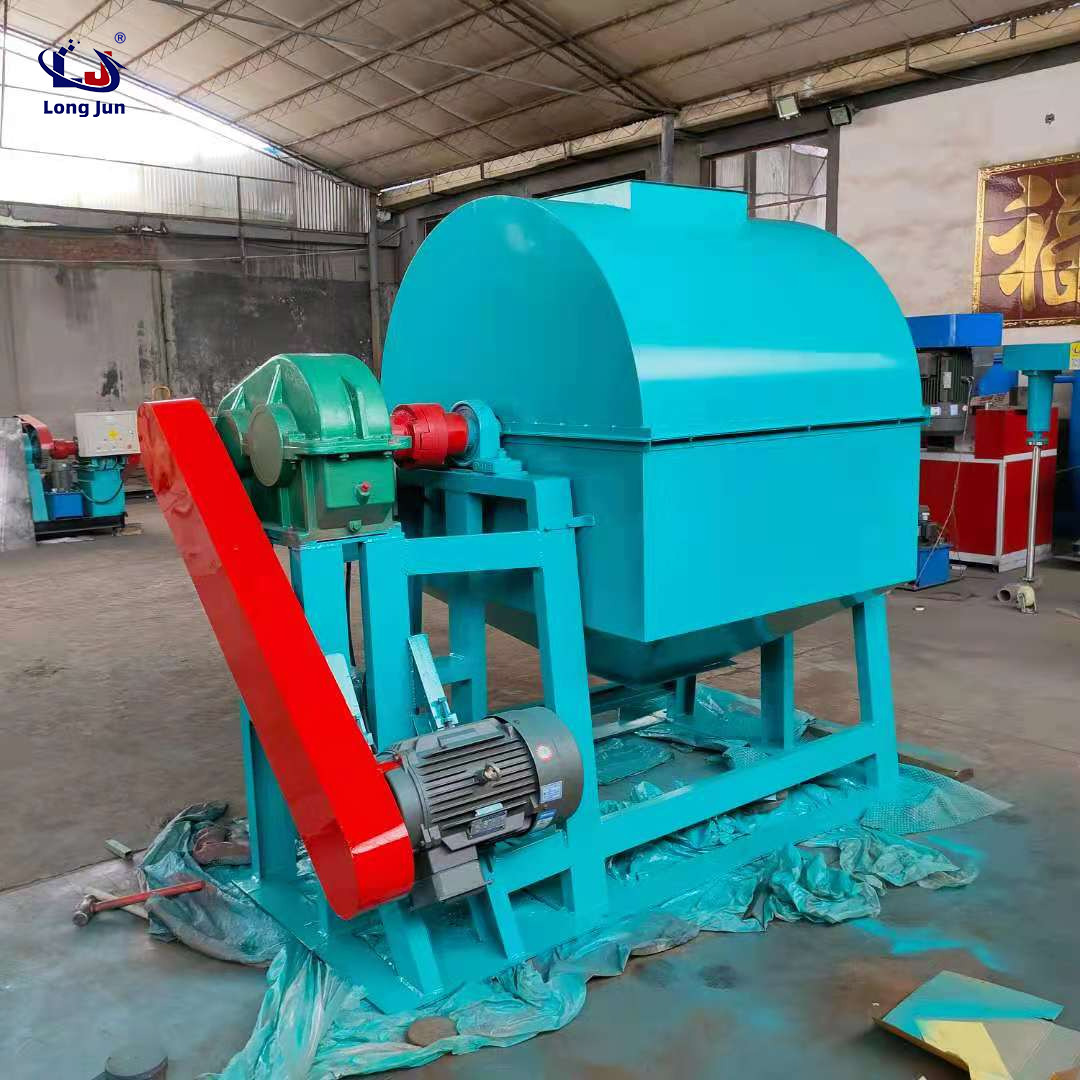

This horizontal alumina ball mill features a horizontal cylindrical rotating structure, composed of feeding section, discharging section, rotating barrel, and integrated transmission system (reducer, transmission gear, motor, electric control unit). When the motor drives the barrel to rotate, the high alumina grinding ball stones and raw materials inside are lifted to a certain height by centrifugal force and friction, then fall freely. Materials are fully ground and homogenized through continuous impact, extrusion and shearing force between grinding media, barrel wall and material particles. The unique compartmentalized design optimizes the grinding path, while adjustable grinding parameters enable customized processing for different material characteristics.
Type | 50L | 100L | 200L | 300L | 500L | 1000L | 1500L | 2000L | 3000L |
Barrel Rotation Speed(r/min) | 55 | 50 | 50 | 50 | 45 | 40 | 35 | 35 | 35 |
Motor power(Kw) | 2.2 | 3 | 4 | 4 | 5.5 | 11 | 15 | 18.5 | 22 |
Barrel Capacity(L) | 50 | 100 | 200 | 300 | 500 | 1000 | 1500 | 2000 | 3000 |
Materials Loaded Capacity(L) | 20 | 40 | 90 | 130 | 200 | 450 | 700 | 900 | 1300 |
Balls Loaded Capacity(L) | 25 | 50 | 100 | 150 | 225 | 500 | 750 | 1000 | 1500 |
Weight(Kg) | 80 | 200 | 340 | 480 | 750 | 1000 | 1500 | 2000 | 2500 |
Dimensions (mm) - L | 1200 | 1540 | 1730 | 1840 | 2100 | 2450 | 3150 | 3400 | 4100 |
Dimensions (mm) - W | 630 | 705 | 795 | 900 | 1150 | 1323 | 1480 | 1505 | 1630 |
Dimensions (mm) - H | 460 | 560 | 690 | 760 | 900 | 1086 | 1210 | 1260 | 1340 |
High-purity alumina ceramic lining and grinding media deliver 3-5 times longer service life than steel linings, and eliminate metal contamination during grinding, making it ideal for high-purity material processing in ceramic and fine chemical industries.
Compared with similar grinding equipment, this ceramic grinding ball mill cuts energy consumption by over 15%, with low one-time investment and quick return. The motor adopts self-decompression starting to reduce starting current, with optional integral or independent structure for flexible site layout.
It supports both dry and wet grinding modes, with adjustable lining plate types, grinding media grading and grinding duration to precisely control product fineness, adapting to diverse production needs from pilot testing to mass manufacturing.
This dry wet grinding ball mill is indispensable for industrial processing plants, widely used in building ceramics and refractory production, non-metallic mineral processing, dye and pigment manufacturing, paint and floor coating production, papermaking, pesticide processing and other fine chemical industries. It adapts to both small-batch trial production and large-scale continuous manufacturing.
Install the mill horizontally on a solid concrete foundation, calibrate barrel and transmission coaxiality, connect power and control circuits, and run a 2-hour no-load test to ensure stable operation before formal feeding.
Check lining plate, fastener and grinding media wear before startup. Feed materials and media strictly per rated loading capacity, set reasonable grinding duration based on material characteristics, and avoid overload operation.
Regularly inspect lining plate and grinding ball wear, replace worn parts timely; lubricate bearings and transmission components periodically; check motor and reducer operating status, and tighten loose fasteners to ensure long-term stable operation.
Product fineness can be precisely adjusted by grinding time, lining configuration and media grading, achieving uniform micron-level fineness to meet processing requirements of most ceramic and fine chemical materials.
Yes, this high alumina lined grinding mill supports both dry and wet grinding modes, which can be flexibly switched according to production needs and material properties.
50L to 500L models are ideal for trial production and small-batch processing, while 1000L to 3000L models are designed for large-scale industrial mass production.
