JM85
Longjun

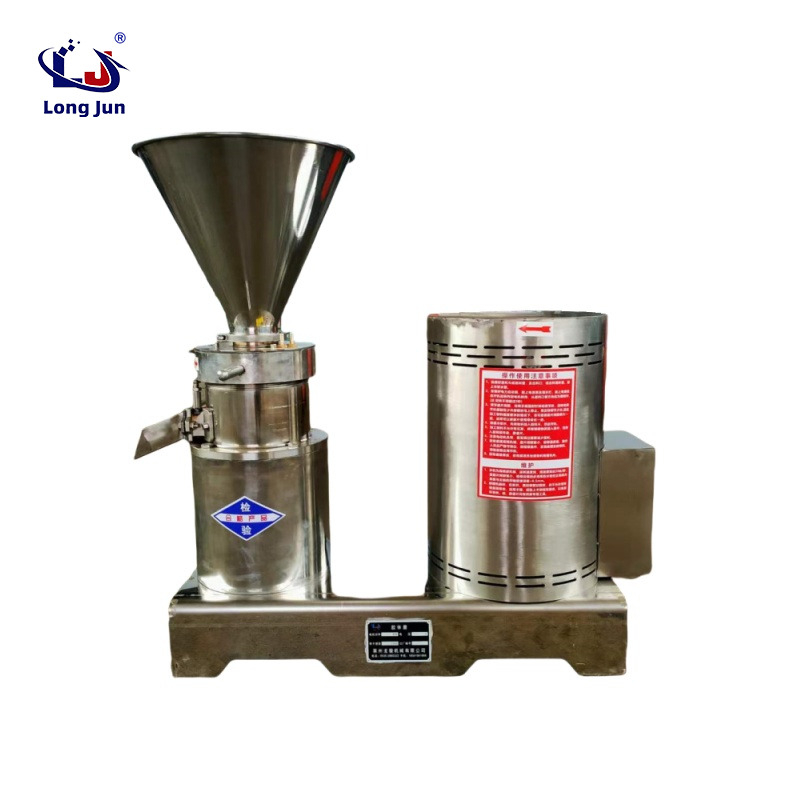

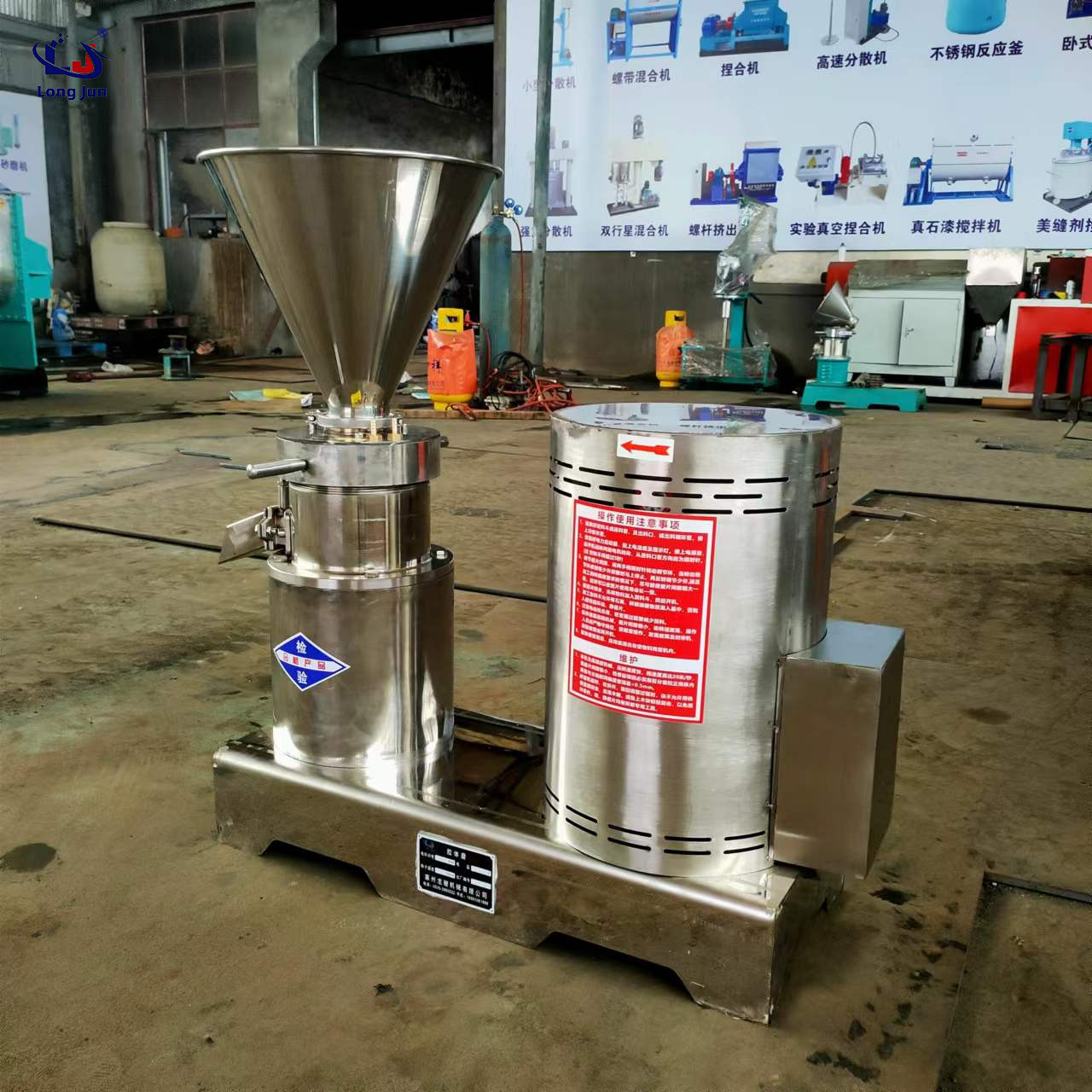

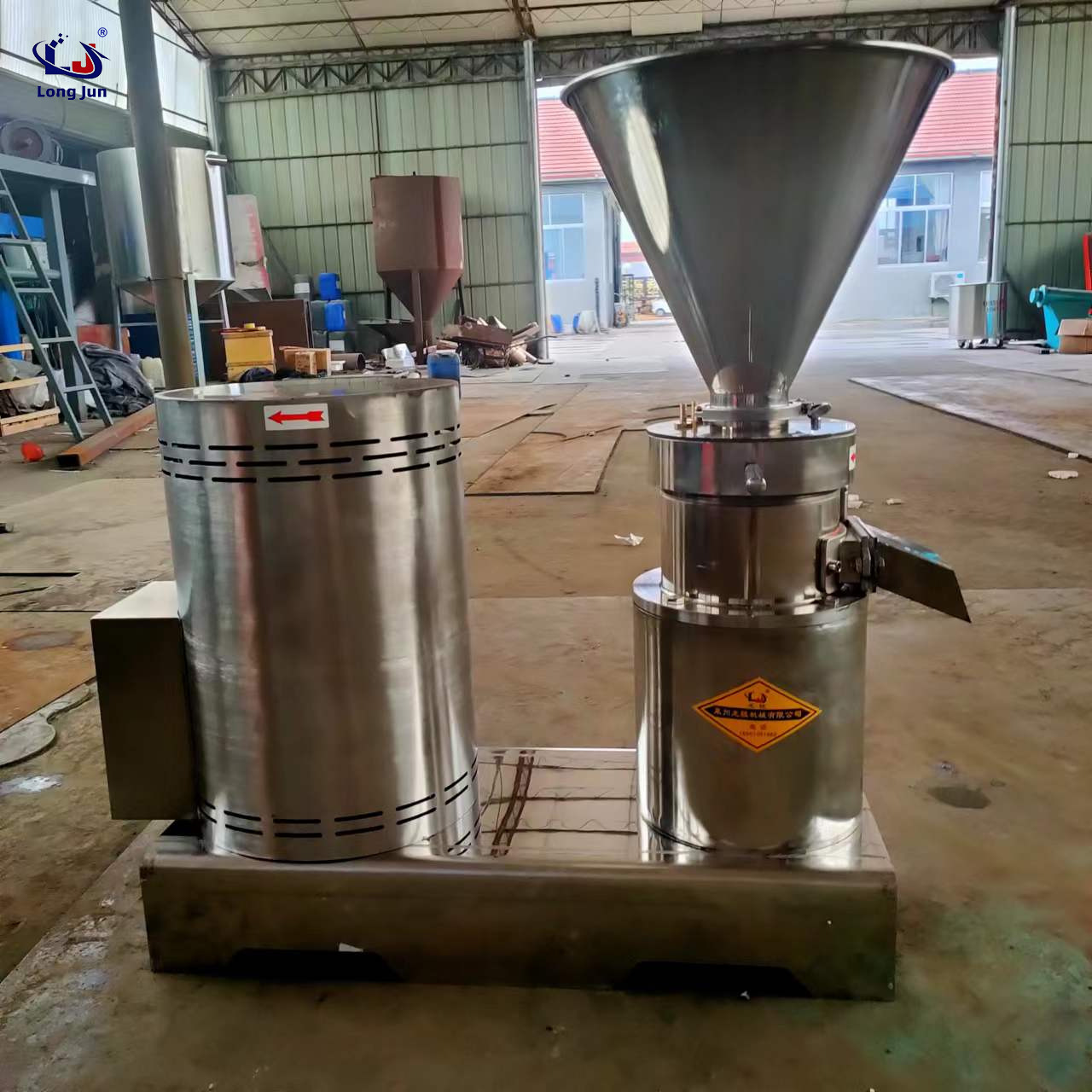

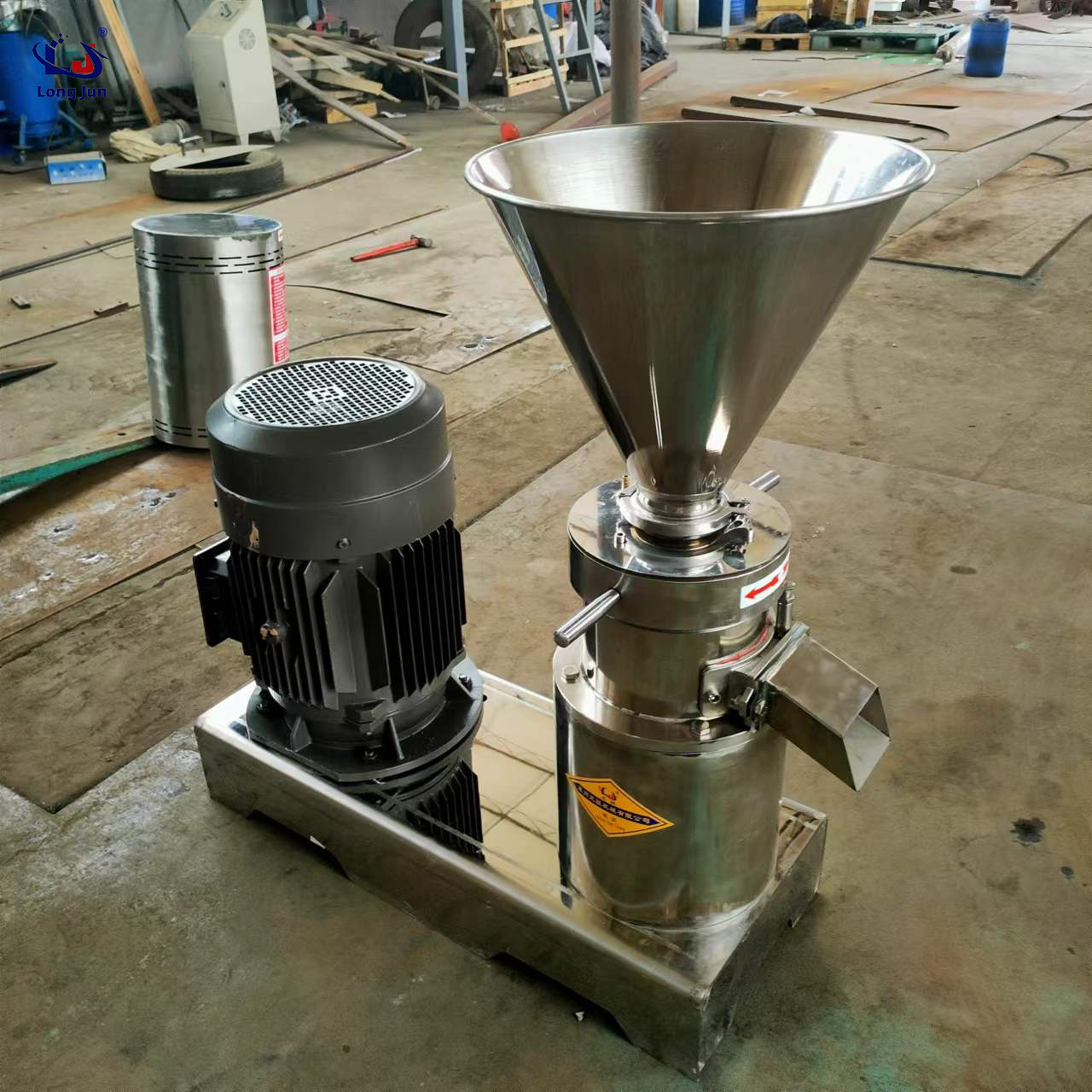

Longjun’s Food Safe Colloid Mill is an industry-leading wet ultrafine processing equipment, engineered for industrial manufacturers and commercial production facilities focused on fluid and semi-fluid material processing. Available in vertical and horizontal specifications, this food grade colloid mill for sauce manufacturing is constructed with premium food-safe stainless steel, delivering exceptional corrosion resistance, non-toxic performance, and full compliance with global food safety regulations. As a second-generation wet grinding solution, it integrates crushing, emulsification, homogenization, dispersion and mixing in one pass, with 7 standard models to cover needs from lab-scale trials to high-volume continuous production. This stainless steel colloid mill guarantees consistent particle size reduction and stable product quality for every batch, making it the preferred choice for food and industrial processing lines.

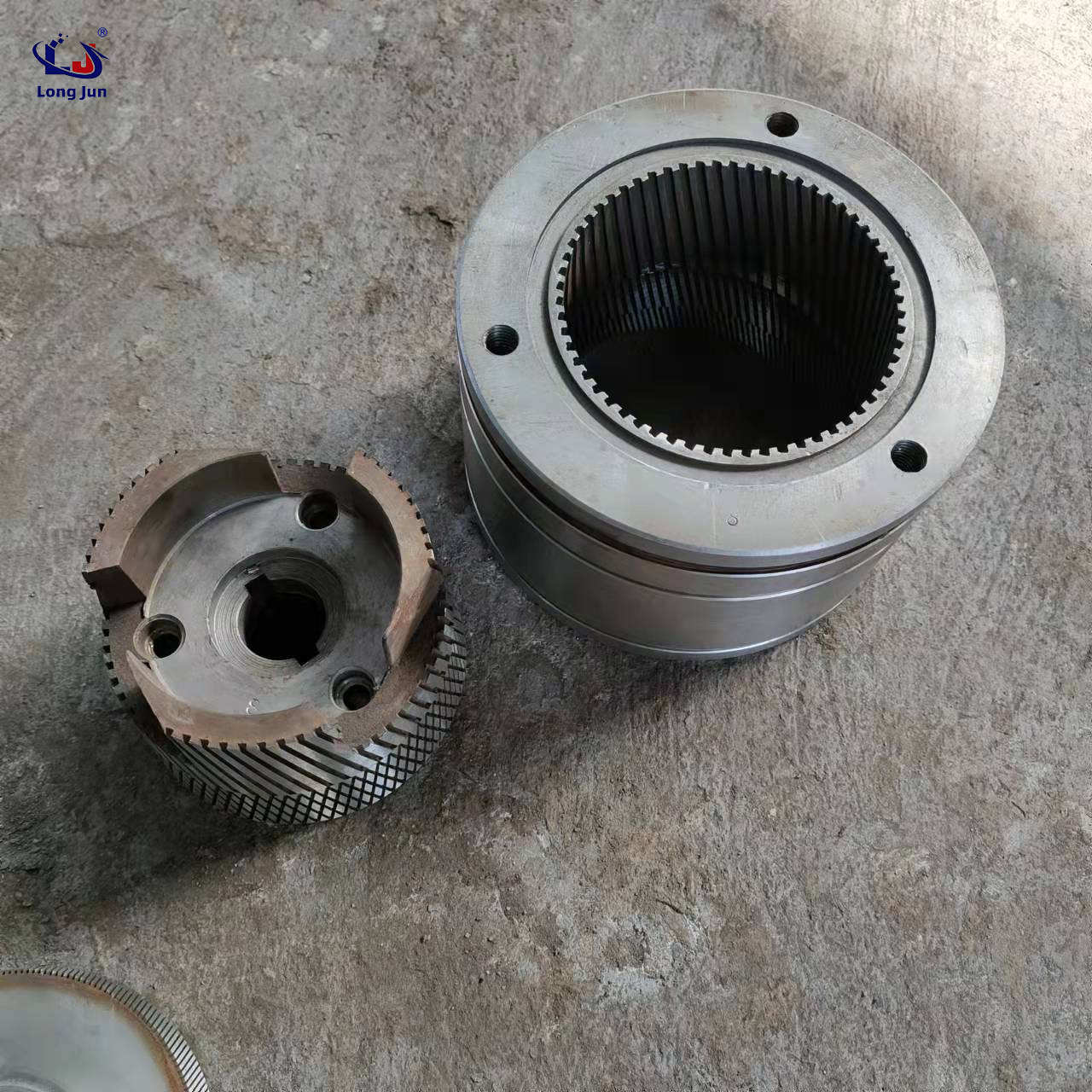

The core operation of our food safe colloid mill relies on the high-speed relative motion between precision-machined stator (fixed teeth) and rotor (moving teeth) assemblies. As fluid or semi-fluid materials pass through the narrow adjustable gap between the two components, they are subjected to intense shear force, friction and high-frequency vibration. This continuous mechanical action effectively breaks down solid particles, emulsifies immiscible liquids, and homogenizes uneven mixtures, achieving the desired fine processing effect in a single pass. Unlike traditional grinding equipment, our wet ultrafine particle processing colloid mill eliminates multi-step processing workflows, greatly reducing production time and energy consumption. Users can select vertical or horizontal configurations based on material characteristics, output needs and application scenarios to maximize processing efficiency.
Model number | JM-50 | JM-80 | JM-110 | JM-130D | JM-180D | JM-240 | JM-300 |
Finishing fineness | 50-100 | 50-100 | 100-200 | 100-200 | 100-200 | 100-200 | 60-200 |
Output (kg/h) | 10-15 | 30-70 | 150-200 | 300-500 | 600-800 | 1000-2000 | 3000-4000 |
Power (kw) | 1.5(220V) | 4 | 7.5 | 11 | 18.5 | 45 | 75 |
Weight (kg) | 50 | 150 | 175 | 285 | 340 | 920 | 1300 |
Overall dimensions (mm) | 530*260*580 | 640*410*900 | 700*430*980 | 830*440*1100 | 830*490*1100 | 1320*600*1280 | 1500*800*1120 |
Feeding hopper lower mouth diameter | 40mm | 50mm | 50mm | 90mm | 90mm | 120mm | 120mm |
Feeder hopper volume | 3L | 8L | 8L | 14L | 14L | 20L | 20L |
All wetted parts are made of food-grade stainless steel, non-toxic and corrosion-resistant, fully meeting food production safety standards. The integrated cooling mechanism ensures stable temperature control during processing, avoiding material deterioration from overheating.
Vertical and horizontal models are available, with adjustable rotor-stator gaps to control finishing fineness. Multiple models cover output ranges from 10kg/h to 4000kg/h, adapting to small-batch R&D and large-scale industrial production.
Integrates 6 core functions in one equipment, eliminating redundant production steps, reducing equipment investment, and improving production efficiency by more than 40% compared with traditional split processing equipment.
This food safe colloid mill is widely used across multiple sectors:
Food Industry: Core equipment for chili sauce colloid mill, peanut butter colloid mill, sesame paste colloid mill, fruit pulp, juice, dairy products, soybean milk and beverage processing.
Pharmaceutical Industry: Syrup, nutrient solution, Chinese patent medicine, paste medicine production.
Daily Chemical Industry: Toothpaste, cosmetics, detergent manufacturing.
Chemical Industry: Pigment, dye, coating, lubricant, emulsified asphalt processing.
Fix the equipment on a horizontal concrete foundation, connect the cooling water pipeline correctly, and ensure the motor rotation direction matches the marked direction. Level the equipment to avoid vibration during high-speed operation.
Conduct no-load test run before formal production, adjust the rotor-stator gap to the set value, feed materials evenly and continuously, and avoid idling for a long time after feeding is completed.
Clean the equipment thoroughly after each production run to avoid material residue and bacterial growth. Regularly check the wear of stator and rotor, replace worn parts in time, and maintain the cooling system to ensure smooth water circulation.
For startup and small-batch sauce manufacturing, JM-50 (10-15kg/h) and JM-80 (30-70kg/h) models are ideal, with compact footprint and 220V power compatibility for JM-50, adapting to small workshop spaces.
Yes. The horizontal configuration of our food grade colloid mill is specially optimized for high-viscosity materials such as peanut butter, sesame paste and thick chili sauce, with stable feeding and no blockage.
Absolutely. The detachable core components and full stainless steel structure allow quick disassembly and thorough cleaning, fully complying with food safety sanitation standards for batch-to-batch product changeovers.
