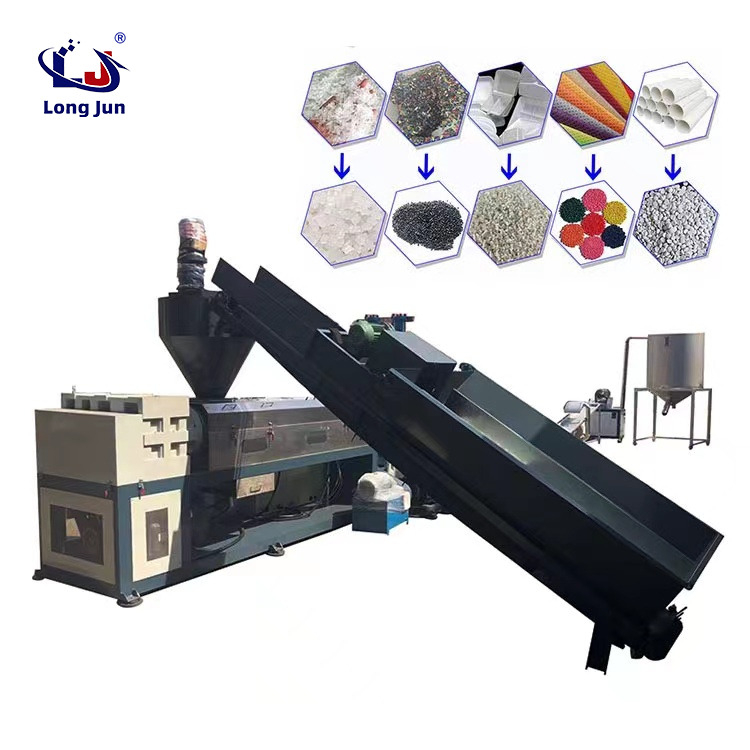

Waste plastic recycling extruder granulator plastic recycling machine

Waste plastic recycling extruder granulator plastic recycling machine

This PP PE plastic recycling granulator machine is responsible for transforming the PP HDPE diry plastic,especially oil container,bottles into the clean and dry pellets by label including sorting,crushing,washing(cold and hot washing) drying and pelletizing.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Description of Waste plastic PP PE HDPE LDPE LLLDPE film bag melt plastify pelletizing machine:
PE PP plastic pelletizing machine with international advanced recycling technology and combined with the actual application condition. This plastic pelletizing recycling machine is design specializes for recycling the washed plastic PE film, such as PE plastic bags, plastic packing films, plastic shopping bags, agricultural film etc.
After PE PP plastic pelletizing machine processing, the final products are plastic pellets/granules, which can be to produce plastic bags, drainage pipes, plastic board/sheet etc.

The whole Waste plastic PP PE HDPE LDPE LLLDPE film bag melt plastify pelletizing machine includes(customizable):

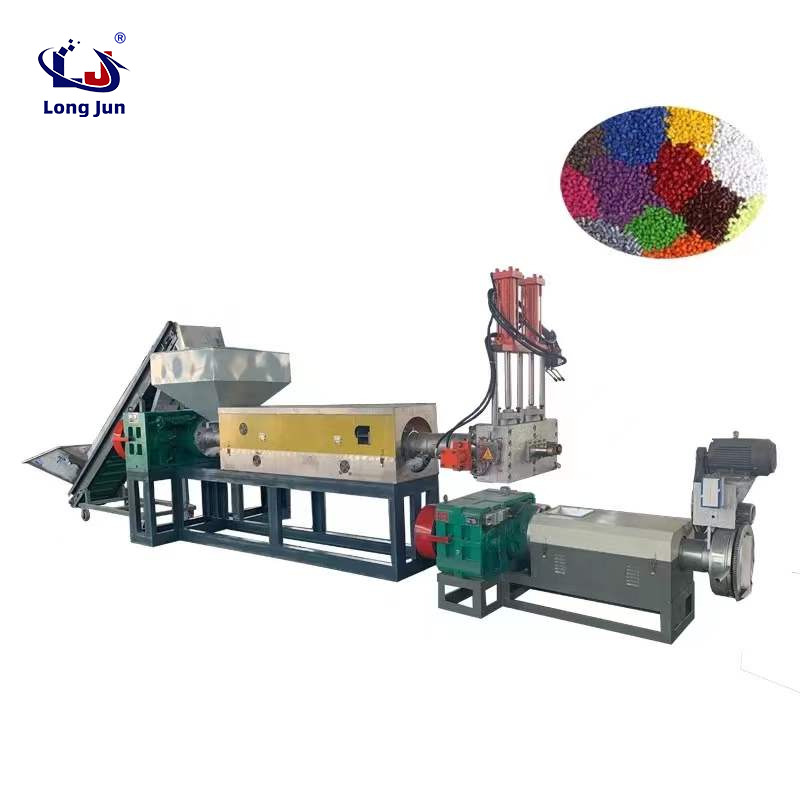

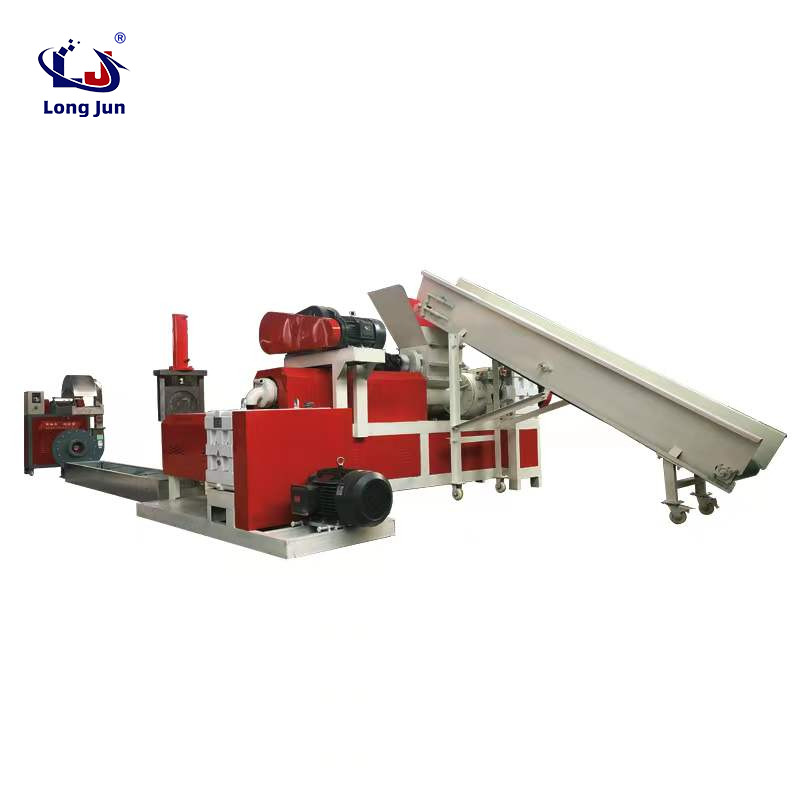

Belt conveyor → Compression barrel (agglomerator) → Efficient extruder → Non-stop hydraulic screen filter changer → Water ring cutting → Vibration machine → Dewatering machine → Blower → Storage hopper. Electric control panel 塑料造粒示意图英文

Photos of the main parts in Waste Plastic Recycling PP PE HDPE LDPE Llldpe Film Bag Melt Plastify Recycle Pelletizing

plastic Machinery

1Automatic conveyor

eed the material after crushed and washed or not large flim into the feeding machine.

2Feeding machine

With the automatic conveyor,feed the material into the extruder.

4Double stage screw extruder

for plasticizing the materials and exhausting the gas, it is made of 40Cr generally.and the other material(38CrMoAl, 45#, Spraying alloy etc.) customized according to the requirement of the user

5hydraulic screen changer

tilter the impurities, improve the granules quality

6Pelletizer(cuttingmachine)

includes mould and pelleting blades, Frequency control of motor speed,alloy cylinder-type hob, imported polyurethane roller, we can provide both vertical type and horizontal type

7Cooling trough:

use circular water for cooling the granules immediately after pelleting cut

8Vertical dewatering machine

convey the granules helically from bottom to top, the rotary rotor and the stainless screen help to drain the water, and convey the granules out from the machine

9Blower system

use the blower to blow the granules to the storage silo through the SS304 pipe

10Storage silo

for storing the final granules

11Control system

China famous electrical parts(or according to the requirement of the user)

Technical Parameter-->> double stage pelletizing line

Extruder	SJ110	SJ130	SJ140	SJ150	SJ180	SJ220
Screw diameter	105mm	125mm	135mm	145mm	175mm	215mm
Main motor	18.5kw	22kw	30kw	37kw	45kw	90kw
Vice motor	5.5kw	11kw	11kw	15kw	18.5kw	22kw
Capacity	80-100kg/h	100-150 kg/h	150-200kg	200-250kg/h	250-300 kg/h	300-400kg/h
