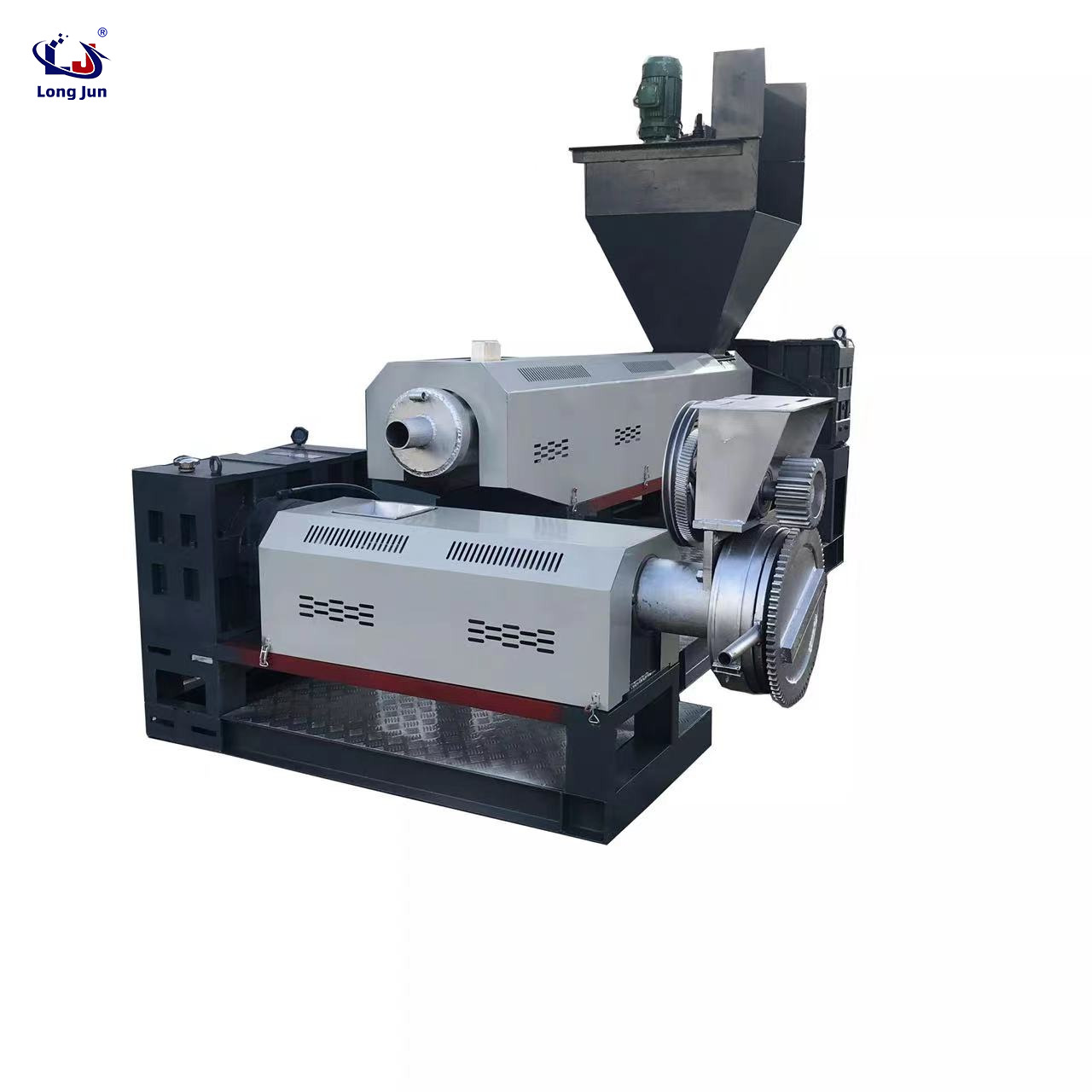

PET PE PP Recycled Plastic Particle Granulator pelletizer

This machine can be used to pelletize many types of plastics such as PP PE PT ABS PS PVC PET/PETP EPS HDPE LDPE , hard plastics, soft plastics and other plastic products.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Specification parameters

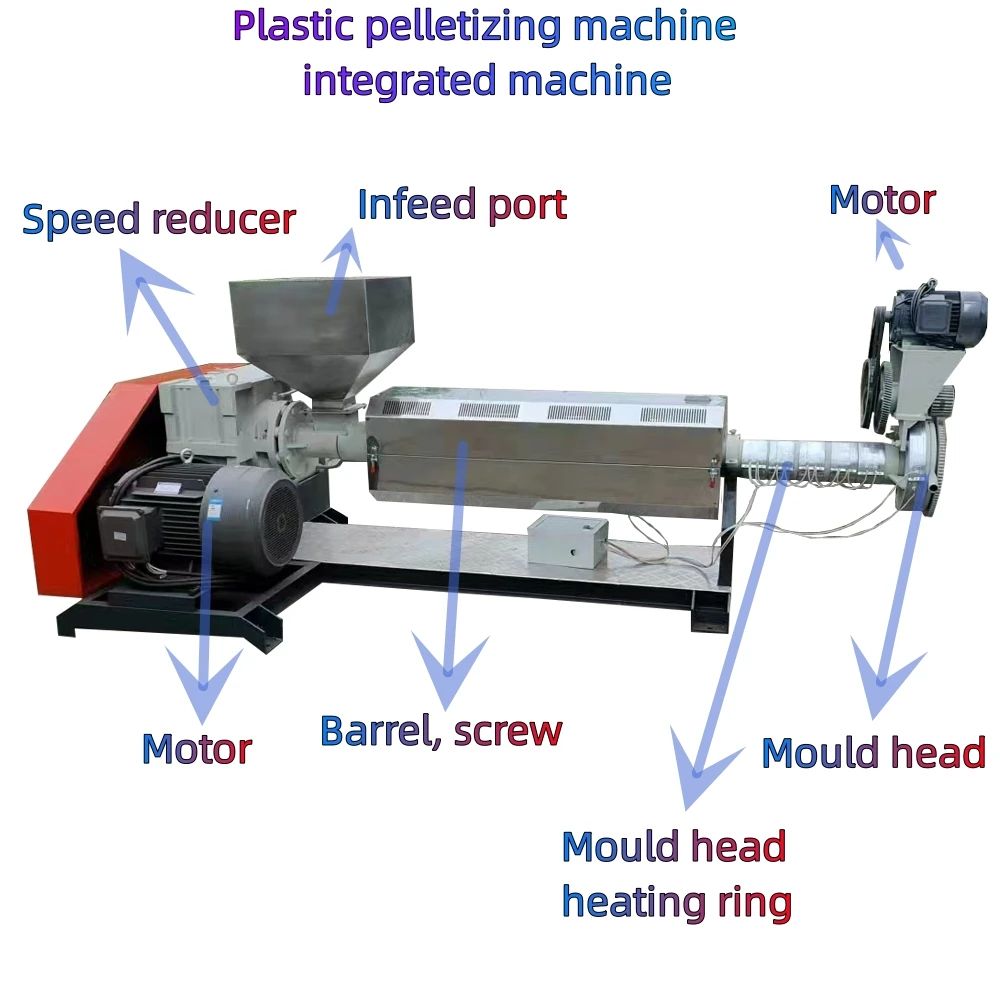

Product Name	Plastic pelletizing machine integrated machine
System Components	Crawler Feeder/Plastic Crusher/Vertical mixing cylinder/ Feeding conveyor/Plastic pelletizing machine/Cooling water tank/Granulator/Vibrating granule sifter/Storage cylinde
Target processing materials	PP, PE, PT, ABS, PS, PET, PVC and other types of plastics
Final Product Shape	Particles

Model	125H	125S	150H	150S
Production Capacity(kg/h)	100-150	100-150	200-300	150-200
Screw Diameter (mm)	125	125	147	147
Screw Length(mm)	2700	2700	2800	2800
Motor Power(kw)	30kw-6 level	30kw-4 level	55kw-6 level	55kw-4 level
Speed Reducer	JZQ500	JZQ500	JZQ500	JZQ500
Heating Method	Induction heating	Induction heating	Induction heating	Induction heating
Forced feeder		2.2kw motor		2.2kw motor
Mould head heating ring	360603kw*1pc	360603kw*1pc	410604kw*1pc	410604kw*1pc

Structure and details introduction

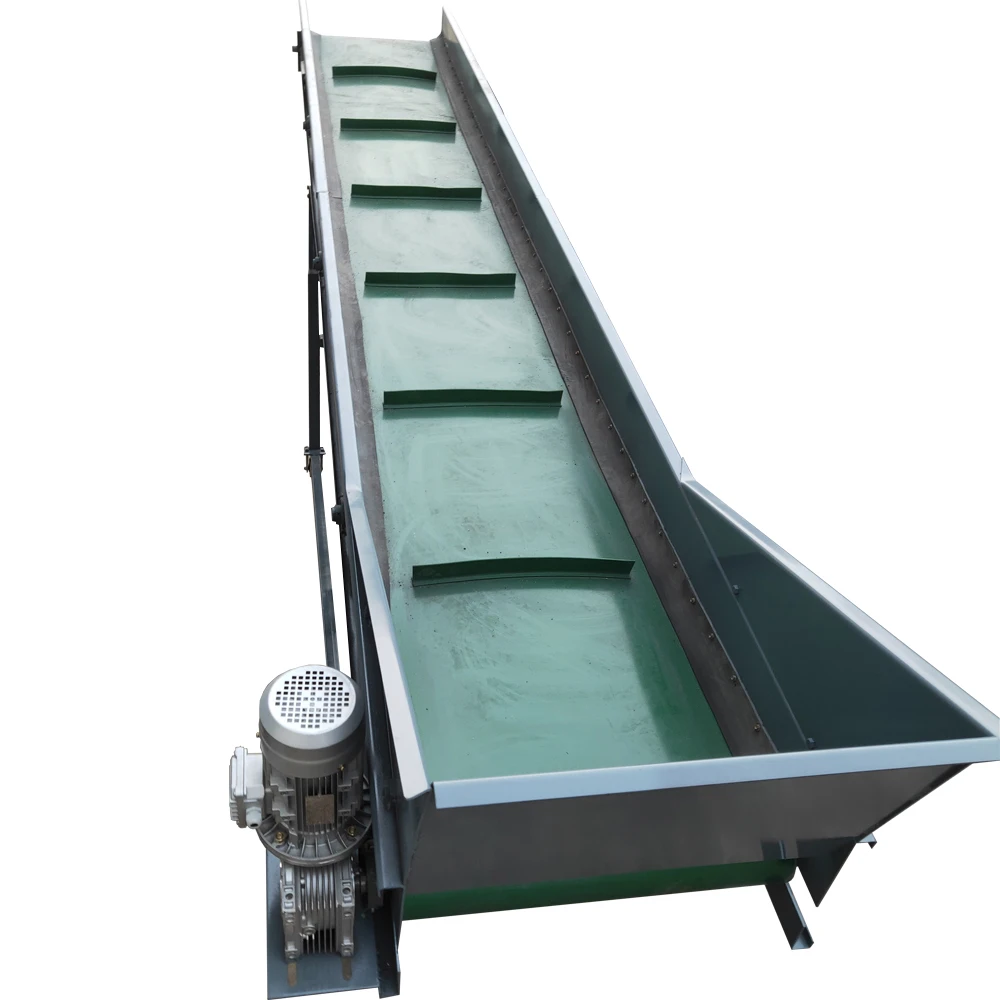

Crawler Feeder

This machine is a supporting machine required for plastic processing machinery, which can convey plastic raw materials (whole

plastic or broken plastic) directly to the crusher inside or granulator inlet. The part in contact with the material is made of stainless steel, and the raw material is completely free from pollution during the conveying process, so that the production process can be fully enclosed and automated.

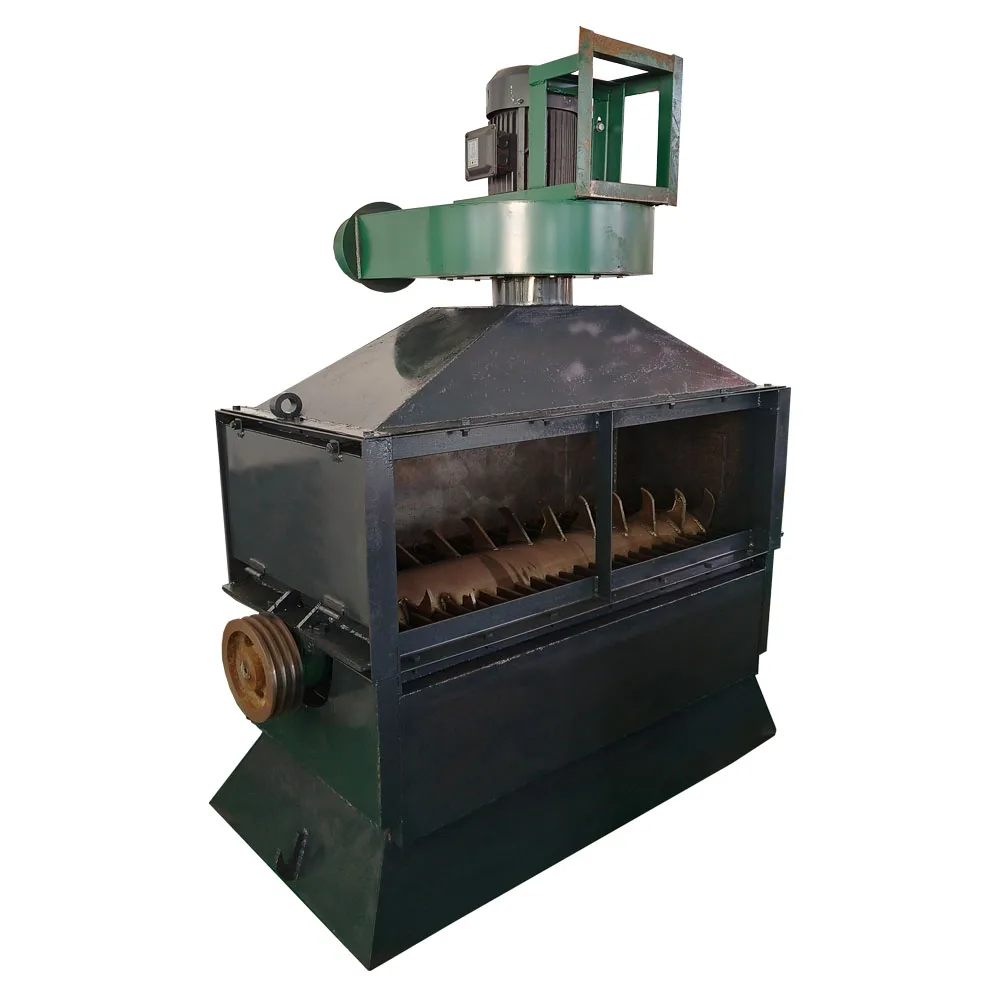

Plastic Crusher

The machine is mainly used for the crushing of hard and soft plastics.

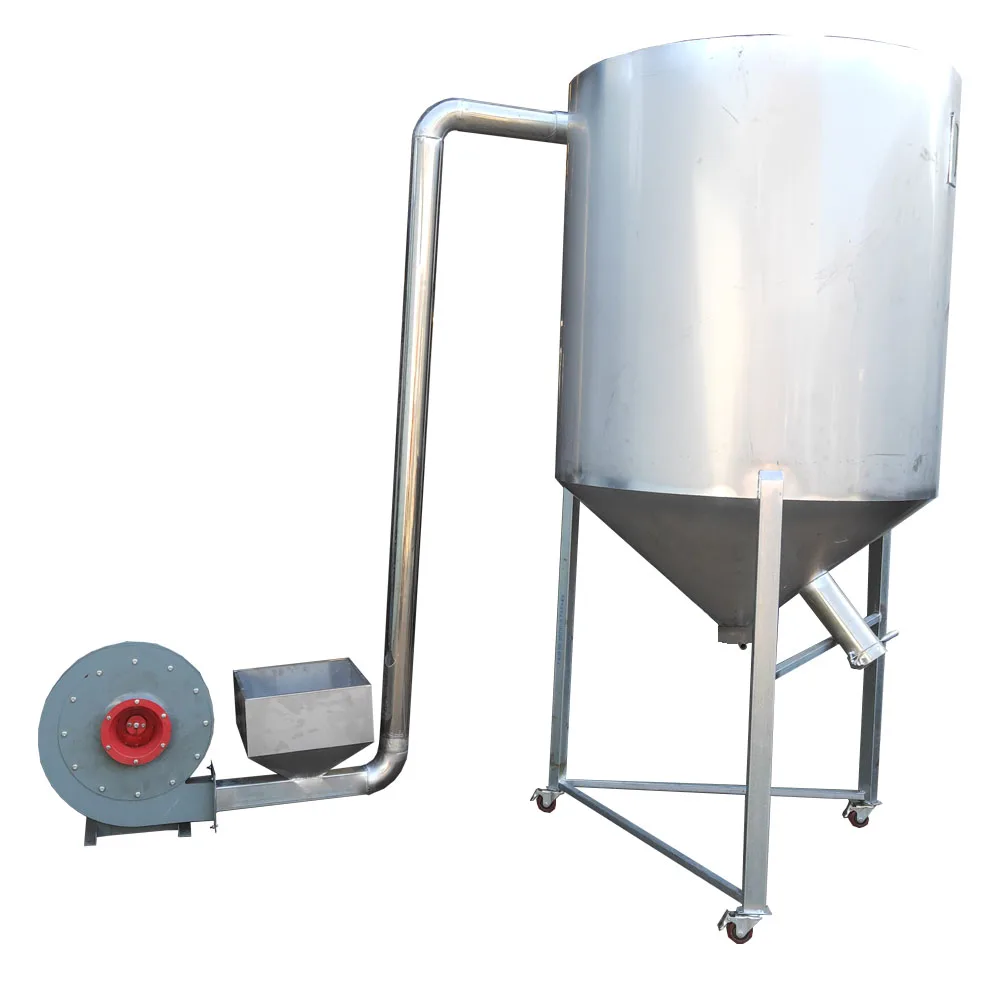

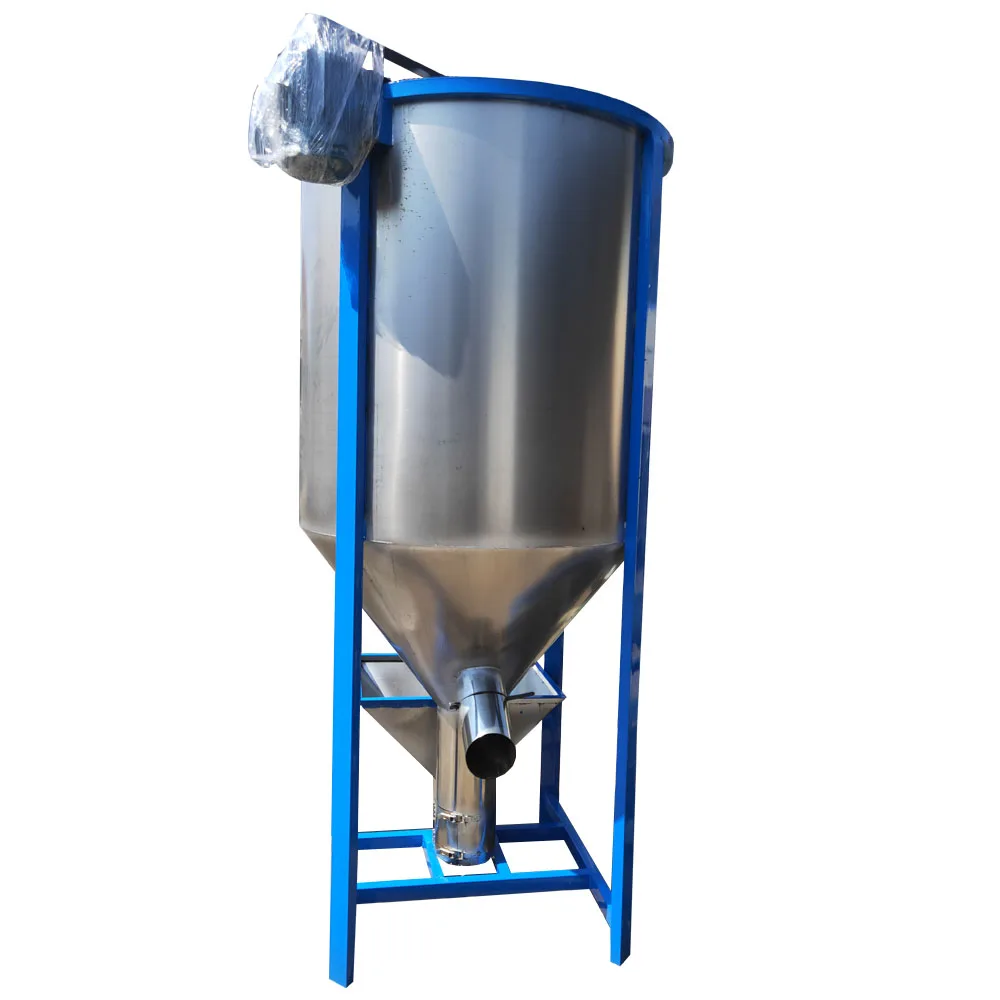

Vertical mixing cylinder

The vertical mixer collects and mixes the preliminarily crushed material.

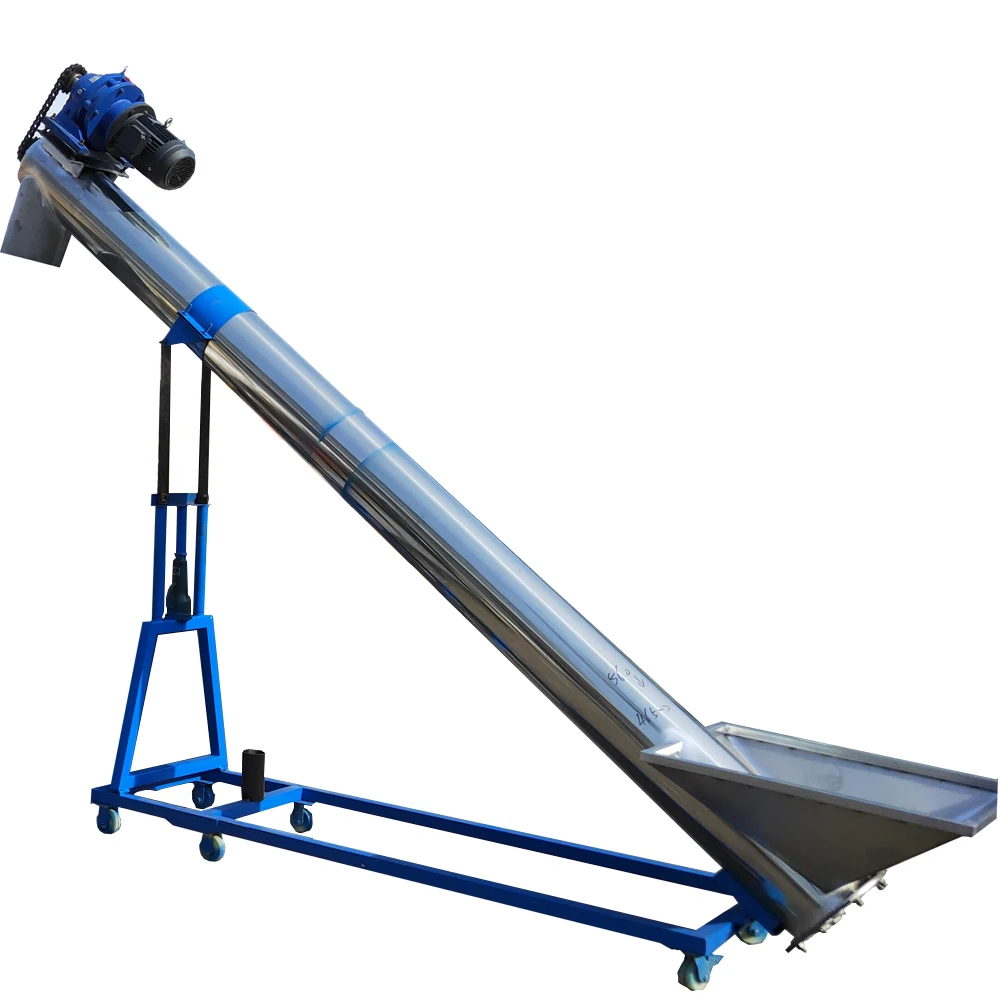

Feeding conveyor

The machine is used to convey the crushed material to the granulator inlet.

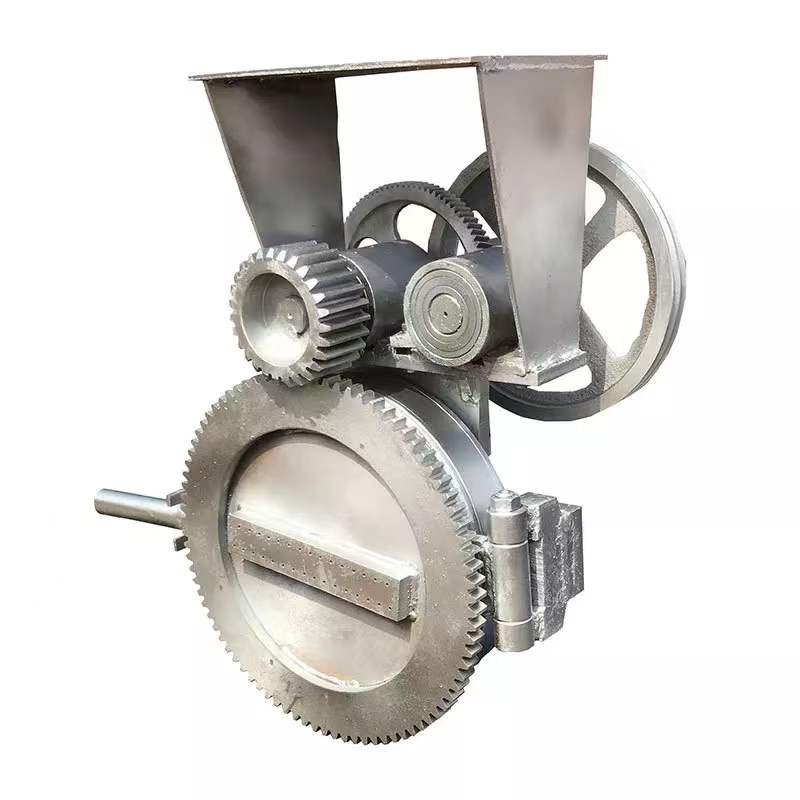

Mould head

The extrusion die extrudes the plastic strip in its molten state and into a subsequent cooling cell.

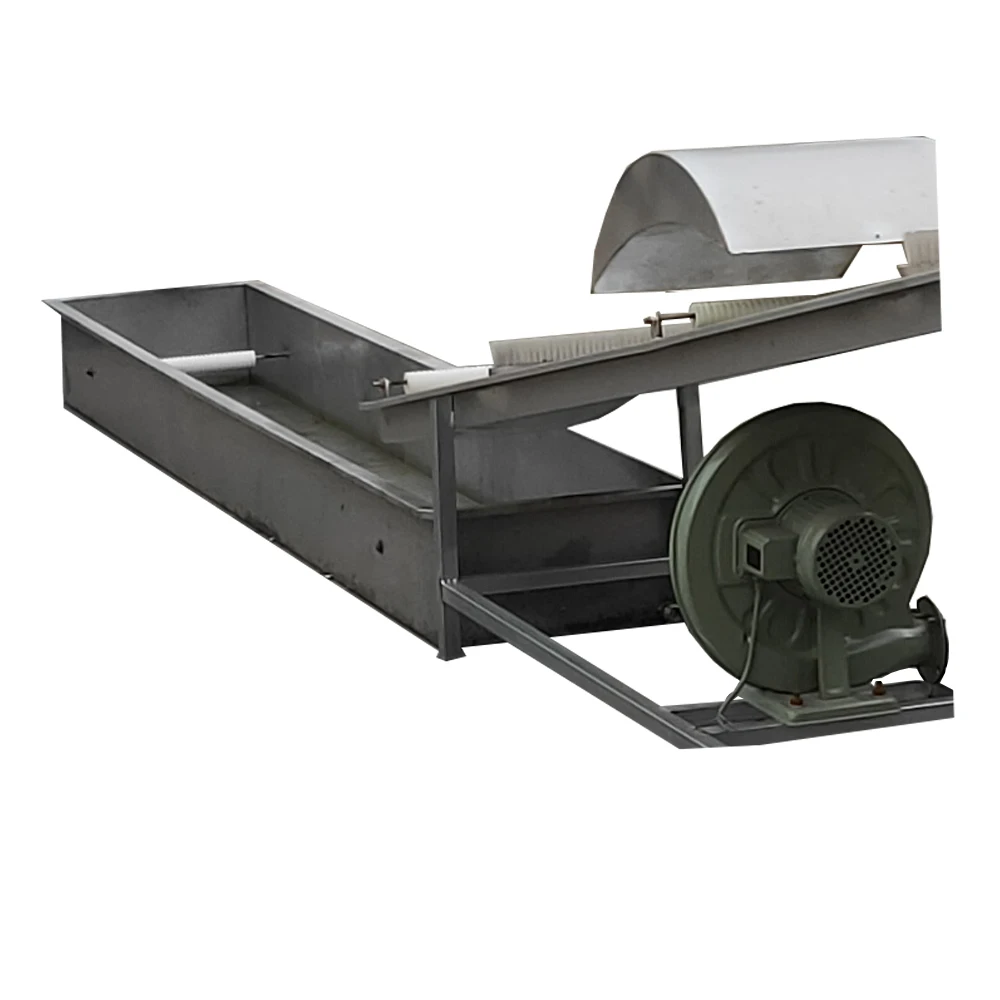

Cooling water tank

For cooling the extruded hot melt plastic strips.

Blow dryers

Blowing machine to remove moisture and dry the extruded hot melt plastic strips.

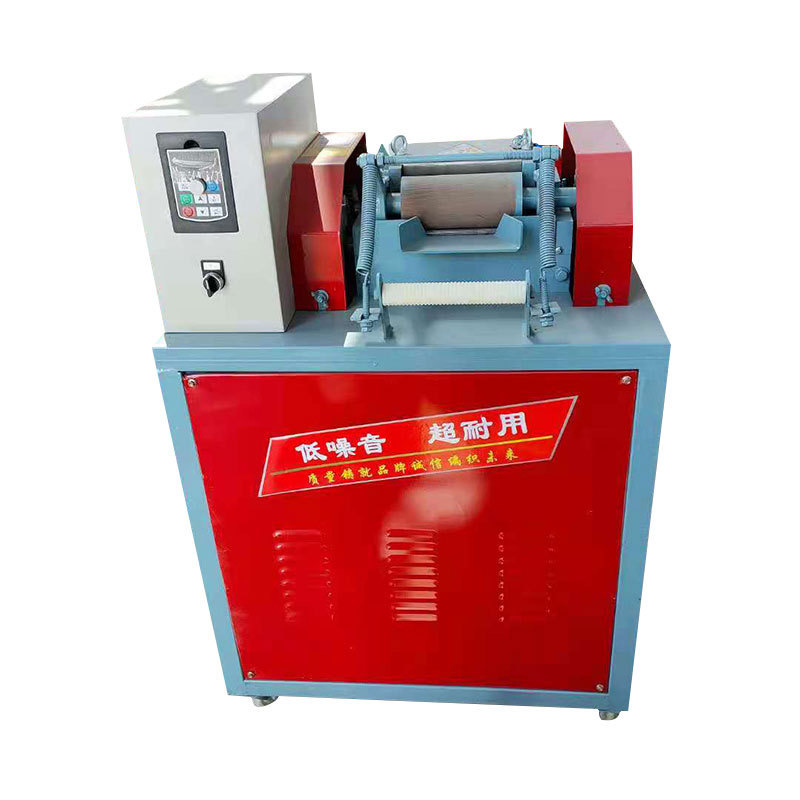

Granulator

Applicable to most common waste plastics, it is a widely used recycling processing machine in the waste plastics recycling industry. The extruded hot melt plastic strips are cut into granules for operation, and the granules are full and shiny.
