Crushing and cleaning plastic granulation recycling machine

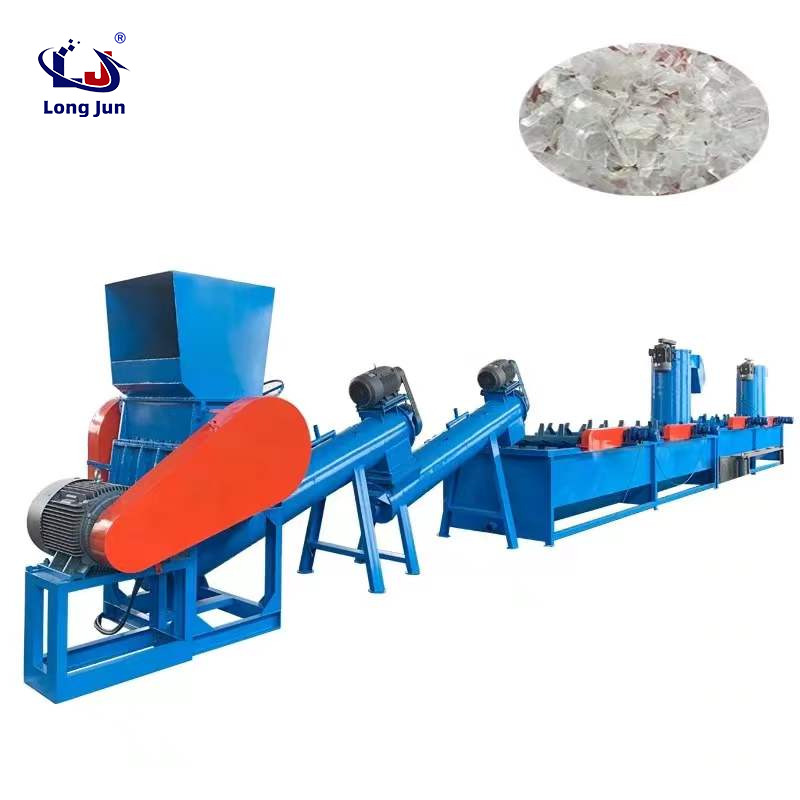

Plastic recycling machine typically involves several key processes to convert waste plastic into reusable material. Here’s an overview of plastic recycling process, including crushing, washing, and pelletizing:

1. Crushing
Shredding/Crushing: The recycling process starts with crushing or shredding the plastic waste into smaller pieces. Crushers or shredders vary in size and capacity, depending on the type and volume of plastic being recycled.
2. Washing
Washing: The crushed plastic pieces are then thoroughly washed to remove contaminants such as dirt, labels, and residues.
3. Drying
Drying: After washing, the plastic material is dried to remove moisture. Drying can be done using mechanical methods like centrifuges, or thermal methods such as hot air drying.
4. Pelletizing

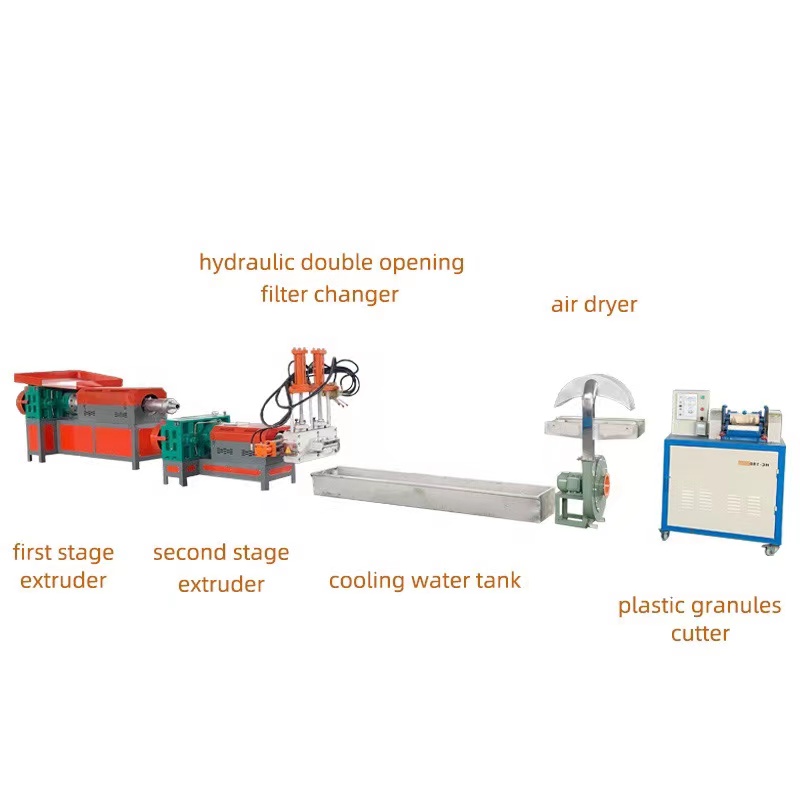

Pelletizing: The clean and dry plastic flakes are then melted and extruded into uniform pellets. This involves:
Extrusion: Melting the plastic flakes and pushing them through a die to form continuous strands.
Cooling: The strands are cooled, often in a water bath.
Cutting: The cooled strands are cut into small, uniform pellets, also known as granules.
These pellets can be used as raw material in manufacturing new plastic products.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Main features and advantages

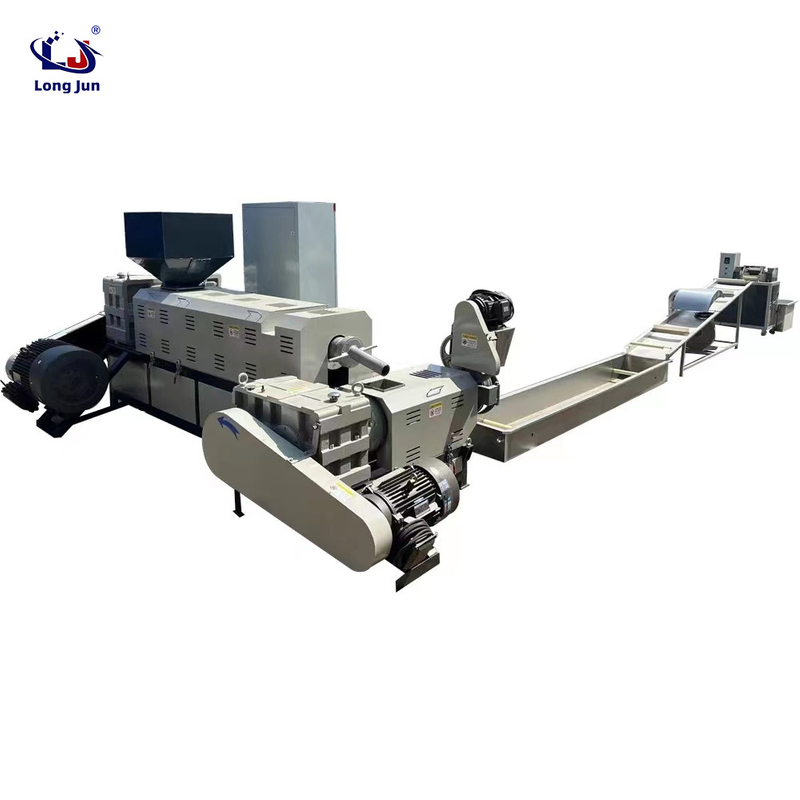

1. One stop production of automatic conveying, feeding, plasticization, exhaust, and extrusion.

2. The main screw of the unit is made of 38CrMoAl special steel deep processed, which is durable and long-lasting

3. Fully utilize the high friction uninterrupted heating system, automatically heat production, avoid continuous heating, and save energy.

4. The screw barrel is made of imported 40Cr high-strength and high-quality material, which is durable and long-lasting.

5. This machine adopts ZLYJ series hard tooth surface reducer, which is noise free, maintenance free, and has a long service life.

6. The machine is equipped with a quick network changing device, which is convenient and efficient.

7. This machine is equipped with an electromagnetic speed controlled rolling cutter cutting machine, which has low noise and cannot grind rolling cutters within 1000t.

微信图片_2025-08-10_131717_146

Technical Parameters

Model	LJ110-125	LJ125-150	LJ150-180	LJ180-200	LJ200-220
Main Screw Diameter	125mm	150mm	180mm	200mm	220mm
Spindle Speed	65rpm	65rpm	65rpm	62rpm	62rpm
Main Motor Power	18.5kw	30kw	55kw	75kw	90kw
Heating power	14kw	19kw	27kw	32kw	40kw
Capacity	110-150kg/h	150-180kg/h	200-230kg/h	250-280kg/h	300-350kg/h
Dimensions(M)	2.2x1.25x0.79	2.84x1.62x1.1	3.31x2.2x1.2	4.47x2.68x1.54	6.4x3.23x1.62
Machine weight	1.8T	2.3T	2.8T	3.0T	3.2T

Application Range

It is suitable for the regeneration and granulation of waste plastics, such as processing waste plastic films (industrial packaging film, agricultural film, greenhouse films, beer bags, handbags, etc.), woven bags, agricultural convenience bags, basins, barrels, beverage bottles, furniture, daily necessities, etc.

Special screw design and different configuration, suitable for the production of PP, PE, PS, ABS, PA, PVC, PC, POM, EVA, LCP, PET, PMMA and other plastic regeneration and mixed color granulation.
