EVA film water ring hot cutting recycling machine plastic granulation production line

Waste plastic recycling extruder granulator plastic recycling machine

Plastic Recycling Pellet Making Granulator Machine Sale

EVA film water ring hot cutting recycling machine plastic granulation production line

The plastic raw materials or waste plastics are sent into the hopper after pretreatment, and through the rotation and extrusion of the screw, the plastic is heated, shear, mixing and other functions in the barrel, and gradually molded into a uniform melt. Under the action of pressure, the plastic melt is continuously extruded by the screw head, and the extrusion of a specific shape is formed by the mold, and then the plastic particles are made by cooling, cutting and other processes.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Product Description:This Two Stage Single Screw Granulating Recycling Line is used for clean EVA, POE, fabric, film, roll film, transparent, titanium white. This plastic granulator line is composed of dspecial designed single screw granulator, water ring pelletizer, and vibration sieve.

The production line can be customized according to the quality of the raw material and special needs of the customer.

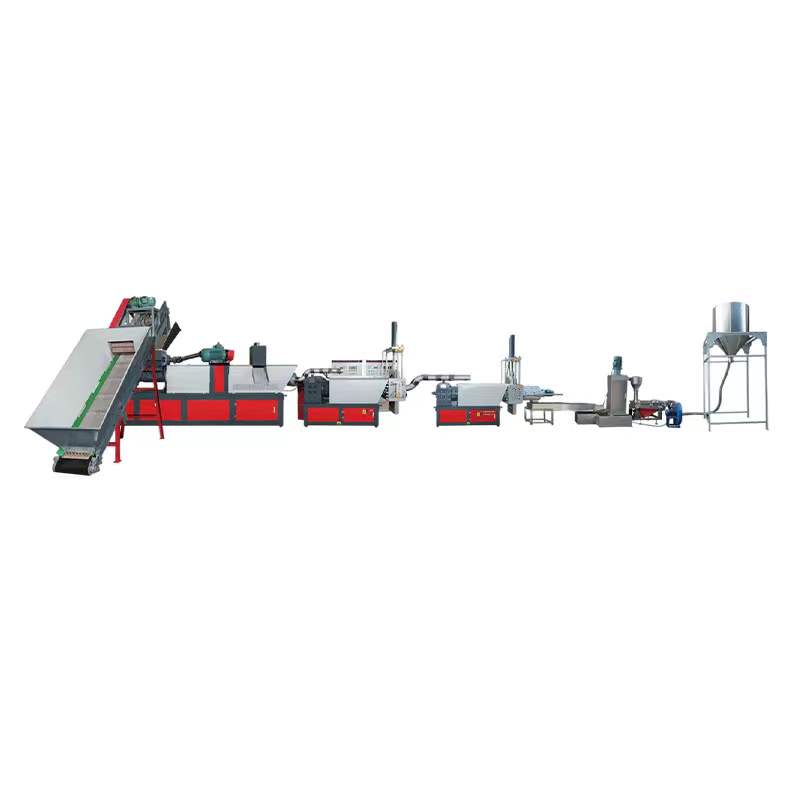

塑料造粒机生产线1

The raw material is sent to the main machine’s feeder manually. 2.The plastic film is heated and extruded to strips/noodle-shaped. 3.Cut into pellet by water ring pelletizer. 4.Screened by vibration sieve.

The complete production line is/has:1. User-friendly control, high efficiency, environmental protection and energy saving. 2. Different pelletizing methods, such as cold strand, water-ring, for various raw materials and production requirements. 3. Hydraulic lift screen changer and automatic screen changing can reduce manual labor and improve operation convenience. 4. Suitable for diverse materials processing, also can be customized one material or different materials, which reduces customer’s investment cost.

We still have more models, if you are interested in any items, please feel free to contact us.

Model	125	135	150	180
Capacity	150kg/h	200kg/h	250kg/h	350kg/h
The diameter of first stage screw extruder	125mm	135mm	150mm	178mm
The diameter of second stage screw extruder	105mm	125mm	135mm	150mm
The motor power of first stage extruder	30kw	37kw	45kw	55kw
The motor power of second stage extruder	11kw	15kw	15kw	22kw
Mesh filter changer	Electric mesh filter changer / Hydraulic mesh filter changer
Remarks	We still have more models / support OEM
