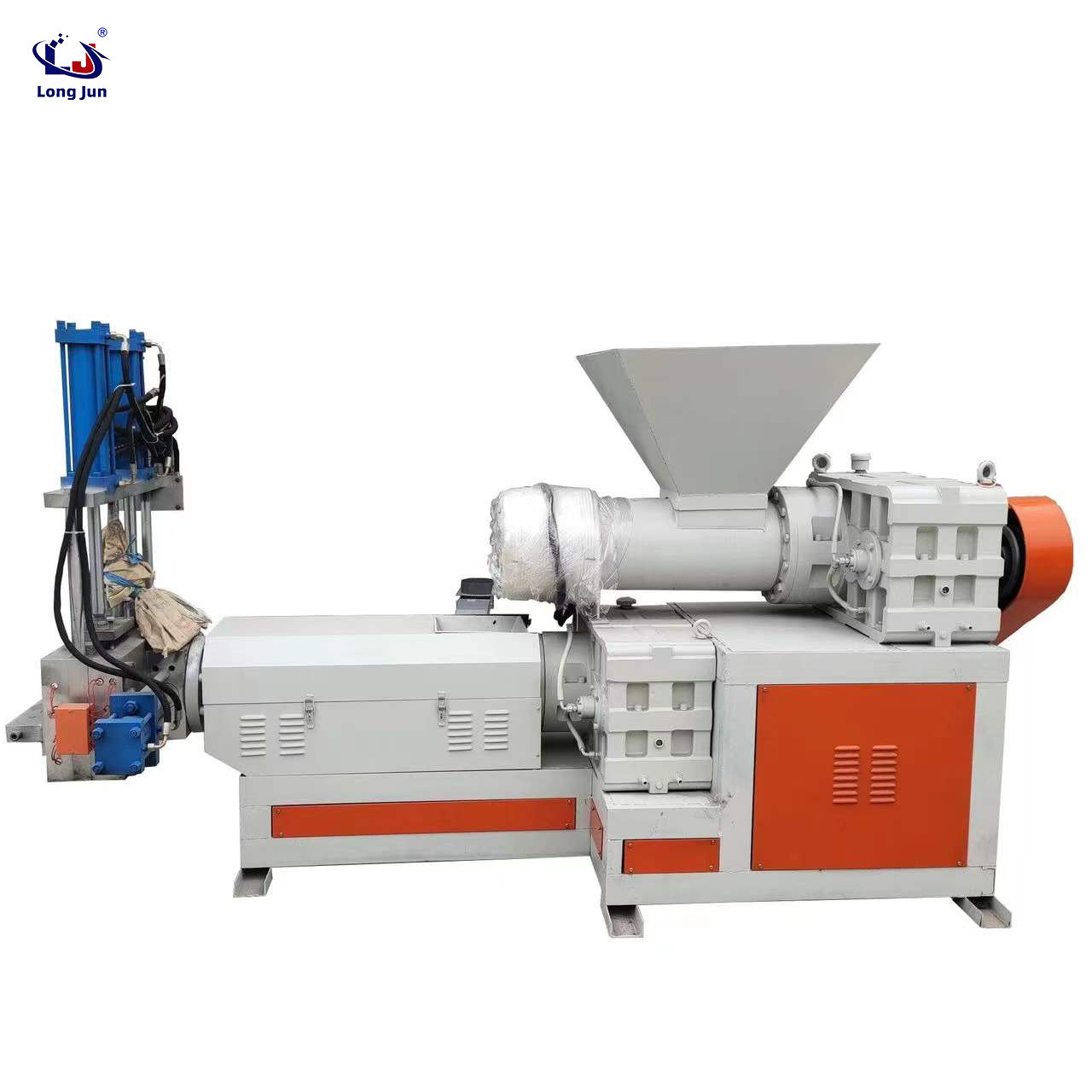

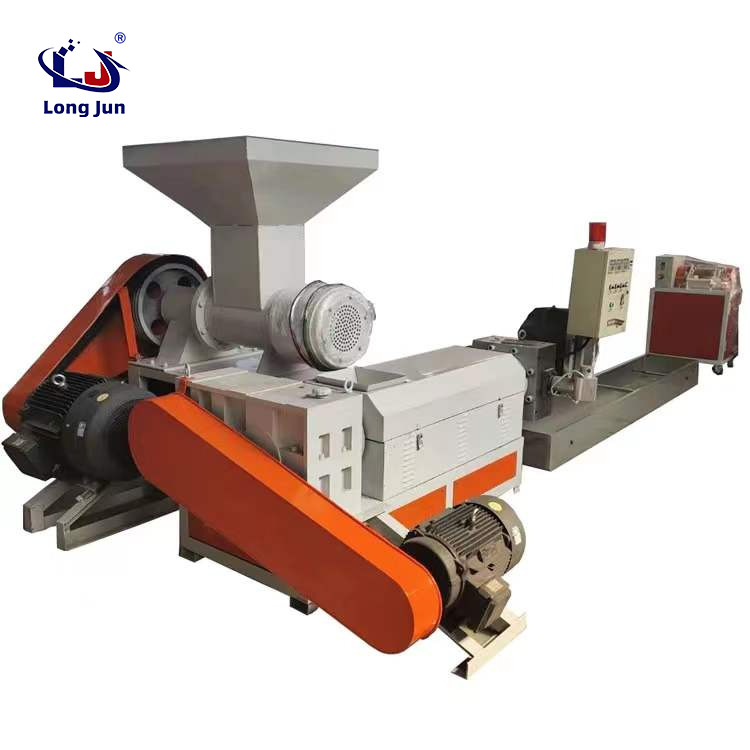

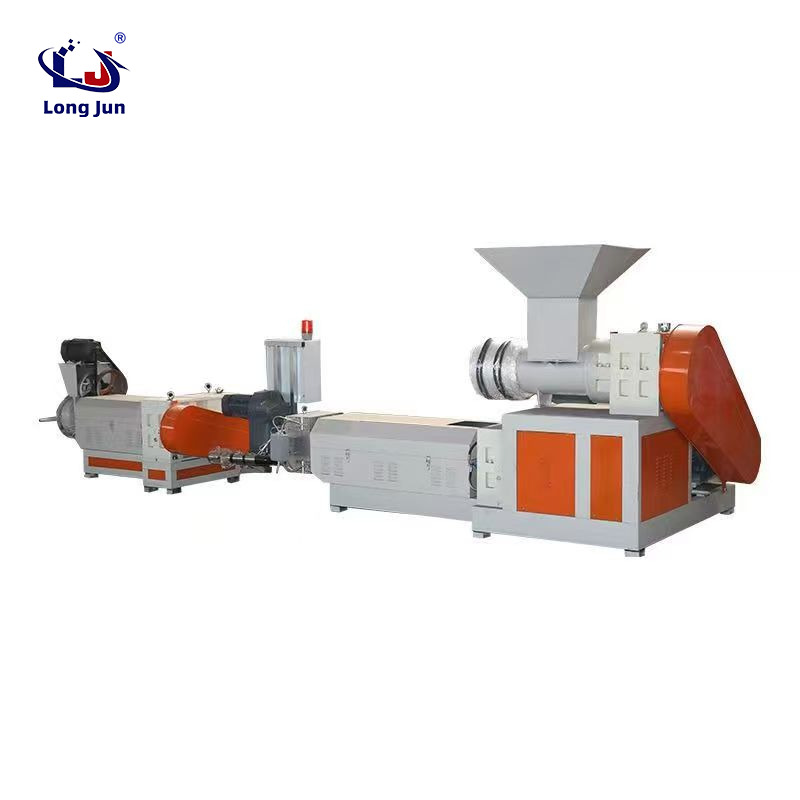

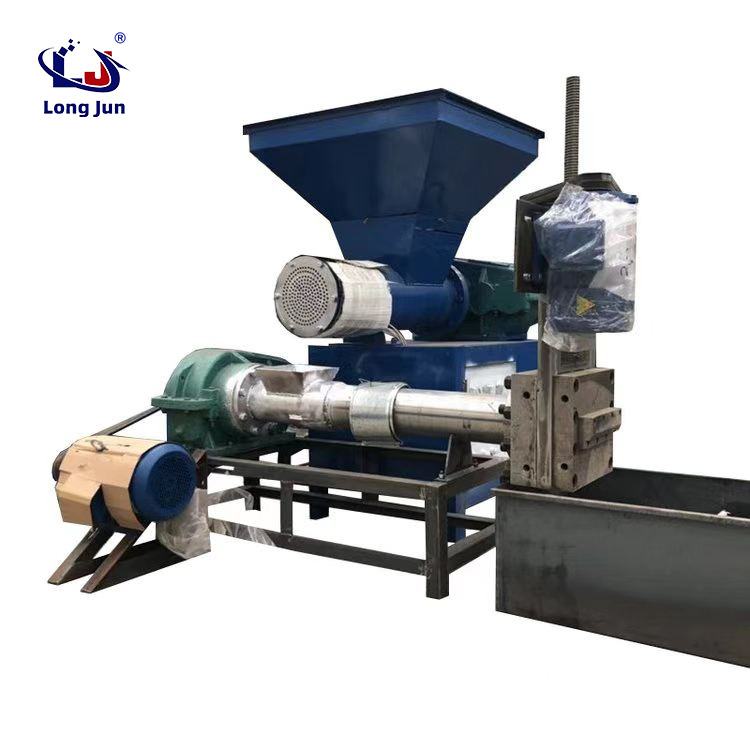

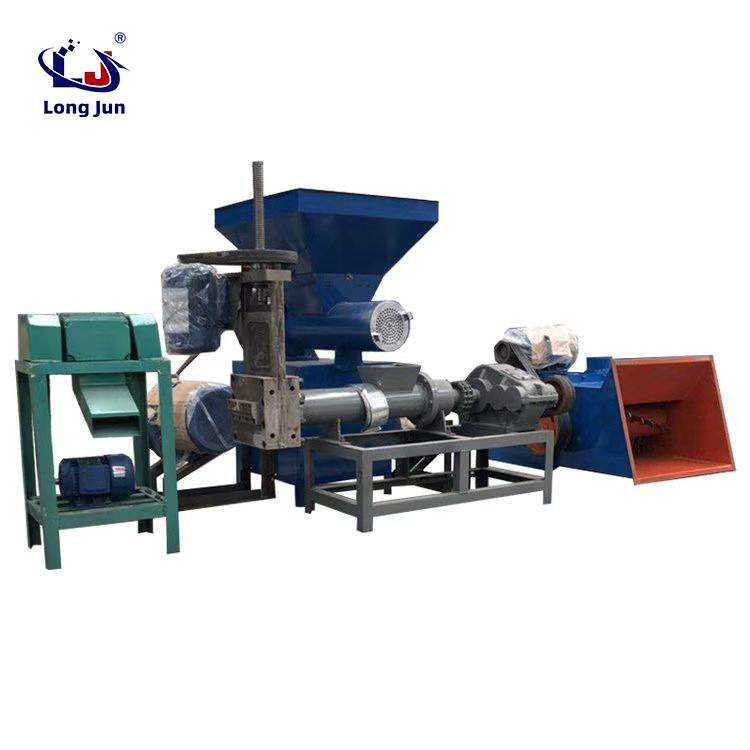

EPS foam recycling granulator

Introduce:

EPS foam granulator, waste foam granulator: also called foam granulator, with reasonable equipment design, high degree of automation, advanced technology, high efficiency, energy saving and pollution-free, it can directly produce particles at room temperature, bright and even, without destroying the original molecular mechanism, the particles produced are widely used, and the market demand exceeds supply.

The foam granulating unit is used to crush foam - plasticize, strip drawing - pelletizing and other processes. Its mechanical performance is stable and reliable. The output depends on the size of the equipment model.

1、 Equipment parameters

Power system

Electric motor power: 30-37kW (single machine)

Heating power: 30-40kW (heating section distribution configuration)

Total power configuration (including auxiliary equipment): 18.5-20kW (combination of crusher, extruder, granulator, etc.)

Mechanical specifications

Screw diameter: 125-220mm (main extruder)

Feed inlet size: 300 × 300mm to 800 × 800mm (suitable for different foam shapes)

Filter aperture: 4.2mm (customizable aperture)

Strip diameter: 3-5mm (particle forming size)

2、 Production performance

Capacity Range

Standard output: 100-200kg/h (single machine continuous operation)

Efficient model: up to 500kg/h (multi-stage hot melt extrusion design)

Monthly production capacity: 30-50 tons (combined production line configuration)

Suitable raw materials

Applicable materials: EPS foam, waste pearl cotton, polystyrene hot frit, etc

Preprocessing requirement: It needs to be processed by a crusher into fragments ≤ 80mm (standard for flat crushers)
