Z blade Sigma Mixer with Spiral Discharge Device

Stainless steel kneading machine is applied in the process of mixing, kneading, crushing, stirring, and re polymerization of high viscosity and high elastoplastic materials. Kneading machine is mainly used for producing silicone sealant, silicone structural adhesive, neutral glass adhesive, neutral anti mold adhesive, neutral weather resistant adhesive, vulcanized silicone rubber, and silicone rubber
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

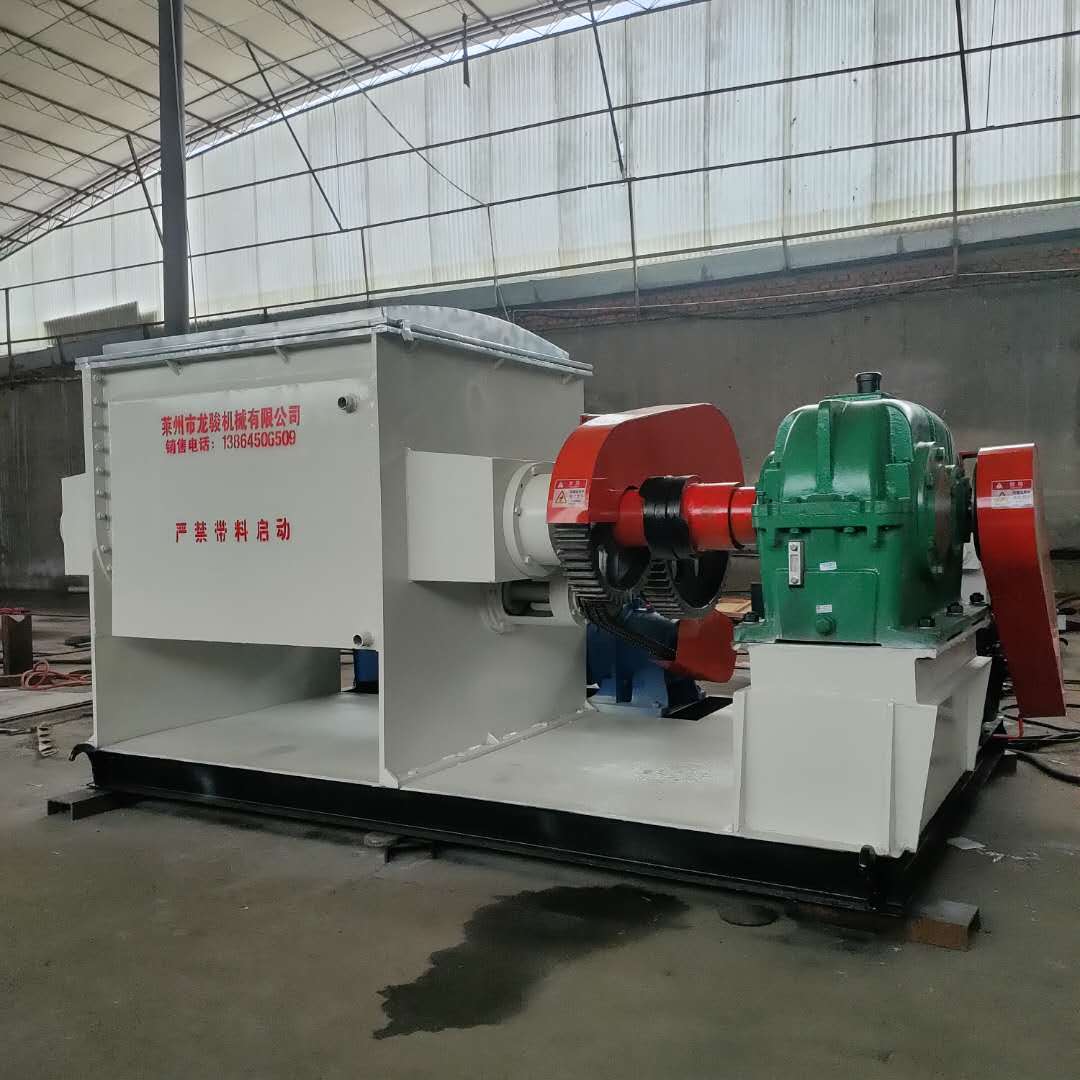

Stainless steel kneading machine is applied in the process of mixing, kneading, crushing, stirring, and re polymerization of high viscosity and high elastoplastic materials. Kneading machines are mainly used for producing silicone sealants, silicone structural adhesives, neutral glass adhesives, neutral anti mold adhesives, neutral weather resistant adhesives, vulcanized silicone rubber, silicone rubber, silicone resin, butyl rubber, mixed rubber, plastics, PP, PVC, PE, BMC, CMC cellulose, battery slurries, inks, pigments, dyes, bubble gum, chewing gum, medical silicone, etc.1000L捏合机8


Laizhou Longjun Chemical Machinery's main products include chemical machinery, chemical equipment, mixers, kneading machines, reaction kettles, reaction pots, reaction tanks, sand mills, grinders, dispersers, ball mills, colloid mills, three roll machines, three roll grinders, four roll machines, mixers, emulsifiers, filters, filtration machines, centrifuges, complete sets of chemical equipment, dry powder mortar equipment, real stone paint equipment, coating and paint production equipment, benzene plate glue equipment, putty powder equipment, putty paste equipment

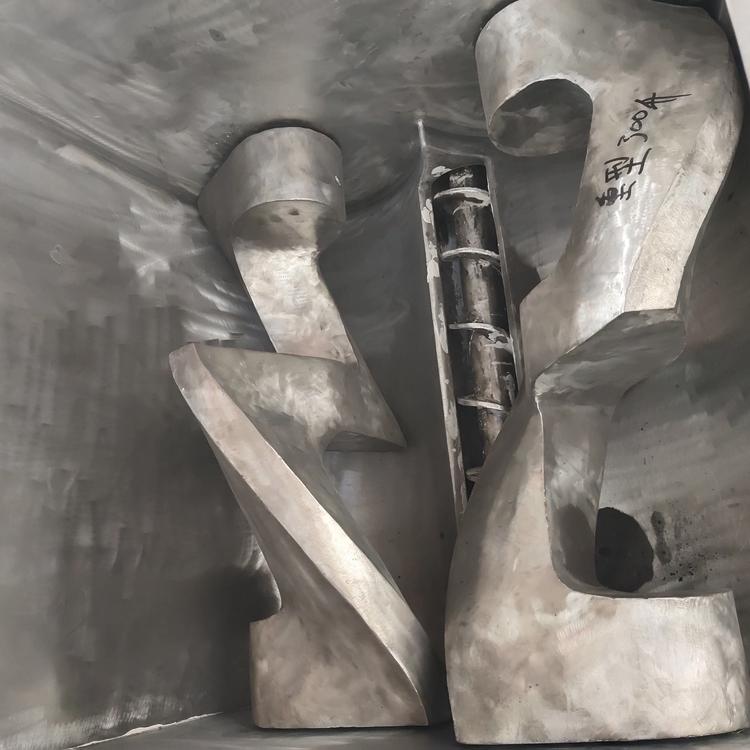

螺杆挤出捏合机9

Stainless steel kneading machine for chewing gum production equipment, xylitol chewing gum processing production line equipment, process flow and equipment advantages and characteristics introduction

Xylitol chewing gum production line, chewing gum production line, large roll production line, bubble gum production equipment

Introduction to Xylitol Gum Production Line

The pillow shaped chewing gum (xylitol chewing gum) production line mainly consists of a gum based oven, a mixer, an extrusion molding integrated machine (extruder, conveyor powder spreader, skin making machine, powder suction machine, molding machine), a sugar coating machine, and other parts. The production line is automatically controlled by a PLC program, with hygienic design, powerful functions, compact and reasonable structure, and beautiful appearance. It is an ideal equipment for major and medium-sized food enterprises to produce chewing gum (xylitol gum).


TypeNH-
5
NH-10NH-100NH-300NH-500NH-1000NH-1500NH-2000NH-3000NH-4000NH-5000
Volume(L)510100300500100015002000300040005000
Rotation Speed
(rpm)
33 2333 2335 22372137 2135 2530 1630 1638 2738 2738 27
Main Motor Power
(Kw)
0.751.1 3-7.511-3015-3722-9022-9030-11030-11045-11055-132
Heating MethodsSteam Pressur e(MPa)0.3
Electric Power(Kw)114916.22732.440727296
Vacuum(MPa)-0.094(Vacuum Kneader)
Pressure(MPa)0.45(Pressure Kneader)0.35(Pressure Kneader)0.3(Pressure Kneader)
Weight(Kg)300400125016003000450058006500110001300021000
