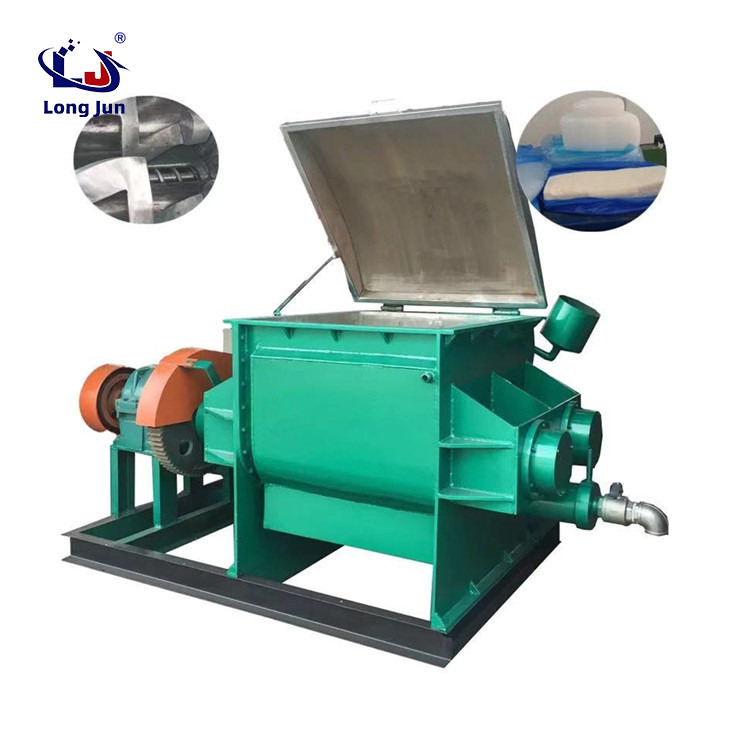

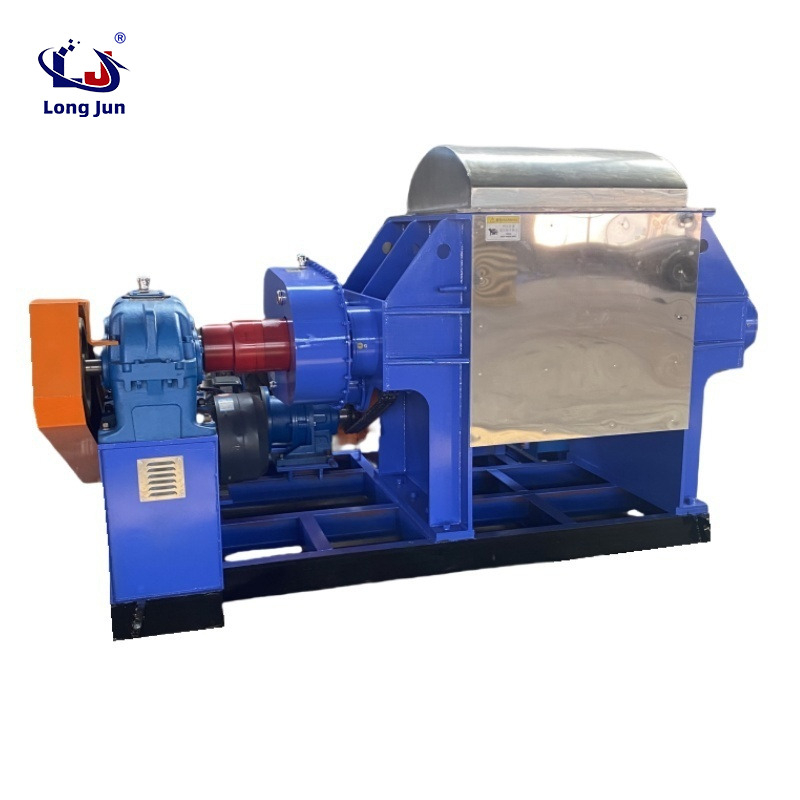

Dual arm sigma mixer extruder

Product Overview

Engineered by a premier manufacturer for processing ultra-high viscosity compounds with uncompromising reliability.

• Seamlessly integrates intense kneading action with a powerful extrusion system for uninterrupted production flows.

• Constructed to stringent international manufacturing standards, ensuring decades of heavy-duty operational stability.

• Delivered by a trusted supplier with customizable capacities tailored to meet your specific facility output requirements.

Product Description

The dual arm sigma mixer extruder represents the absolute pinnacle of high-viscosity material processing technology. By fusing aggressive mechanical kneading action with a robust screw extrusion mechanism, this machine effectively eliminates the traditional bottlenecks associated with transferring sticky, dense, or rubbery substances. When the heavy-duty Z-shaped blades rotate at carefully calibrated differential speeds, they generate immense shearing and folding forces that tear through tough agglomerates, ensuring a perfectly homogenous blend from the first batch to the last. Once the mixing cycle concludes, the integrated extrusion screw reverses its function, transitioning seamlessly from a mixing aid to a powerful discharge tool that pushes the dense mass out of the trough with absolute precision. This automated transition drastically reduces facility downtime and minimizes costly material waste. Whether your facility is formulating advanced silicone rubbers, highly resilient industrial sealants, or delicate pharmaceutical pastes, the exceptionally smooth, mirror-polished interior prevents cross-contamination and facilitates rapid, thorough cleaning. Furthermore, the robust structural integrity, combined with whisper-quiet Siemens motor technology, guarantees a stable, vibration-free operation even under maximum load, ultimately enhancing your production line's output consistency and long-term operational profitability.

Product Specifications

Key Features & Highlights

• Maximized Production Flow: The brilliant integration of heavy-duty mixing and precision extrusion within a single trough eliminates the absolute need for secondary handling equipment, drastically accelerating your batch-to-batch turnover times.

• Uncompromising Homogeneity: Counter-rotating differential blades ensure that every microscopic particle is subjected to intense shear, resulting in a flawless, lump-free texture that significantly elevates your final product's market value.

• Operator-Centric Safety Architecture: Featuring an intelligent limit switch that instantly halts operation the moment the lid is opened, your workforce is fully protected from moving parts, ensuring a secure, compliant working environment.

• Crystal-Clear Process Monitoring: Strategically placed, illuminated viewing windows allow your technicians to visually inspect the compound's rheology and consistency in real-time, without ever breaking the sealed environment or halting the machine.

• Effortless Maintenance & Cleaning: The exceptionally smooth, mirror-polished stainless steel interior prevents stubborn residue buildup, slashing cleaning times between color or formulation changes and drastically boosting overall facility uptime.

Material & Construction

• Premium Stainless Steel Contact Parts: Every single component that touches your valuable product is forged from high-grade SUS304 or SUS316L stainless steel. This ensures unparalleled resistance to corrosive chemicals and prevents rust, safeguarding the absolute purity of your formulations.

• Flawless Mirror-Polished Finish: The interior surfaces undergo rigorous, multi-stage mirror polishing. This ultra-smooth finish not only provides a sleek, professional appearance but critically prevents sticky materials from adhering to the walls, significantly reducing material waste.

• Sanitary Compliance for Sensitive Industries: For facilities producing food-grade or pharmaceutical compounds, the crevice-free structural design supports rigorous cleaning protocols. The hygienic engineering prevents bacterial harboring, aligning perfectly with strict GMP and FDA cleanliness requirements.

• Heavy-Duty Structural Frame: The exterior chassis is constructed from reinforced industrial mild steel, engineered specifically to absorb the immense torque generated during the kneading of millions of centipoise viscosity materials, ensuring decades of vibration-free stability.

Mixing & Kneading Performance

• Differential Speed Dynamics: Equipped with a fast blade rotating at up to 39 rpm and a slow blade at 25 rpm, the system creates a continuous, dynamic overlapping action. This precise differential speed is the mechanical secret to tearing apart tough agglomerates in ultra-high viscosity masses.

• Intense Shear and Folding: The heavy-duty Z-shaped geometry forces the thick material against the trough walls and between the blades. This generates massive mechanical shear and folding forces, which are absolutely crucial for distributing pigments, fillers, or additives evenly throughout dense rubber or dough.

• Zero Dead-Zone Engineering: The meticulously calculated clearance between the blade edges and the mixing vessel bottom guarantees that no material is left unmixed. Every ounce of your batch receives uniform kinetic energy, completely eliminating inconsistencies.

• Adaptable to Extreme Viscosities: Whether you are processing stiff carbon pastes or highly resilient silicone rubbers, the robust 55kw Siemens motor delivers relentless, fade-free torque, ensuring the blades push through the thickest compounds without stalling or overheating.

Discharging & Extrusion Options

• Seamless Screw Extrusion: The built-in extrusion screw sits at the bottom of the trough. During the mixing phase, it runs in reverse to push material back into the active kneading zone. For discharging, it moves forward, effortlessly extruding the heaviest, stickiest pastes directly into molds or subsequent processing equipment.

• Hydraulic Tilting Mechanism: For specific batch requirements, the machine features a smooth, powerful hydraulic tilting function. This allows the entire mixing vessel to tilt forward, granting gravity-assisted discharge and unhindered access for deep cleaning and maintenance.

• Bottom Plate Discharge: Customized bottom valves offer an alternative gravity-fed release for materials that flow more readily, providing necessary versatility depending on your specific formulation's rheology.

• Continuous Line Integration: By utilizing the screw extruder, the discharged material can be seamlessly fed into pelletizers, cutters, or automated packaging lines. This transforms a traditional batch process into a continuous, highly automated production flow, significantly slashing labor costs.

Temperature & Vacuum Control

• Precision Thermal Management: The equipment features a versatile heating jacket utilizing an electric heating system (30KW standard), with options for thermal oil or steam. This allows operators to precisely manipulate the viscosity of temperature-sensitive polymers during the mixing cycle.

• Rapid Cooling Capabilities: To counteract the intense frictional heat generated by high-shear kneading, the system incorporates highly efficient water and jacket cooling. This critical feature prevents the thermal degradation of delicate active ingredients or the premature curing of reactive resins.

• Advanced Vacuum Deaeration: Equipped with a high-performance water-ring vacuum pump and a dedicated buffer tank, the sealed mixing chamber can be drawn into a deep vacuum. This forcibly extracts entrapped air, moisture, and volatile gases from the dense mixture.

• Enhanced Product Density: By removing microscopic air pockets under vacuum, the final extruded product boasts superior structural density, a flawless surface finish, and an extended shelf life, which is absolutely vital for high-end sealants and advanced technical ceramics.

Sealing Technology & Safety

• Robust PTFE Packing Seals: The critical mixing shafts are secured with premium Polytetrafluoroethylene (PTFE) packing or optional mechanical seals. This advanced sealing architecture completely blocks highly abrasive or creeping materials from penetrating the bearings, drastically extending the machine's lifespan.

• Absolute Contamination Prevention: The gas-tight sealing not only keeps the product securely inside but also prevents external lubricants or airborne particulates from entering the mixing chamber, guaranteeing absolute batch purity for sensitive applications.

• Fail-Safe Limit Switches: Operator protection remains paramount. An intelligent safety interlock system immediately cuts power to the massive Siemens motor the millisecond the mixing lid is lifted, eliminating any risk of accidental contact with the rotating Z-blades.

• Explosion-Proof Configurations: For facilities handling volatile solvents or combustible dusts, the entire electrical system—including the motor and control panel—can be upgraded to strict explosion-proof standards, ensuring full compliance with rigorous industrial safety protocols.

• International Certification: Built to exacting CE and ISO standards, this equipment undergoes rigorous quality assurance testing, providing you with the peace of mind that your capital investment meets the highest global safety and performance benchmarks.

Automation & Control Systems

• Centralized Independent Control Panel: The machine is commanded via an intuitive, freestanding control station. This strategically isolates sensitive electronics from the mechanical vibrations of the mixer, ensuring the long-term reliability of all control components.

• Variable Frequency Drives (VFD): Utilizing advanced inverter technology, operators can seamlessly adjust the rotational speeds of the blades. This infinite speed control allows for precise tuning of the shear rate to match the exact rheological needs of different product phases.

• Real-Time Temperature Monitoring: Integrated thermal sensors provide instantaneous feedback to the control panel, automatically regulating the heating and cooling systems to maintain the batch within a strict, predefined temperature window without manual intervention.

• One-Touch Extrusion Command: The transition from mixing to discharging is flawlessly managed through automated sequencing. With a single command, the system synchronizes the blade rotation and screw extrusion, minimizing operator fatigue and standardizing the discharge process.

Customization & Application Adaptability

• Scalable Production Capacities: While the 1000L model offers a robust 600L working capacity, the engineering architecture is fully scalable. We provide tailored solutions ranging from compact laboratory models for R&D formulation to massive industrial units for high-volume manufacturing.

• Broad Industry Versatility: The sheer mechanical power and refined control make this unit indispensable across diverse sectors. It effortlessly processes everything from tough butyl rubber and carbon pastes to delicate chewing gum, bakery dough, and pharmaceutical compounds.

• Tailored Turnkey Solutions: We understand that no two facilities operate identically. Our engineering team collaborates closely with your technical staff to customize discharge heights, heating mediums, and control interfaces, delivering a true plug-and-play turnkey system.

• Rigorous Pre-Shipment Testing: To guarantee seamless integration into your existing line, we offer comprehensive factory acceptance testing. By simulating your specific material conditions, we ensure the equipment performs flawlessly from the moment it is commissioned on your floor.

Why Choose Us

• Decades of Manufacturing Excellence: With profound expertise in the research, design, and fabrication of heavy-duty mixing equipment, we deliver robust machinery that stands the test of time in the harshest industrial environments.

• Uncompromising Quality Control: Every component, from the mirror-polished stainless steel trough to the heavy-duty gearboxes, undergoes stringent metallurgical and dimensional inspections to ensure flawless, long-lasting performance.

• Global Standard Compliance: Our unwavering commitment to safety and reliability is reflected in our strict adherence to CE and ISO manufacturing standards, ensuring our equipment meets the complex regulatory demands of international markets.

• End-to-End Technical Support: Beyond delivering exceptional hardware, we provide comprehensive lifecycle support. From initial consultation and custom engineering to installation guidance and rapid spare parts availability, our team ensures your operations never miss a beat.

• Innovative Engineering Team: We continuously invest in research and development to integrate the latest advancements in automation, sealing technology, and thermal dynamics, ensuring your facility remains at the absolute cutting edge of processing technology.

FAQ

Q1: How does the screw extrusion system handle highly abrasive materials without rapid wear?

The extrusion screw and the interior trough are crafted from premium, high-thickness stainless steel, with customizable hardening options available for extreme applications. This robust metallurgy, combined with precise manufacturing tolerances, ensures minimal wear and tear even when processing highly abrasive compounds like carbon pastes, metallic inks, or ceramic slurries, thereby protecting your investment.

Q2: Can the temperature control system maintain precise heat levels for heat-sensitive polymers?

Absolutely. The equipment utilizes a sophisticated jacketed system managed by the independent control panel. By integrating real-time thermal sensors with automated valves for cooling water or electric heating elements, it maintains your exact required temperature profile. This precision prevents any thermal degradation of sensitive ingredients and ensures consistent batch quality.

Q3: What makes the PTFE packing seal superior for high-viscosity mixing applications?

PTFE (Polytetrafluoroethylene) packing provides exceptional chemical resistance and an extremely low coefficient of friction. This creates a highly effective, durable barrier that prevents dense, sticky materials from migrating into the shaft bearings. By keeping the bearings clean and isolated, it protects the mechanical integrity of the mixer and significantly reduces maintenance frequency.

Q4: Is it possible to integrate this mixer into a fully automated continuous production line?

Yes, it is highly adaptable. The integration of the screw discharge mechanism allows the mixer to feed material directly and continuously into downstream equipment, such as pelletizers, granulators, or forming dies. Coupled with our advanced control panels, the equipment seamlessly synchronizes with your facility's central automation system for a streamlined workflow.

Q5: How exactly does the vacuum system improve the quality of silicone rubbers and sealants?

During the intensive kneading process, ambient air is inevitably folded into the dense mass. The integrated water-ring vacuum pump creates a deep negative pressure environment inside the sealed trough, forcibly drawing out entrapped air bubbles, moisture, and volatile gases. This results in a much denser, void-free final product that exhibits superior tensile strength and a flawless, professional finish.
