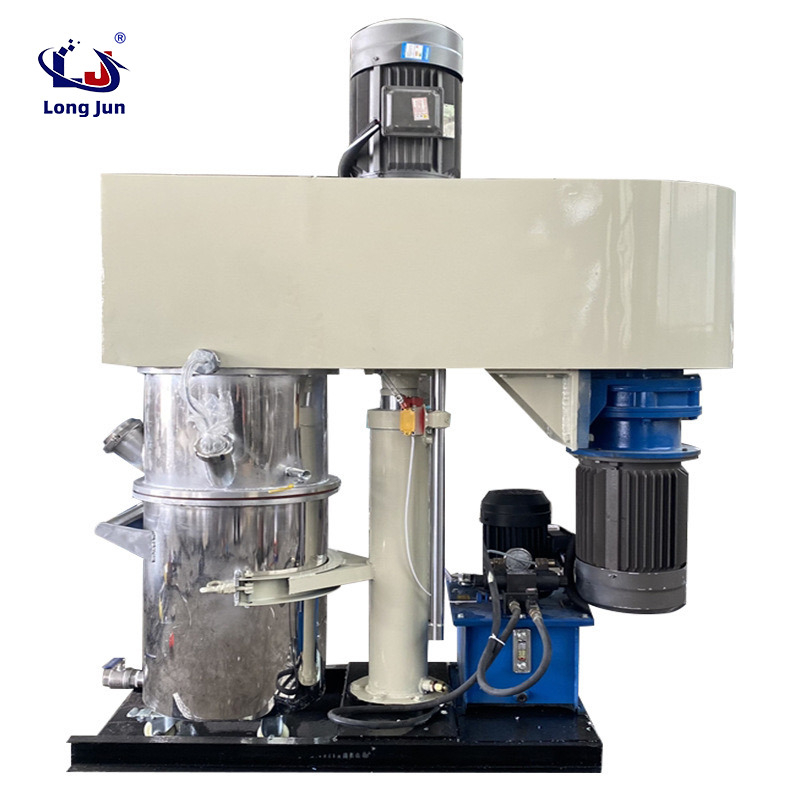

Silicone sealant dual planetary mixer

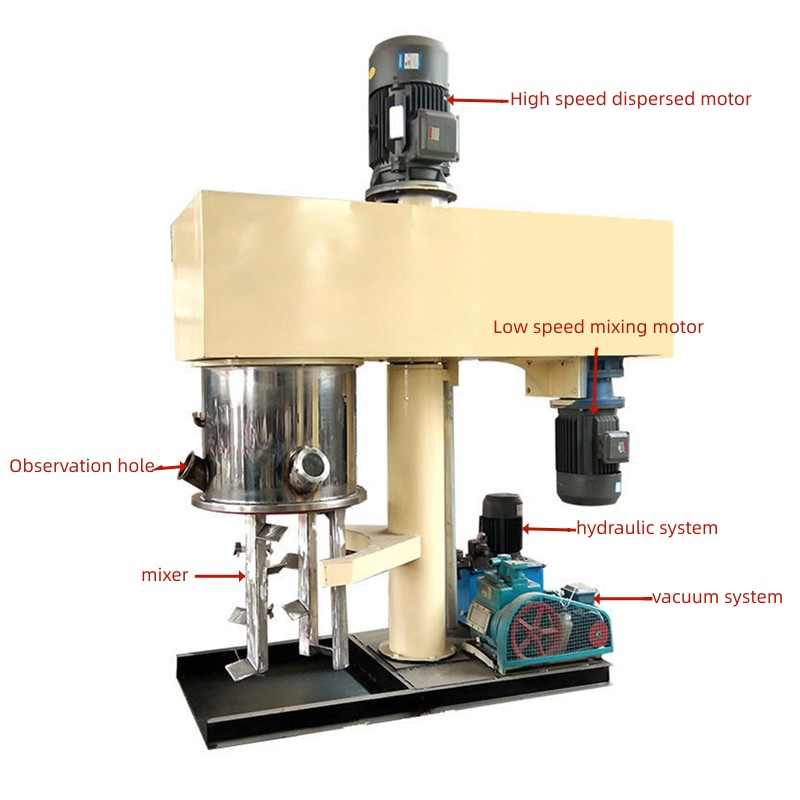

Product features:

·Simplified and reliable sealing, capable of mixing operations under vacuum pressure reduction.

·Simplified Chinese comes with a jacket that can be heated or cooled to meet process requirements.

·The replaceable simplified inner wall is precision machined and easy to clean.

·Stirring and dispersing impellers have two forms of motion: revolution and rotation, which enable materials to achieve good mixing effects.

·Both the public and automatic rotation adopt variable frequency speed regulation to adapt to different materials and processes.

·The rotating system is equipped with a scraper for scraping off the material adhered to the inner wall of the simplified body.

·The upper body of the whole machine adopts hydraulic lifting or tank lifting, which can quickly replace the tank to complete the operation.

The vacuum planetary mixer is suitable for materials with high viscosity, multiple components, susceptibility to oxidation, or sensitivity to bubbles. It performs particularly well in industrial scenarios that require high uniformity and contamination-free mixing.

This type of equipment, leveraging the synergistic effect of the "revolution + rotation" planetary motion mode and vacuum environment, can effectively handle complex materials that are difficult for traditional mixers to process. The following are typical applicable material categories and application scenarios:

1. New energy materials

Lithium battery positive and negative electrode slurry (such as NMC, LFP slurry)

Solid-state electrolyte precursor

Mixed system of conductive agent and binder

Mixing under vacuum can avoid residual bubbles, enhancing coating uniformity and battery cycle life.

2. Electronic packaging and thermal conductive materials

Epoxy resin potting adhesive

Thermal grease, thermal gel

Underfill

High vacuum deaeration ensures that the material is free of micropores, preventing thermal failure of the device.

3. Medical and Biomaterials

Medical silicone, dental impression material

Pharmaceutical ointment, transdermal drug delivery matrix

Closed operation avoids cross-contamination and complies with GMP requirements.

4. Fine Chemicals and High-end Daily Chemicals

High-viscosity sealant, structural adhesive

Cosmetic creams (such as face cream, sunscreen cream)

Ink, pigment, nano-dispersed liquid

Planetary mixing achieves thorough mixing and prevents ingredient stratification.

5. Food and pharmaceutical intermediates

High-consistency jam, chocolate syrup

Homogeneous mixing of pharmaceutical excipients and active ingredients

Application industry

Longjun Machinery is a manufacturer of paste mixing and kneading equipment. For decades, our company has been dedicated to the development, design, and manufacturing of a series of dual planetary mixers, dual planetary power mixers, multifunctional mixing mixers, strong dispersing mixers, and various lifting press feeders made of stainless steel and carbon steel materials; According to different operating conditions, there are different heating forms available for you to choose from, such as electric heating and thermal oil heating.
