| Quantity: | |
|---|---|
200L
Longjun
1、 Core advantages of equipment
Three axis linkage design: The high-speed and low-speed shafts work together with the scraper to ensure even dispersion of silicone adhesive and avoid bubbles.
Vacuum defoaming function: The vacuum pumping system can completely eliminate bubbles and improve the weather resistance of the product.
Intelligent control: supports remote monitoring and fault self diagnosis, reducing downtime risks.
2、 Typical application scenarios
Electronic adhesive production: achieving uniform particle dispersion in 5G electronic paste mixing.
Sealing glue manufacturing: used for mixing silicone glue to improve product performance.
Industrial adhesive: precise control of the reaction temperature of epoxy resin adhesive.

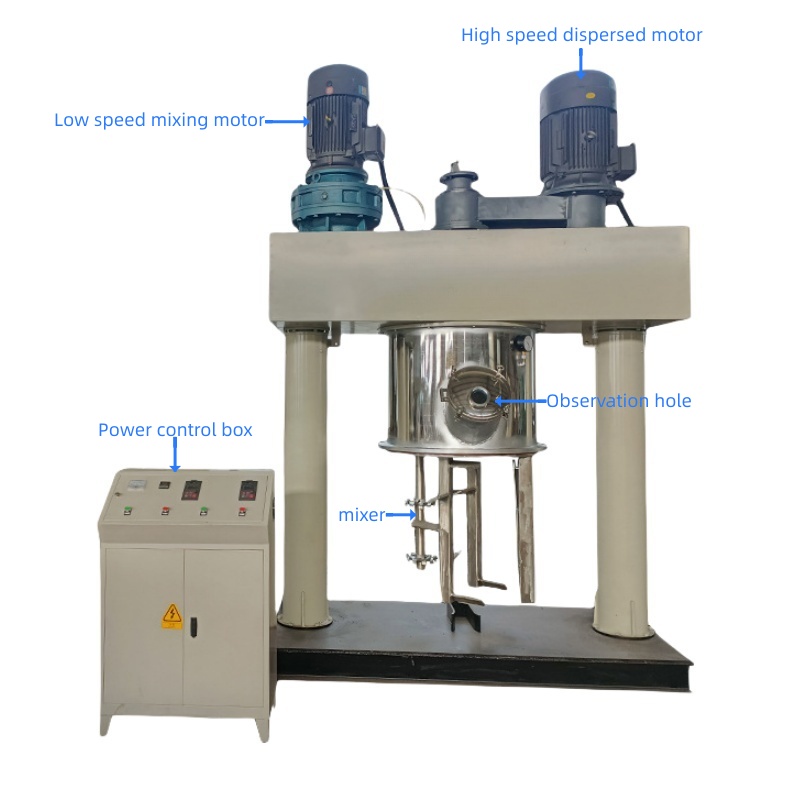

The vacuum type dual planetary mixing mixer is a dead center free mixing device. The movable scraper on the planetary carrier and the scraper at the bottom of the mixing blade continuously scrape off the materials on the inner wall and bottom of the tank during mixing, ensuring sufficient mixing of the materials. The mechanical seal of the transmission components and the soft seal between the upper and lower kettle bodies ensure a vacuum state, with a vacuum degree of -0.095Mpa. The equipment gearbox is equipped with a dynamic temperature measurement device, which can monitor the material temperature in real time and ensure that the material temperature is error free.

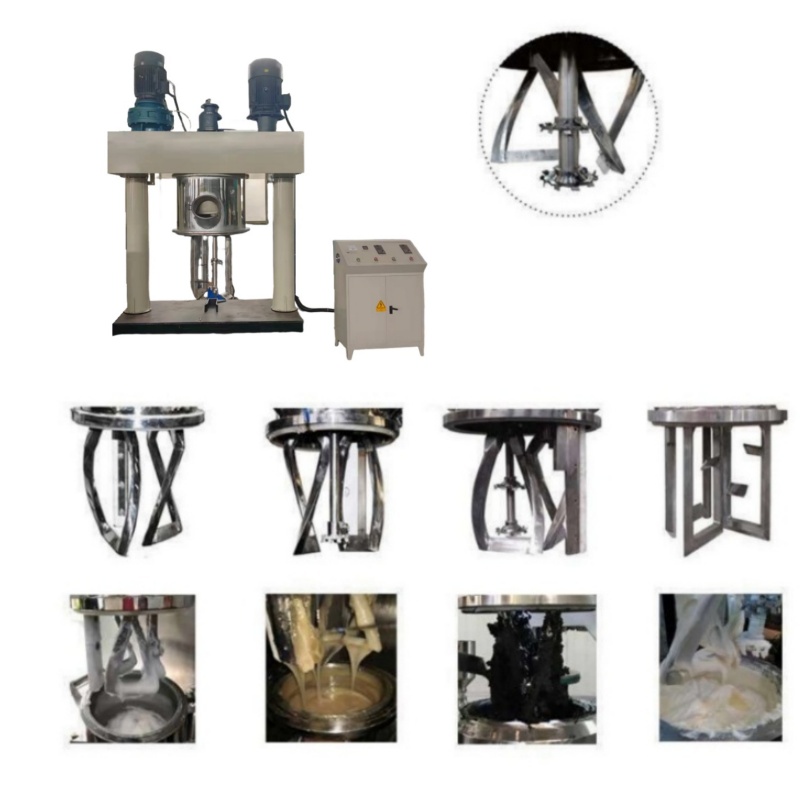

The vacuum type dual planetary mixing mixer is equipped with low-speed mixing components and high-speed dispersing components, and adopts variable frequency speed regulation;
The low-speed mixing component adopts planetary gear transmission, and the mixing blade also rotates on its own during revolution, causing the material to move up, down, and around, thus achieving the ideal mixing effect in a relatively short time;

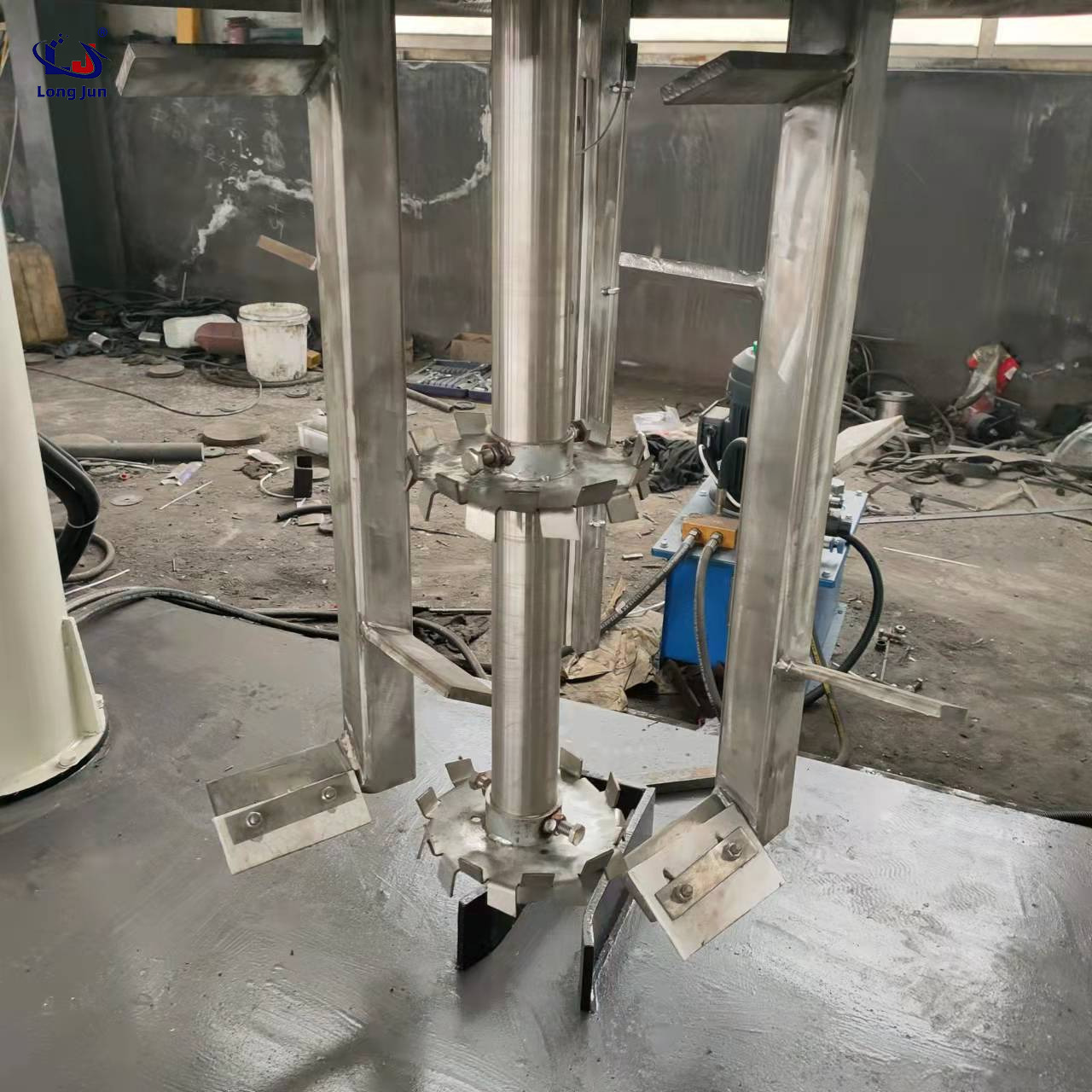

The high-speed dispersing components are divided into two configuration specifications: single dispersing shaft and double dispersing shaft. The high-speed dispersing components revolve together with the planetary carrier and rotate at high speed, causing strong shear and dispersion mixing of materials, which is several times more effective than ordinary mixers.
The vacuum type dual planetary mixing mixer can meet the material requirements that traditional mixers and dispersers cannot mix due to the viscosity, density, thixotropy, and temperature sensitivity of the product. The blade adopts a technology process based on geometric shape design, layout, and speed, making the machine suitable for various production needs. This machine is a reliable equipment for mixing and dispersing high viscosity and thixotropic materials, capable of thorough mixing without overheating.
Application industry
Longjun Machinery is a manufacturer of paste mixing and kneading equipment. For decades, our company has been dedicated to the development, design, and manufacturing of a series of dual planetary mixers, dual planetary power mixers, multifunctional mixing mixers, strong dispersing mixers, and various lifting press feeders made of stainless steel and carbon steel materials; According to different operating conditions, there are different heating forms available for you to choose from, such as electric heating and thermal oil heating.
