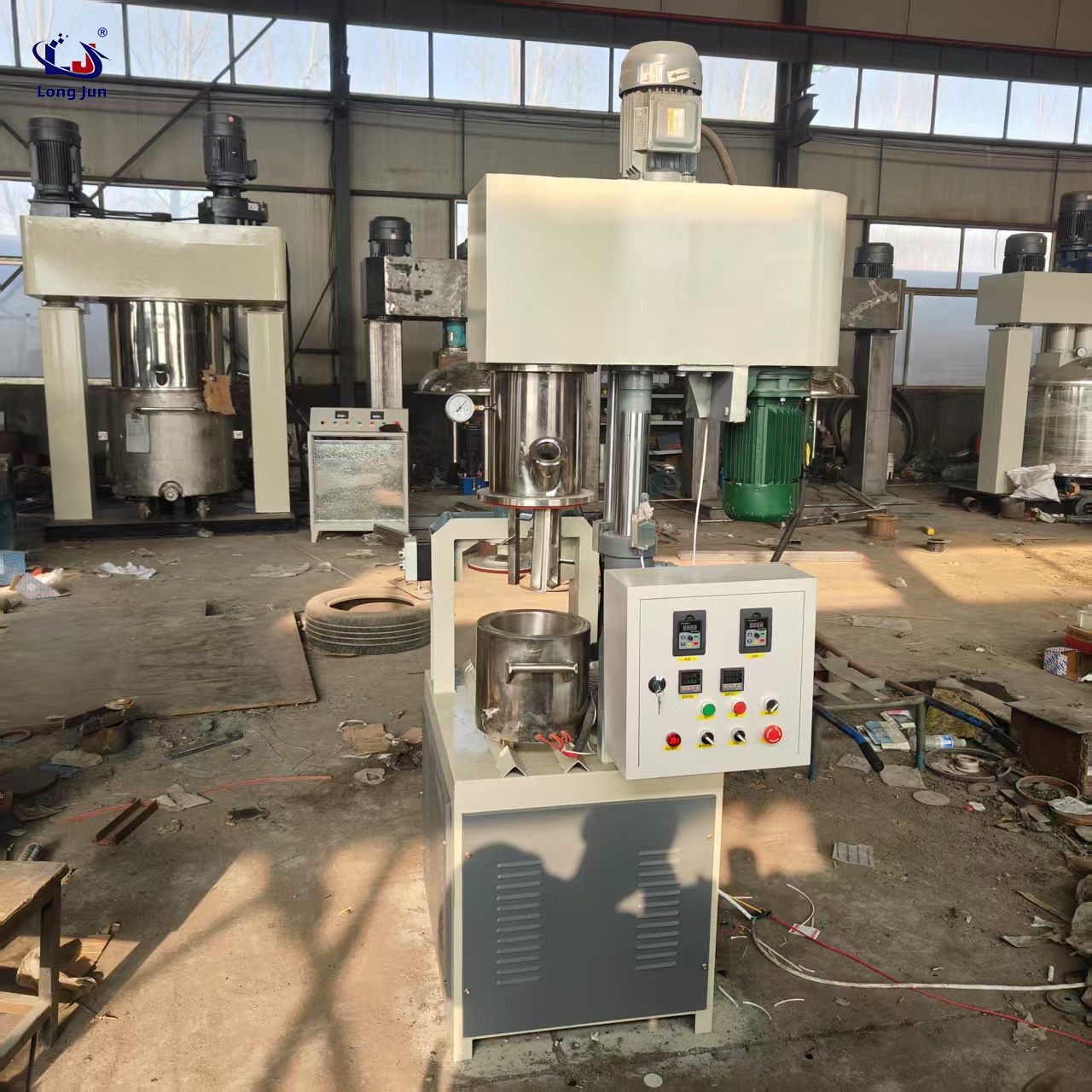

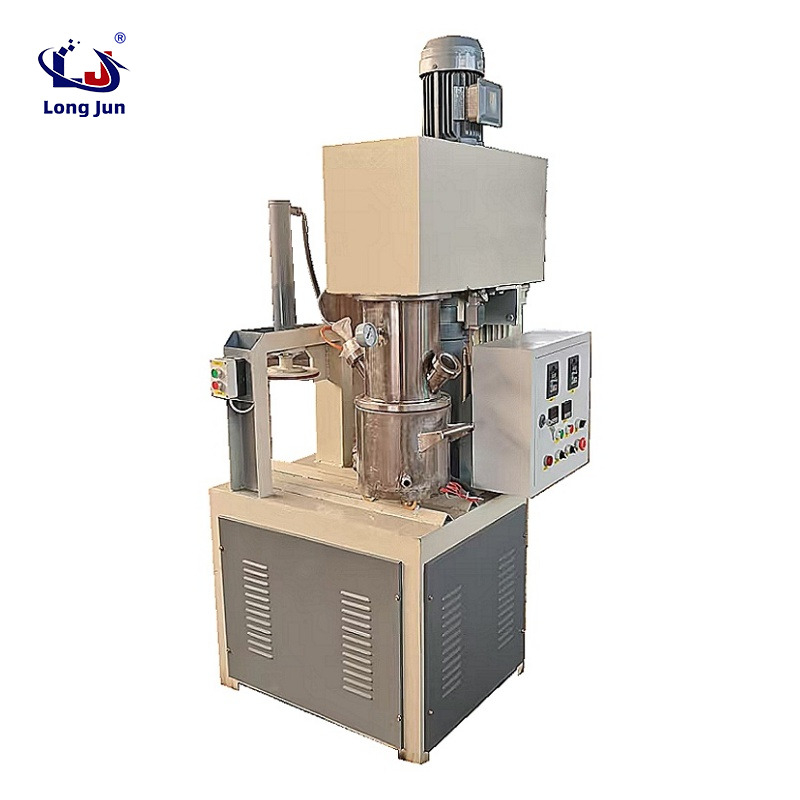

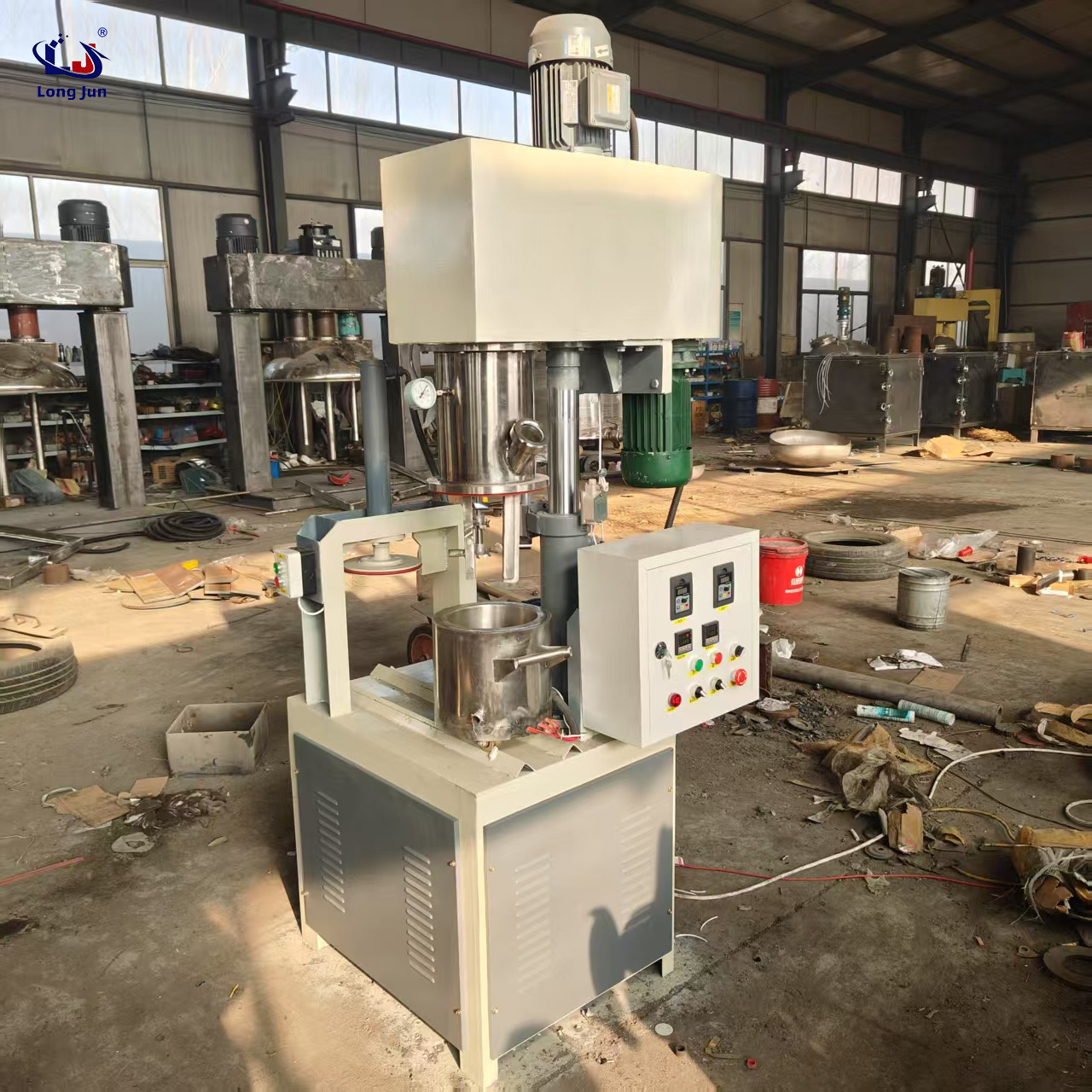

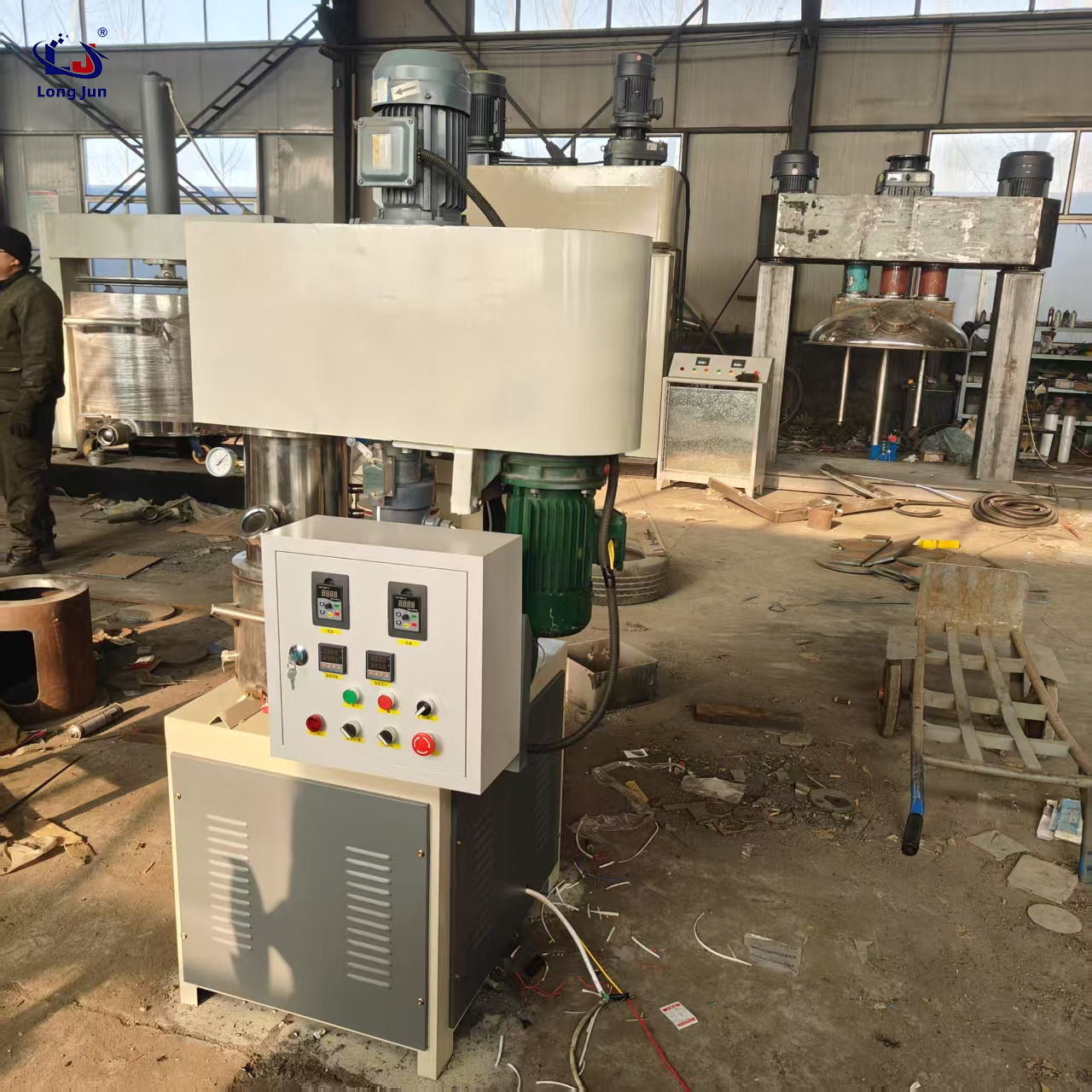

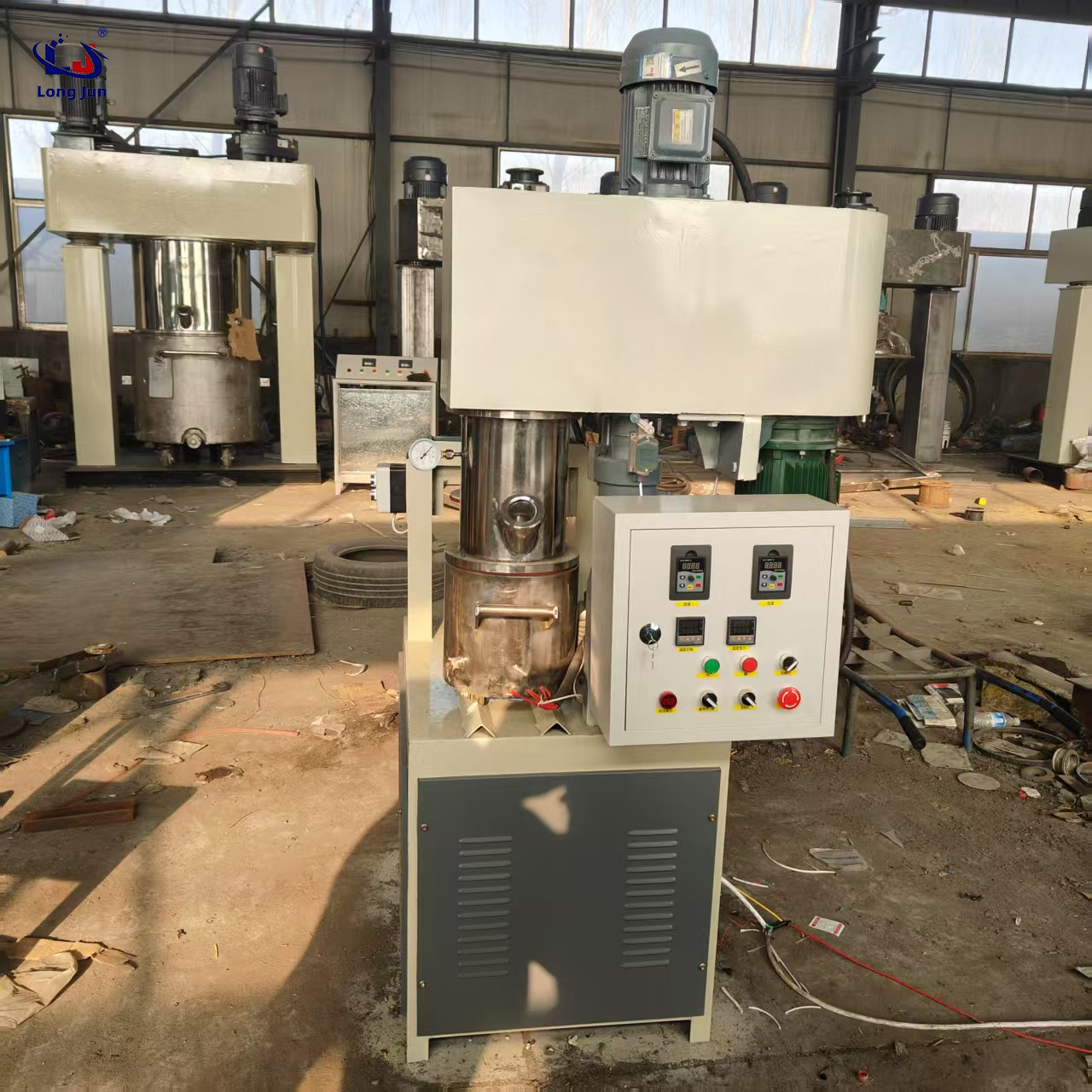

Laboratory vacuum dual planetary mixer

The planetary mixer, one of the glass glue equipment, is a sibling device of the strong disperser, and its English name is Longjun Planetary Mixers. This device only has one mixing motor.

The laboratory planetary mixer is a new type of high-efficiency non dead center mixing mixer, which has a novel mixing form. There are two or three multi-layer blade mixers and one to two automatic gua knives in the kettle. The mixer revolves around the axis of the kettle body while rotating around its own axis at different speeds, causing the material to undergo complex movements inside the kettle body, subjected to strong shear and rubbing.

In addition, the scraper blade inside the equipment rotates around the axis of the kettle body to scrape off the material stuck to the wall and mix it, making its effect more ideal. The kettle body adopts a special sealing structure, which can be pressurized and evacuated, and has good exhaust and defoaming effects. The cylinder jacket can be heated and cooled according to user needs. The discharge method is press type, and the equipment cylinder cover can be lifted and lowered by hydraulic pressure. The cylinder body can move freely, making the operation very convenient. And the stirring blade and gua knife can detach from the cylinder body as the crossbeam rises, making it easy to clean.

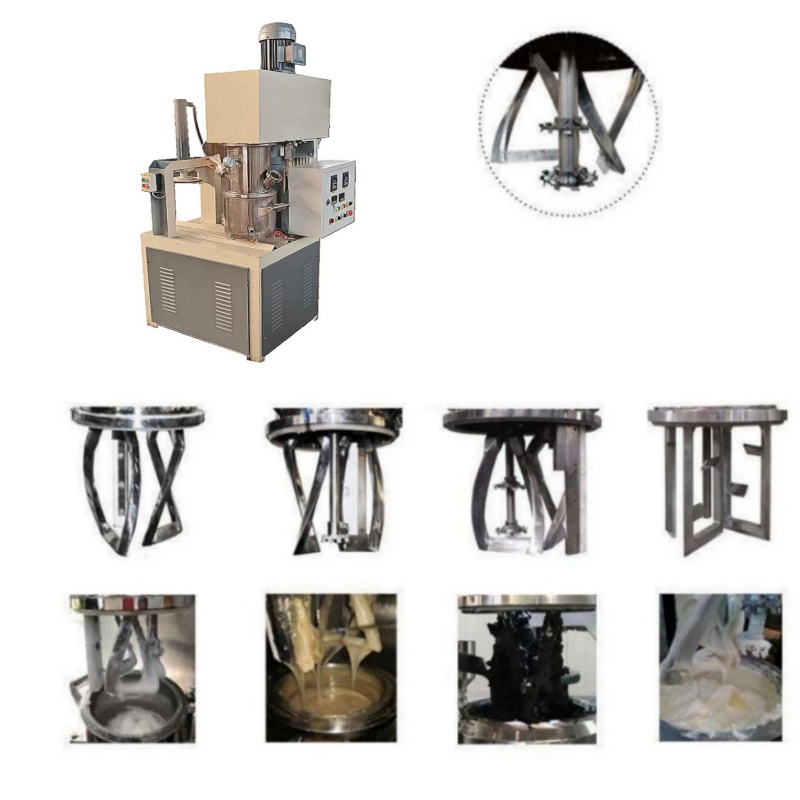

The laboratory planetary mixer is suitable for the mixing, reaction, dispersion, dissolution, and tempering of multi-component solid solid, solid-liquid, and liquid-liquid materials required in industries such as chemical, light industry, food, battery slurry, pharmaceuticals, building materials, and pesticides. It is used for the preparation of various high viscosity substances such as silicone sealants, silicone structural adhesives, silicone inks, pigments, adhesives, sealants, filling ointments, paste materials, lubricants, paints, paste cosmetics, paste foods, additives, etc. Use a viscosity range of around 10000CP-1000000CP. The form of the mixer can be multi-layer blade type, frame type, butterfly type, outer wheel type, etc. according to the material requirements.

Application industry

The Longjun Laboratory Dual Planetary Mixer is a combination of a powerful disperser and a planetary mixer. The device consists of two mixing motors, one motor driving the high-speed dispersing wheel and the other motor driving the planetary mixing blade.

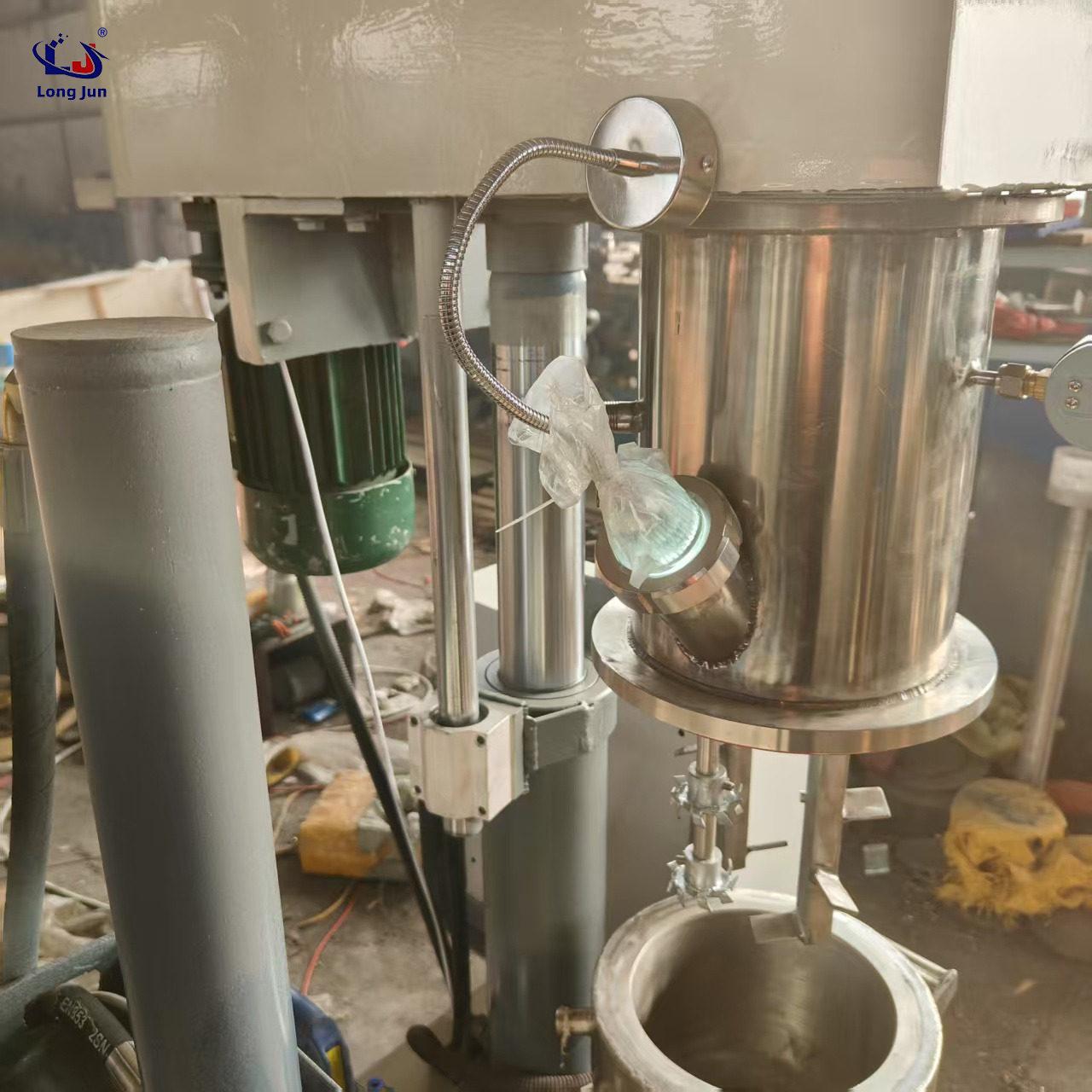

This type of machine is a planetary type strong dispersing mixer without dead spots. Using a mixing mechanism, the feeding bucket is fixed and not moved; The dispersing disk and stirring blade achieve planetary motion that both revolves and rotates, and their speed can be adjusted and varied. Make the material undergo complex movements, subjected to strong shearing and kneading, allowing the material to be fully dispersed and mixed without the occurrence of mixing dead spots.

An automatic scraping mechanism has been designed inside the kettle to scrape off the materials attached to the kettle wall and continue mixing. The equipment is sealed and can be pressurized or evacuated to remove bubbles, etc. Widely used in solid solid phase, solid-liquid phase, liquid-liquid phase material mixing, reaction, polymerization, dispersion, dissolution, homogenization, vulcanization, emulsification and other processes in the chemical, light industry, food, pharmaceutical, building materials, pesticides and other industries. It is an ideal equipment for the production of inks, pigments, adhesives, sealants, ointments, paste like materials, lubricants, paints, paste like cosmetics, emulsions, paste like foods, and additives.

Longjun Machinery is a manufacturer of paste mixing and kneading equipment. For decades, our company has been dedicated to the development, design, and manufacturing of a series of dual planetary mixers, dual planetary power mixers, multifunctional mixing mixers, strong dispersing mixers, and various lifting press feeders made of stainless steel and carbon steel materials; According to different operating conditions, there are different heating forms available for you to choose from, such as electric heating and thermal oil heating.
