| Quantity: | |
|---|---|
100L
Longjun

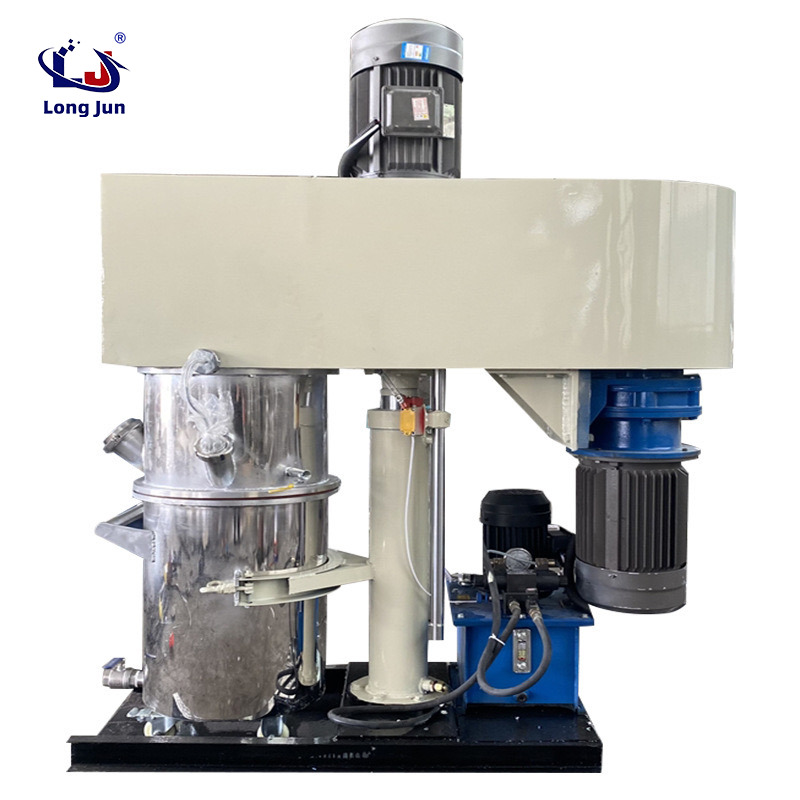

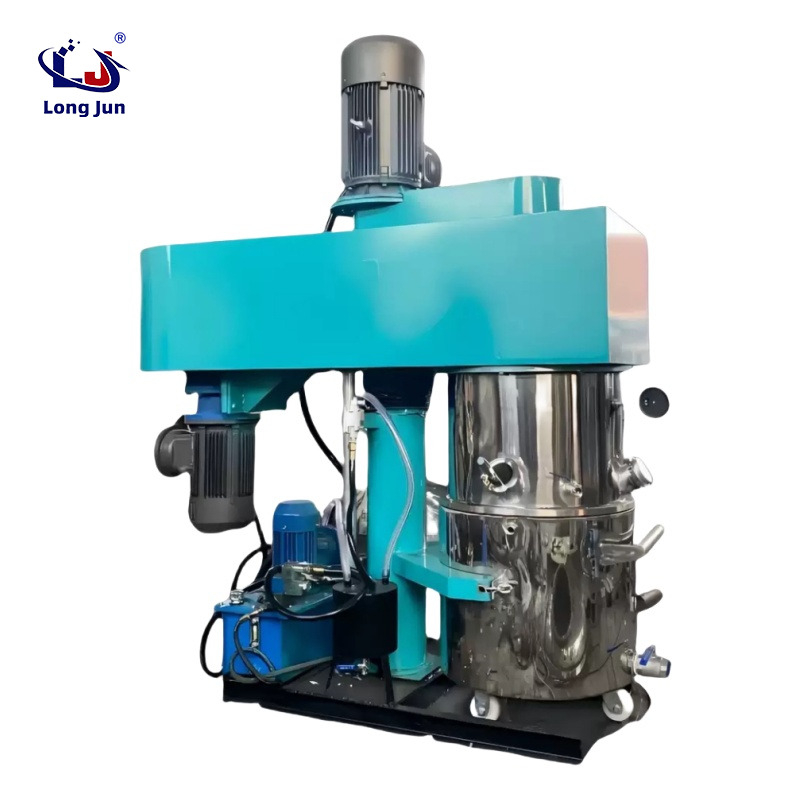

Working principle of dual planetary power hybrid:

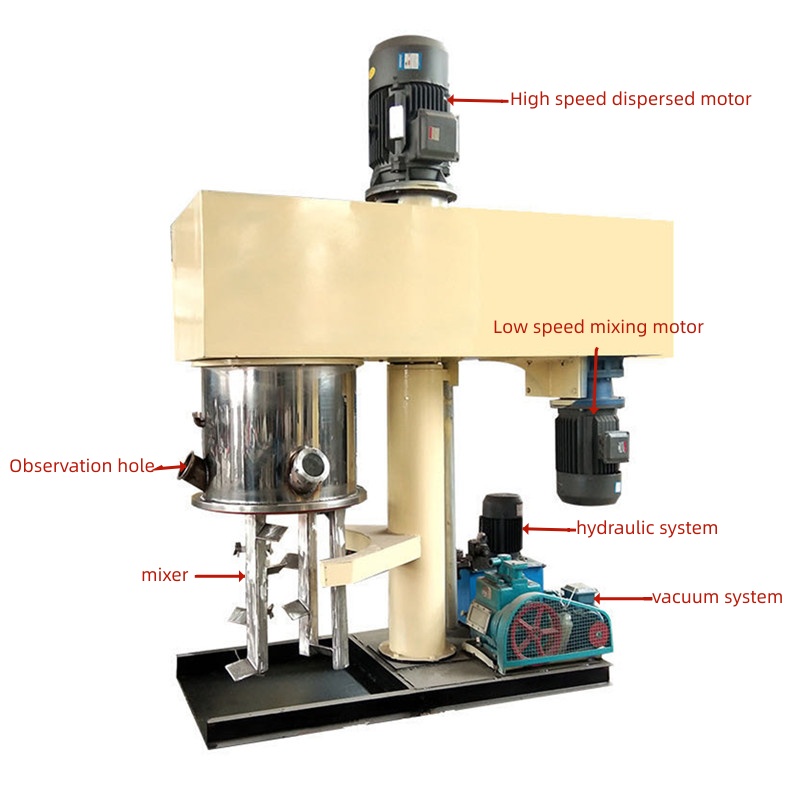

The dual planetary power mixer is equipped with low-speed stirring components and high-speed dispersing components. The low-speed stirring components are driven by planetary gears, and the stirring blades also rotate during revolution, causing the material to move up, down, and around, thus achieving the desired mixing effect in a shorter period of time.
The high-speed dispersing component revolves together with the planetary carrier and rotates at high speed, causing strong shear and dispersion mixing of the material, which is several times more effective than a regular mixer. The dispersed components are divided into single dispersed shaft and double dispersed shaft, and Jinchangtai can choose according to customer needs.

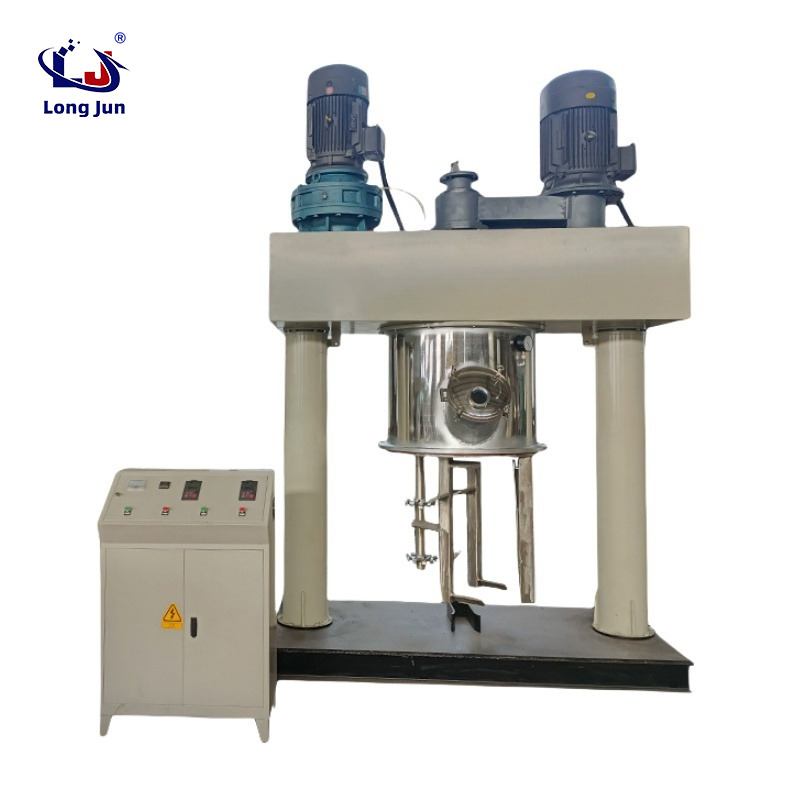

Two double frame mixers revolve and rotate simultaneously in the barrel, which can achieve vacuum pumping, heating, cooling, and speed adjustment according to the situation. Equipped with multiple mixing barrels, one machine can operate multiple barrels Matching the material press makes discharging more convenient.
Description of supporting material tank:
1. The inner wall of the tank body is precision machined, and the ovality of the tank body is guaranteed to be within 0.1mm, ensuring that the scraper can completely scrape off the material on the inner wall of the tank body. There are two types of tanks: heating bodies and cooling bodies. Heating can be achieved through electric heating, steam heating, and oil-water circulation heating, and customers can choose according to their needs. The body is equipped with a temperature control device to ensure that the material temperature is error free.
2. The equipment often adopts hydraulic lifting method, which includes tank cover lifting and tank body lifting. The cylinder body can move freely and the operation is very convenient. Moreover, the stirring blade and scraper can completely detach from the cylinder body as the crossbeam rises, making it easy to clean.

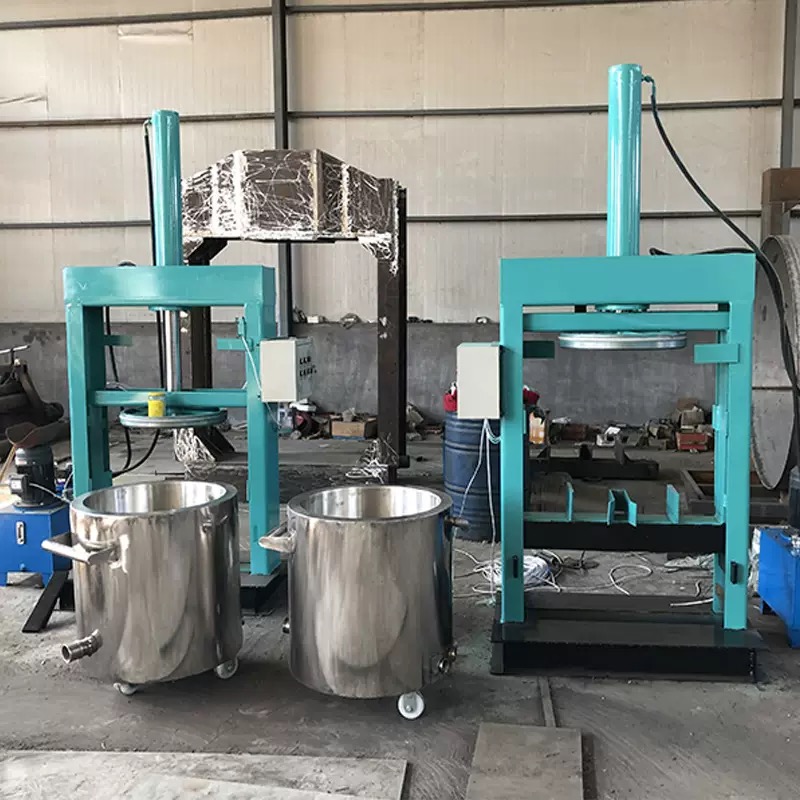

Description of supporting material press:
The hydraulic feeding machine is matched with the dual planetary power mixer, dual planetary mixer, and strong dispersing mixer produced by our factory. It is a hydraulic filling equipment that fills materials with certain fluidity, thereby achieving extrusion, manual filling, and transportation of high viscosity materials. Specially suitable for pressure grouting viscous materials, it can be designed with discharge forms such as upper discharge and lower discharge according to needs, with a simple structure and easy operation.

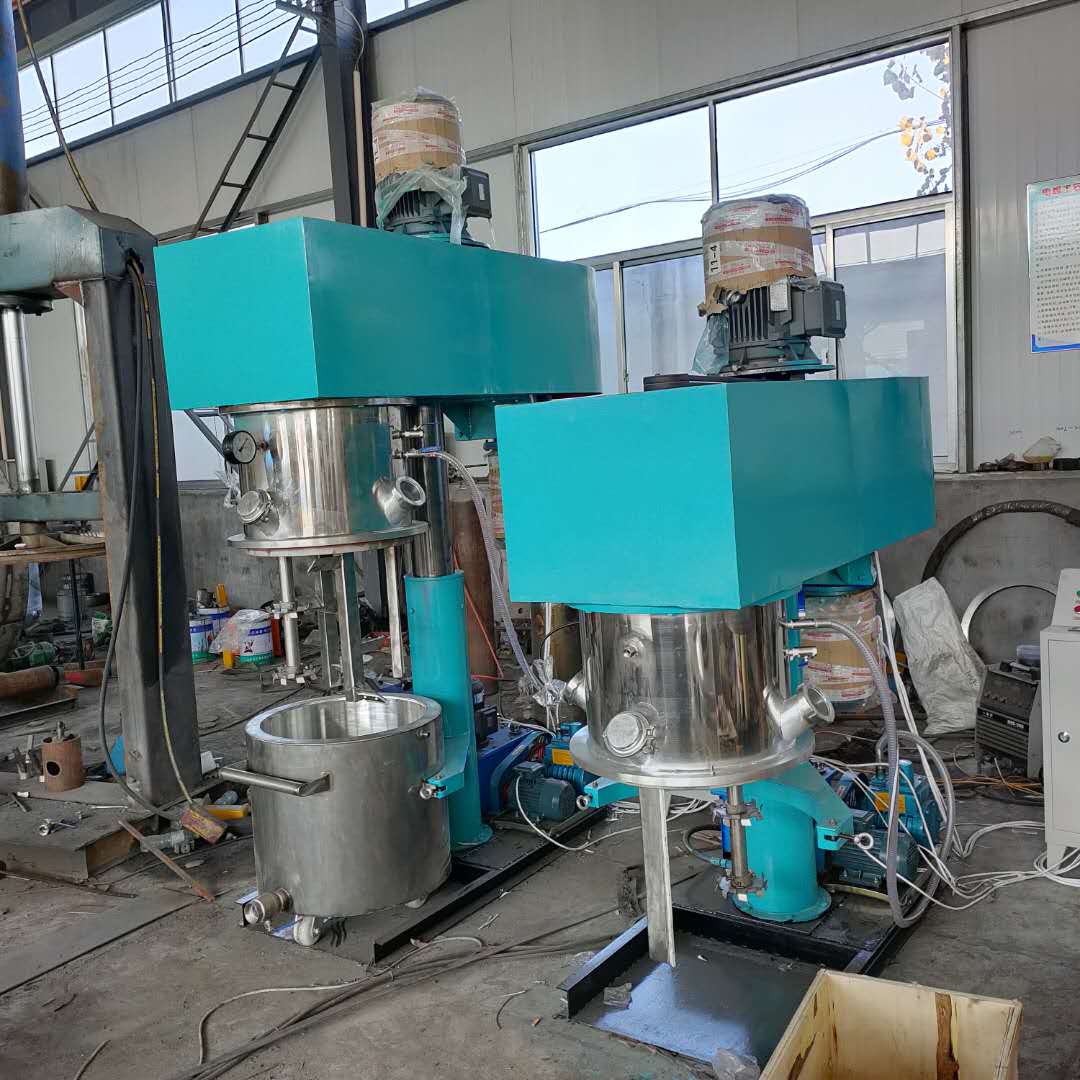

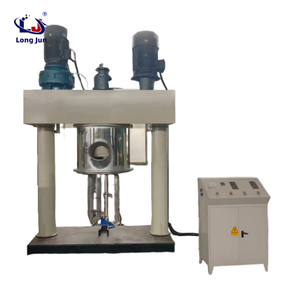

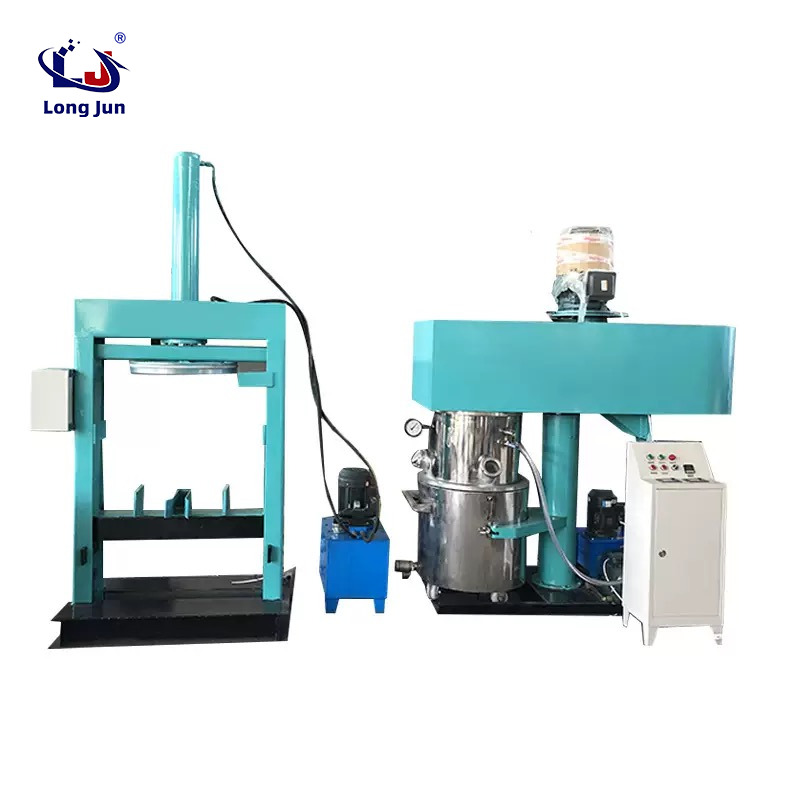

Dual planetary mixer
Hydraulic discharge machine
Application industry
Longjun Machinery is a manufacturer of paste mixing and kneading equipment. For decades, our company has been dedicated to the development, design, and manufacturing of a series of dual planetary mixers, dual planetary power mixers, multifunctional mixing mixers, strong dispersing mixers, and various lifting press feeders made of stainless steel and carbon steel materials; According to different operating conditions, there are different heating forms available for you to choose from, such as electric heating and thermal oil heating.
