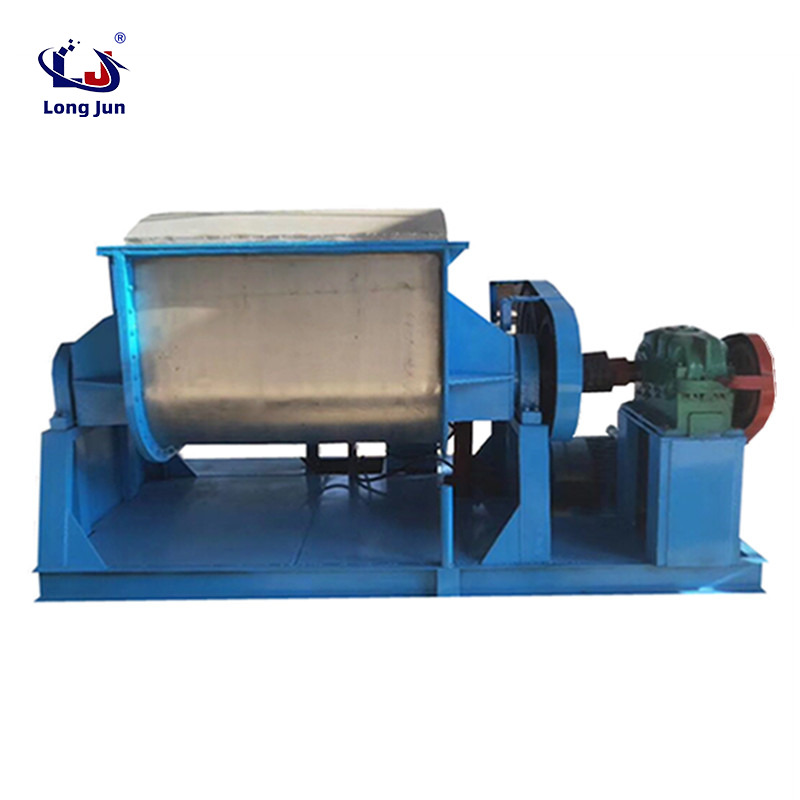

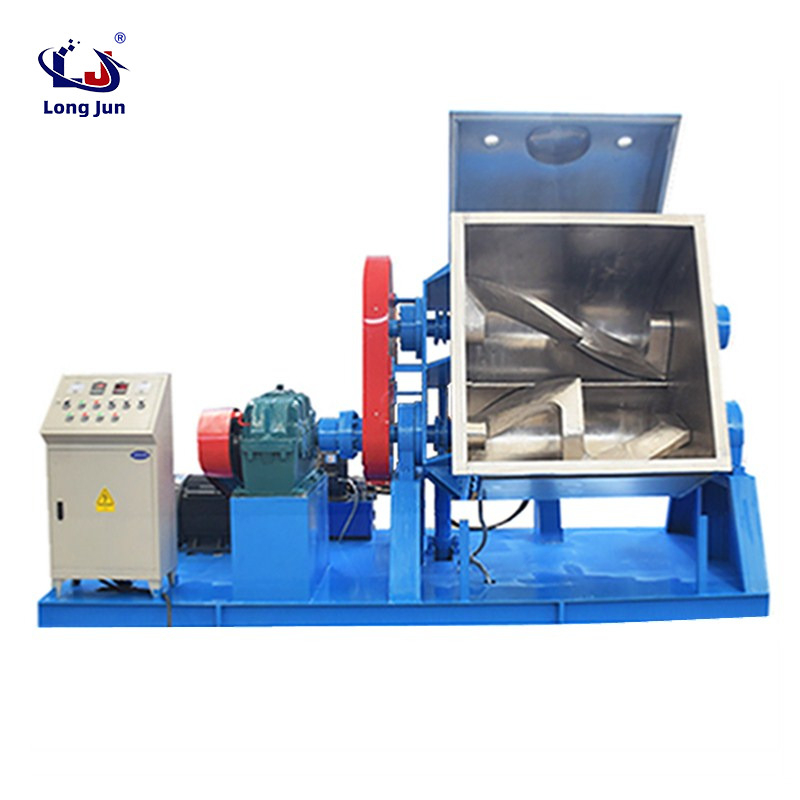

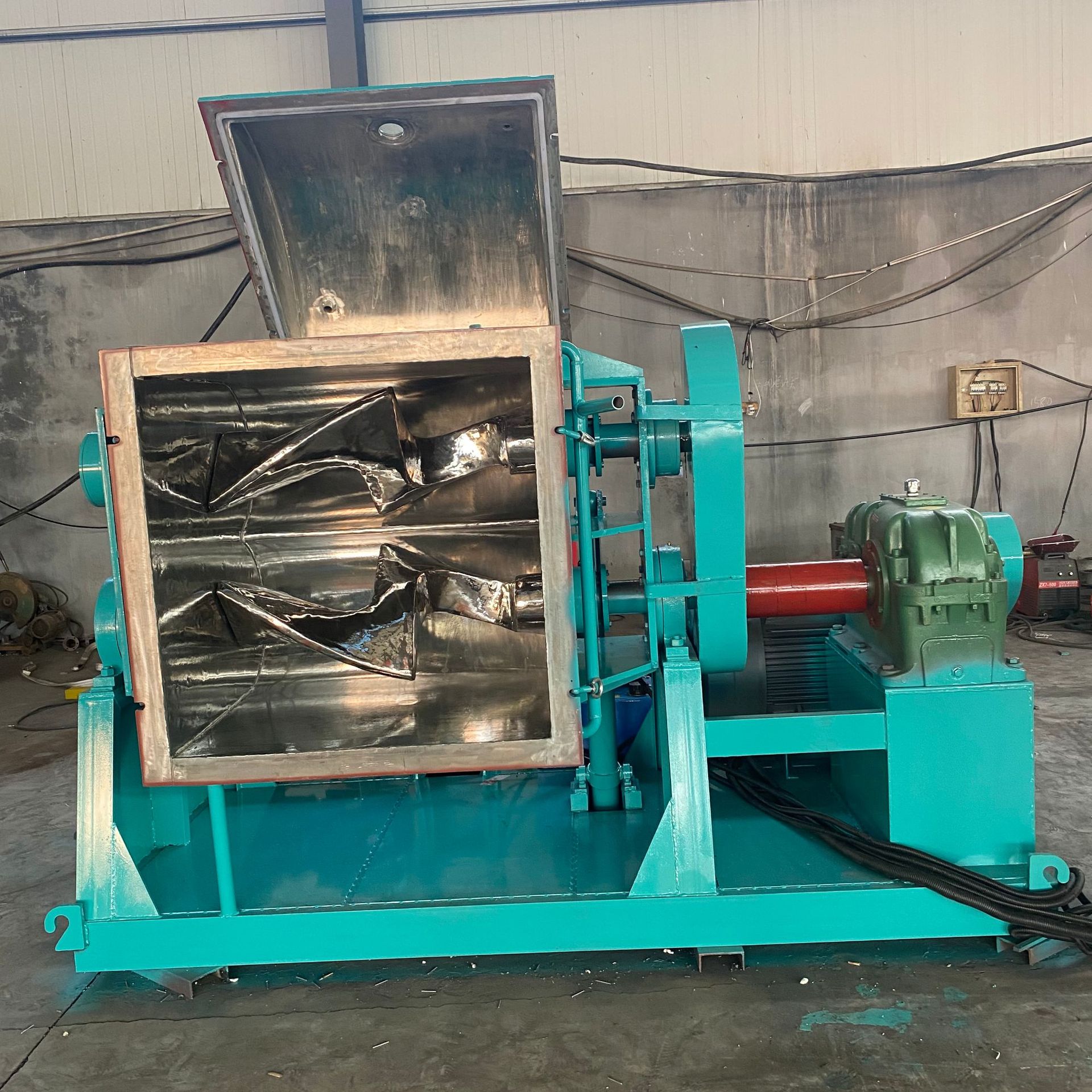

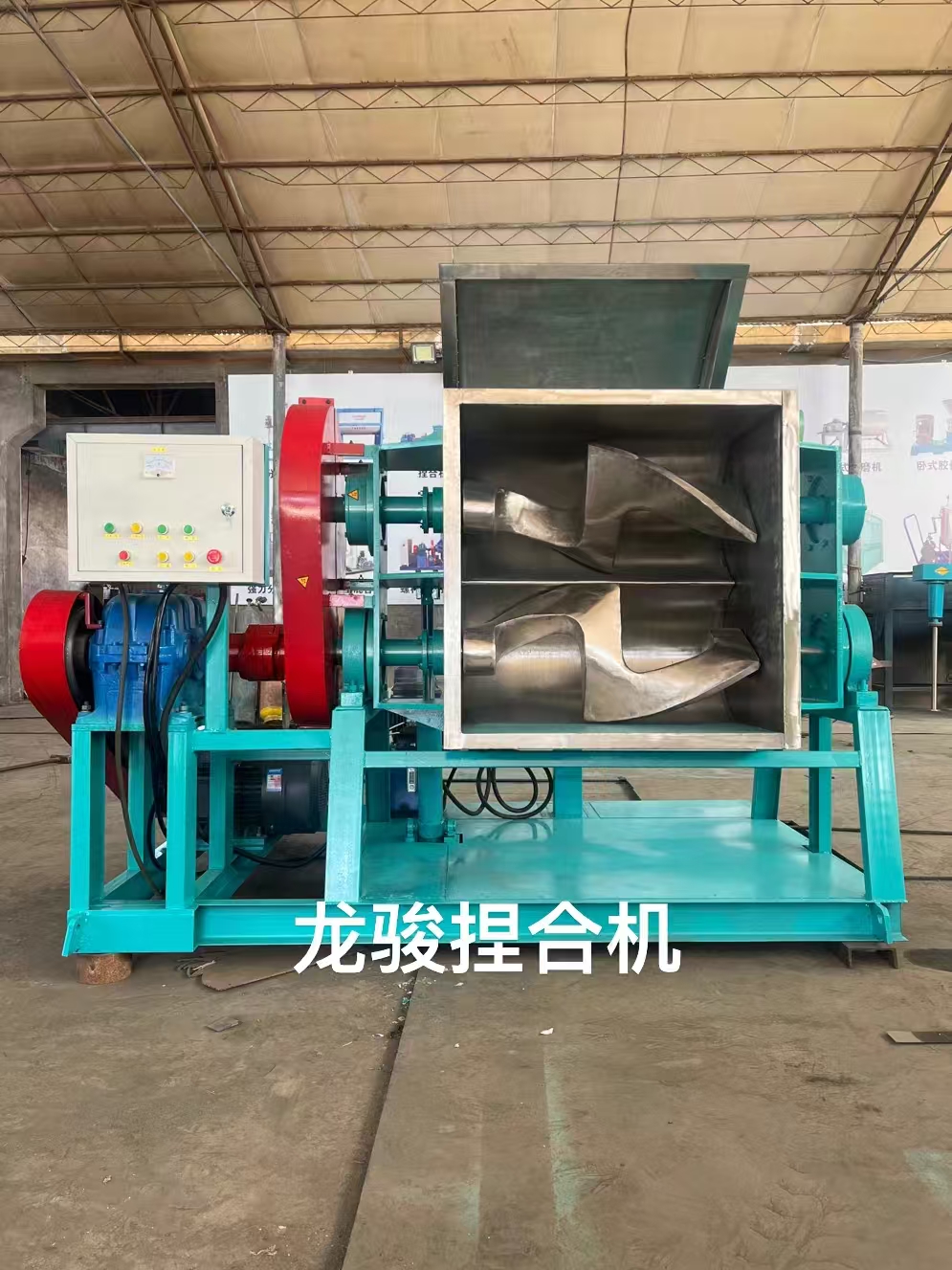

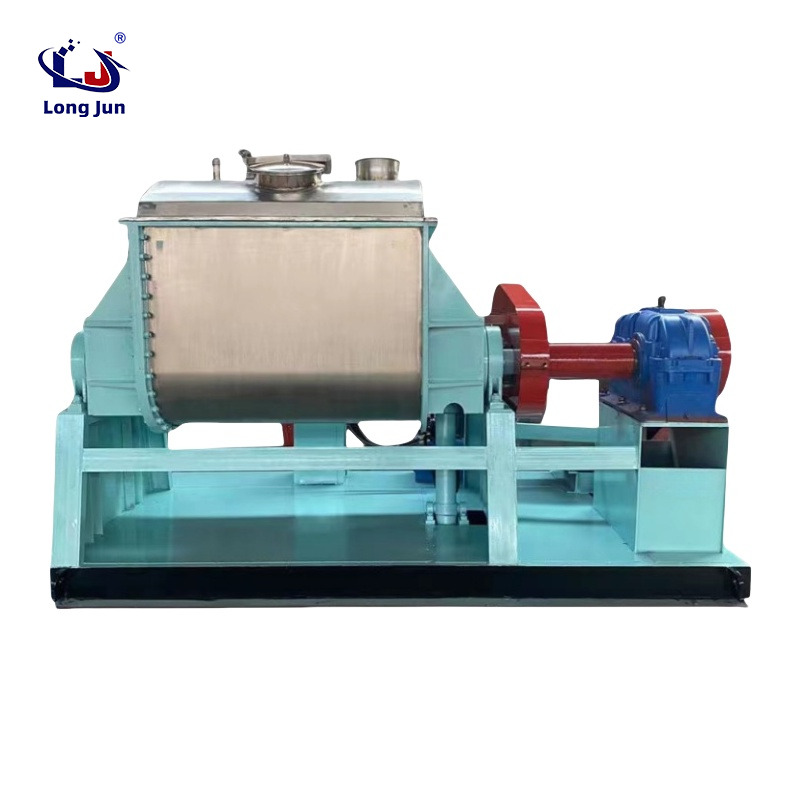

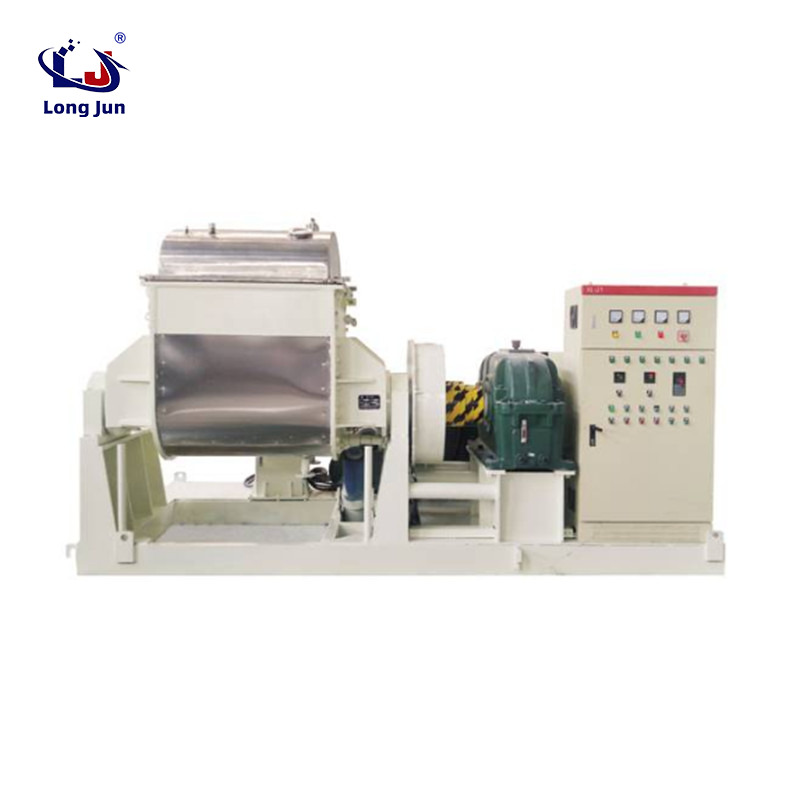

Structural characteristics of electric heating stainless steel ordinary kneading machine:
1. The kneading machine generally adopts a through chassis for easy installation.
2. Adopting helical gears or hard tooth surface reducers ensures smooth transmission with the main engine, low noise, and long service life.
3. The mixing blades and inner walls of the mixing tank are made of SUS304 stainless steel or SUS316L stainless steel to ensure the purity of the products.
4. Shaft seal structure *, good sealing performance. *Designed a vacuum box balance structure to ensure that no black material is ground out.
5. Integrated electrical control (host operation, hydraulic cylinder flipping, hydraulic cover opening, and constant temperature control) and temperature control and display for easy operation and process control.
Scope of application of stainless steel ordinary kneading machine:
Stainless steel electric heating kneading machine is used for mixing, kneading, crushing, stirring, sulfurization, and re polymerization of high viscosity and high elastoplastic materials. Kneading machines have advantages such as uniform stirring, high kneading efficiency, etc.

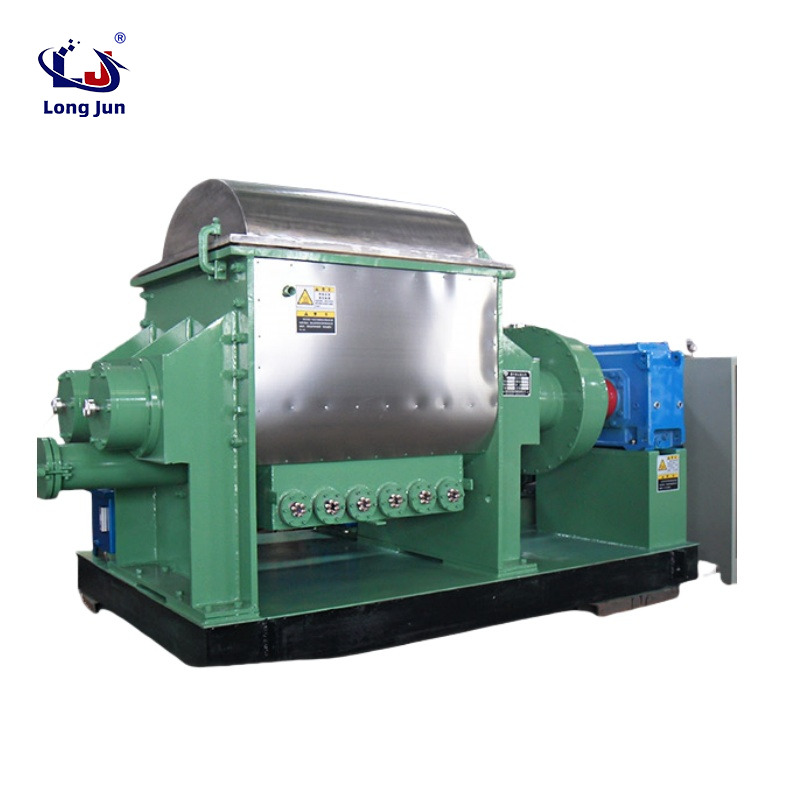

The screw extrusion kneading machine has a wide range of functions, varieties, and applications, suitable for industries such as chewing gum, bubble gum, toothpaste, plastics, rubber, silicone rubber, dyes, pigments, inks, food adhesives, building coatings, carbon, fiber, high viscosity sealants, neutral glass adhesives, aluminum silver paste, silicone gel, pulp, cellulose, battery pulp, dyes, silicone resins, cosmetics, etc.
Classification and selection of stainless steel kneading machines:
1. Kneading machines can be made into ordinary, pressure, vacuum, and high-temperature types.
2. According to the material, it can be divided into carbon steel kneading machine, stainless steel kneading machine, and te material kneading machine.
3. The discharge methods include hydraulic tilting, ball valve discharge, screw extrusion, etc.

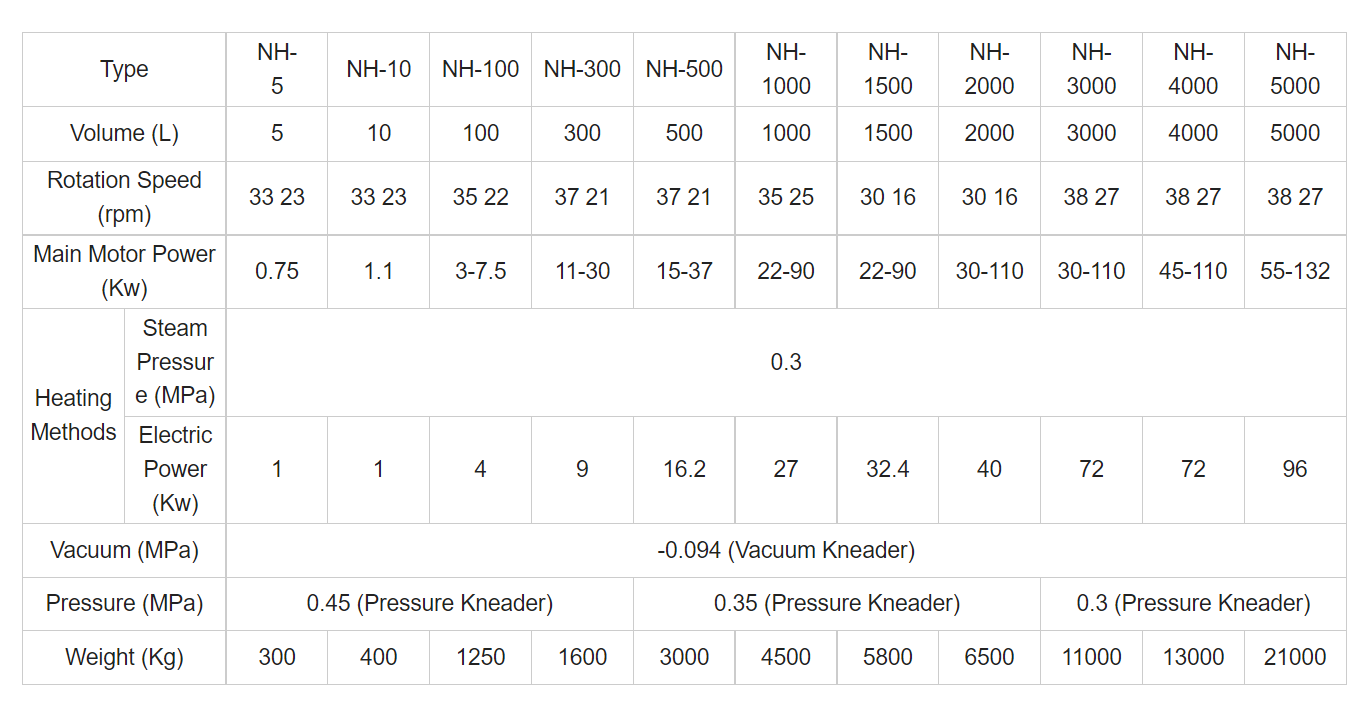

4. According to the machine design capacity, it is divided into SH-1-SH-3000 liters.
5. According to different heat transfer media, it can be divided into steam heating, thermal oil electric heating, and water cooling types. 6. According to the weight of the load and the degree of impact, it is divided into standard type and heavy-duty type.
Material Certification: All stainless steel components come with 3.1B material certificates (including chemical composition and mechanical properties) and pass 100% dye penetrant testing for weld integrity, ensuring compliance with international standards.
Custom Engineering: Offer specialized designs, including explosion-proof models (ATEX Zone 21/22) for volatile materials, vacuum systems (up to -0.098MPa) for degassing, and jacketed blades for enhanced temperature control.
After-Sales Service: Provide a 5-year warranty on stainless steel structures (against rust and corrosion) and 2-year warranty on mechanical components (motors, gearboxes), with response times of ≤24 hours for service calls.
Process Expertise: Team of engineers with 15 + years of experience in designing sigma mixers for diverse industrial applications, offering free process testing (with customer-supplied materials) to optimize mixer parameters.
Hygiene Compliance: Meet 3-A Sanitary Standards (for food) and ISO 13485 (for pharmaceuticals), with optional documentation packages for regulatory submissions.
