The food based adhesive kneading machine is suitable for industries such as chewing gum, bubble gum, toothpaste, plastic, rubber, silicone rubber, light clay, plasticine, colorful clay, space sand, dyes, pigments, inks, food based adhesives, building coatings, carbon, fiber, high viscosity sealants, neutral glass adhesives, aluminum silver paste, silicone gel, pulp, cellulose, battery pastes, dyes, and silicone resin.
| Quantity: | |
|---|---|

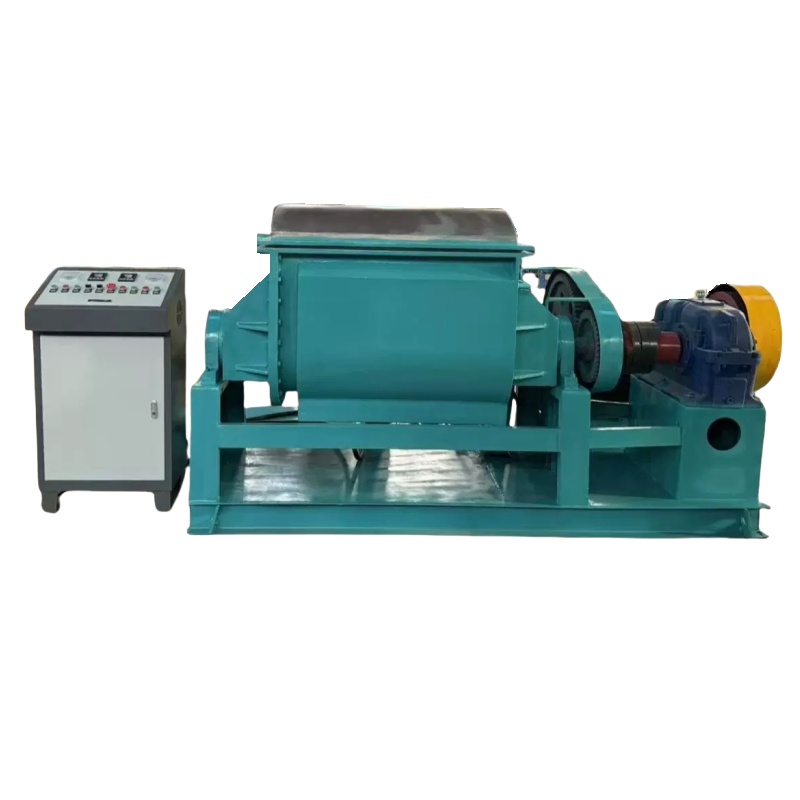

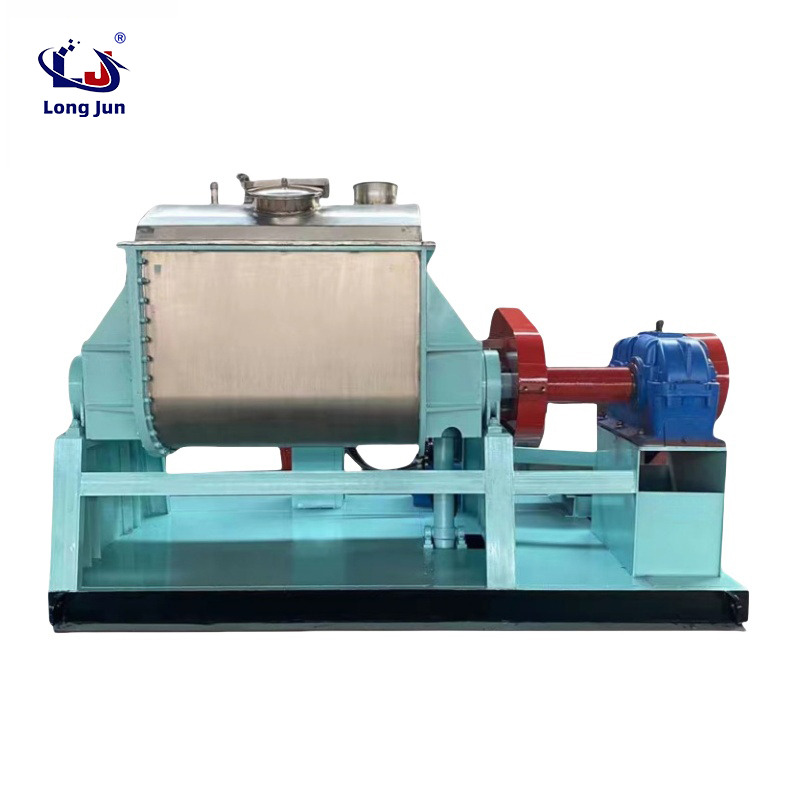

Electric heating pencil lead kneading machine, with excellent quality, stable performance, and reasonable price.

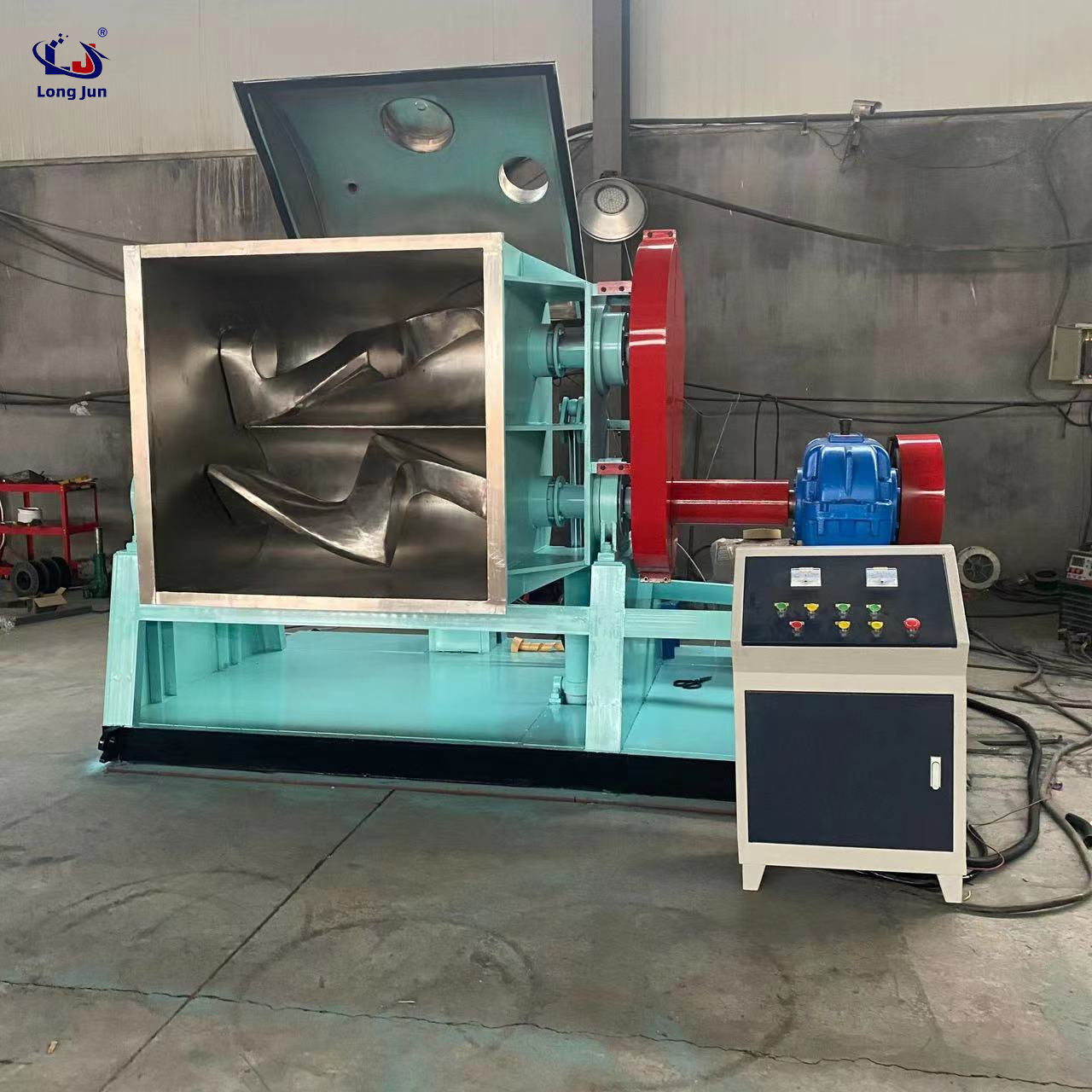

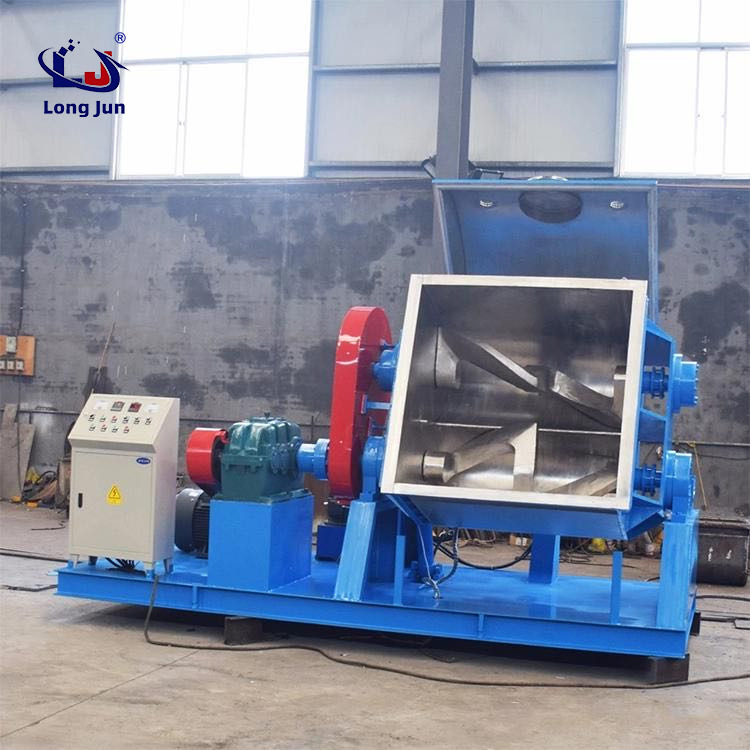

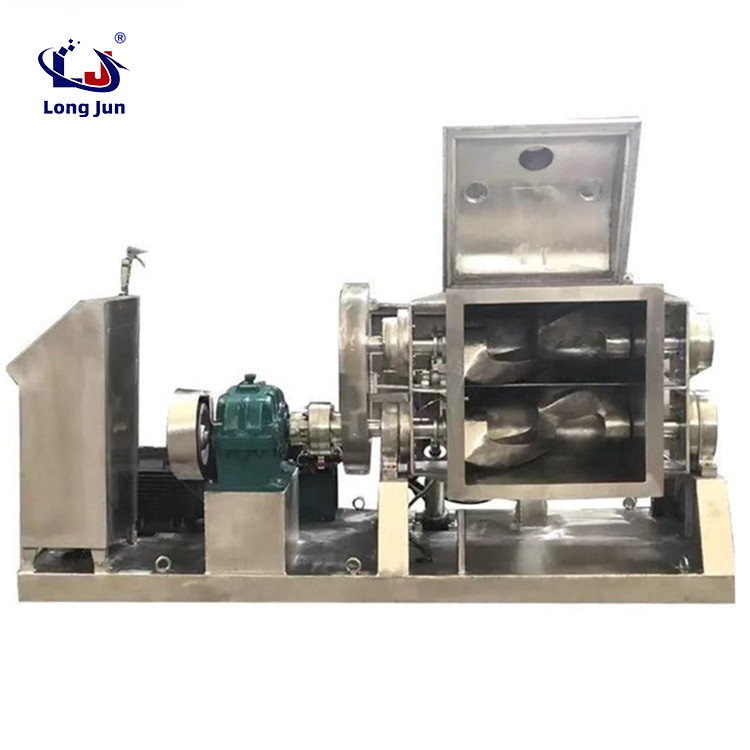

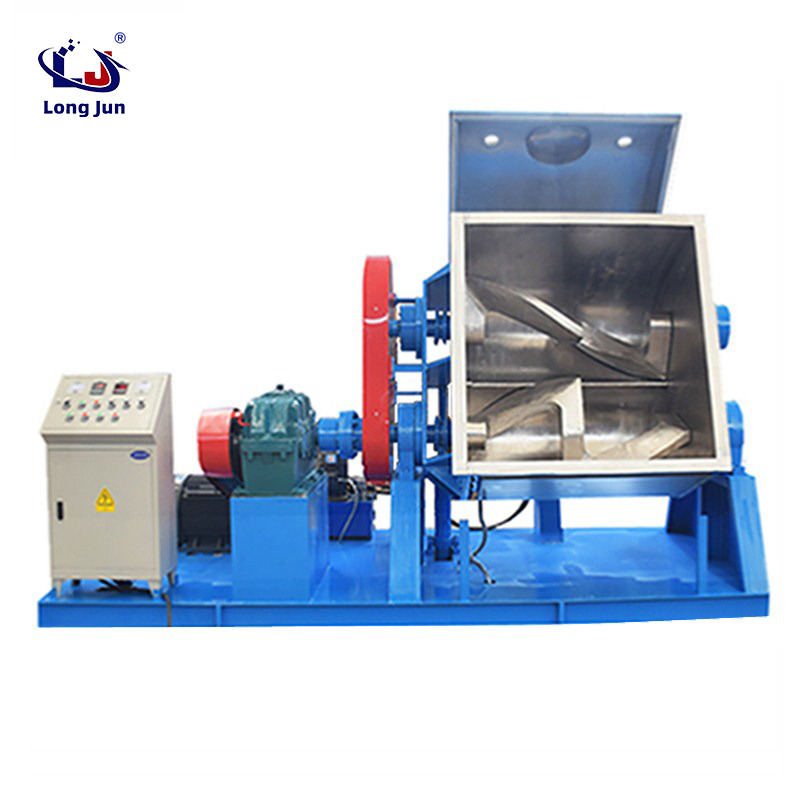

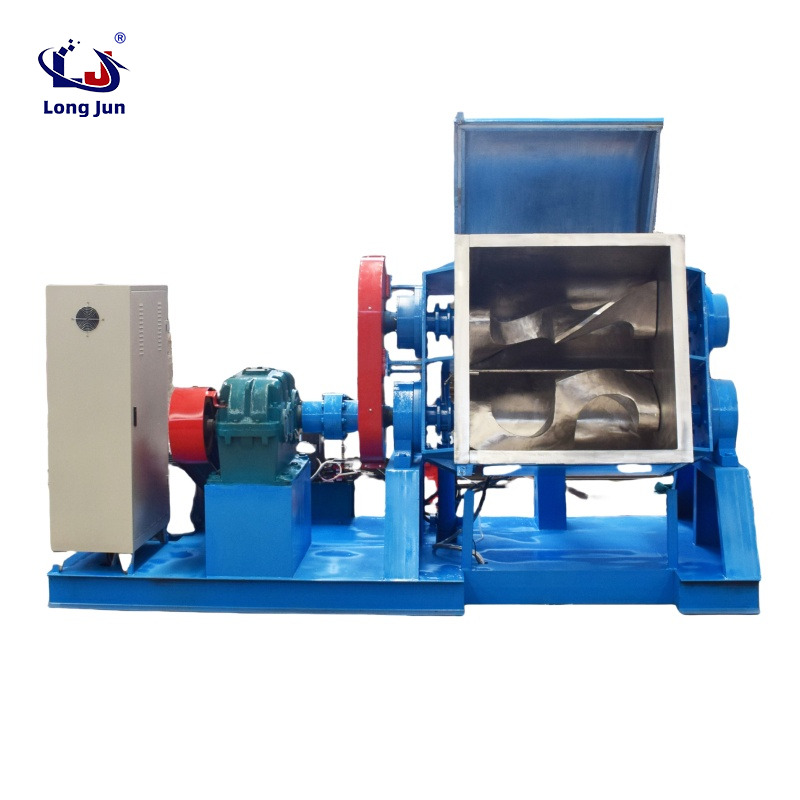

The pencil lead electric heating kneading machine is an important branch of the kneading machine series, mainly used in chemical production fields such as silicone, glass adhesive base materials, butyl rubber, hot melt adhesive, etc., which are prone to producing bubbles. It is produced by a pair of cooperating and rotating blades (usually in a Z shape) that produce strong shear effects, allowing semi dry or rubber like viscous plastic materials to react quickly and obtain uniform mixing and stirring.

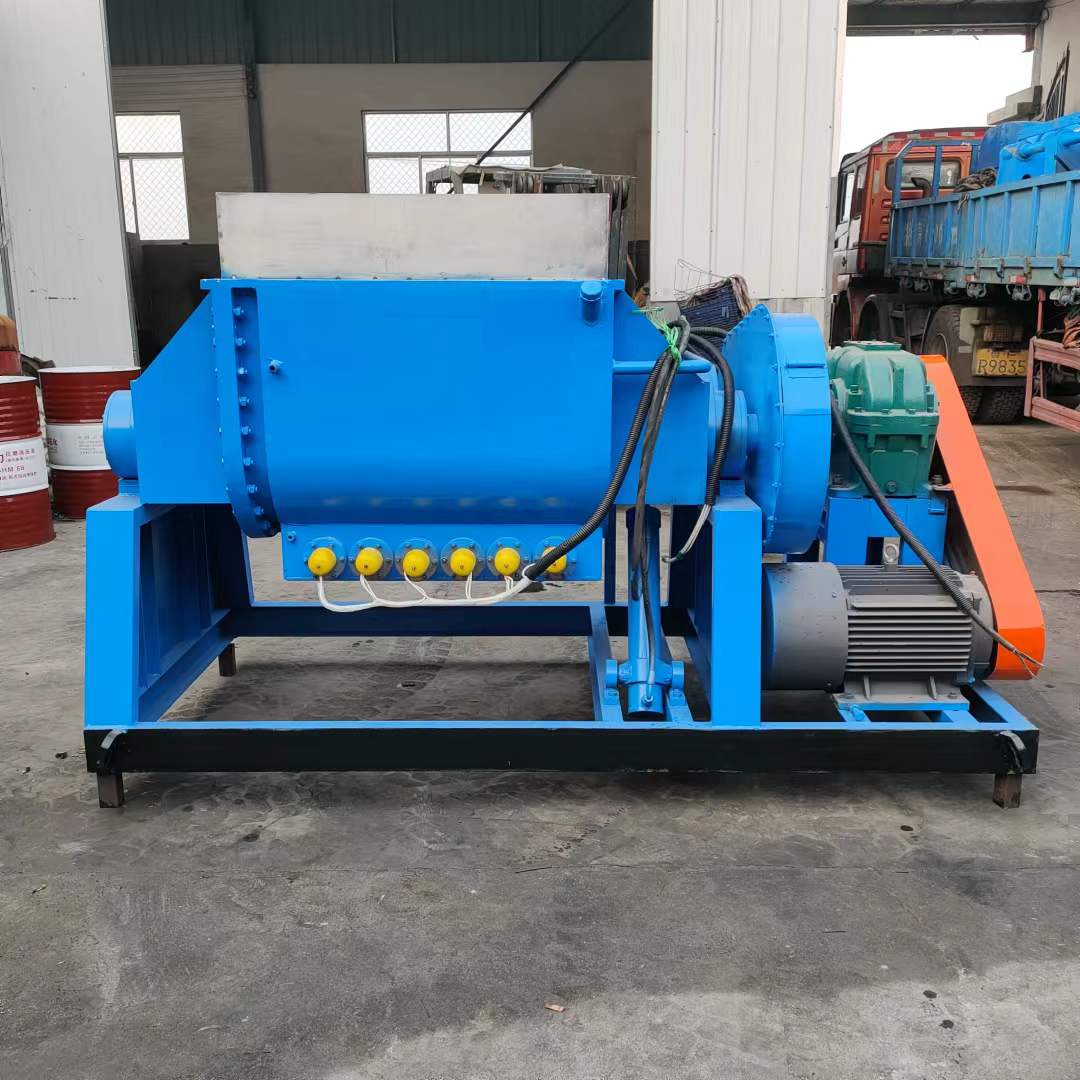

The electric heating pencil lead kneading machine is a device that uses a pair of blades (usually in a ∑ shape) that cooperate and rotate with each other to produce strong shear forces, allowing semi dry or rubber like viscous plastic materials to react quickly and achieve uniform mixing and stirring. The temperature adjustment method adopts electric heating, steam, oil heating, water cooling and other methods, and uses hydraulic cylinder flipping and cover opening. The discharge methods include hydraulic, tilting cylinder, ball valve discharge, screw extrusion, etc. The cylinder body, blades, and material contact parts are all made of stainless steel to ensure product quality.
Lubrication instructions for the components of pencil lead electric heating kneading machine
1. Gearbox oil tank: The gearbox of this machine is a sealed splash lubrication system, using 46 # or similar mechanical lubricating oil. The oil level can be seen from the scale on the oil level mirror of the oil tank. After about 500 operating hours of the new machine, all new lubricating oil must be replaced, and it should be replaced every 1500 operating hours thereafter. Note that when replacing the new oil each time, the old oil should be cleaned of any debris and iron filings left at the bottom of the oil tank.
2. Parallel gear oil tank: Use and replace the same gearbox. (Experimental and some models use lubricating grease and do not refer to this configuration)
3. Mixing tank flip foot base: Use a grease gun to inject high-temperature resistant lithium based grease, adding it once per shift. (Discharge, screw discharge, etc., do not refer to this configuration)
4. Mixing shaft and other bearing seats: Use a grease gun to inject high-temperature resistant lithium based grease (add once a month, and add every half month in summer).
5. Peilin style rotary joint: Use a butter gun to inject high-temperature resistant lithium based grease. (Hollow shaft type, without this configuration, do not refer)
6. Screw reduction motor: maintenance method reference 1 (screw discharge type, no reference if this configuration is not available)
7. Screw chain sprocket: can be mixed with mechanical oil lubricant and oil, added once per shift (screw discharge type, models without this configuration can be omitted). The above is the recommended oil consumption, and the above technical content needs to be changed under different operating intensities.
