Sigma mixer for spiral discharge device of hot melt tape

Application and characteristics of NH series hot melt adhesive kneading machine:
The hot melt adhesive kneading machine can knead CMC of various viscosities and can also be used in industries such as chemical, plastic, rubber, ink, carbon, pharmaceutical, and food. The hot melt adhesive kneading machine adopts dual blade stirring, which can quickly react and evenly mix the materials. Hot melt adhesive kneading machine products are divided into three categories: ordinary type, pressure type, and vacuum type. There are two heating methods, electric and steam, and water cooling to choose from. The discharge methods of the hot melt adhesive kneading machine include hydraulic tilting cylinder, ball valve discharge, and screw extrusion.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Application and characteristics of NH series hot melt adhesive kneading machine:

The hot melt adhesive kneading machine can knead CMC of various viscosities and can also be used in industries such as chemical, plastic, rubber, ink, carbon, pharmaceutical, and food. The hot melt adhesive kneading machine adopts dual blade stirring, which can quickly react and evenly mix the materials. Hot melt adhesive kneading machine products are divided into three categories: ordinary type, pressure type, and vacuum type. There are two heating methods, electric and steam, and water cooling to choose from. The discharge methods of the hot melt adhesive kneading machine include hydraulic tilting cylinder, ball valve discharge, and screw extrusion.

The NH series hot melt adhesive kneading machine can replace the old production process (combination of open type rubber mixing machine and open type hot mix machine), and the adhesive produced by this kneading machine has excellent effects on air glass butyl hot melt adhesive, automotive sealing, building sealing tape, etc.: 1. Good molding, 2. Bright and beautiful appearance, 3. Eliminating bubbles in the adhesive. Hot melt adhesive kneading machine is a production tool for manufacturers of butyl hot melt adhesive and butyl tape.

Classification of Hot Melt Adhesive Kneading Machines:

Laizhou Longjun Machinery Co., Ltd. produces various kneading machines,

(1) According to the heating method, it can be divided into steam heating kneading machine, heat transfer oil heating kneading machine, and electric heating kneading machine.

(2) The working area of the kneading machine is made of stainless steel. The other parts are generally made of carbon steel.

(3) According to their applications, they can be divided into: carbon type kneading machine, APP flame retardant formulation kneading machine, silicone rubber type kneading machine, hot melt adhesive type kneading machine, etc.

(4) According to the discharge method, it can be divided into lower discharge type kneading machines, screw extrusion type kneading machines, etc.

(5) According to technical specifications, it can be divided into high-temperature kneading machines, pressure kneading machines, vacuum kneading machines, ordinary kneading machines, conventional kneading machines, heavy-duty kneading machines, and laboratory kneading machines.

(6) In terms of volume, it can range from 5L to 5000L.

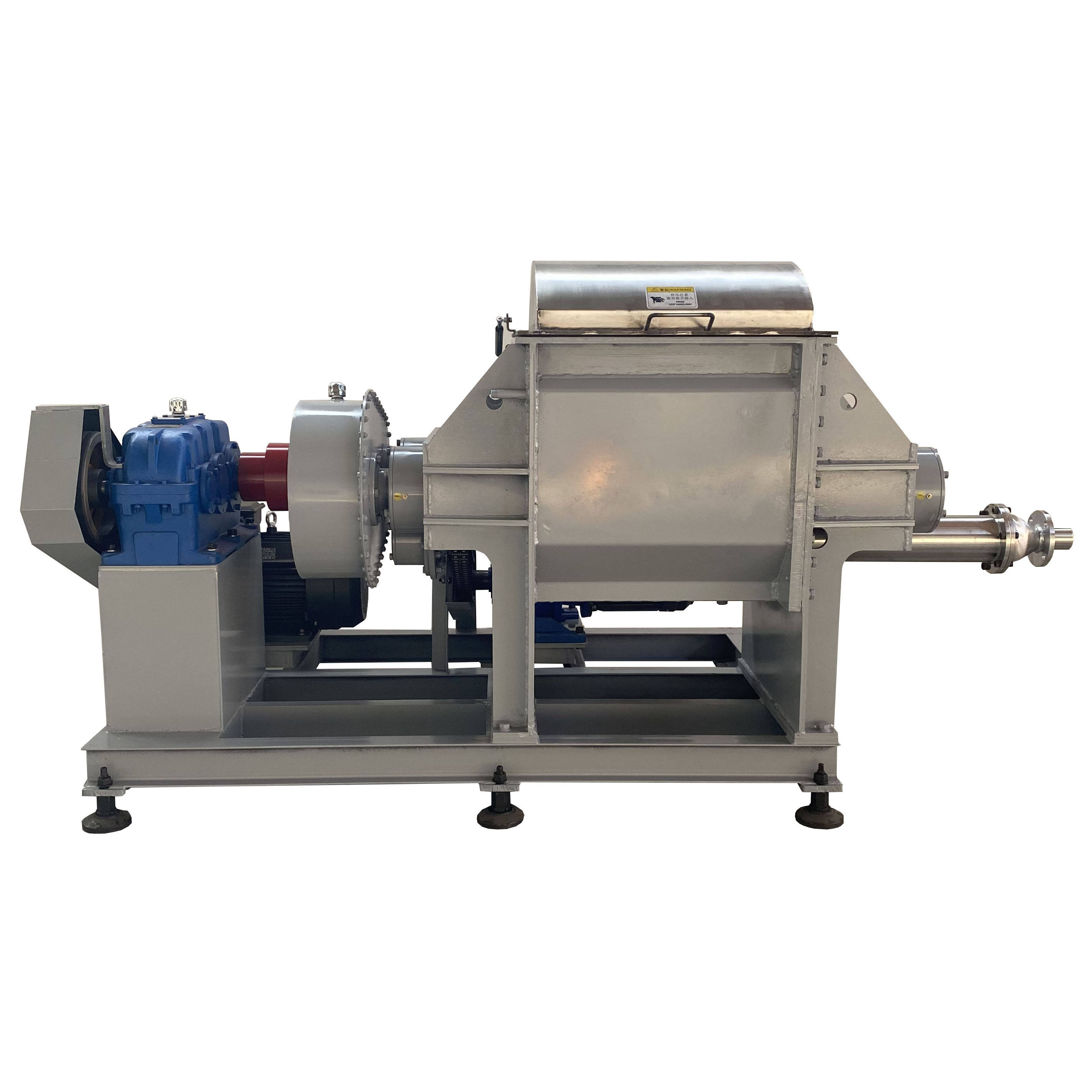

捏合机18

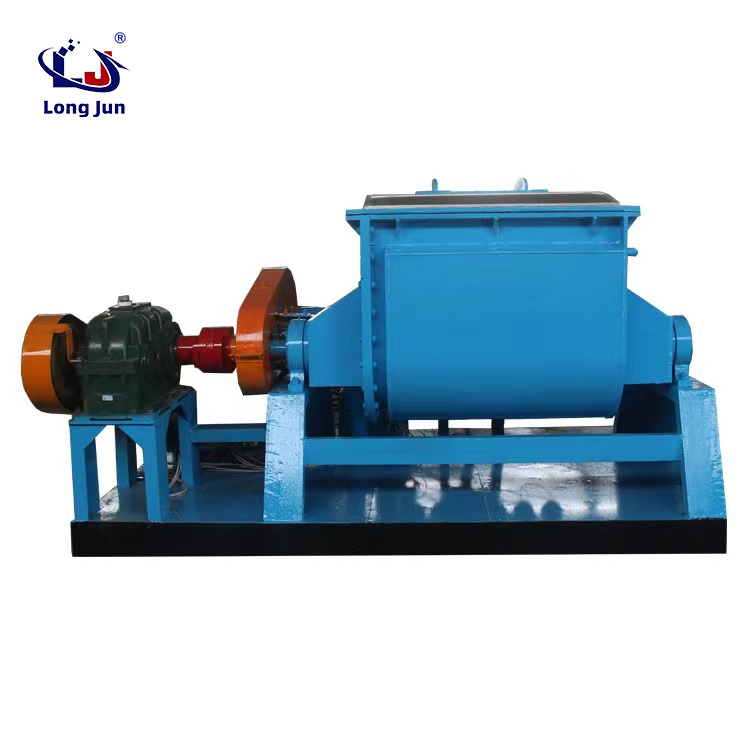

捏合机156


TypeNH-
5
NH-10NH-100NH-300NH-500NH-1000NH-1500NH-2000NH-3000NH-4000NH-5000
Volume(L)510100300500100015002000300040005000
Rotation Speed
(rpm)
33 2333 2335 22372137 2135 2530 1630 1638 2738 2738 27
Main Motor Power
(Kw)
0.751.1 3-7.511-3015-3722-9022-9030-11030-11045-11055-132
Heating MethodsSteam Pressur e(MPa)0.3
Electric Power(Kw)114916.22732.440727296
Vacuum(MPa)-0.094(Vacuum Kneader)
Pressure(MPa)0.45(Pressure Kneader)0.35(Pressure Kneader)0.3(Pressure Kneader)
Weight(Kg)300400125016003000450058006500110001300021000
