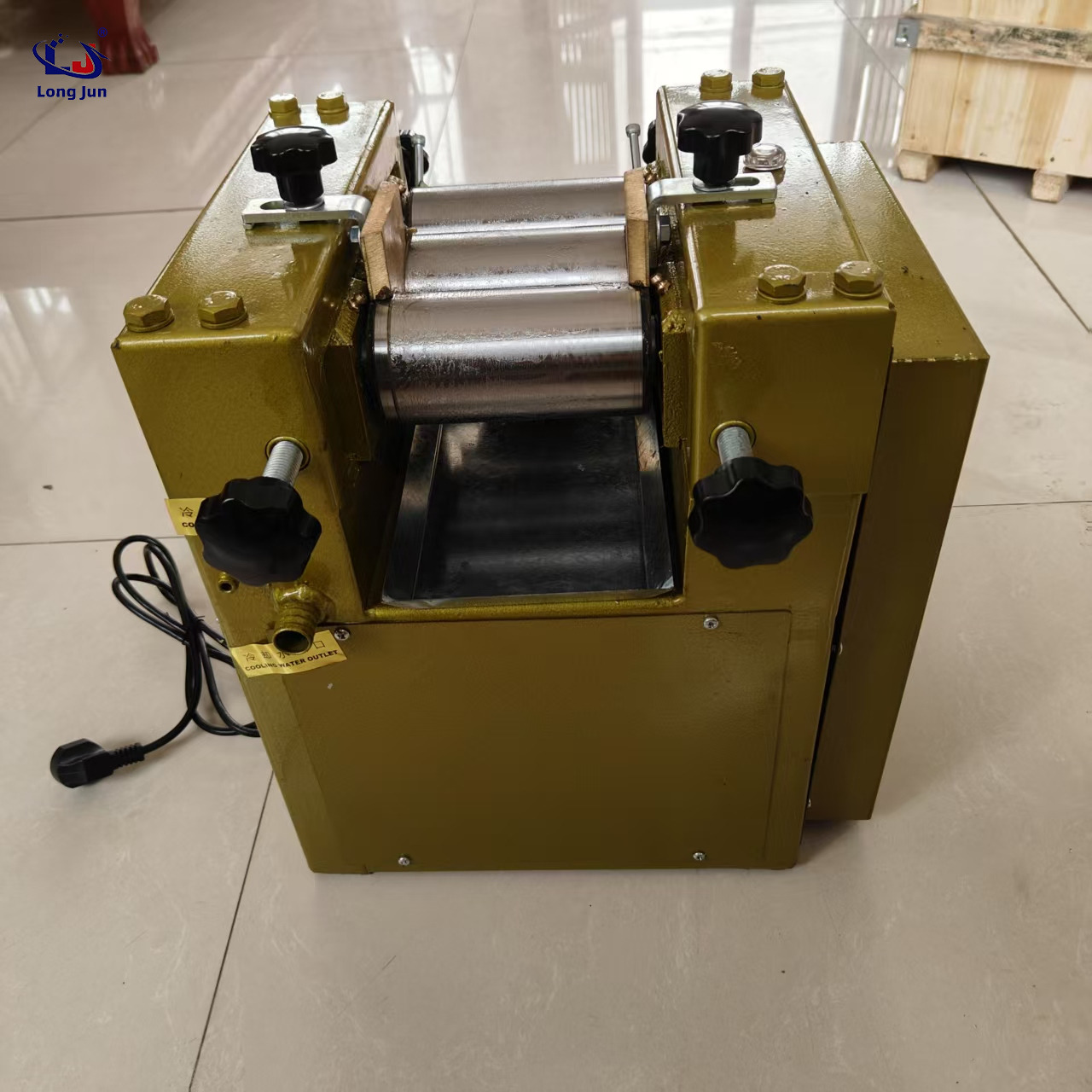

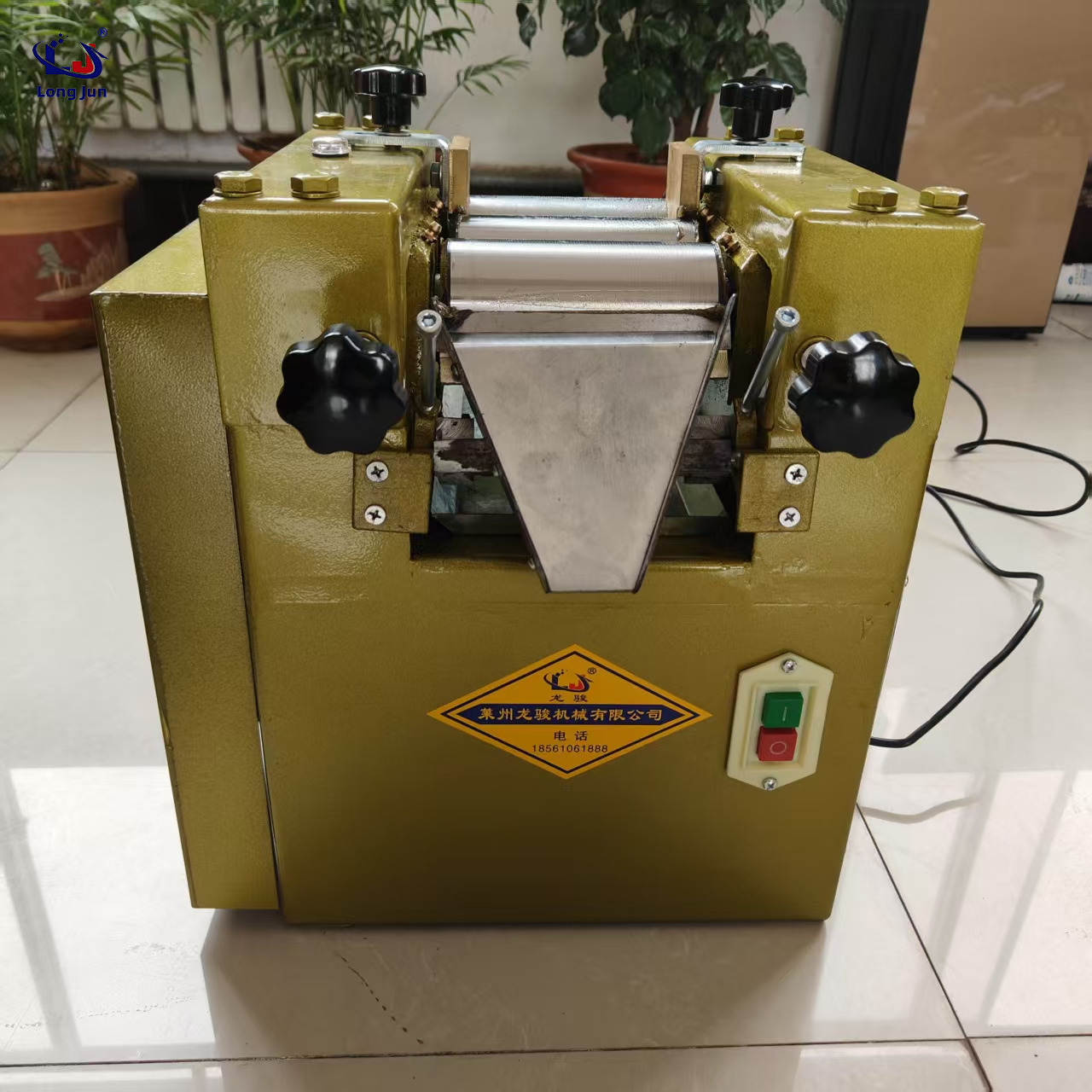

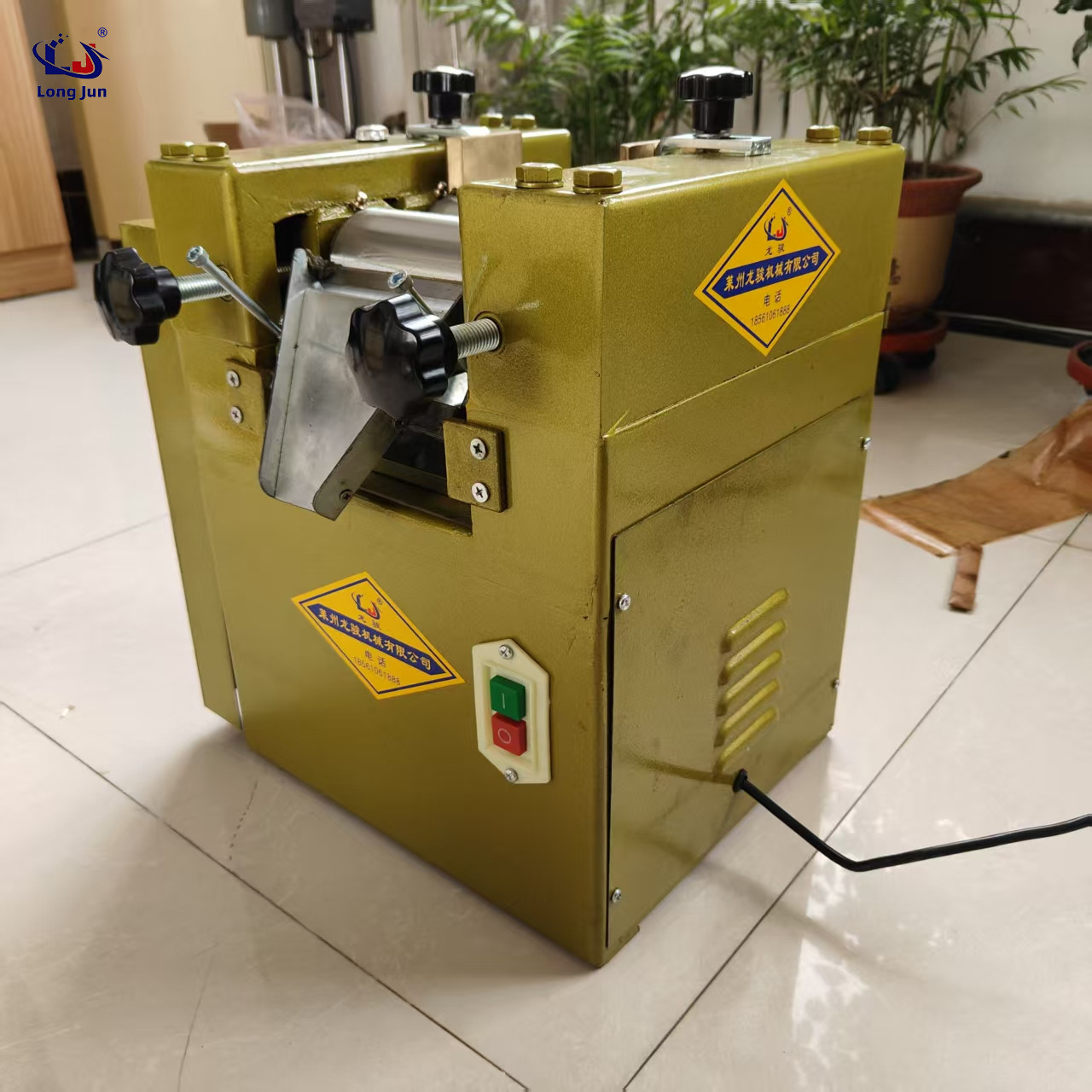

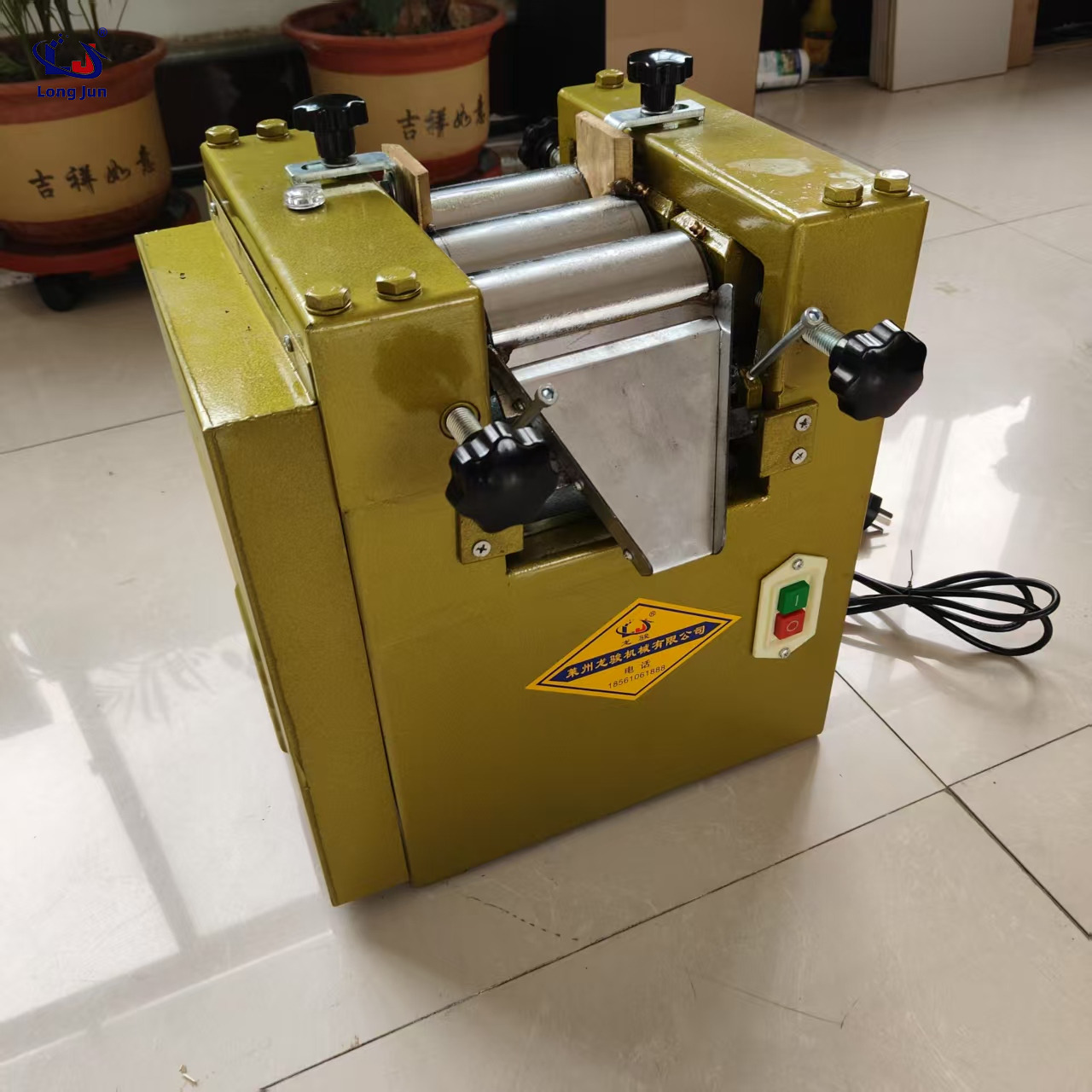

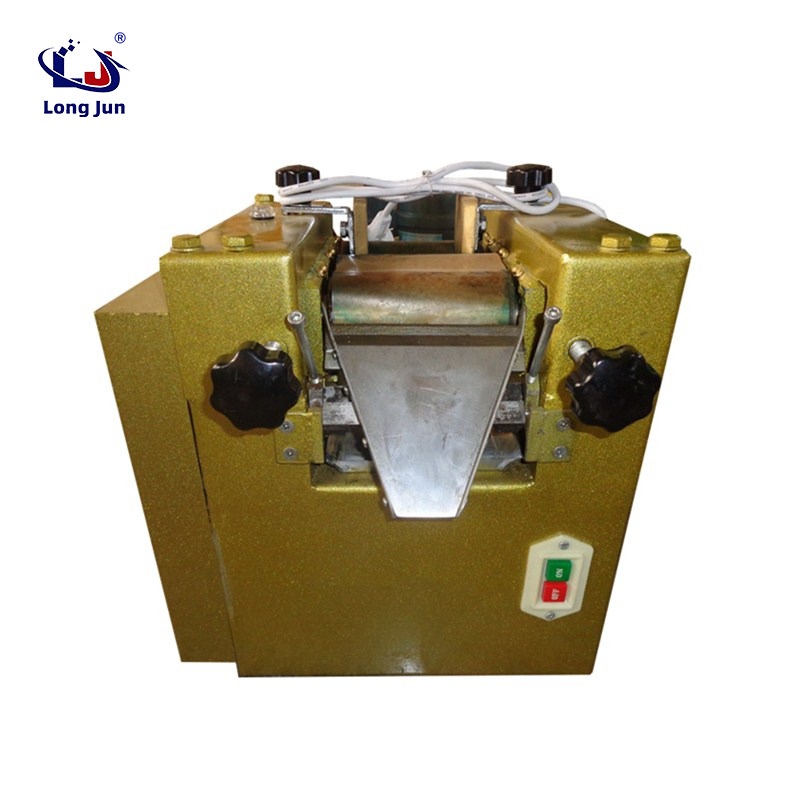

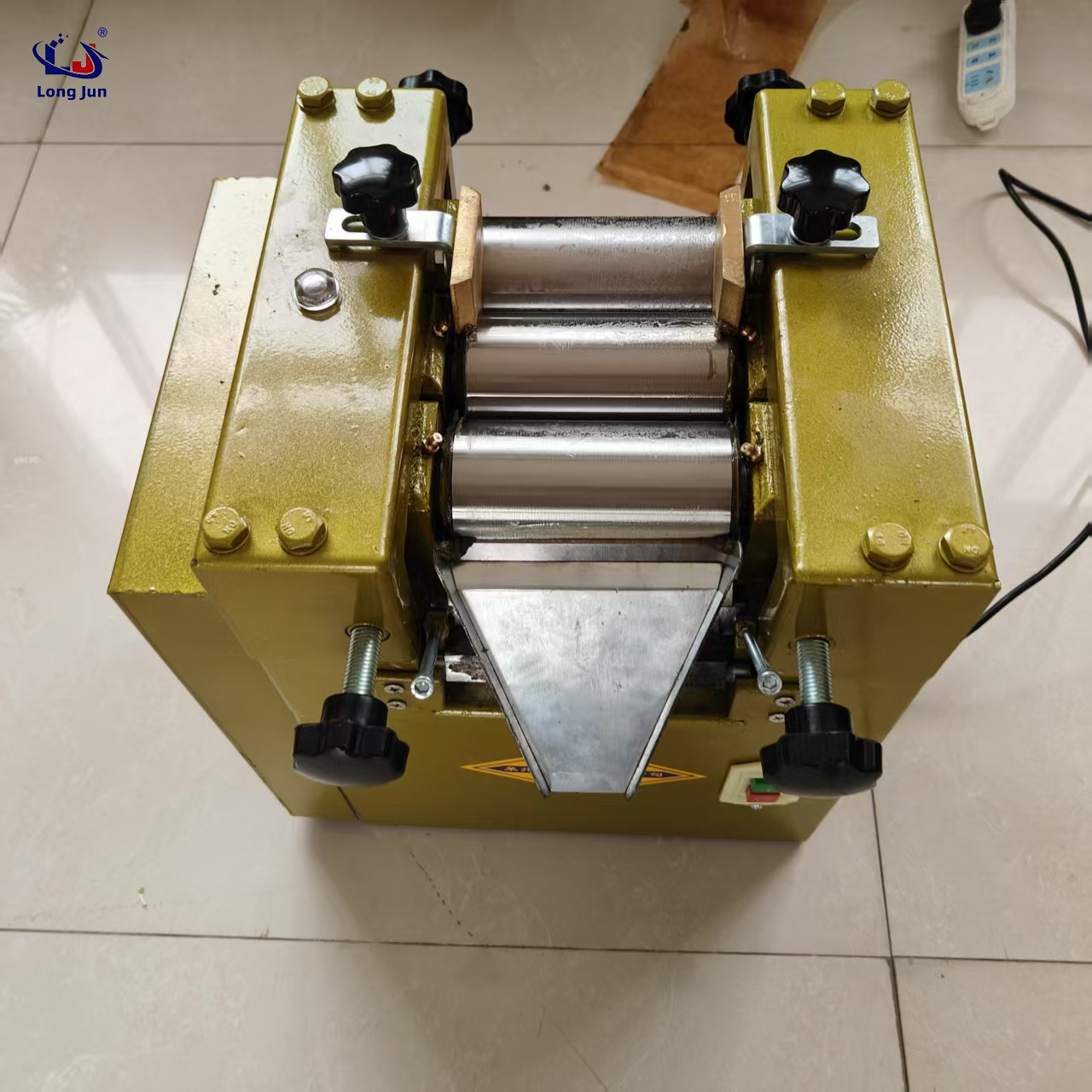

Small laboratory three roll grinder

Product Overview

As a leading manufacturer and supplier of precision milling equipment, we present this compact three roll grinder engineered specifically for high-viscosity material dispersion. Designed for rigorous laboratory environments, it delivers unparalleled consistency for formulation testing and small-batch commercial production.

• Ideal for processing high-viscosity pastes and dense slurries seamlessly.

• Achieves ultra-fine, uniform dispersion down to approximately 15 μm.

• Constructed with ultra-hard, wear-resistant chilled alloy cast iron rollers.

• Sourced directly from the manufacturer to ensure reliable quality and technical backing.

Product Description

The small laboratory three roll grinder stands as the ultimate technological solution for processing high-viscosity materials, effortlessly transforming coarse, uneven pastes into luxuriously smooth, homogenous blends. When the machine is in operation, the subtle, rhythmic hum of the precision-engineered motor reflects its robust build quality, while the gleaming, cold-to-the-touch chilled alloy cast iron rollers work in perfect, relentless synchronization. By utilizing the intense shear force generated through the mutual compression and precisely calibrated differential speeds of the three horizontal rollers, this equipment effortlessly breaks down stubborn agglomerates in paints, inks, cosmetics, and ceramics. The meticulously ground roller surfaces, boasting an impressive hardness of over HS70°, ensure exceptional wear resistance, effectively preventing metallic contamination and maintaining the pure, vibrant colors of your premium pigments. Designed specifically to bridge the critical gap between initial R&D formulation and full-scale manufacturing, this grinder allows operators to achieve a meticulous grinding fineness of approximately 15 μm. Every single pass through the smoothly operating rollers yields a visually flawless, silky-textured output, ensuring your final commercial products meet the most stringent quality and sensory standards required by discerning markets worldwide.

Product Specifications

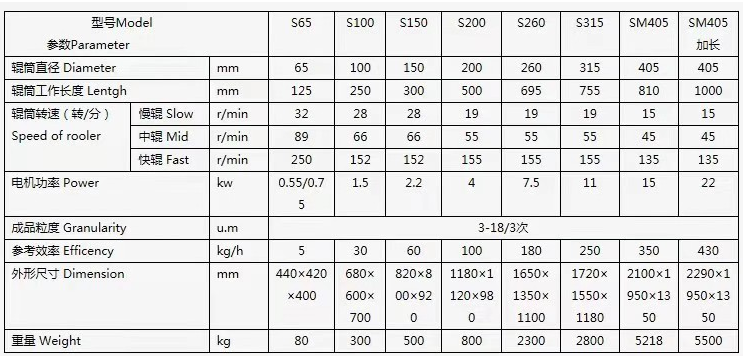

Three roller grinding mill technical parameter：

Key Features & Highlights

Elevate your material processing capabilities with engineering designed for optimal reliability, precision, and longevity. This laboratory grinder is expertly crafted to deliver consistent, scalable results that directly translate to larger production lines, minimizing guesswork and maximizing your operational efficiency.

• Exceptional Durability: The centrifugally cast chilled alloy iron rollers provide a formidable, impenetrable surface that effortlessly withstands the abrasive nature of tough ceramics and heavy, dense pigments.

• Differential Speed Dynamics: By leveraging precise speed variations across the slow (32 rpm), medium (89 rpm), and fast (250 rpm) rollers, the machine generates immense shear stress, forcing even the most stubborn agglomerates to disperse evenly.

• Scalable Output Architecture: Formulations perfected on this compact unit can be seamlessly transitioned to our larger industrial models, ensuring absolute structural consistency in your extensive commercial roll-outs.

• Uncompromising Fineness: Achieve a reliable particle reduction down to 15 μm, resulting in a buttery-smooth texture that profoundly enhances the tactile and visual appeal of cosmetics and premium printing inks.

Material & Purity

Maintaining the absolute purity of your formulations is critical, especially when processing highly sensitive compounds where even microscopic contamination can completely ruin an entire batch. Our grinder is meticulously engineered to safeguard the chemical and structural integrity of your materials from the first pass to the last.

• Standard High-Hardness Rollers: The default chilled alloy cast iron rollers (≥ HS70°) offer incredible resistance against abrasive wear, drastically reducing the risk of metallic shedding during intense, prolonged grinding sessions.

• Zero-Metal Contamination Options: For industries demanding absolute purity, such as luxury cosmetics, advanced electronic pastes, and pharmaceuticals, we offer highly customizable alumina or zirconia ceramic rollers to replace the standard iron.

• Sanitary Stainless Steel Chassis: The exterior and structural components can be tailored with premium stainless steel, providing a sleek, easy-to-sanitize surface that aggressively resists corrosion from harsh chemical solvents and acidic pigments.

• Pristine Output Quality: By virtually eliminating cross-contamination and material degradation, your final product retains its intended vivid color profile, precise electrical conductivity, or delicate, nuanced scent profile.

Grinding Precision & Efficiency

Achieving a flawless dispersion in high-viscosity materials requires much more than just raw motor power; it demands microscopic precision. This equipment is perfectly calibrated to deliver uncompromising accuracy, ensuring that your research and development data is robust, repeatable, and ready for massive scaling.

• Intense Shear Force Generation: The meticulously calculated differential speeds between the three 65 mm rollers create a powerful wiping and crushing action, systematically breaking down dense particle clusters without destroying the base material.

• Targeted Fineness Control: Operators can reliably achieve a stable grinding fineness of 3-15 μm, with the advanced capability to reach sub-micron levels (below 1 μm) for specialized, high-end applications.

• Optimized for R&D Environments: Specifically tailored for laboratory sampling and small-batch trials, the SM65 model offers a highly efficient processing capacity of approximately 5 kg per hour, maximizing daily testing output.

• Seamless Scale-Up Guarantee: Every dynamic parameter is designed to mirror the performance of massive industrial units, guaranteeing that the flawless texture achieved in the lab will be perfectly replicated on the main factory floor.

Cooling & Temperature Control

High-viscosity friction inevitably generates substantial heat, which can quickly degrade heat-sensitive ingredients, alter delicate color profiles, or cause unwanted premature polymerization. Our advanced thermal management architecture ensures your materials remain cool, stable, and perfectly preserved throughout the entire milling cycle.

• Hollow Roller Architecture: Each of the three horizontal rollers features a precision-engineered hollow core, allowing for maximum internal surface area contact with the cooling medium.

• Integrated Water Cooling System: A continuous, highly efficient water circulation system rapidly draws destructive heat away from the grinding interface, maintaining a strictly controlled, optimal operating temperature.

• Protection for Thermal-Sensitive Formulas: By actively preventing sudden heat spikes, the grinder protects the delicate chemical structures of premium UV inks, high-end skincare cosmetics, and active pharmaceutical ingredients.

• Consistent Viscosity Maintenance: Stable processing temperatures prevent the material from thinning out or thickening unpredictably during the run, ensuring a uniform, homogenous paste from the exact start to the finish.

Operation & Adjustment

In a demanding, fast-paced laboratory setting, equipment must be intuitive, highly responsive, and exceptionally easy to maintain. We have designed this grinder with the professional operator in mind, integrating ergonomic controls and intelligent mechanisms that drastically reduce setup times and streamline the cleaning process.

• Micro-Precision Gap Adjustment: Ergonomically designed handwheels allow operators to make ultra-fine, tactile adjustments to the roller spacing, granting absolute control over the final particle size and shear intensity.

• Adaptive Discharge Scraper: The highly responsive, self-adjusting scraper blade maintains optimal, flush contact with the fast roller, ensuring maximum product recovery and a clean, continuous flow of the finished paste.

• Rapid Disassembly and Cleaning: Recognizing the frequent material changeovers inherent in R&D, the structural layout permits quick access to the rollers and scraper, facilitating thorough sanitation without the need for specialized, cumbersome tools.

• Smooth User Experience: The satisfying tactile feedback of the adjustment dials and the quiet, vibration-dampened motor operation create a refined working environment, allowing technicians to focus entirely on formulation optimization.

Industry Adaptability

Versatility is the absolute cornerstone of a smart equipment investment. Rather than being locked into a single, rigid application, this grinder is engineered to handle an incredibly diverse spectrum of high-viscosity compounds, making it an indispensable asset across multiple cutting-edge and traditional industries.

• Traditional Chemical Processing: Effortlessly homogenizes heavy industrial paints, vibrant color pigments, and thick printing inks, ensuring brilliant color payoff and smooth, streak-free application.

• Advanced New Materials: Delivers the extreme precision required for dispersing conductive lithium battery slurries, photovoltaic materials, and high-performance electronic adhesives without compromising their delicate structural integrity.

• Cosmetics and Personal Care: Gently yet effectively refines luxurious lipsticks, rich cosmetic foundations, and dense soap bases, resulting in a silky, skin-pleasing tactile experience that consumers demand.

• Food and Confectionery: Highly capable of refining dense organic pastes, including premium chocolates and nut butters, ensuring a velvety mouthfeel completely free of any gritty, unrefined residue.

Safety & After-sales Service

Investing in precision machinery requires absolute confidence in both the equipment's operational safety and the manufacturer's long-term, unwavering support. We have implemented comprehensive protective measures and a robust global service framework to ensure your operations run flawlessly, day after day.

• Comprehensive Safety Mechanisms: Equipped with an immediate, highly visible emergency stop button, protective dust covers, and specialized anti-overflow baffle plates to protect operators and absolutely minimize material waste.

• Complimentary Sample Testing: We offer exclusive access to our state-of-the-art Nano Lab, allowing you to send your raw materials for free preliminary testing, definitively proving the equipment's capabilities before you make a commitment.

• Solid Warranty Coverage: Every single unit is backed by a comprehensive 1-year warranty, fully safeguarding your investment against any manufacturing defects and ensuring complete operational peace of mind.

• 24/7 Technical Support: Our dedicated team of engineering experts is available around the clock to provide remote troubleshooting, operational guidance, and detailed installation training, ensuring zero downtime for your facility.

Why Choose Us

Selecting the right equipment partner is just as critical as the machinery itself. As a dedicated manufacturer specializing in advanced mixing and grinding technology, we bring decades of refined engineering expertise directly to your facility. Our commitment goes far beyond a simple transaction; we aim to be the ultimate catalyst for your operational success.

• Deep Manufacturing Expertise: With years of specialized, uninterrupted focus on dispersion and granulation technology, we understand the nuanced challenges of processing high-viscosity materials far better than generalist equipment suppliers.

• End-to-End Quality Control: From the initial centrifugal casting of our alloy rollers to the final precision calibration of the 0.75 kW motor, every step is rigorously monitored within our own facilities to guarantee flawless performance.

• Tailored Customization: We absolutely do not believe in a one-size-fits-all approach. Our engineering team works closely with your technical staff to customize roller materials, motor specifications, and chassis designs to meet your exact environmental requirements.

• Global Supply Reliability: We have built a streamlined, highly responsive supply chain capable of delivering commercial-grade equipment and critical spare parts promptly to facilities worldwide, ensuring your production never misses a beat.

FAQ

To assist you in making a highly informed procurement decision, we have meticulously compiled the most frequent inquiries from our professional clients regarding the operation, maintenance, and advanced capabilities of our laboratory grinding equipment.

Q1: How does the cooling system prevent the degradation of heat-sensitive cosmetics and inks?
A1: The equipment utilizes a sophisticated hollow roller design seamlessly integrated with a continuous water circulation system. This rapidly dissipates the intense heat generated by shear friction, maintaining a stable, low temperature that perfectly preserves the chemical integrity and color fastness of sensitive formulations.

Q2: Can the roller material be upgraded to prevent metal contamination in electronic pastes?
A2: Absolutely. While the standard model features ultra-hard chilled alloy cast iron, we offer full customization with high-density alumina or zirconia ceramic rollers. These advanced options ensure zero metal shedding, which is absolutely critical for electronic, pharmaceutical, and high-end cosmetic applications.

Q3: What is the expected throughput of this specific laboratory model?
A3: The SM65 model is specifically optimized for research, development, and small-batch production, offering a highly efficient processing capacity of approximately 5 kg per hour. This output can vary slightly depending on the initial viscosity and the precise desired fineness of your specific material.

Q4: How difficult is it to clean the equipment when switching between different pigment colors?
A4: The grinder features an ergonomic, highly accessible design with an easily detachable discharge scraper and wide-open roller access. This allows operators to quickly and thoroughly wipe down all contact surfaces with appropriate solvents, completely preventing cross-contamination between different batches.

Q5: Will the formulation data gathered on this lab grinder translate accurately to large-scale production?
A5: Yes. The differential speed ratios, shear force dynamics, and gap adjustment mechanisms are engineered to perfectly mirror our large-scale industrial units. This ensures that the fineness and dispersion achieved in your lab can be seamlessly and confidently scaled up to massive commercial manufacturing volumes.
