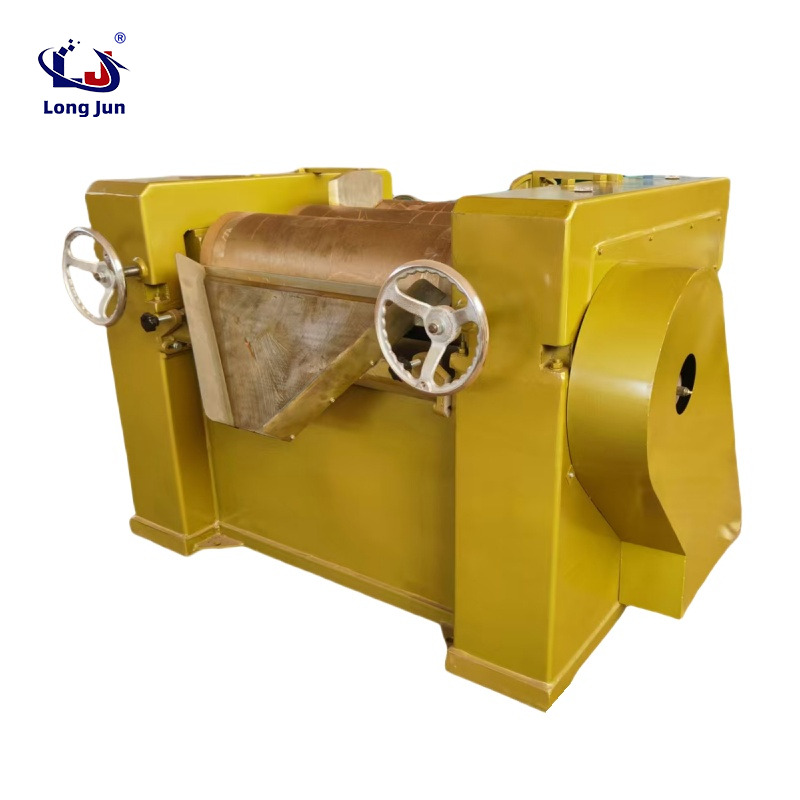

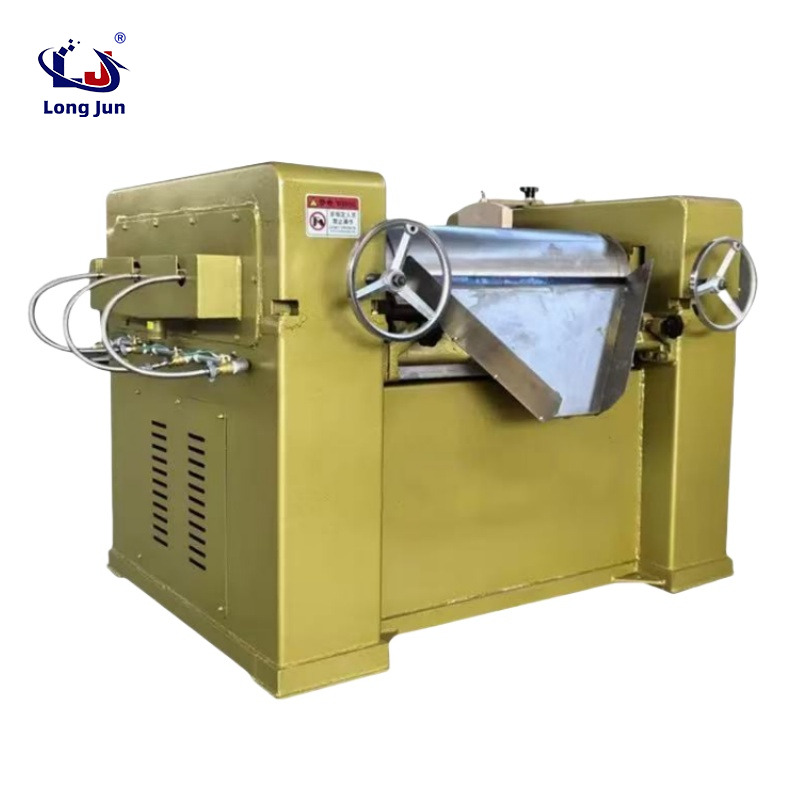

SM260 type paint pigment lipstick three roll grinder

Name: SM260 type paint pigment lipstick three roll grinder
Brand: Longjun
Rating: 5.0 (6 reviews)

Three roll grinding machine, abbreviated as three roll machine, can be divided into two types: experimental three roll grinding machine and production three roll grinding machine. The three roll grinder is suitable for the manufacturing of paints, inks, pigments, plastics and other slurries.

Quantity:
Availability:





Inquire Add to Basket

Model:
SM260
Brand:
Longjun

Product Description

Application:

Three roll Mill is an ideal and effective grinding and dispersing equipment for high viscosity product, mainly used in various of paint, ink, pigment, plastic, cosmetic, soap, ceramics, rubber, and other liquid and paste materials grinding.

Structure & Working principle:

It has three rollers ( roller is made of high wear alloy cast iron) mounted on an iron frame with the center on the straight line. Can be horizontally installed, or slight tilted. Through the horizontal three roller surface extrusion and different speed friction to achieve the grinding effect.

Roller is hollow can be cooled by water. Material was added between the middle and back rollers.

Due to the three rollers rotating in different direction ( speed increases from back to front ), generate a good grinding effect. After grinding, material is scraped by scraper in front of the front roller.

Under normal circumstances, the roller material of a three roll grinder is centrifugally cast from cold hard alloy cast iron, with a surface hardness of HS70 ° or above; The diameter of the roller is subjected to high-precision grinding, which is precise and delicate, and can make the grinding fineness of the material reach about 15 μ m, thus producing uniform and delicate high-quality products. The SM405 and S260 three roll machines are used for mass production, while the A50 and S65 machines are used for small batches or laboratory use.

Model:

S65 (1-5 kg/h), S150 (10-50 kg/h)

S260 ( 100-200 kg/h), S315 ( 200-300 kg/h)

S405 ( 300-400 kg/h),S405L ( 400-500 kg/h)

Model	S260
Roller Diameter	260 mm
Roller working face Length	620 mm
Rotation speed	Fast roller = 155 RPM
	Middle roller = 55RPM
	Slow roller = 19 RPM
Electric motor	7.5 KW
Power supply	380V,50Hz,3 Phase

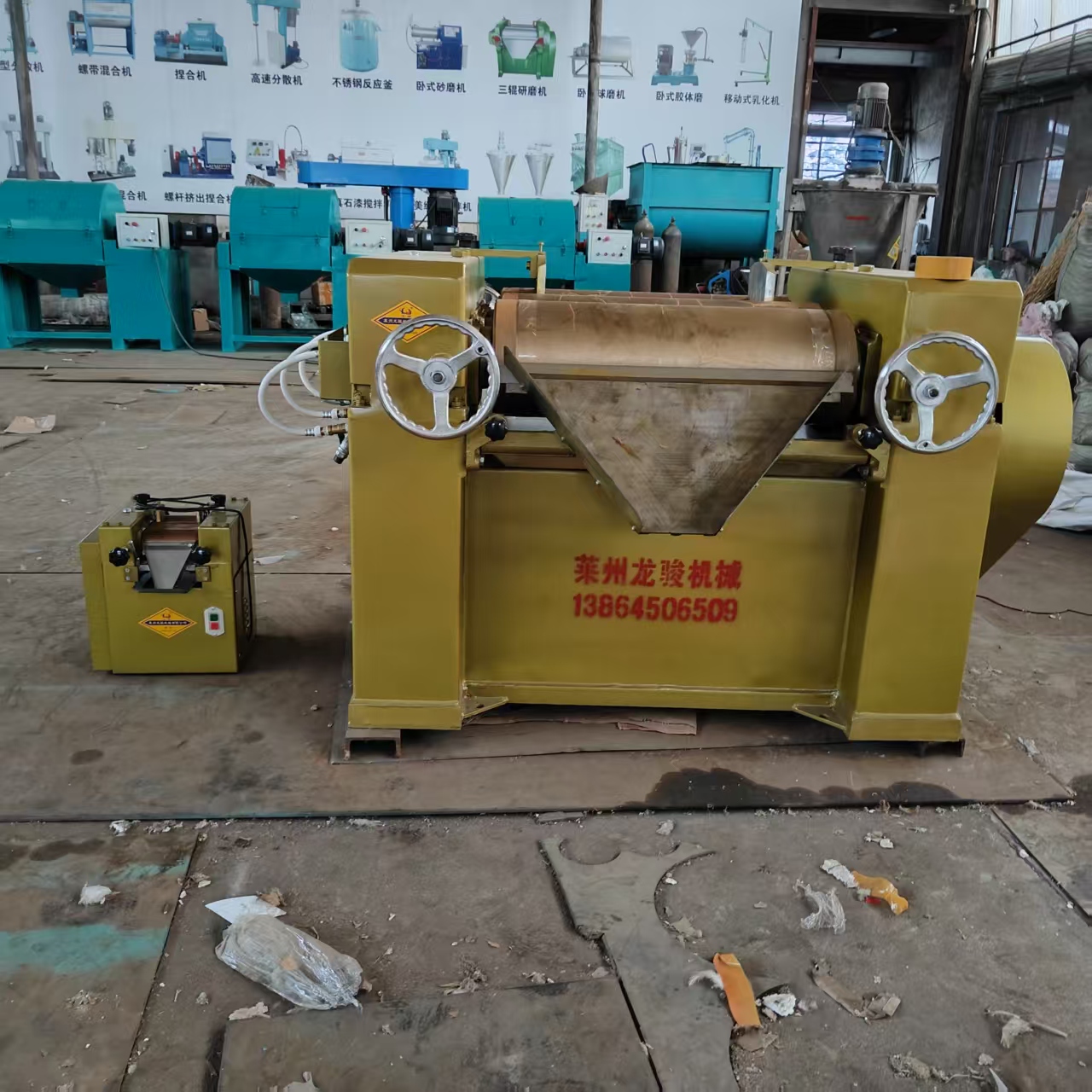

三辊研磨机21
