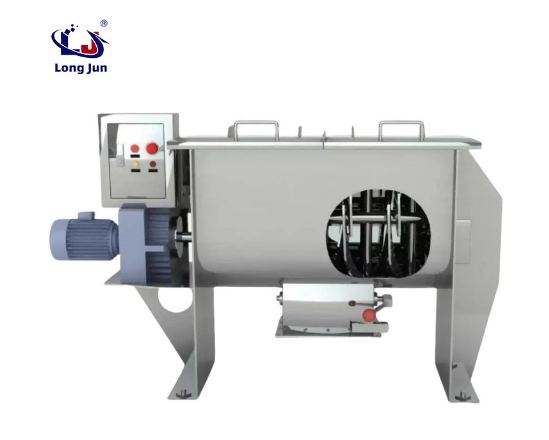

Ribbon Mixer Vs Paddle Mixer: Which To Choose?

Selecting the wrong industrial mixer goes beyond simply extending your cycle times. It directly causes degraded particle integrity, unmixed dead zones, and massive energy waste. Process engineers and plant managers face a critical decision when scaling operations. The choice between a ribbon and a paddle configuration ultimately dictates your entire production line's bottleneck.

While Ribbon Mixer designs remain the reliable standard for uniform, free-flowing bulk materials, paddle configurations offer superior versatility. They handle variable batch sizes, protect fragile materials, and maximize thermal processing efficiency. We will analyze the exact operational kinematics separating these two systems. You will learn how fill volume constraints, cycle speeds, and recipe-specific characteristics determine the right equipment.

This direct, objective framework helps you match the exact mechanical limitations of each mixer to your strict production use-case. We avoid generic statements. You need precise engineering criteria to succeed.

Key Takeaways

• Batch Flexibility: Paddle mixers maintain efficiency at fill volumes as low as 20-25%, whereas ribbon mixers require at least 60% capacity to avoid passive mixing dead zones.

• Material Integrity: Ribbon designs generate higher friction and shear, making them ideal for breaking agglomerates but risky for fragile powders. Paddle designs rely on gentle, gravity-driven tumbling.

• Cycle Speed: A standard dry-mix cycle takes 1-2 minutes in a paddle mixer compared to 5-6 minutes in a ribbon blender.

• Thermal Efficiency: Cylindrical paddle mixers offer greater surface area contact for heating/drying applications compared to U-shaped ribbon troughs.

Operational Kinematics: How Material Movement Dictates Mixing Quality

The Ribbon Mechanism (End-to-End Shear)

The ribbon mechanism relies on a classic U-shaped trough. Inside, a horizontal shaft drives a dual-helical ribbon agitator. The inner ribbon pushes ingredients toward the outer ends of the trough. Simultaneously, the outer ribbon pulls those materials back toward the center. They operate with a strict 180-degree phase difference.

This opposing action creates a continuous convective flow. Moderate shear builds up during this sweeping motion. You can use this inherent shear to your advantage. It proves ideal for dispersing minor liquid additions. It also excels at breaking up soft lumps inside your batch. However, you must carefully monitor this shear when processing delicate ingredients.

The Paddle Mechanism (3D Fluidization & Tumbling)

Paddle configurations utilize a cylindrical vessel. Pitched paddles mount securely along a rotating central shaft. These paddles scoop, lift, and drop the material dynamically. They create a distinct "figure-8" trajectory inside the chamber.

Paddles lift material upwards. They then let it inter-fold via natural gravity. This tumbling action avoids constant pinch-points against the vessel walls. You protect delicate particles from crushing forces. Your product maintains its exact physical structure. What to watch out for: You must maintain optimal rotational speeds. If you run a paddle machine too fast, you risk losing this gentle gravity-folding effect.

Performance Metrics: Fill Capacity, Speed, and Energy Draw

The Fill-Level Constraint (Crucial Evaluation Metric)

You must evaluate fill capacities carefully before purchasing equipment. A ribbon design demands 60% to 100% fill levels for proper operation. The outer ribbon must fully submerge to create an effective end-to-end sweep. Filling it below the shaft centerline creates a dangerous passive mixing zone. Material merely slides back and forth at the bottom. It never achieves true cross-mixing.

Paddle machines operate effectively at 25% to 100% capacity. Paddles scoop continuously from the very bottom of the cylinder regardless of the top fill line. You gain immense flexibility with this design. We highly recommend them for facilities managing highly variable batch sizes. You can run completely different volumes on the exact same production line.

Cycle Times vs. Energy Consumption

Let us look at standard dry powder mixing speeds. You will see distinct operational differences.

1. Paddle mixers complete a standard dry-mix cycle in roughly 1 to 2 minutes.

2. Ribbon machines require 5 to 6 minutes to achieve the same blend uniformity.

Power draw also differs significantly based on the mechanical action. Ribbon configurations drag through a heavy, static bed of material constantly. They require massive starting torque. They sustain high energy draw during operation due to continuous mechanical friction. Paddle setups run at lower RPMs. They fluidize the mixture, which creates far less mechanical resistance against the motor.

Performance Benchmarks Table

Recipe-Level Material Compatibility

When to Choose the Ribbon Blender Mixer

You should select this machine for materials sharing similar physical traits. They need matching shapes, sizes, and densities to prevent segregation. This equipment excels at processing bulk construction materials like dry mortar. It handles standard animal feed perfectly. You can also deploy it for specific heavy compounding tasks. For instance, it functions exceptionally well as a plastic particle spiral belt mixer when you require aggressive, high-friction blending.

You will find it excellent for complex flavor powders. A standard ribbon blender mixer generates moderate mechanical shear. You actually need this specific friction to distribute viscous liquid flavorings. It ensures you disperse fine colorants evenly across the entire batch.

When to Choose the Paddle Mixer

You must use this mixer for materials highly prone to segregation. These recipes often feature widely varying ingredient densities. You also strictly need it for friable and fragile items. Common industrial examples include whole roasted coffee beans and freeze-dried fruits.

Premium bakery mixes containing solid fat flakes also require this gentle approach. Friction-induced heat will melt the fat flakes prematurely. Crushing them causes immediate product rejection during quality control. The gravity-driven tumbling preserves these complex structures effortlessly.

Process Integration: Heating, Discharging, and Downstream Flow

Thermal Processing (Drying and Jacketing)

Cylindrical paddle units dominate thermal applications. Their enclosed circular geometry maximizes the internal surface-area-to-volume ratio. This physical trait results in vastly superior heat transfer coefficients. Open-top U-shaped troughs simply cannot match this thermal efficiency. You achieve much faster heating and drying cycles when using a cylindrical vessel.

Loading and Discharging Realities

Loading mechanisms dictate your upstream process design entirely.

• Top-Loading: Ribbon systems offer easy bulk loading. Their wide open-top U-shape simplifies manual bag dumps.

• Closed Loading: Paddle machines typically require integrated material conveying systems. Their enclosed cylindrical design demands automated pneumatic feeding.

Discharging hardware directly impacts your turnaround time and cleanliness. Below is an Equipment Selection Chart comparing standard discharge valves.

Valve Selection Chart

Compliance, Hygiene, and Maintenance Profile

Sanitary Requirements (Food & Pharma)

Cleaning accessibility dictates sanitation success in regulated industries. Ribbon agitators feature highly complex weld joints where the spokes meet the outer bands. These intricate areas can complicate sanitation validation. You must clean them meticulously to pass rigorous swab testing.

Regulated processing environments require specific certifications. You need ATEX compliance when handling combustible dusts. You must secure EC No.1935/2004 certification for food contact materials. We advise verifying these strict regulatory requirements during the initial engineering phase.

Maintenance Profile

Your equipment will experience unavoidable mechanical wear over time. Ribbon systems face continuous abrasive wear. This wear happens aggressively along the outer ribbon edge and the inner trough wall. You must monitor the clearance between these two surfaces regularly. Excessive gaps severely reduce mixing efficiency.

Paddle systems generally experience much less physical wear. They operate at significantly lower rotational speeds. However, they require careful technical oversight. You must maintain the precise alignment of the paddle pitch. Technicians must verify this angle alignment during routine maintenance to preserve the figure-8 fluidization effect.

Conclusion

Choosing the right industrial mixer fundamentally shapes your production capabilities. You cannot base this decision on vague industry preferences. You must match the equipment's kinematics directly to your material behaviors.

Choose a ribbon setup if your batches remain consistent in size. Select it if your materials flow freely without degrading. It works best when you rely heavily on manual top-loading protocols. Choose a paddle setup if you run variable batch sizes. Select it if you handle delicate, heat-sensitive materials. It excels when you require rapid batch changeovers or integrate thermal jacketing.

Before finalizing your equipment footprint, take the following next steps:

1. Document your strict minimum and maximum batch fill volumes.

2. Assess your specific ingredients for fragility or heat sensitivity.

3. Evaluate your existing upstream loading mechanisms.

4. Calculate exact bulk densities for every recipe component.

5. Request a scalable lab test using a master-batching approach.




FAQ

Q: Can a ribbon mixer be modified for fragile powders?

A: Yes, adding a Variable Frequency Drive (VFD) allows operators to slow the RPM during the final mixing stages, balancing blend uniformity with reduced particle degradation. However, it still cannot match a paddle mixer's gentleness.

Q: What if my material is delicate but also prone to clumping?

A: The optimal configuration is a low-speed paddle mixer to protect the base material, equipped with side-mounted high-speed choppers (running at ~3600 RPM) to break up specific agglomerations without generating excessive overall heat.

Q: What is a hybrid mixer?

A: A hybrid agitator combines an outer ribbon (to pull material from the ends) with inner paddles (to lift and tumble). It is a highly customized solution for materials that tend to mound tightly in the center of the mixing trough.
