High Performance Sigma &Ribbon Mixer
You are here: Home » Products » Sigma Mixer » Lab Sigma Mixer » Laboratory Sigma Mixer with Extruder

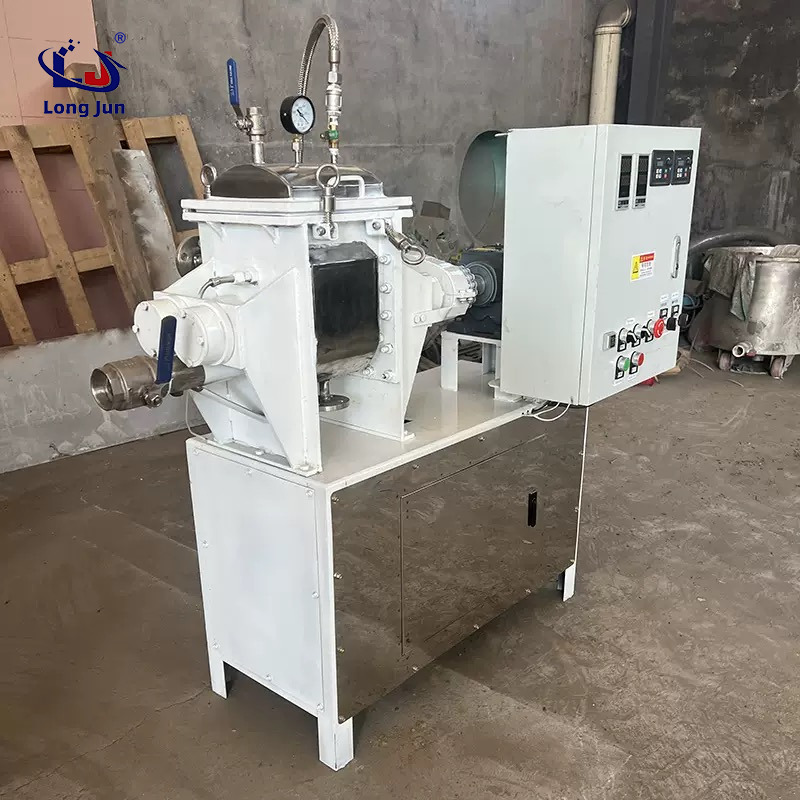

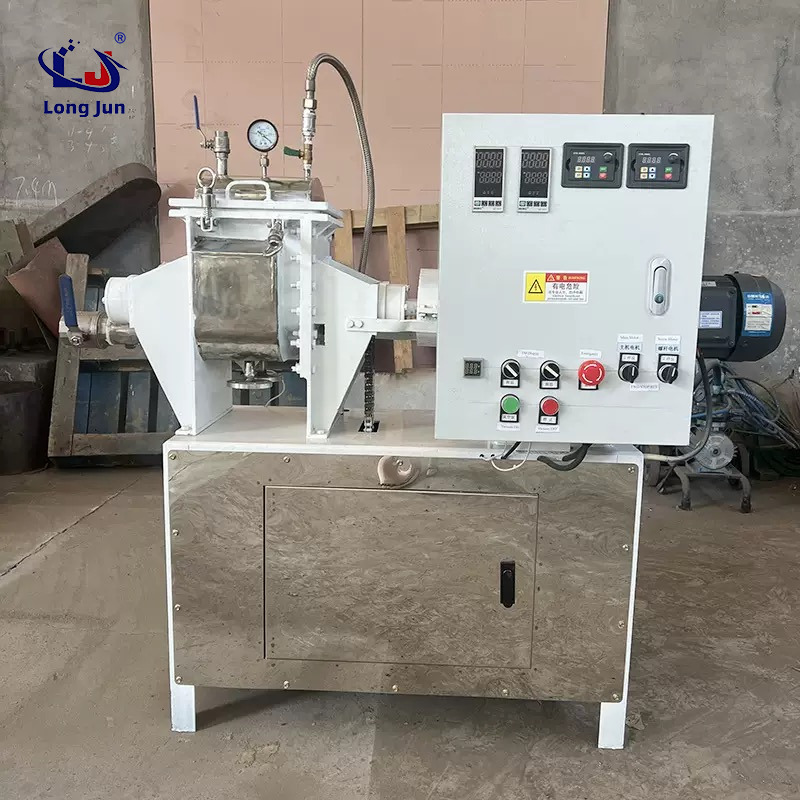

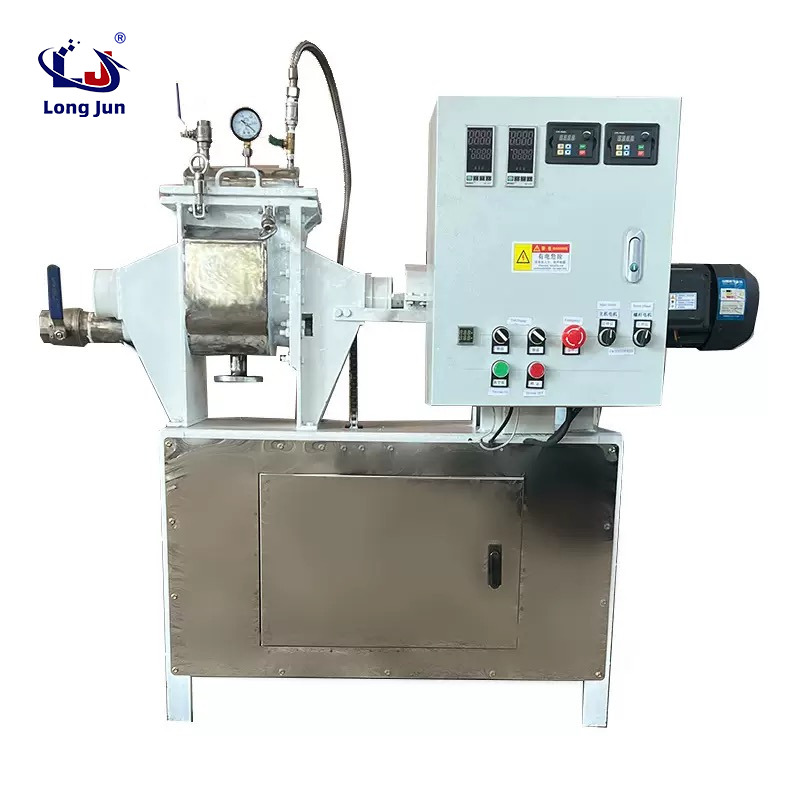

Laboratory Sigma Mixer with Extruder

Specifications:
3.5L working capacity (5L full capacity)
Sigma blades speed: 0-42rpm (fast)/0-34rpm (slow) variable frequency speed
Screw speed:0-65rpm
Heating: Electric heating, 0.8kw*3=2.4kw
Material: The contact material is SS316 (FCM certificated)
Vacuum: -0.09Mpa
Equipped with vacuum system, including vacuum pump, buffer tank, stainless steel hose, vacuum gauge
Schneider Electronic Components, Circuit Breaker Protection
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • 5L

  • Longjun

Standard Design(Customizable):
Material:SUS 304, 316 or mild steel
Discharging: Tilting discharging/Screw extruding discharging/Bottom plate
Heating: Electric heating/Water heating/Oil heating/Steam heating
Cooling: Water cooling/Jacket cooling
Vacuum: Water-ring vacuum pump/ buffer tank.
Motor: Explosion proof motor
Independent Control Panel: Variable speed/ Temperature/Discharging

Working Volume: 5 to10,000 Cubic Feet (from experiment to production)


The Longjun sigma mixer is consist of mixing chamber, frame support, hydraulic system, electric control system, discharge system and two Z shape blade in the chamber drove by the motor.


In the field of sigma mixers, Longjun Machinery satisfy completely their customers’ needs. Through the action of the sigma blade, the hard and tough paste is mixed for a perfectly homogeneous mixture.


Please contact us  and we will assist you in developing the right solution for you.


Product application scope:

捏合机应用范围_副本_副本

Product parameters:捏合机参数3

With over 30 years of technical accumulation and growth experience in the industry, Longjun Company has developed into a technology-based limited company integrating scientific research, development, and manufacturing. Its main business involves the design and production of liquid grinding machines, mixing and dispersing machines, paste mixing and kneading machines, dual planetary power mixing and blending machines, dry powder mixing and blending machines, reaction vessels, and plastic recycling machinery.
