This is a multi-functional equipment with kneading, mixing, vulcanizing and polymerizing function. You can name it “Sigma Mixer”, “ Sigma Kneader” or “Z Blade Mixer” etc, it’s specially designed to process high viscosity and elastoplastic materials.
| Quantity: | |
|---|---|
2L
Longjun

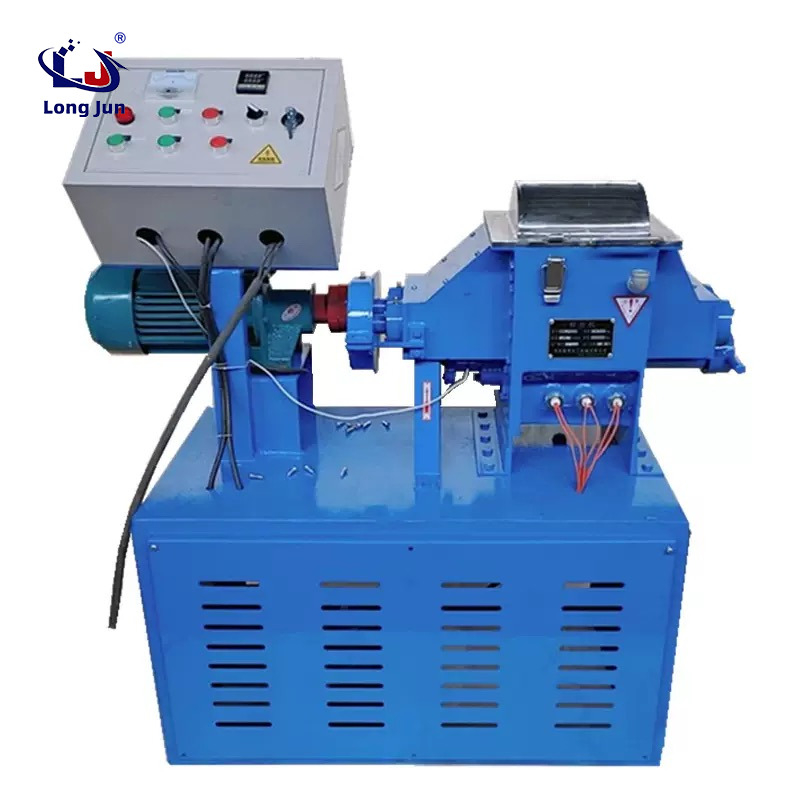

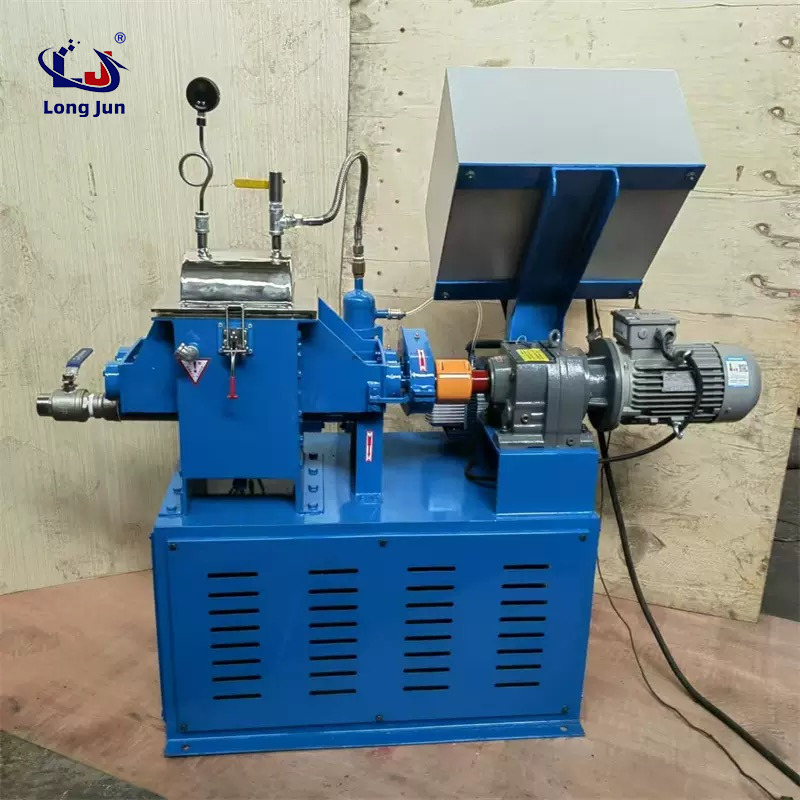

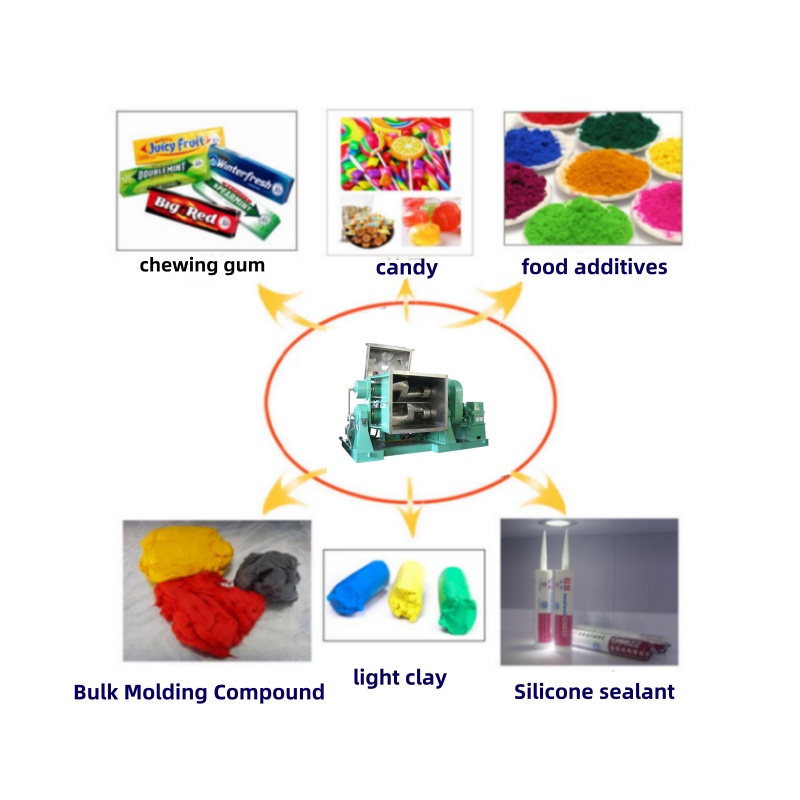

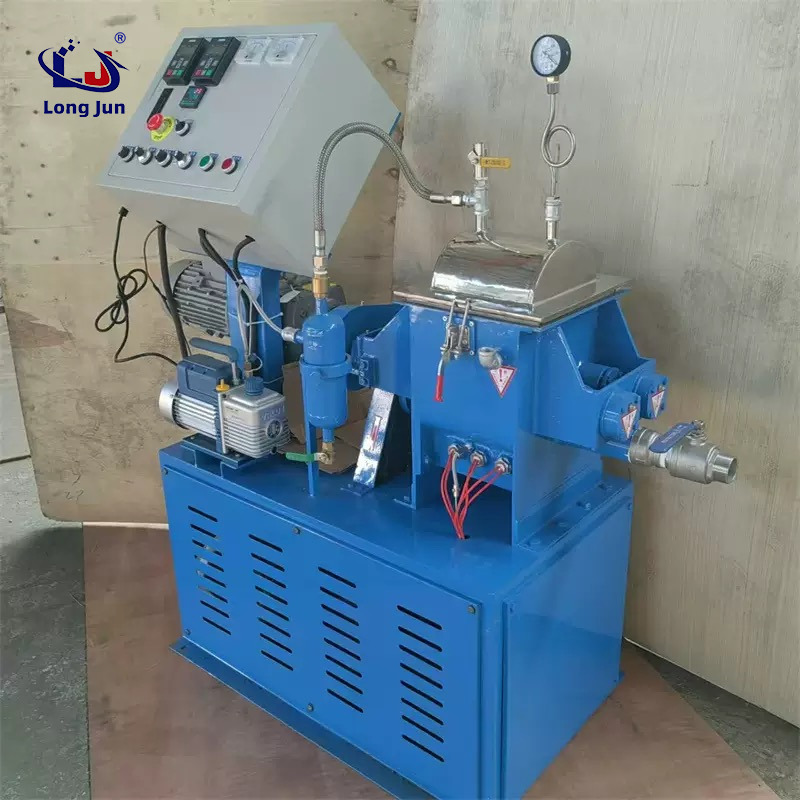

Double sigma mixer(kneaders mixer) is a machine for kneading, mixing, vulcanizing and polymerization of high viscosity and elastic-plastic materials,it can be used to produce silicone rubber, sealant, hot melt adhesive, food adhesive base, etc. It is a special mixing equipment, and the most commonly used one is mining Use two sigma Blades, arranged in parallel tangent difference type, i.e. the speed of a mixing propeller
| Full volume | 2L |
| Working volume | 0.5-1.2L |
| Discharge | screw extrusion |
| Main motor | 1.1KW, equipped Gear reducer |
| Extrusion motor | 0.75KW, equipped Gear reducer |
| Heating | Electric heater heating Heating element: 0.5KW * 3 PCS |
| Material | Mixing chamber: SUS304 & 4mm steel plate Jacket: carbon steel & 4 mm steel plate |
| Shaft seal | packing seal |
| Rotate speed | Master blade: 37 RPM Slave blade: 21 RPM |
| Net size | ≈ 1300 * 600 * 1380 mm (L * W * H) |
| Net weight | ≈ 250 kgs |
