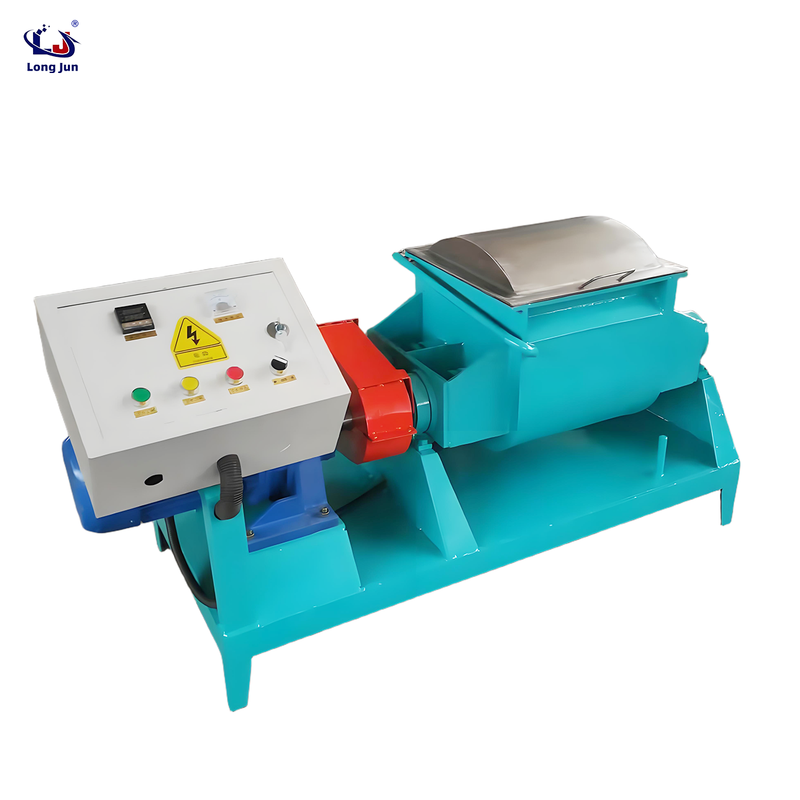

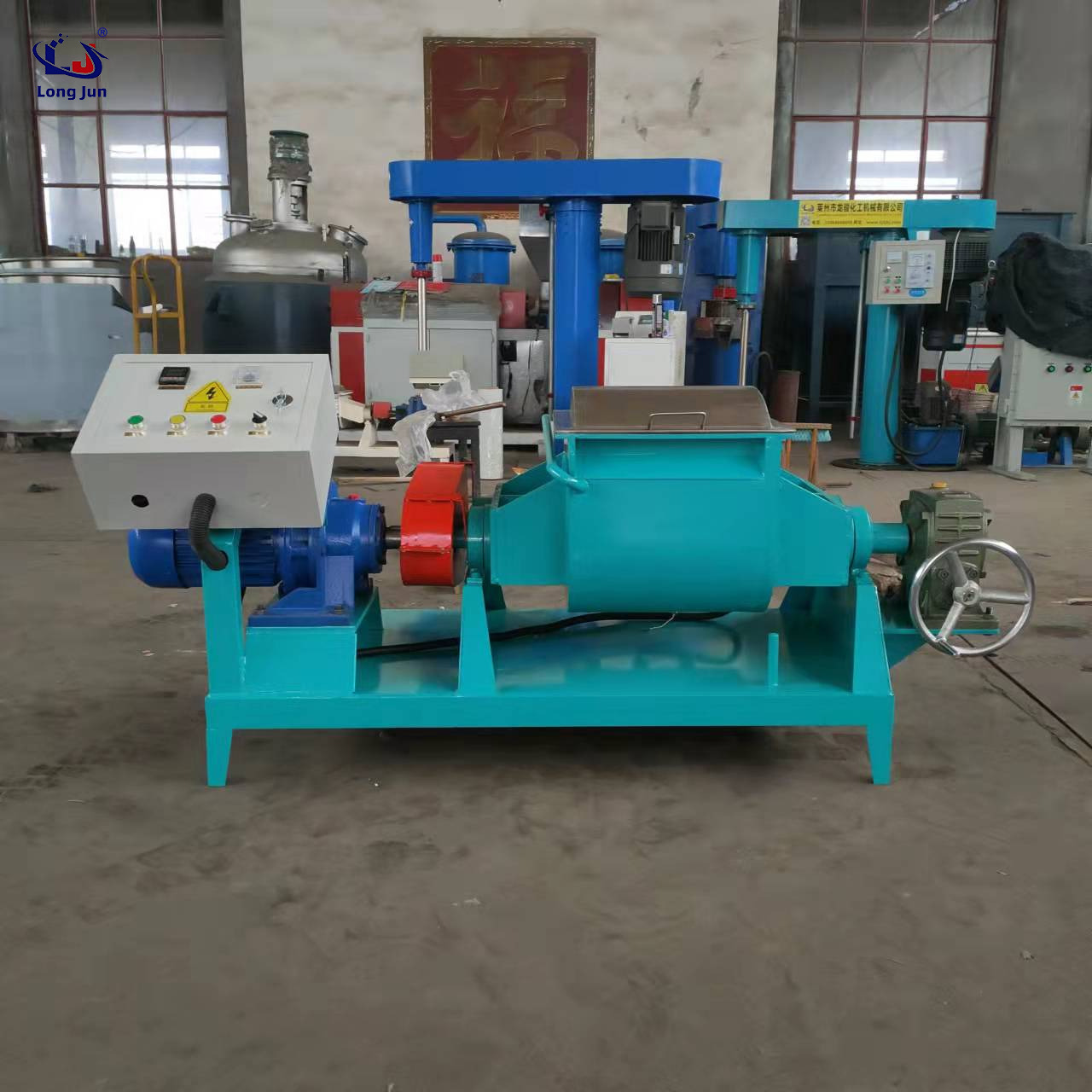

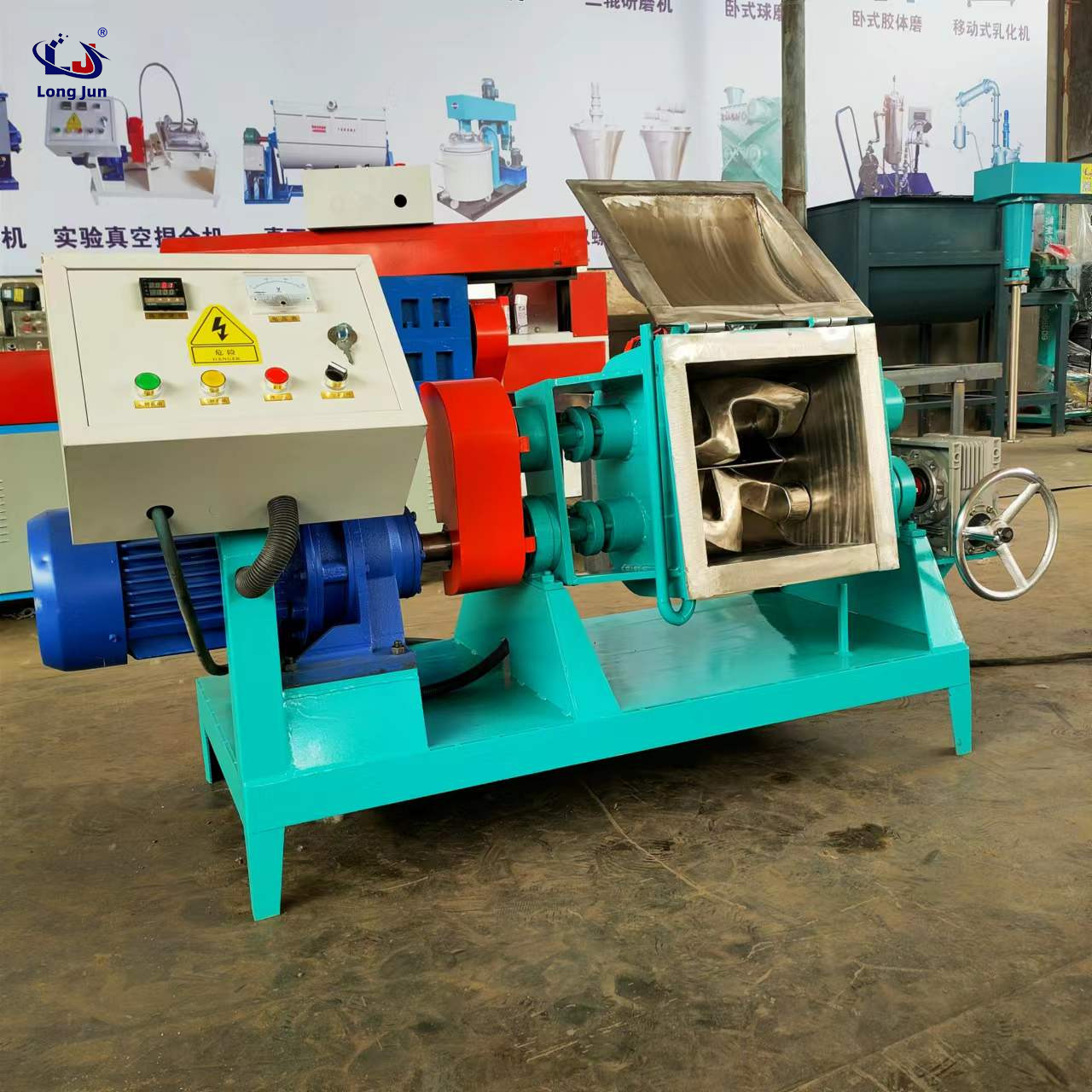

Laboratory Sigma Mixer

The kneading machine has two ∑ - shaped blades, and the speed of the two blades is different. Different speeds can be set according to different processes, and the common speed is 42/28 revolutions per minute. The slow paddle usually rotates at 28 revolutions per minute, and different paddle speeds enable the mixed material to be quickly homogenized and stirred
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Butyl rubber kneading machine, price of butyl rubber kneading machine, manufacturer of butyl rubber kneading machine, working principle of butyl rubber kneading machine.

A screw extruder kneading machine is a device that utilizes a pair of cooperating and rotating blades (usually in a Z-shape) to generate strong shear forces, allowing semi dry or rubber like viscous plastic materials to react rapidly and achieve uniform mixing and stirring.

Screw extrusion kneading machine is an ideal equipment for mixing, kneading, crushing, dispersing, and re polymerizing various high viscosity elastoplastic materials into various chemical products.

Application features: Screw extrusion kneading machine Application features: The screw extrusion kneading machine can knead CMC of various viscosities, and can also be used in industries such as chemical, plastic, rubber, ink, carbon, pharmaceutical, food, etc. The screw extrusion kneading machine adopts double blade stirring, which can make the material react quickly and mix evenly. The screw extrusion kneading machine products are divided into three categories: ordinary type, pressure type, and vacuum type. The screw extrusion kneading machine has two heating methods, electric and steam, and water cooling to choose from.

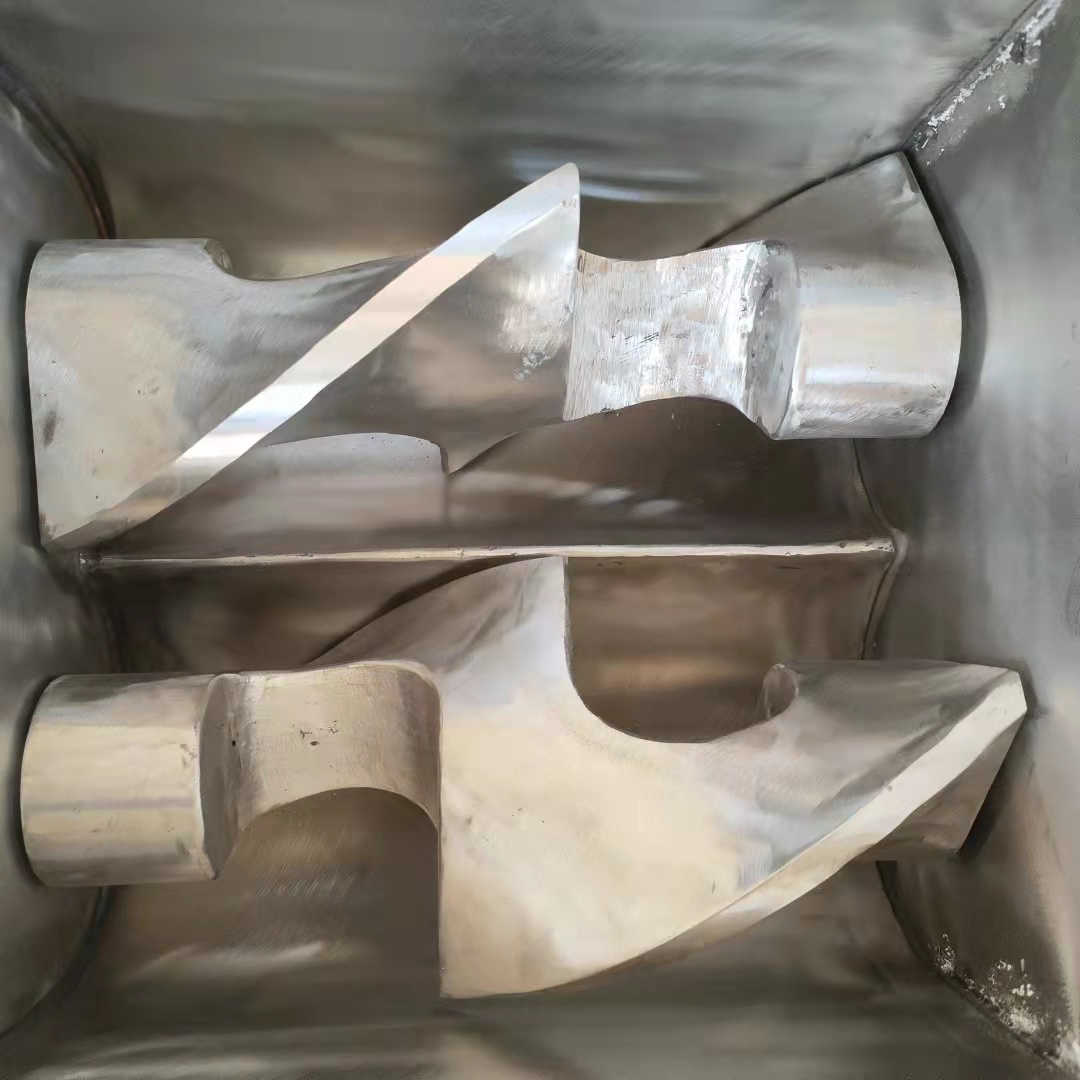

捏合机搅拌桨

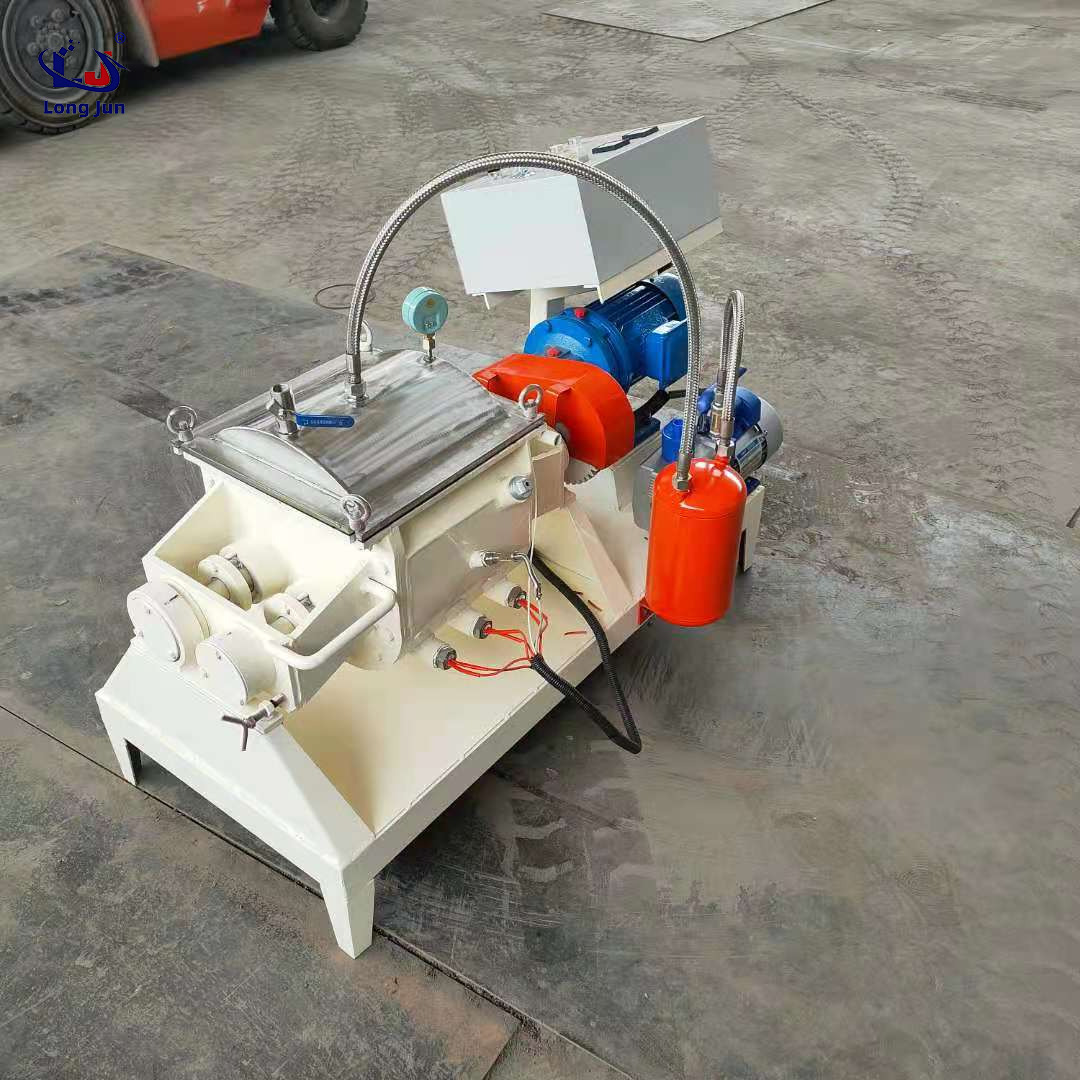

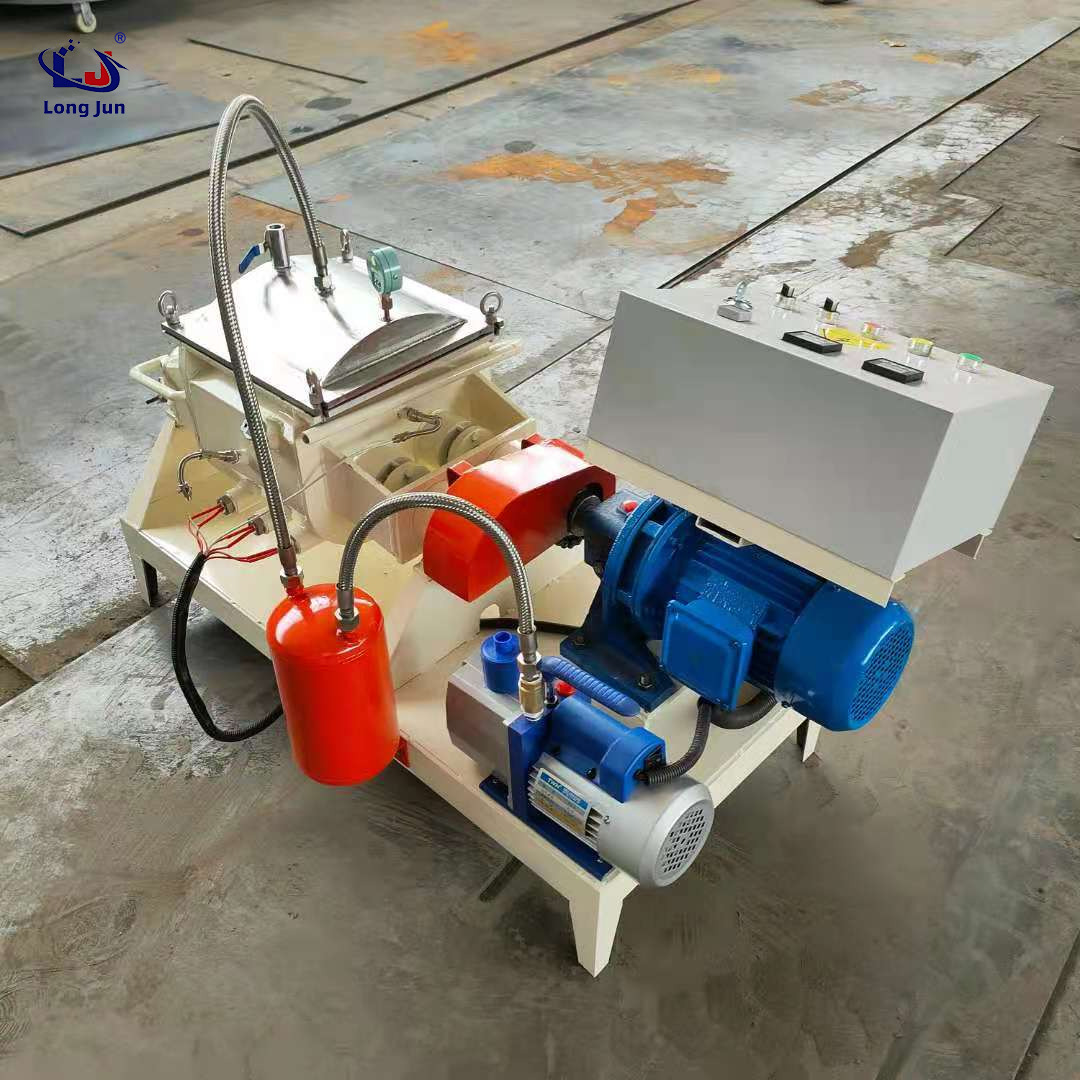

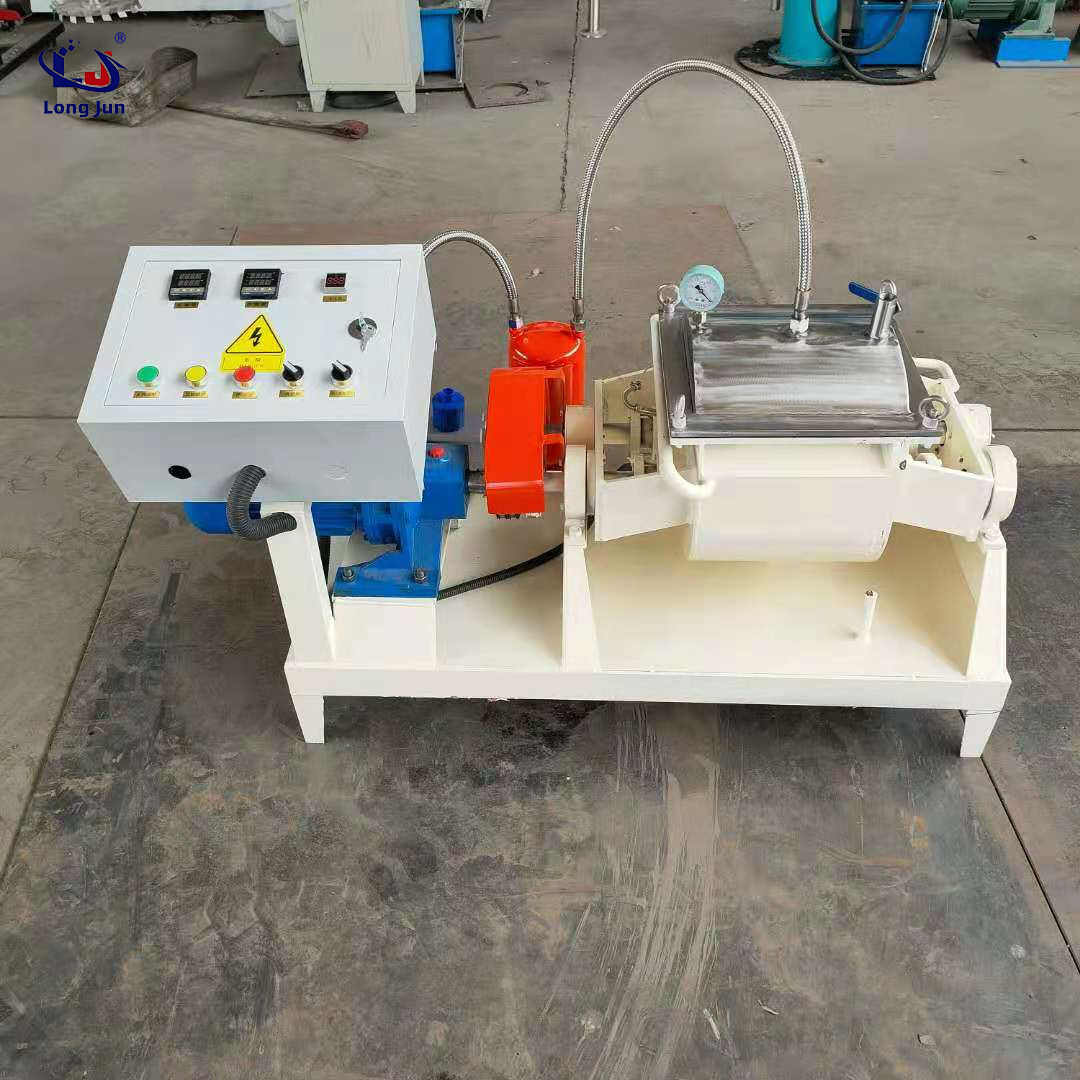

The butyl rubber kneading machine is a special mixer that is an ideal equipment for mixing, kneading, crushing, dispersing, and re polymerizing various chemical products. The vacuum box has a balanced structure with two blades, with the fast blade typically rotating at 35 revolutions per minute and the slow blade typically rotating at 17 revolutions per minute. Different blade speeds enable the mixed materials to be quickly homogenized and stirred. There are various specifications and models of kneading machine products. This machine is one of the kneading machines, mainly used in chemical production fields such as silicone, glass glue, butyl glue, hot melt glue, etc. that require defoaming.

Longjun Machinery Group specializes in the production of butyl rubber kneading machines, atmospheric pressure kneading machines, high-temperature kneading machines, stainless steel kneading machines, and steam heating kneading machines. The company has a professional technical team that designs and manufactures kneading machines according to customer requirements. The company has a history of more than 20 years of manufacturing, and because of its professionalism, it is of high quality. Over the years, Longxing Group's vacuum kneading machines have been widely praised by new and old customers. The equipment has good sealing performance and can achieve vacuum pressure up to -0.1Mpa. The vacuum kneading machine is reasonably priced to reduce expenses, with stable quality and full process quality monitoring. The fast delivery company has a production line that ensures timely delivery.

Product advantages:

The screw reducer of the butyl rubber kneading machine should always pay attention to the oil level scale of the machine body during operation, add oil in a timely manner, and ensure sufficient oil level. The screw bearing seat and screw tail should ensure sufficient lubrication of the bearing, and the transmission chain should be lubricated on time to prevent dry wear and damage to the chain and sprocket. After the kneading machine has been working for a period of time, it is necessary to check whether the bolts of each connecting part and the cover are loose. Tighten the loose parts in a timely manner to ensure smooth operation of all parts.

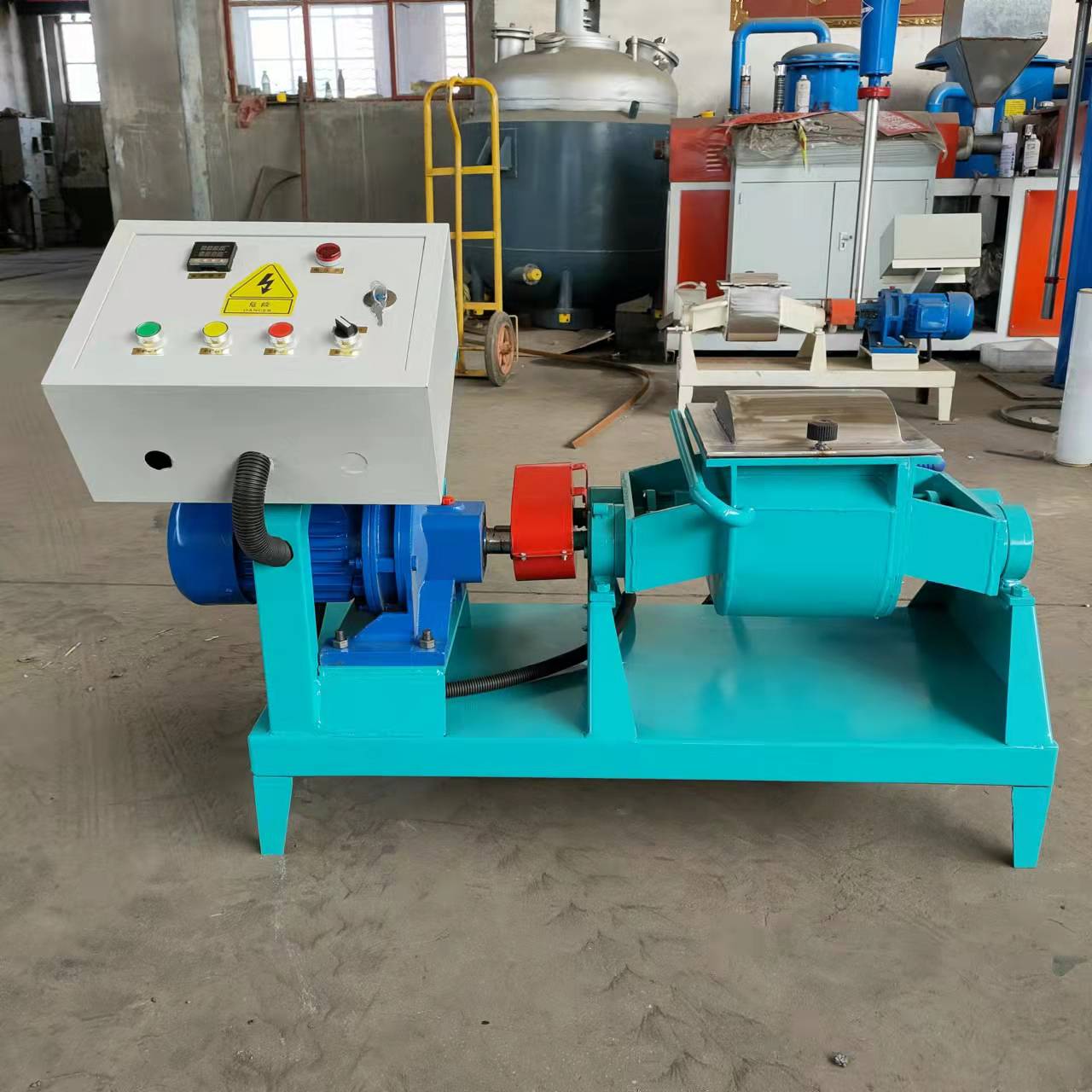

实验室捏合机1


Laizhou Longjun Chemical Machinery Co., Ltd. produces various kneading machines,

(1) According to the heating method, it can be divided into steam heating kneading machine and heat transfer oil heating kneading machine.

(2) The working area of the kneading machine is made of stainless steel. The other parts are generally made of carbon steel.

(3) According to their applications, they can be divided into: carbon type kneading machine, APP flame retardant formulation kneading machine, silicone rubber type kneading machine, hot melt adhesive type kneading machine, etc.

(4) According to the discharge method, it can be divided into lower discharge type kneading machines, screw extrusion type kneading machines, etc.

(5) According to technical specifications, it can be divided into high-temperature kneading machines, pressure kneading machines, vacuum kneading machines, ordinary kneading machines, conventional kneading machines, heavy-duty kneading machines, and laboratory kneading machines.

(6) In terms of volume, it can range from 5L to 5000L.


TypeNH-
5
NH-10NH-100NH-300NH-500NH-1000NH-1500NH-2000NH-3000NH-4000NH-5000
Volume(L)510100300500100015002000300040005000
Rotation Speed
(rpm)
33 2333 2335 22372137 2135 2530 1630 1638 2738 2738 27
Main Motor Power
(Kw)
0.751.1 3-7.511-3015-3722-9022-9030-11030-11045-11055-132
Heating MethodsSteam Pressur e(MPa)0.3
Electric Power(Kw)114916.22732.440727296
Vacuum(MPa)-0.094(Vacuum Kneader)
Pressure(MPa)0.45(Pressure Kneader)0.35(Pressure Kneader)0.3(Pressure Kneader)
Weight(Kg)300400125016003000450058006500110001300021000
