Electric Heating Vacuum Sigma Mixer Machine

The laboratory stainless steel vacuum kneading machine manufacturer can knead CMC of various viscosities, and can also be used in industries such as chemical, plastic, rubber, ink, carbon, medicine, and food.

Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Application and characteristics of laboratory stainless steel vacuum kneading machine manufacturer

The NH series kneading machine can knead CMC of various viscosities and can also be used in industries such as chemical, plastic, rubber, ink, carbon, pharmaceutical, and food. The machine adopts dual blade stirring, which can quickly react and evenly mix the materials. This series of products is divided into three categories: ordinary type, pressure type, and vacuum type. There are two heating methods, electric and steam, and water cooling to choose from. The discharge methods include hydraulic tilting, ball valve discharge, and screw extrusion.

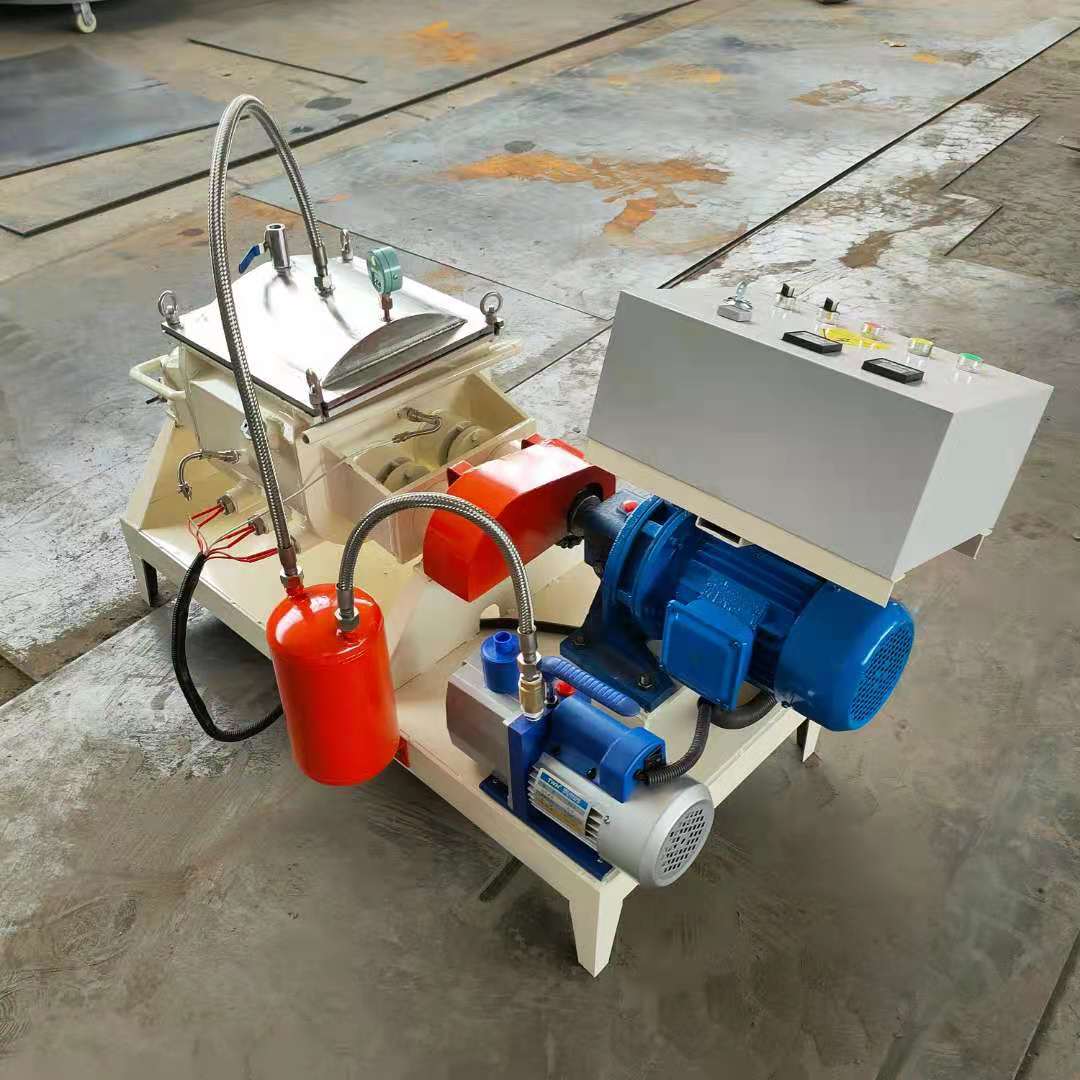

真空捏合机1

The transmission system consists of a motor, a reducer, and gears, and is matched with a motor according to the kneading machine model. During the transmission process, the speed can be synchronized by the motor, and after passing through the elastic coupling to the reducer, the fast slurry can be driven by the output device to reach the specified speed, or the speed can be adjusted by the frequency converter.

Laizhou Longjun Machinery provides you with a series of mixers, kneading machines, sand mills, grinders, colloid mills, ball mills, three roll machines, four roll machines, dispersers, mixers, mixing tanks, emulsifiers, reaction vessels, filters, unsaturated polyester resin equipment, dry powder mortar equipment, coating equipment, lubricant equipment, concrete admixture equipment, Raymond mills, various storage tanks, etc.

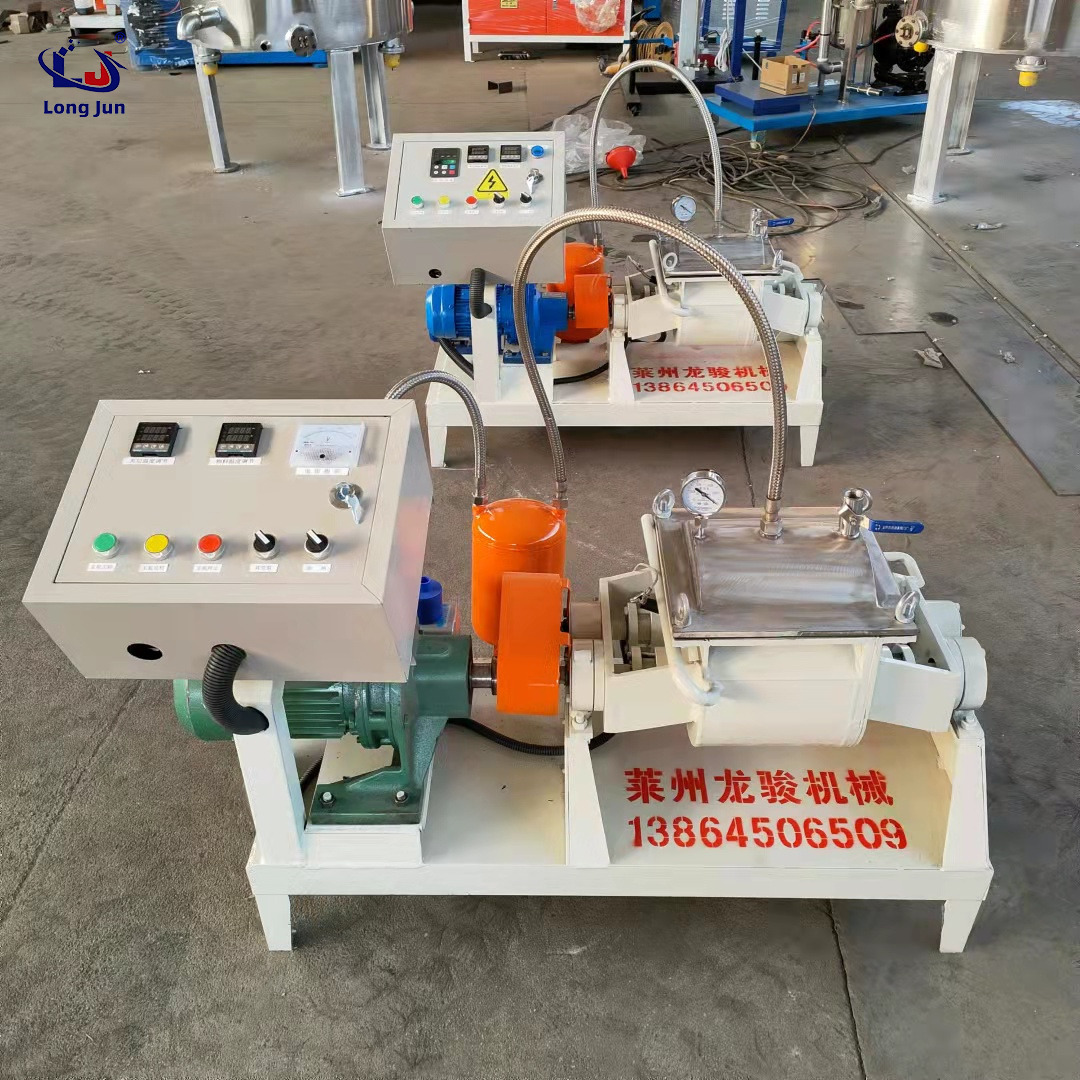

2L单层捏合机5

Kneading machine

Laizhou Longjun Machinery Co., Ltd. produces various kneading machines,

1) According to the heating method, it can be divided into steam heating kneading machine, heat transfer oil heating kneading machine, and electric heating kneading machine.

2) The working area of the kneading machine is made of stainless steel. The other parts are generally made of carbon steel.

3) According to their applications, they can be divided into: carbon type kneading machine, APP flame retardant formulation kneading machine, silicone rubber type kneading machine, hot melt adhesive type kneading machine, etc.

4) According to the discharge method, it can be divided into lower discharge type kneading machines, screw extrusion type kneading machines, etc.

5) According to technical specifications, it can be divided into high-temperature kneading machines, pressure kneading machines, vacuum kneading machines, ordinary kneading machines, conventional kneading machines, heavy-duty kneading machines, and laboratory kneading machines.

6) In terms of volume, it can range from 5L to 5000L.

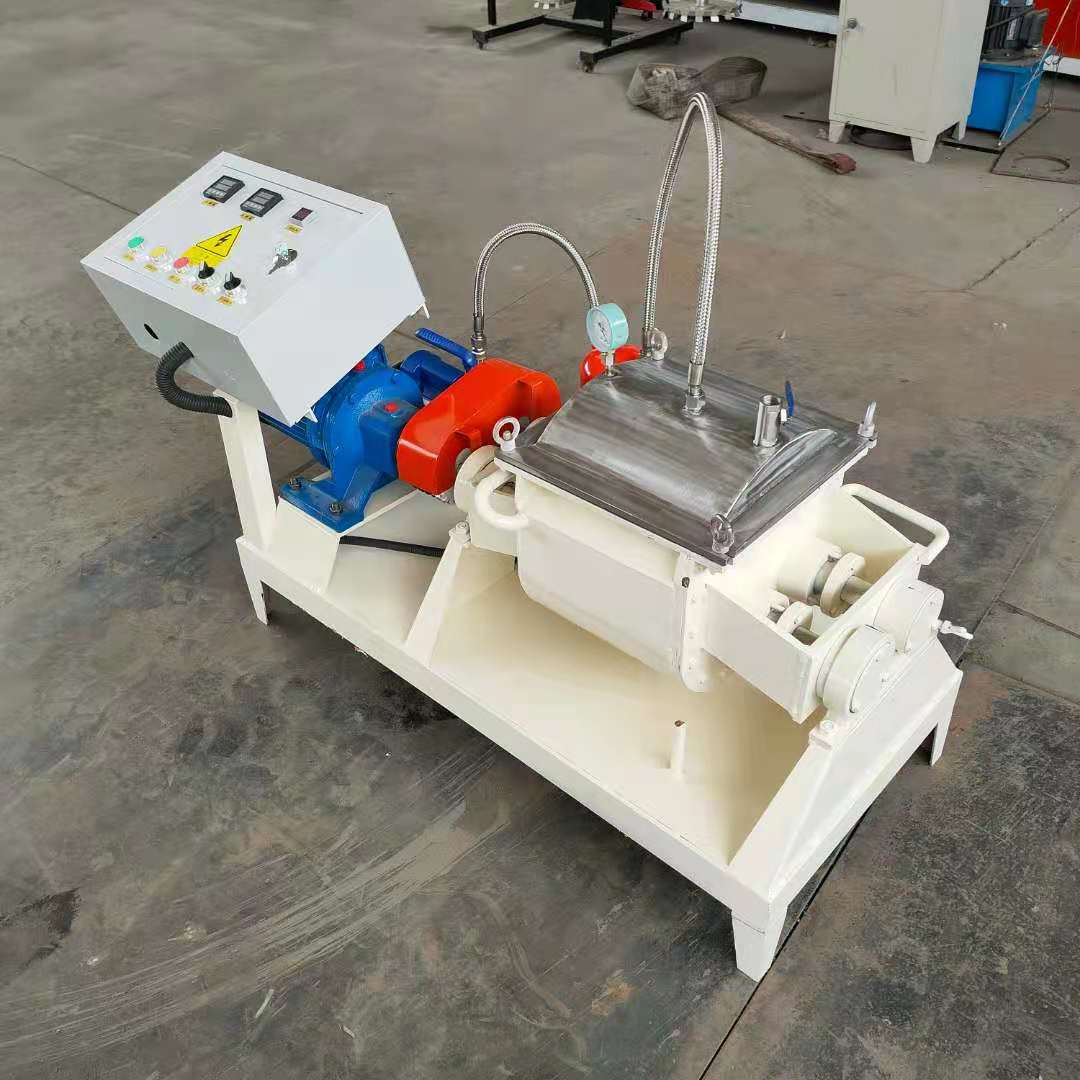

真空捏合机3真空捏合机1

TypeNH-
5
NH-10NH-100NH-300NH-500NH-1000NH-1500NH-2000NH-3000NH-4000NH-5000
Volume(L)510100300500100015002000300040005000
Rotation Speed
(rpm)
33 2333 2335 22372137 2135 2530 1630 1638 2738 2738 27
Main Motor Power
(Kw)
0.751.1 3-7.511-3015-3722-9022-9030-11030-11045-11055-132
Heating MethodsSteam Pressur e(MPa)0.3
Electric Power(Kw)114916.22732.440727296
Vacuum(MPa)-0.094(Vacuum Kneader)
Pressure(MPa)0.45(Pressure Kneader)0.35(Pressure Kneader)0.3(Pressure Kneader)
Weight(Kg)300400125016003000450058006500110001300021000
