What are the categories of sigma kneading machines？

How to choose a kneading machine?sigma mixer， kneader,Kneading Machine，Laboratory  sigma mixer,Sigma Blade mixer，Z kneader,Double arm Sigma mixer

Kneading machines are classified based on multiple dimensions such as structure, function, material, heating method, and discharge method, and are suitable for mixing, kneading, and dispersing needs in different industrial scenarios. The following are the main classification methods and specific types:

1、 Classified by Function/Operating Conditions

This is one of the most common classification methods, mainly based on the working environment and sealing performance of the equipment:

Normal type: Basic configuration, suitable for mixing conventional materials under normal pressure environment.

Pressure type: It has good sealing and pressure bearing capacity, suitable for operation under pressurized conditions.

Vacuum type: equipped with a vacuum system that can work under negative pressure, effectively removing bubbles from materials and improving product density and uniformity. For example, the "vacuum kneading machine" mentioned in MCP products is of this type.

High temperature type: capable of withstanding high-temperature heating environments, suitable for processes that require high-temperature reactions.

2、 Classified by Material

The material selection directly affects the corrosion resistance, service life, and applicable material range of the equipment:

Carbon steel kneading machine: Low cost, suitable for ordinary non corrosive materials.

Stainless steel kneading machine: It has excellent corrosion resistance and is widely used in fields such as food, medicine, and chemical engineering.

Special material kneading machine: such as Hastelloy, manganese steel, etc., used for strong corrosion or high wear conditions.

3、 Classified by heating/cooling method

Temperature control is one of the key factors in the kneading process:

Electric heating: uniform heating, clean and hygienic, suitable for industries with high cleanliness requirements.

Steam heating: High thermal efficiency, commonly used in large-scale production.

Thermal oil heating: temperature control is stable and suitable for high temperature conditions.

Water cooling: Cooling is achieved through jacket or spray to ensure the quality of thermal sensitive materials.

4、 Classified by discharge method

Different viscosity materials are suitable for different unloading methods:

Hydraulic tilting cylinder: suitable for low viscosity or medium viscosity materials, easy to operate.

Screw extrusion discharge: suitable for high viscosity or even ultra-high viscosity materials, such as rubber, silicone, etc., and can be molded with a mold head. The laboratory kneading machine adopts this method.

Ball valve discharge: simple structure, easy to maintain, but narrow applicability.

5、 Classified by mixing blade type (for mixing performance)

The shape of the stirring blade determines the shear force and dispersion ability:

Z-type stirring blade: With a simple structure, it is suitable for dispersing and mixing pigments in high viscosity materials.

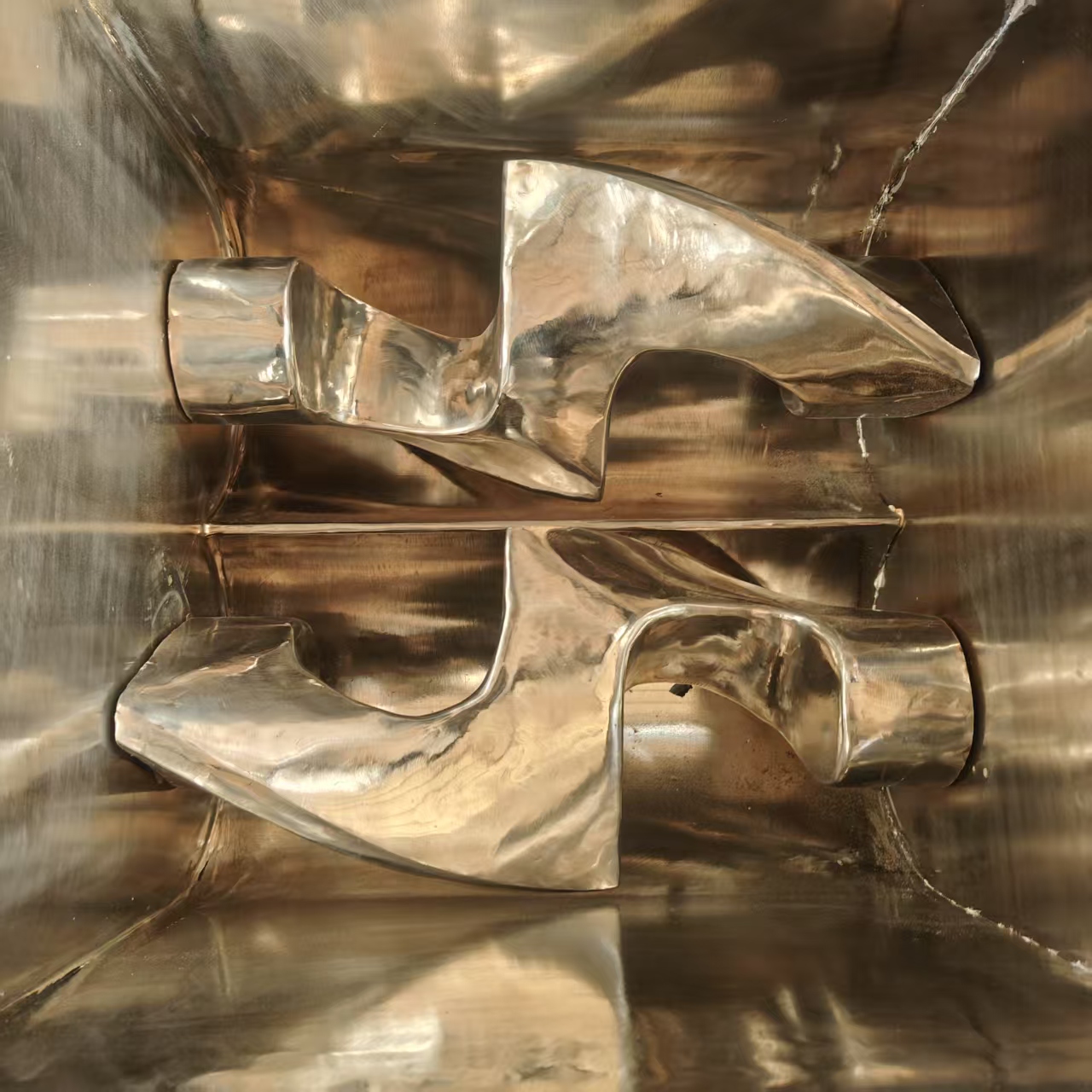

Sigma type agitator: the most common form, suitable for large-scale material movement, especially for extrusion dewatering operations.

Cutting type agitator: High strength, suitable for ultra-high viscosity and heavy load conditions, such as rubber, magnetic materials, etc.

Fish tail type stirring blade: specially designed for kneading cellulose materials.

6、 Classified by application scenario/specificity

Customized design based on industry requirements:

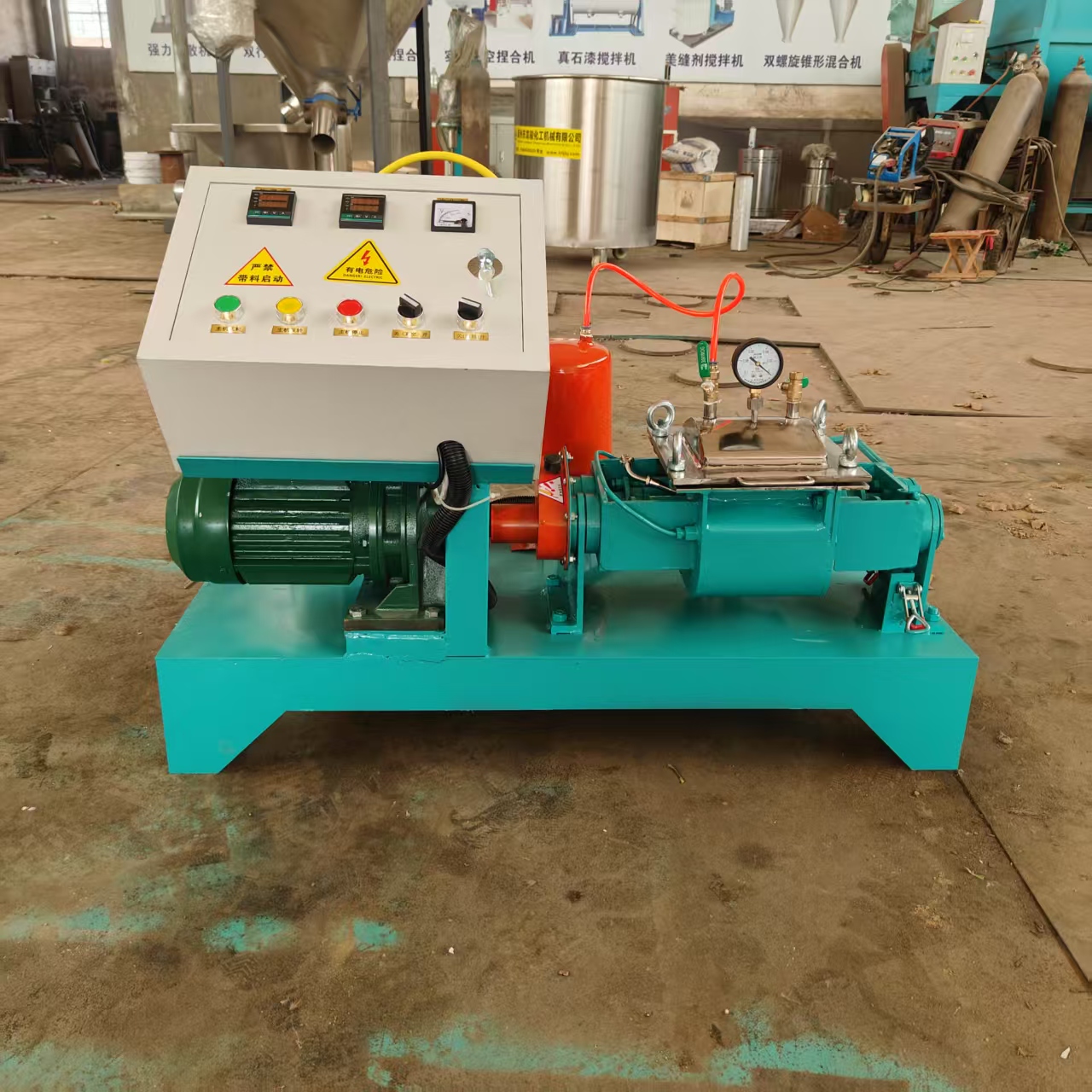

Laboratory kneading machine: small capacity, used for formula development and small-scale testing. The product types include vacuum type, ordinary type, weighted type, etc.

Kneading machine for industrial production: large capacity, high load capacity, suitable for batch manufacturing.

Specialized kneading machine: such as ink and pigment specific, food and cosmetics specific, CMC cellulose specific, etc.
