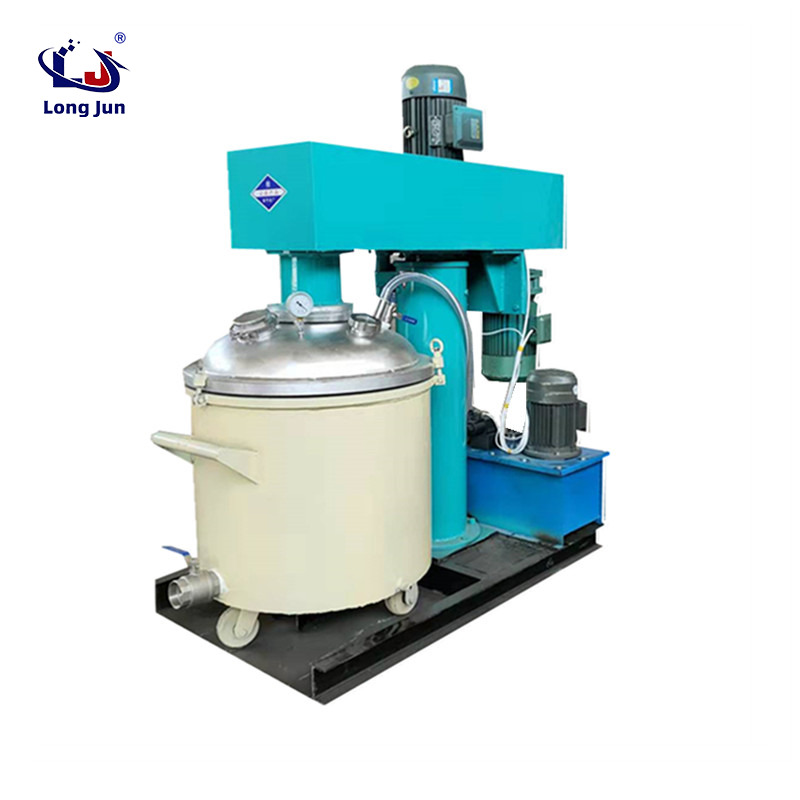

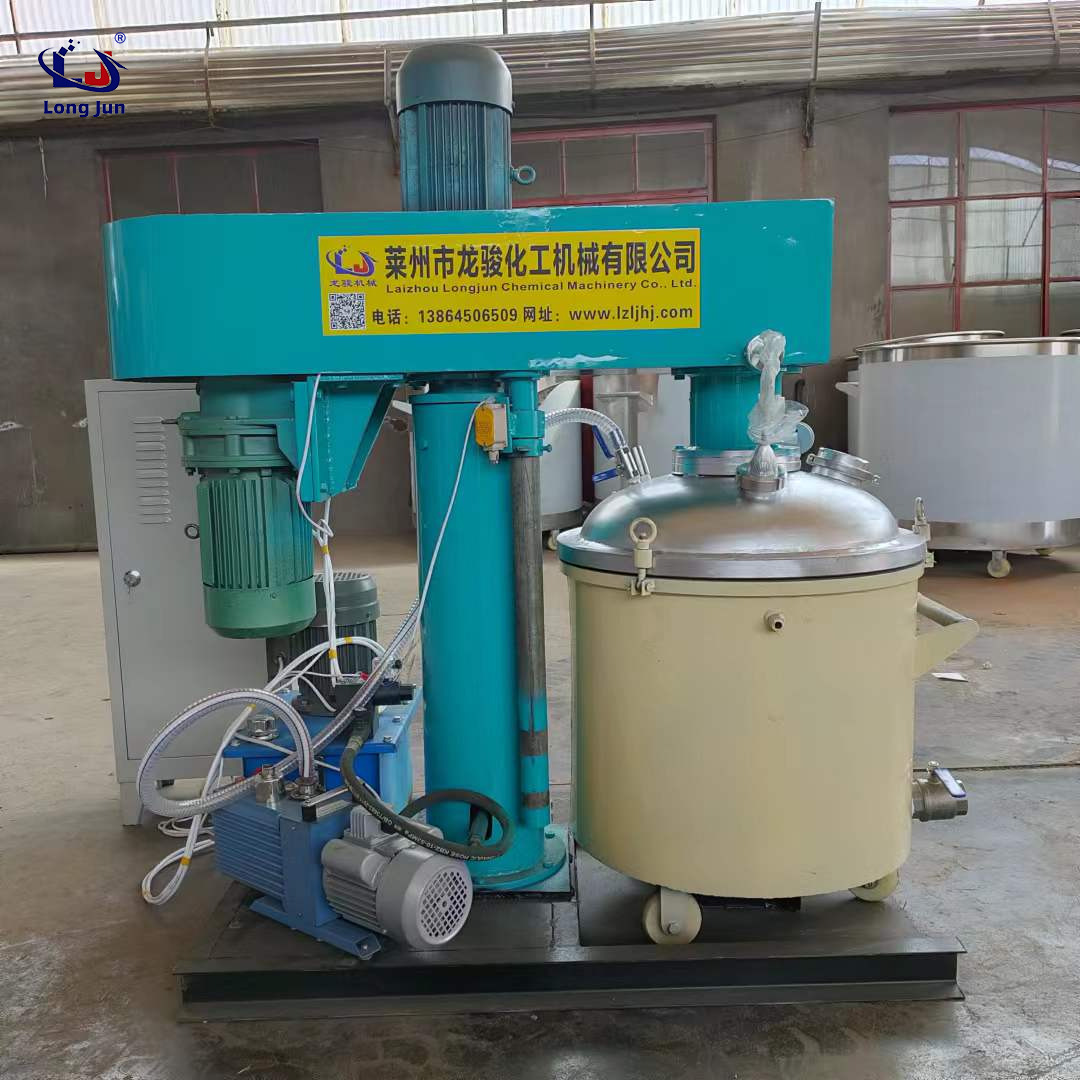

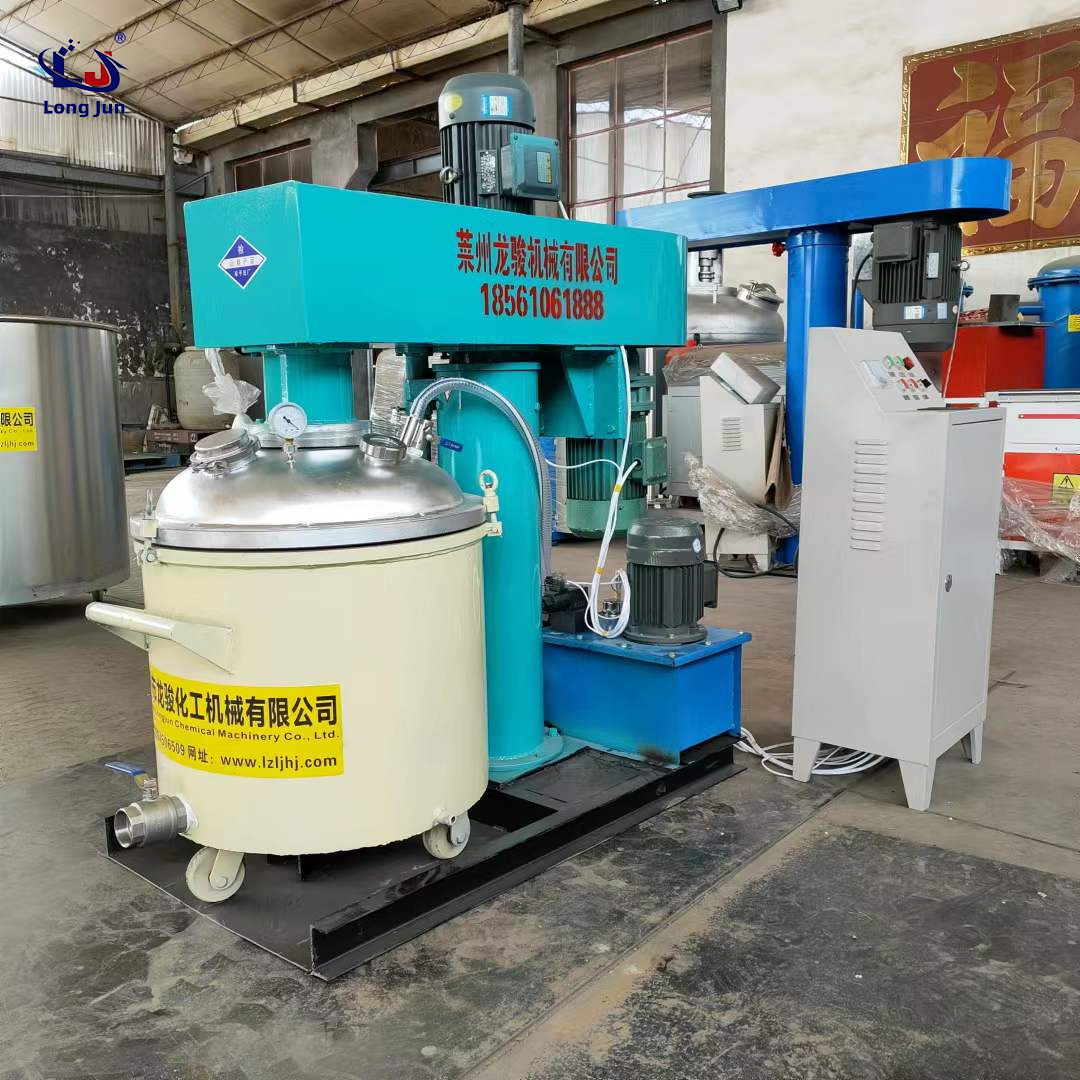

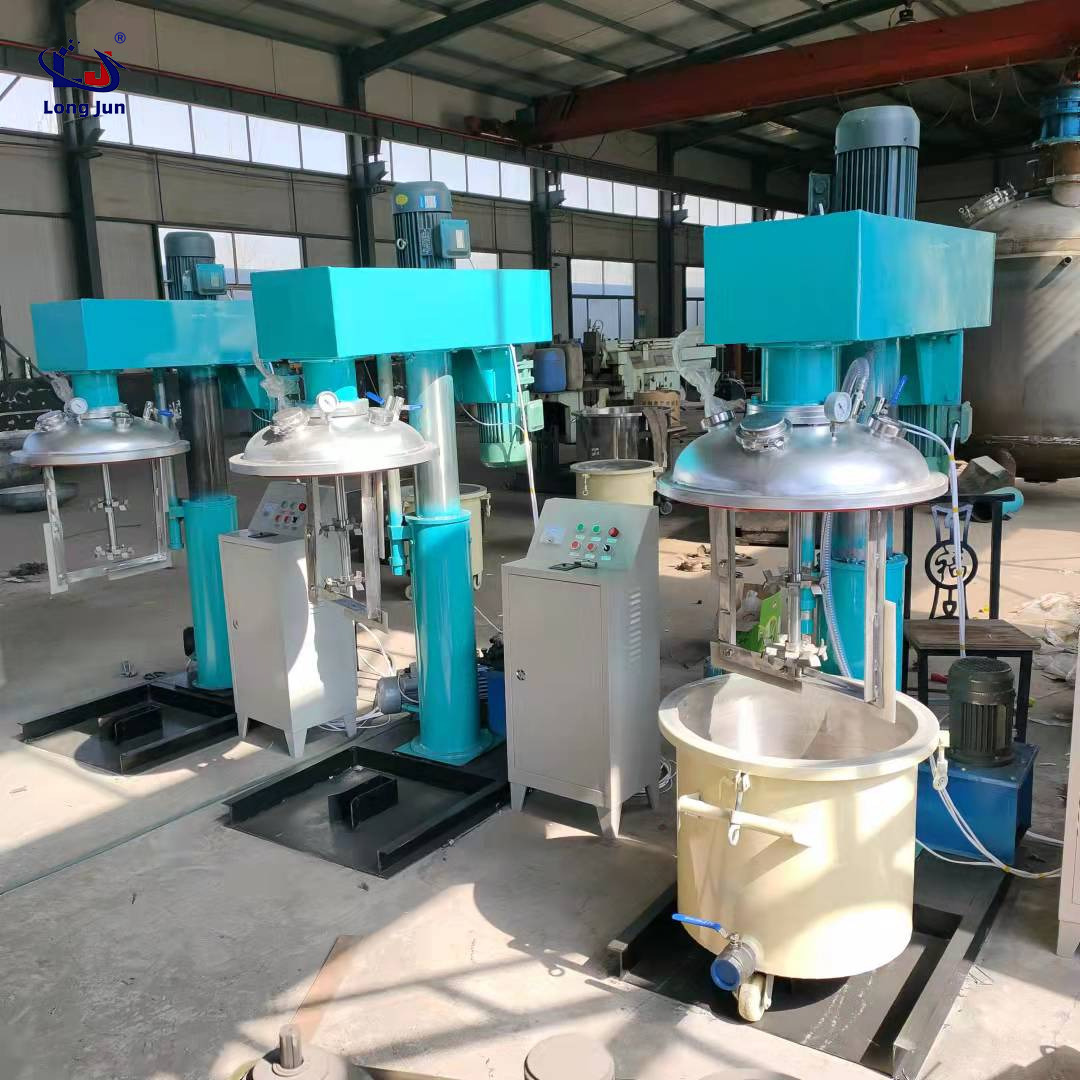

Vacuum disperser

Product Overview

As a premier manufacturer and supplier of industrial mixing equipment, we engineer advanced vacuum dispersion systems designed for rigorous liquid-solid wet processing. This equipment delivers unparalleled homogenization for volatile and aerated materials.

• Engineered specifically for high-viscosity and volatile solvent processing.

• Integrates milling, stirring, and dispersion into a single, highly efficient cycle.

• Ensures exceptional material purity through advanced negative-pressure degassing.

• Ideal for industrial-scale production lines requiring precise shear forces and flawless consistency.

Product Description

The vacuum disperser stands as a masterclass in industrial engineering, designed to transform the most challenging liquid-solid wet processing tasks into a seamless operation. When you approach the machine, the robust, mirror-polished stainless steel exterior immediately communicates its premium craftsmanship and resilience against harsh chemical environments. As the single-arm hydraulic system smoothly lowers the heavy-duty mixing shafts into the vessel, the equipment operates with a reassuringly steady, low-decibel hum, even when tackling highly viscous pastes or volatile solvents. This sophisticated machinery operates within a strictly controlled vacuum environment, meticulously stripping away trapped air and preventing solvent evaporation. By eliminating these microscopic voids, the resulting compounds achieve a flawless, glass-like smoothness and structural density that elevates the final product's quality. Whether processing heavy-duty marine coatings, delicate cosmetic ointments, or advanced magnetic materials, the intense shear forces break down stubborn agglomerates, delivering a remarkably consistent, ultra-fine dispersion. The intuitive design ensures that operators can maintain strict control over the entire cycle, resulting in a pristine, bubble-free yield that meets the most exacting industrial standards.

Product Specifications

Key Features & Highlights

Optimize production workflows and elevate product consistency with our meticulously engineered vacuum dispersion technology. This system is crafted to eliminate common processing bottlenecks, ensuring your facility maximizes output while minimizing material waste and operator intervention.

• Accelerated Particle Reduction: Rapidly breaks down dense agglomerates, achieving an ultra-fine 1-2 μm particle size for superior product texture and stability.

• Evaporation Control: The hermetically sealed vacuum environment drastically reduces the loss of expensive or hazardous volatile solvents, protecting both your bottom line and facility safety.

• Zero Dead-Zone Mixing: The strategically angled mixing blades continuously sweep the vessel walls, ensuring absolute material engagement and eliminating unmixed residue.

• Streamlined Maintenance: The hydraulic lifting mechanism provides immediate, unobstructed access to the mixing shafts and vessel interior, cutting down cleaning times between batches.

• Enhanced Formulation Purity: By operating under negative pressure, the system inherently prevents airborne contaminants and moisture from compromising sensitive chemical reactions.

Vacuum Degassing Performance

Achieving absolute structural integrity in high-viscosity compounds requires the complete eradication of entrapped air. Our dispersion equipment masters this challenge through a highly controlled negative-pressure atmosphere, safeguarding the density and adhesive strength of your final formulations.

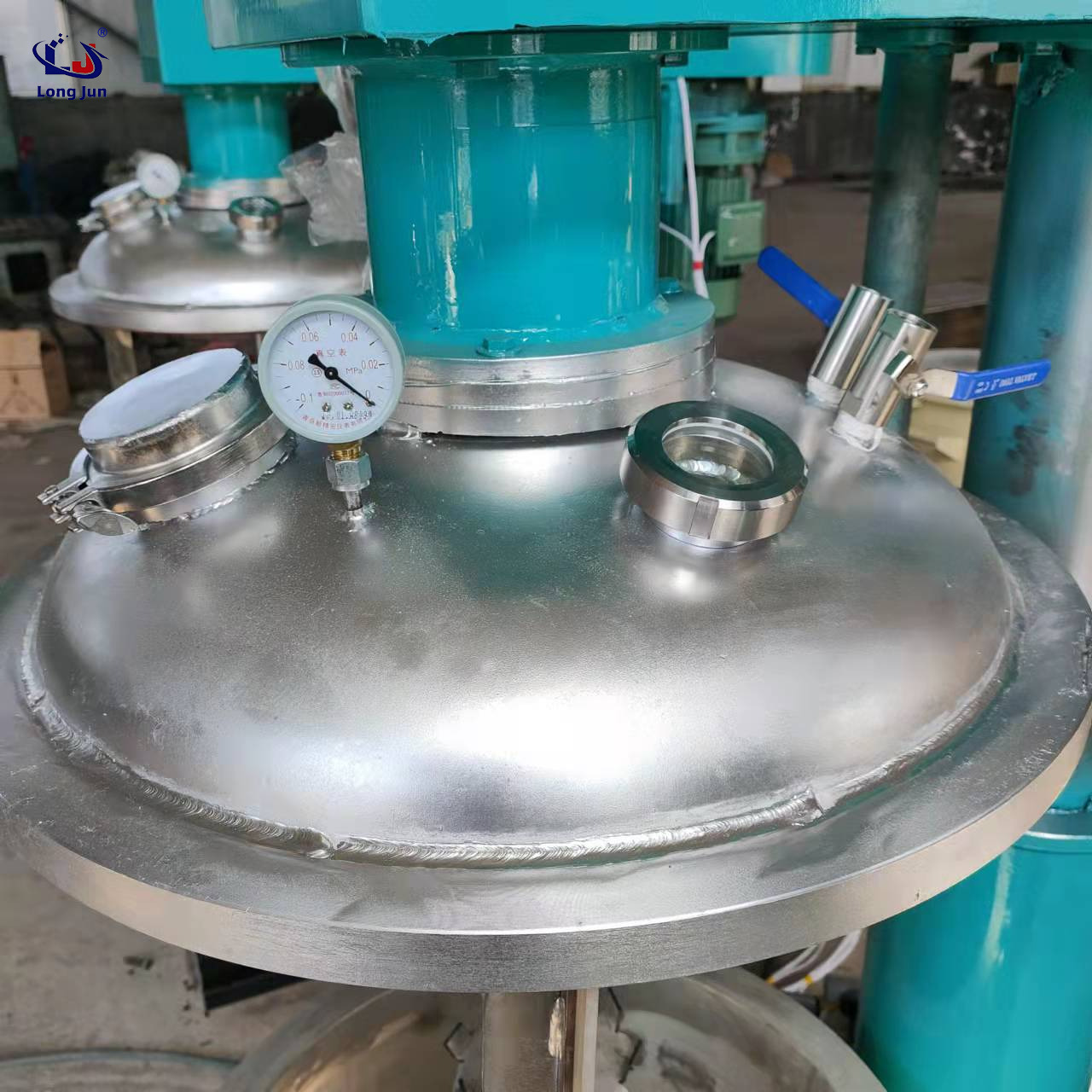

• Extreme Vacuum Capability: Reaches a limit vacuum degree of ≤ -0.098 MPa, aggressively extracting micro-bubbles from dense materials like silicone sealants and synthetic resins.

• Oxidation Prevention: By removing oxygen from the mixing chamber, the system prevents unwanted oxidation, preserving the vibrant colors of pigments and the chemical stability of reactive polymers.

• Pin-Hole Elimination: Guarantees a flawless, smooth finish in applied coatings and adhesives by preventing off-gassing and pin-hole defects during the curing process.

• Solvent Retention: Effectively suppresses the boiling point of volatile components, keeping essential solvents integrated within the mixture rather than lost to the atmosphere.

Dispersion & Mixing Efficiency

Time is a critical metric in industrial processing. This machine leverages a synchronized, multi-axis kinetic approach to drastically reduce batch times while achieving microscopic uniformity, ensuring your production line operates at peak efficiency.

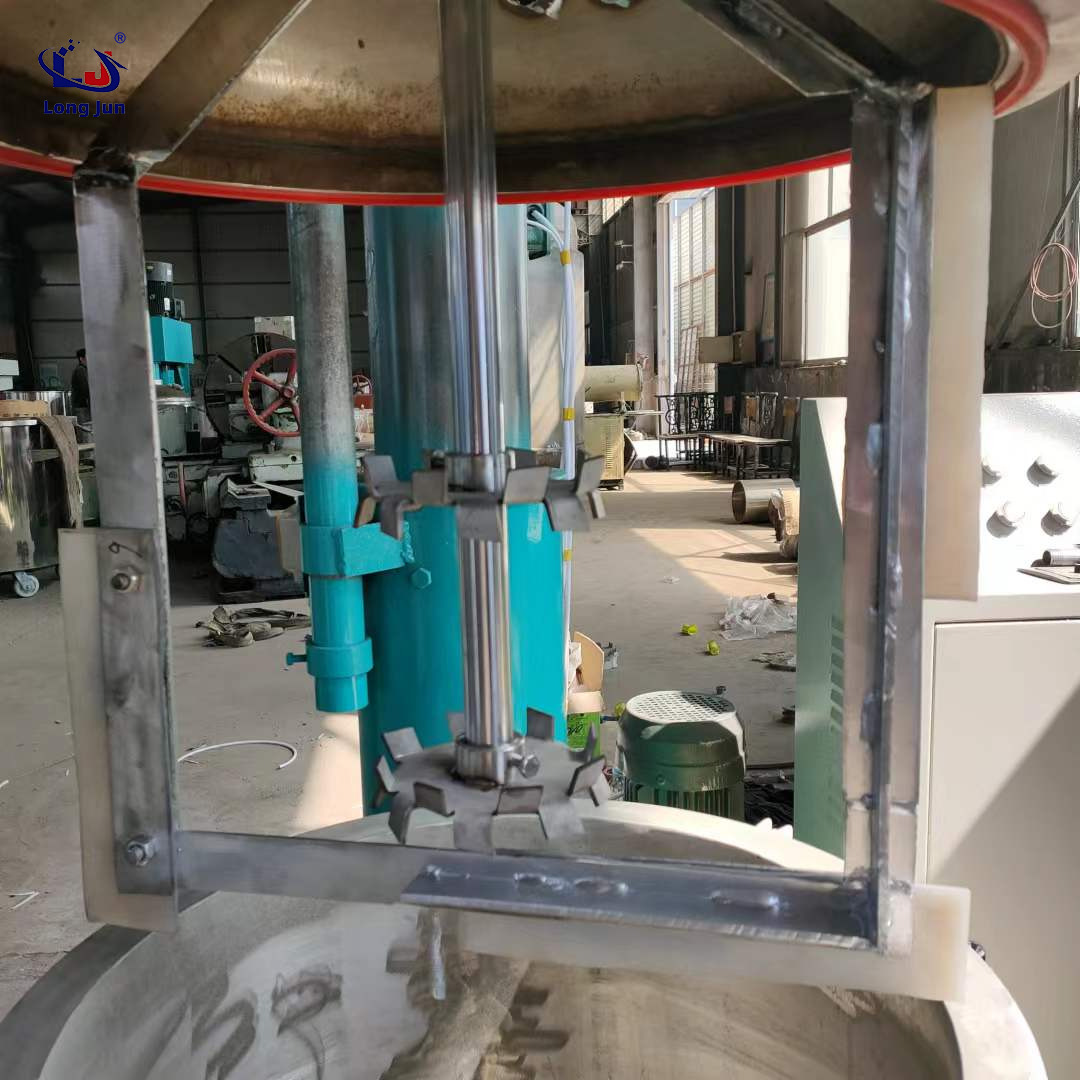

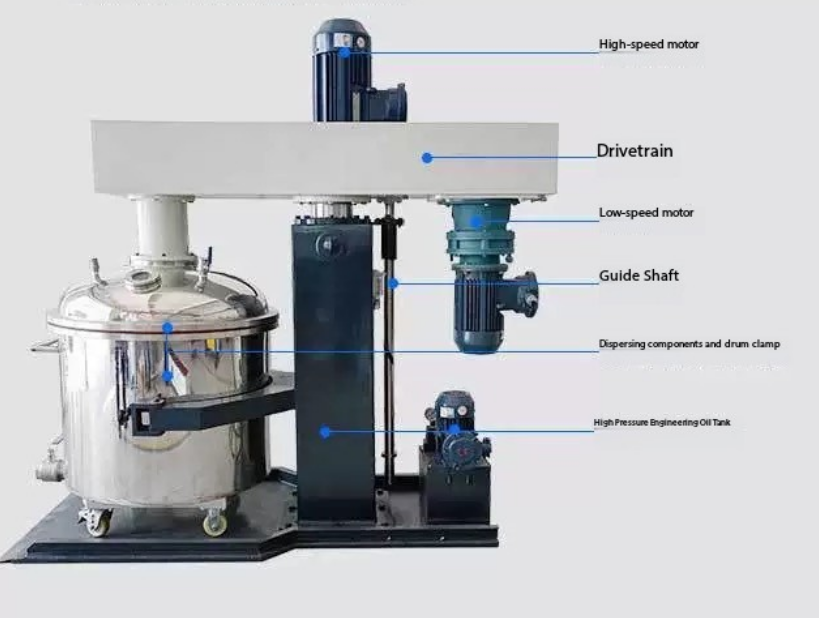

• Dual-Axis Synergy: Combines the relentless shearing force of the inner shaft (up to 1500 rpm) with the steady, folding action of the middle shaft (up to 200 rpm) for comprehensive material turnover.

• Micro-Level Homogenization: Generates intense mechanical and hydraulic shear, tearing apart stubborn powder clusters to achieve a consistent 1-2 μm fineness.

• Wall-Scraping Precision: Engineered with precise tolerances, the scraping mechanism clears the inner walls continuously, forcing heavy pastes back into the high-shear zone.

• Viscosity Versatility: Seamlessly adapts to fluctuating viscosities throughout the processing cycle, maintaining optimal flow dynamics without overloading the drive system.

Material Durability & Cleanliness

Cross-contamination and equipment degradation are unacceptable risks in high-stakes manufacturing. We construct our dispersers using premium-grade alloys and finishing techniques to meet the strictest hygiene and anti-corrosion standards.

• Premium Alloy Construction: Manufactured from heavy-duty SUS304 or SUS316L stainless steel, offering exceptional resistance to aggressive acids, alkalis, and abrasive particulates.

• Mirror-Polished Surfaces: The interior vessel and mixing implements feature a flawless, mirror-like finish, preventing sticky resins or pigments from adhering to the metal.

• GMP & Battery Grade Compliance: Perfectly suited for pharmaceutical ointments or lithium battery slurries, where preventing metal ion pollution and ensuring absolute sterility are paramount.

• Rapid Washdown: The smooth, crevice-free design allows for aggressive clean-in-place procedures, drastically reducing downtime between color or formulation changes.

Hydraulic Lifting & Discharge System

Handling heavy, viscous pastes manually is both dangerous and inefficient. Our advanced hydraulic architecture automates the most labor-intensive aspects of the mixing process, ensuring smooth transitions and maximizing material recovery.

• Vibration-Free Elevation: The single-arm hydraulic shaft lifting system operates with fluid precision, raising and lowering the heavy agitation assembly without jarring or mechanical stress.

• Effortless Vessel Swapping: Designed to accommodate quick-release clamping, allowing operators to seamlessly roll out a finished batch and position a new vessel in minutes.

• High-Viscosity Extrusion: Can be paired with an optional hydraulic discharge press, applying uniform downward pressure to force out thick, non-flowing pastes with nearly zero residual waste.

• Operator Ergonomics: Minimizes manual lifting and scraping, significantly reducing the risk of workplace injuries and operator fatigue during demanding production shifts.

Temperature Control System

High-speed kinetic dispersion naturally generates substantial thermal energy, which can be detrimental to sensitive compounds. Our integrated thermal management infrastructure ensures your materials remain exactly within their required temperature parameters.

• Jacketed Vessel Design: Features a highly efficient double-wall jacket, allowing for the continuous circulation of chilled water or thermal oil depending on the process requirements.

• Thermal Degradation Prevention: Instantly dissipates excess heat generated by the 1500 rpm shear blades, protecting heat-sensitive adhesives and battery binders from premature cross-linking.

• Uniform Heat Distribution: The slow-moving outer agitator continuously moves material away from the jacketed walls, preventing localized hot or cold spots within the batch.

• Viscosity Manipulation: Allows operators to precisely warm thick resins to lower their viscosity prior to high-speed dispersion, optimizing the energy efficiency of the motor.

Safety, Explosion-Proof & Sealing

Processing highly volatile chemicals demands uncompromising safety protocols. We have engineered this disperser with robust containment and ignition-prevention technologies to protect your facility and personnel.

• ATEX-Certified Components: Available with fully explosion-proof motors and control panels, eliminating spark risks when processing highly flammable paints and solvent-based inks.

• Advanced Mechanical Seals: Utilizes premium double-face mechanical sealing technology, creating an impenetrable barrier that prevents both vacuum leaks and hazardous vapor emissions.

• Fail-Safe Interlocks: Equipped with intelligent sensors that immediately halt the mixing shafts if the hydraulic arm is lifted or if vacuum pressure exceeds safe operational thresholds.

• Global Compliance: Manufactured in strict adherence to CE and ISO quality management systems, guaranteeing reliable, audit-ready performance in any global jurisdiction.

Scalability & Customization

No two manufacturing facilities operate exactly alike. We provide highly adaptable equipment solutions that grow alongside your business, from initial laboratory formulation to massive continuous production.

• Comprehensive Capacity Range: Available in configurations ranging from compact 5L benchtop units for research and development to massive 5000L industrial vessels for bulk processing.

• Multi-Vessel Efficiency: Designed to support a multiple-tank workflow, allowing one batch to mix while another is discharging, boosting equipment utilization by over fifty percent.

• Bespoke Engineering: Our technical team customizes blade geometries, motor torque ratios, and vacuum capacities based specifically on your material's solid content and rheology.

• Seamless Integration: Can be retrofitted with automated powder feeding systems, PLC touch-screen controls, and SCADA connectivity for fully modernized, smart-factory environments.

Why Choose Us

Partnering with the right equipment manufacturer is critical to your operational success. We deliver not just machinery, but comprehensive engineering solutions backed by decades of industry expertise and a relentless commitment to quality.

1. Unmatched Engineering Pedigree: Decades of specialized experience in researching, designing, and manufacturing high-performance mixing and dispersion technologies for global markets.

2. Stringent Quality Assurance: Every machine undergoes rigorous load testing, vacuum integrity checks, and vibration analysis before it ever leaves our facility.

3. End-to-End Technical Support: From initial factory layout consultation to on-site commissioning and lifetime spare parts availability, our engineering team stands by your side.

4. Proven Global Reliability: Trusted by leading chemical, pharmaceutical, and material science facilities worldwide to deliver consistent, uninterrupted daily performance.

5. Rapid Return on Investment: By drastically reducing batch times, minimizing solvent loss, and virtually eliminating material waste, our equipment provides exceptional long-term value.

FAQ

Find answers to the most common technical inquiries regarding our dispersion technology and discover how it can be integrated into your production line.

How does the vacuum system improve the quality of high-viscosity resins?

By operating at a limit vacuum of ≤ -0.098 MPa, the system forcefully extracts entrapped air and moisture that are folded into the resin during the initial wetting phase. This prevents microscopic voids, ensuring a dense, structurally sound, and visually flawless final product.

Can this equipment handle materials that are highly sensitive to temperature fluctuations?

Absolutely. The disperser features a precision-engineered jacketed vessel that allows for the circulation of cooling water or thermal oil. Combined with the continuous folding action of the slow-speed agitator, it rapidly dissipates the kinetic heat generated by the high-shear blades.

What maintenance is required for the double-face mechanical seals?

Our double-face mechanical seals are designed for extended longevity with minimal intervention. They require periodic inspection of the barrier fluid levels and pressure. Because of their robust design, they significantly outlast standard packing seals, especially when processing abrasive pigments.

Is it possible to use multiple vessels with a single hydraulic lifting head?

Yes, this is one of the most efficient ways to utilize the equipment. The single-arm hydraulic lift allows you to raise the agitators, roll away the finished batch for discharge, and immediately roll in a newly prepped vessel, increasing your overall throughput substantially.

How does the machine ensure no unmixed materials are left on the vessel walls?

The middle stirring shaft is equipped with specialized wall-scraping blades. As the shaft rotates at 0-200 rpm, these scrapers physically wipe the interior walls, continuously pushing stagnant, heavy materials back into the central high-speed dispersion zone to guarantee a perfectly homogenous mixture.
