Structure and Application of Z type Kneading Machine

Z-type kneading machine is a powerful mixing equipment designed specifically for processing high viscosity and difficult to mix materials. Its core lies in the relative rotation of a pair of Z-shaped blades, which can efficiently achieve material dispersion, mixing, and kneading. It is widely used in various industrial fields such as chemical, rubber, food, and new energy, especially suitable for the processing of high viscosity materials such as silicone rubber, sealant, and battery slurry.

The core working principle of the Z-shaped kneading machine is to rely on a pair of Z-shaped blades rotating towards each other, repeatedly shearing, stretching, and folding the material, and ultimately achieving uniform mixing. The entire process can be broken down into three key stages:

Shear and tearing: The material is subjected to strong shear forces between the blade and the mixing chamber wall, causing large agglomerates to be torn into small particles.

Folding and dispersion: The blades lift the material from the side walls of the mixing chamber and bring it to the central area, allowing different parts of the material to permeate through each other through folding.

Uniform mixing: After multiple shearing, stretching, and folding, the material finally reaches a highly uniform mixing state.

The entire process is usually carried out in a heated or cooled jacket mixing chamber, and some models also have vacuum degassing function, which can effectively remove volatile substances or bubbles.

core structure

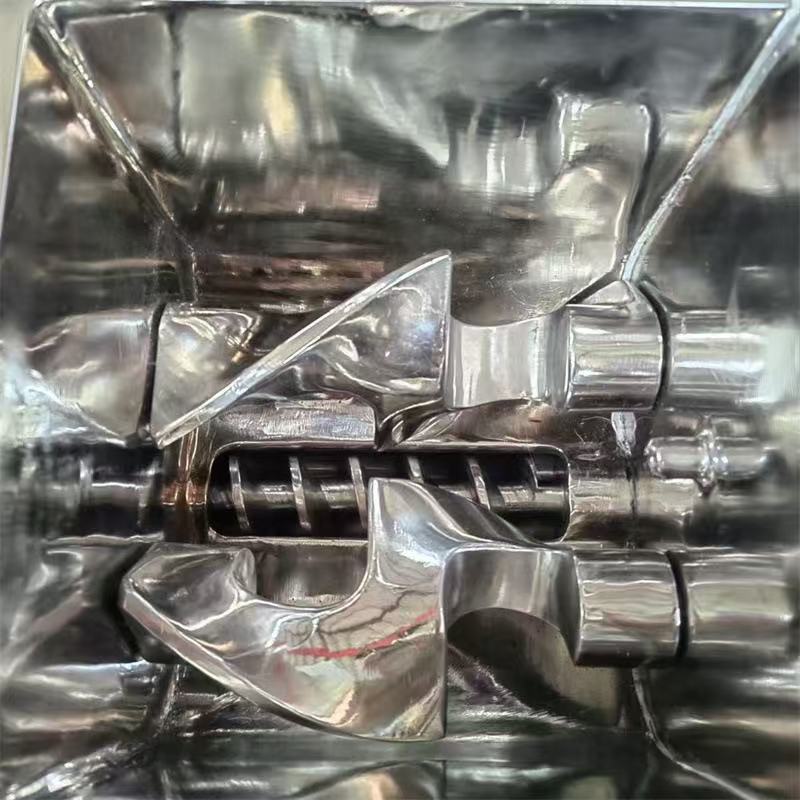

Z-shaped blade: A pair of parallel arranged, rotating Z-shaped blades that achieve material mixing through shearing, stretching, and folding.

Mixing chamber: usually a steel groove with a saddle shaped bottom, equipped with a heating or cooling jacket, and some high-end models are also equipped with vacuum devices to defoam or remove volatiles.

Transmission system: composed of motors, reducers, and gears, equipped with variable frequency speed control devices to accurately control speed and torque.

Hydraulic and electrical control system: The hydraulic system is used for operations such as flipping cylinders and opening covers, while the electrical control system (such as a PLC control cabinet) can monitor and adjust parameters such as temperature, time, viscosity, etc. in real time.

Support and machine base: Provide overall stable support for the equipment.

Main uses and application industries

The Z-type kneading machine is suitable for processing high viscosity and high solid content materials. Its core advantages are high mixing uniformity, low occurrence of "shaft hugging" phenomenon, and low energy consumption.

Chemical industry: used for mixing and kneading high viscosity sealants, silicone, resins, rubber pads, carbon materials, etc.

Rubber and plastic processing: used for silicone rubber mixing, plastic modification, etc., can effectively break filler agglomeration and improve product performance.

New energy materials: In the preparation of battery slurries (such as negative electrode materials), their high shear force helps to achieve uniform composite of active materials.

Food and Medicine: Used for mixing and kneading materials such as food sauces and pharmaceutical intermediates.

Other fields: also applied to the processing of high viscosity materials such as ink, pigments, dyes, cosmetics, pulp, etc.
