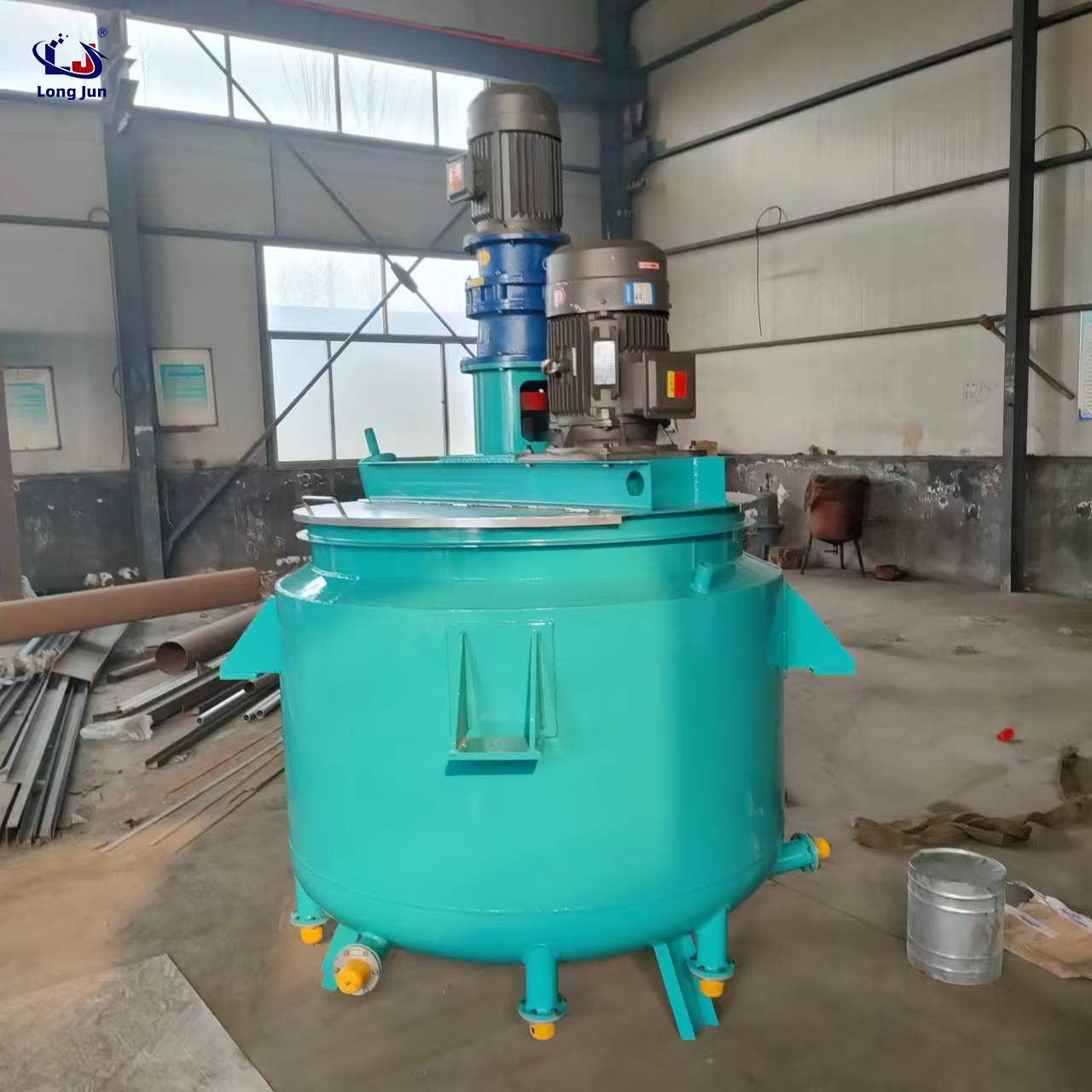

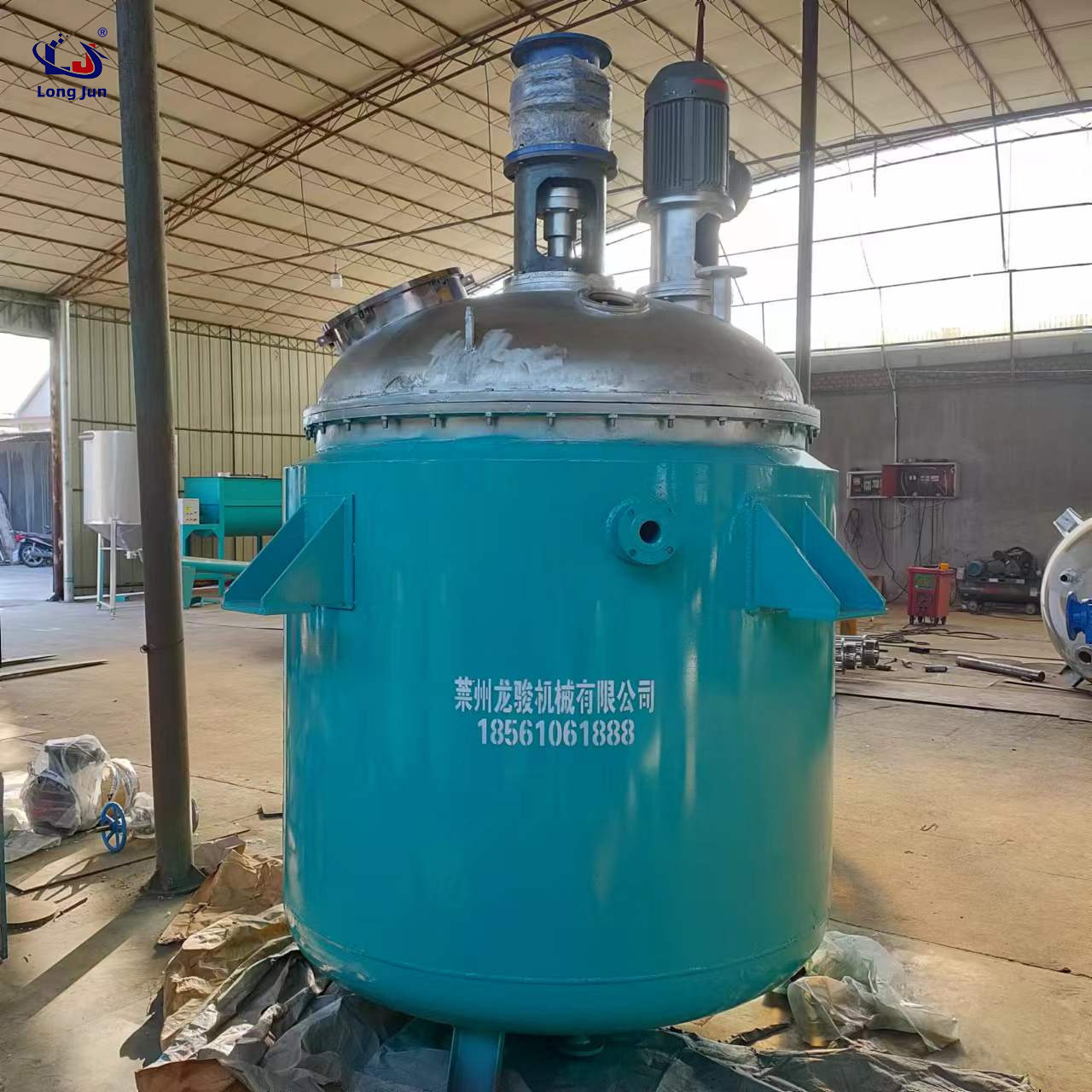

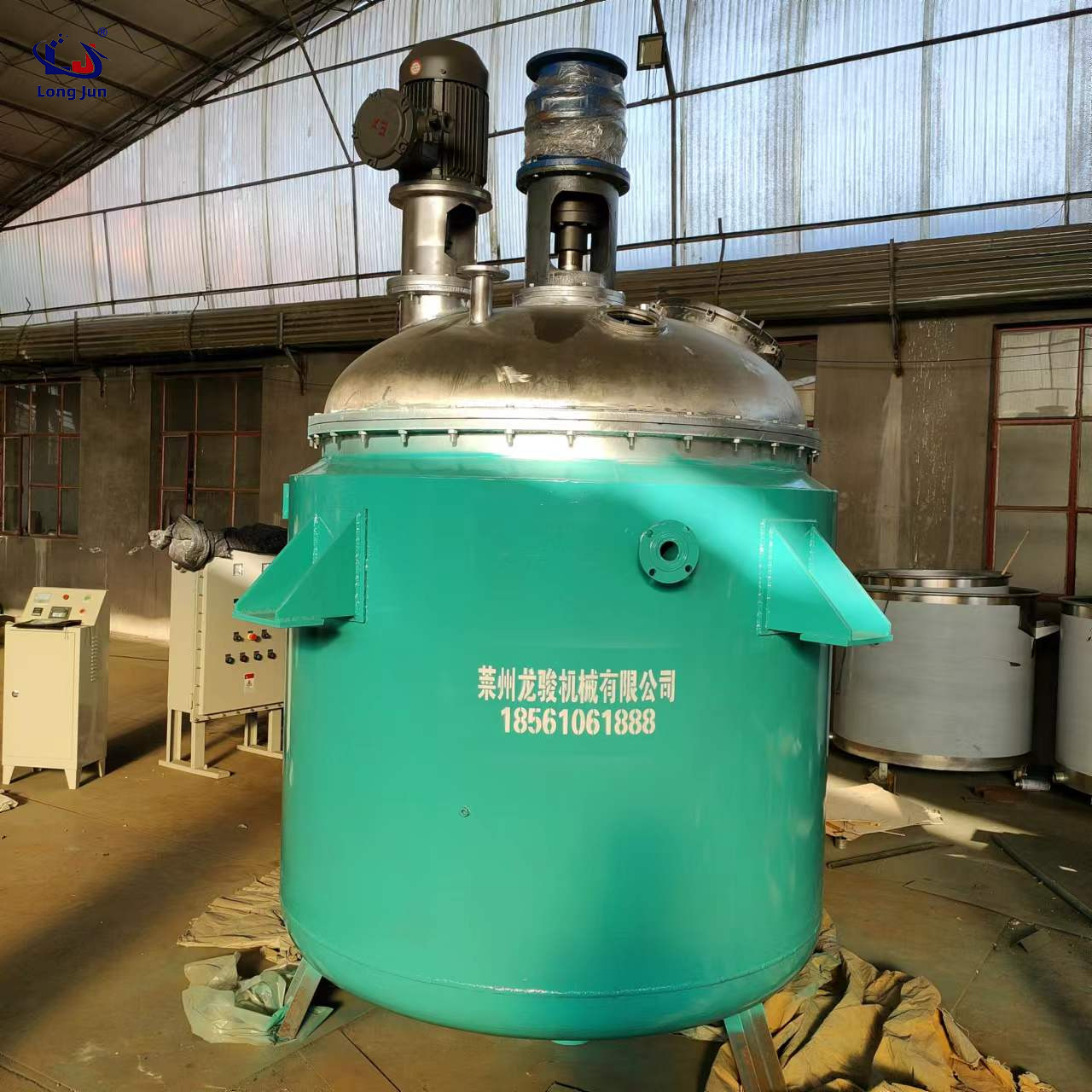

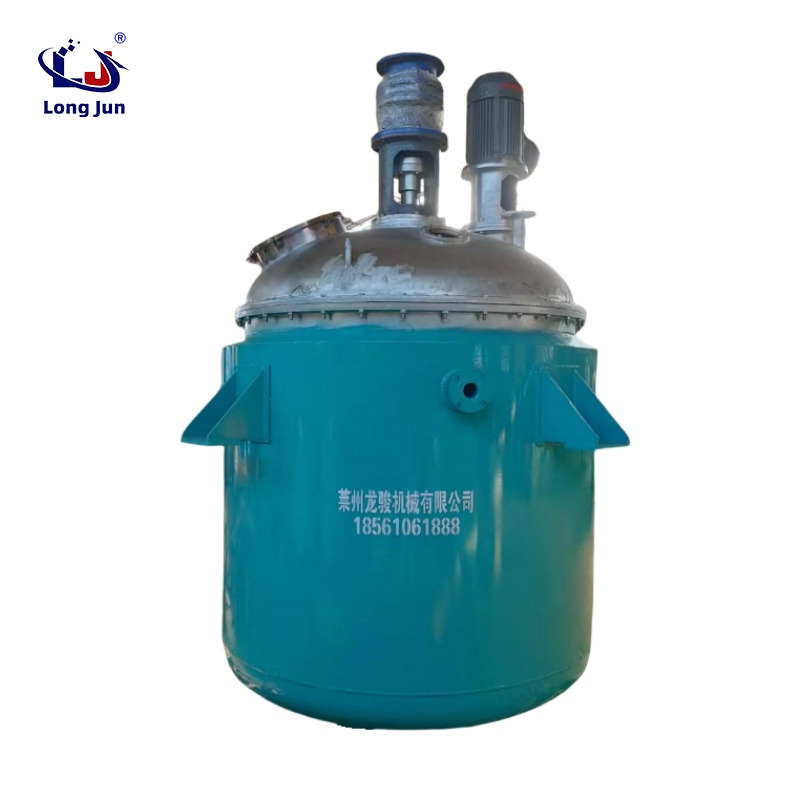

Stainless steel emulsion mixing tank

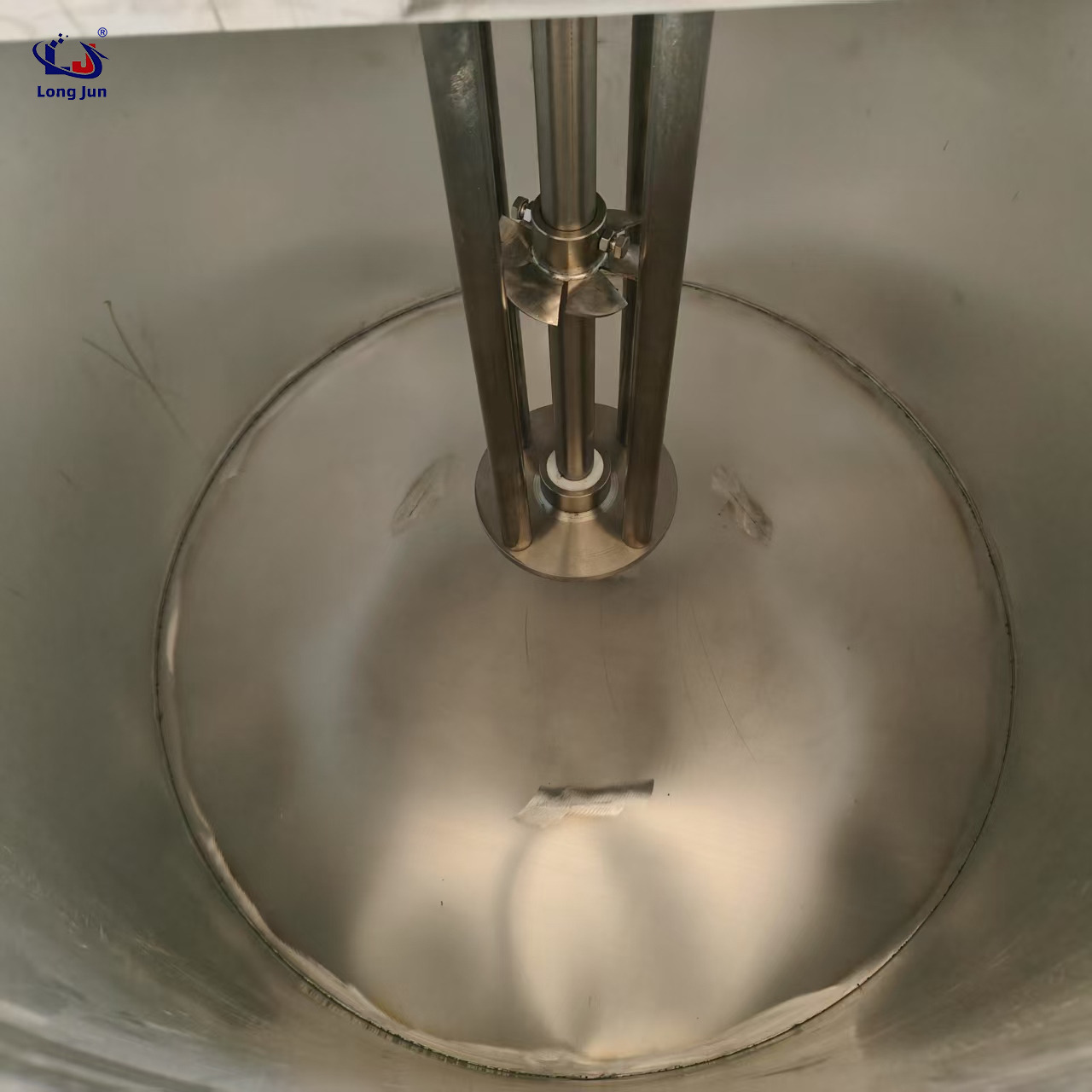

The working principle of a stainless steel emulsion reactor is to inject a constant temperature (high or low temperature) heating or cooling liquid through a double-layer reactor interlayer, and to heat or cool the materials inside the reactor at a constant temperature. The material undergoes a reaction in the reaction kettle, stirred by a high-speed stirrer, and homogenized and sheared by a German original speed regulating DC high-speed high shear dispersing emulsifier. After the reaction is complete, the material can be discharged from the discharge port at the bottom of the kettle. The material outlet is equipped with a flange and a PTFE valve, and there are no dead corners inside the container. It can be disassembled for easy discharge of solid materials, and the operation is extremely convenient. Help you easily complete high-quality dispersion, emulsification, and homogenization experiments.

Working principle of high shear emulsifier: Driven by an electric motor, the high-speed rotating rotor sucks the material from the container into the rotor area, subjecting the material to strong mixing. The material is forced to be thrown out of the stator hole after passing through the precision fit between the stator and rotor gap. Under intense mechanical and hydraulic shear, the particles are torn and crushed. At the same time, new material is sucked into the center of the rotor, and the material pushed out changes direction on the container wall, completing a cycle.

Application industry:

Applications:
1, the food industry: dairy products, chocolate, soy sauce, jam, peanut butter, cream drinks and so on.
2, the chemical industry: pigments, lubricants, spices, dyes, emulsified asphalt, emulsified rubber, catalyst, paint and so on.
3, the pharmaceutical industry: cod liver oil, confidential, health cream, bee, pollen and so on.
4, daily chemical: shoe polish, toothpaste, cosmetics, balsam, soap, detergent and so on.
5, other industries: construction industry, paper industry, plastics industry, the battery industry.

Technical parameter:

Note: The technical parameters of the reaction kettle in the table are standard parameters, which are only for reference. We can design customized solutions according to customer needs.
