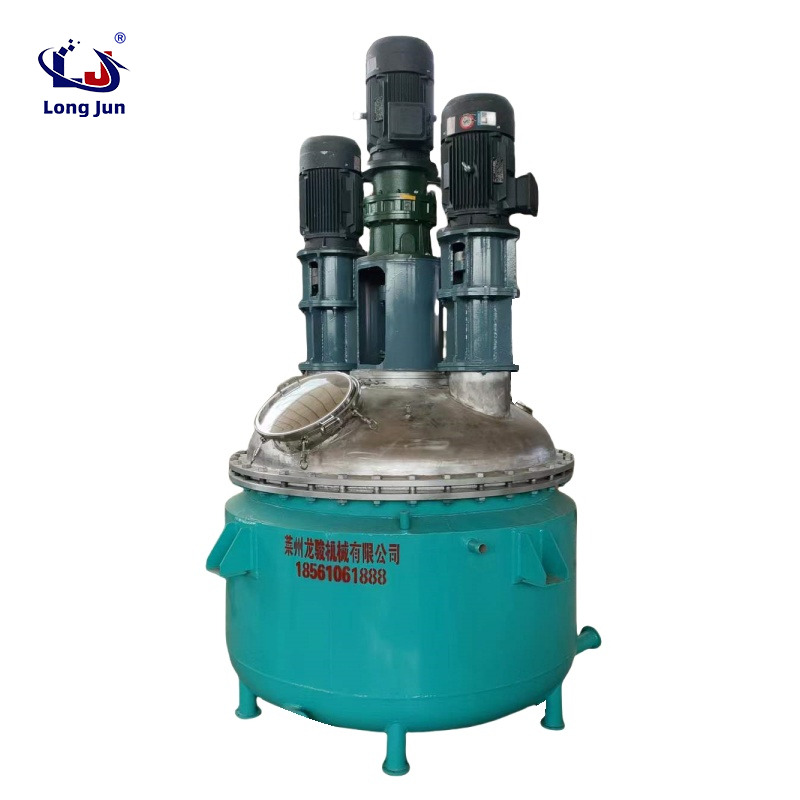

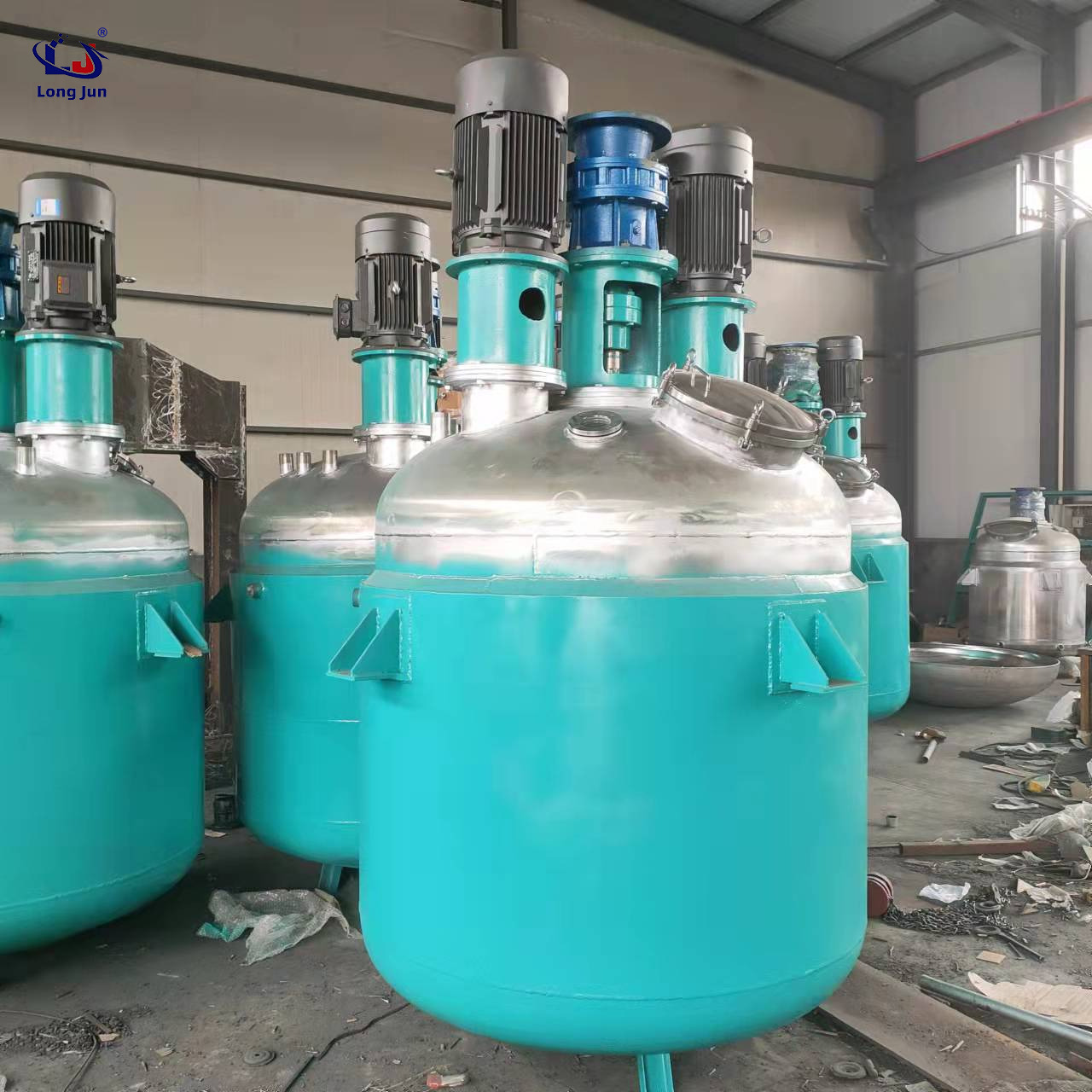

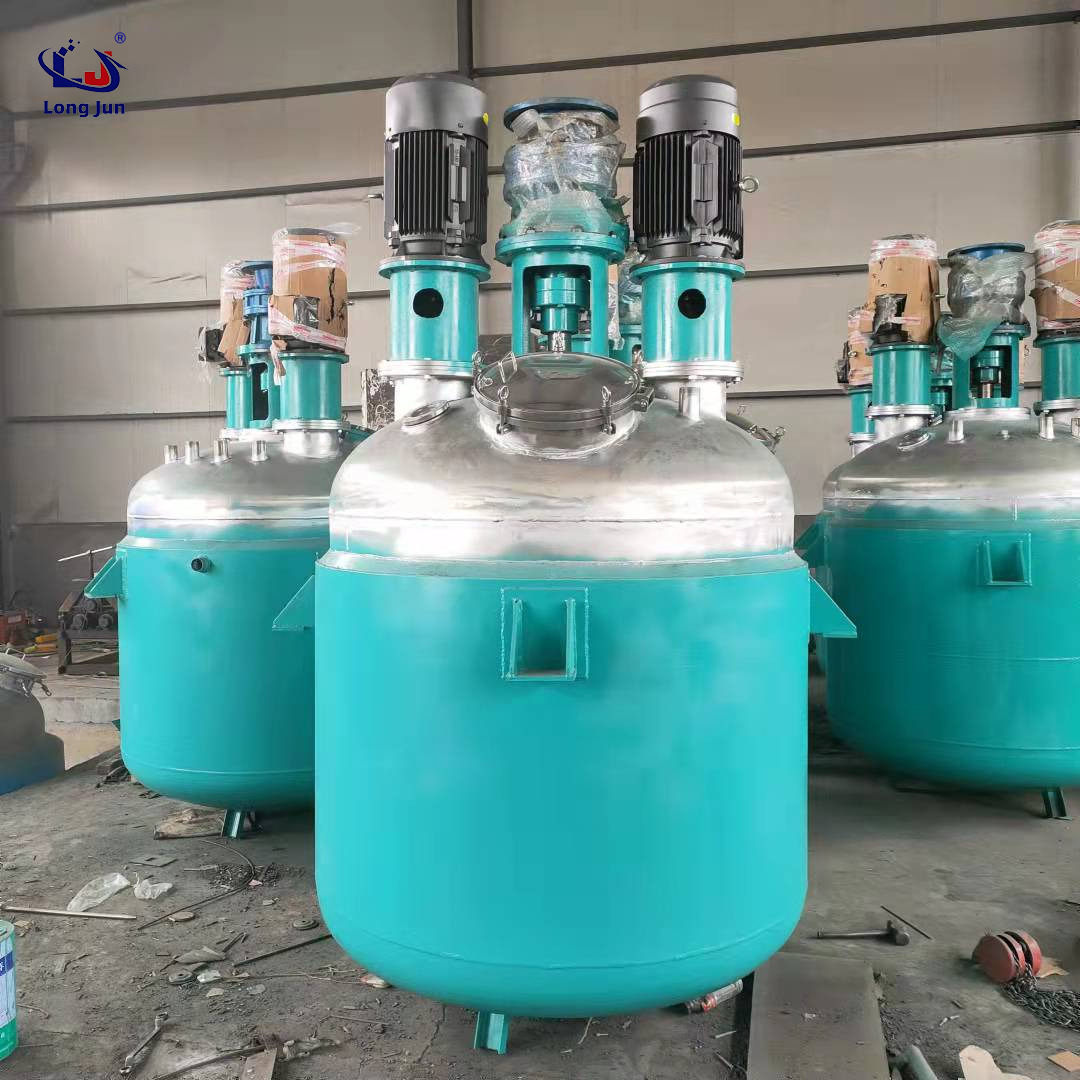

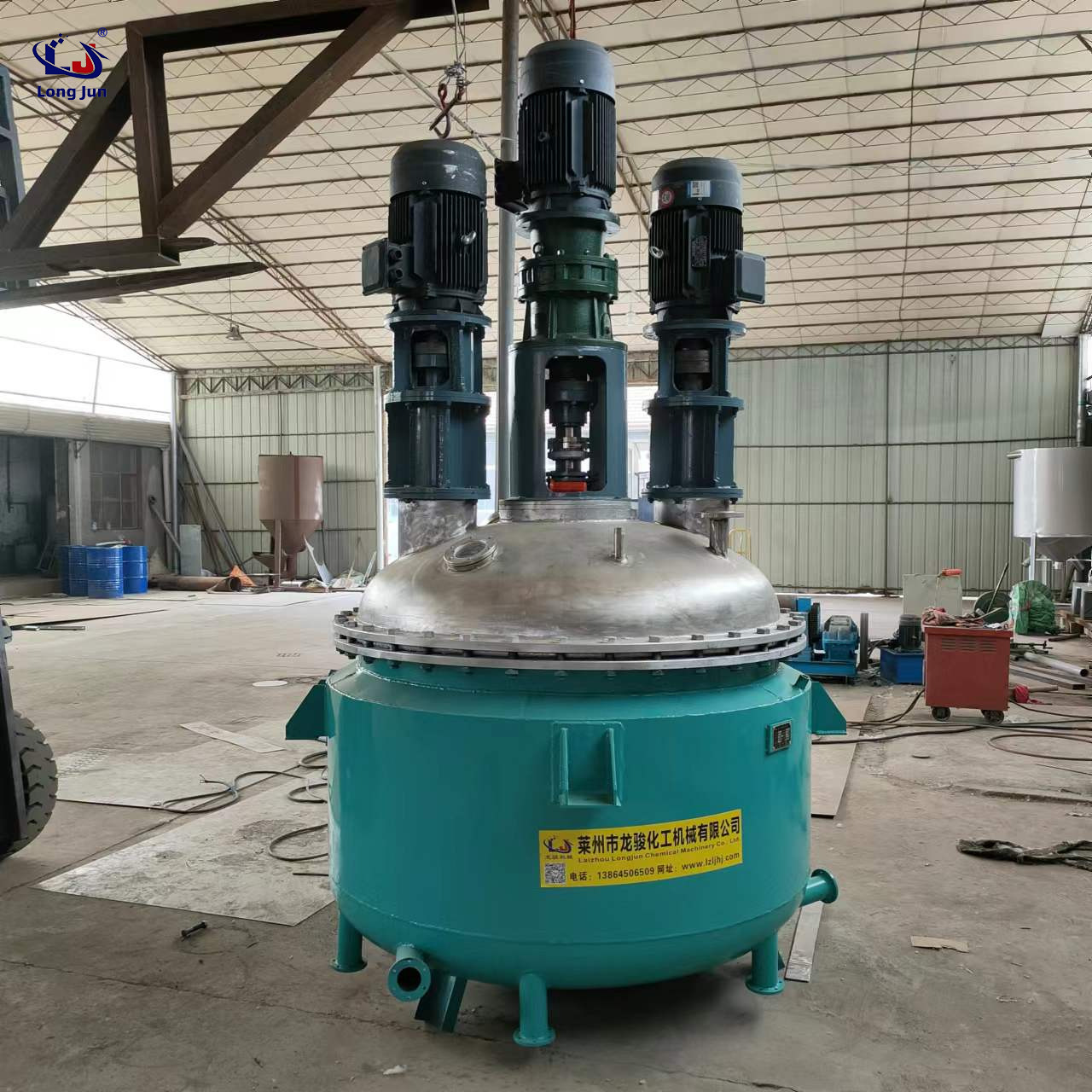

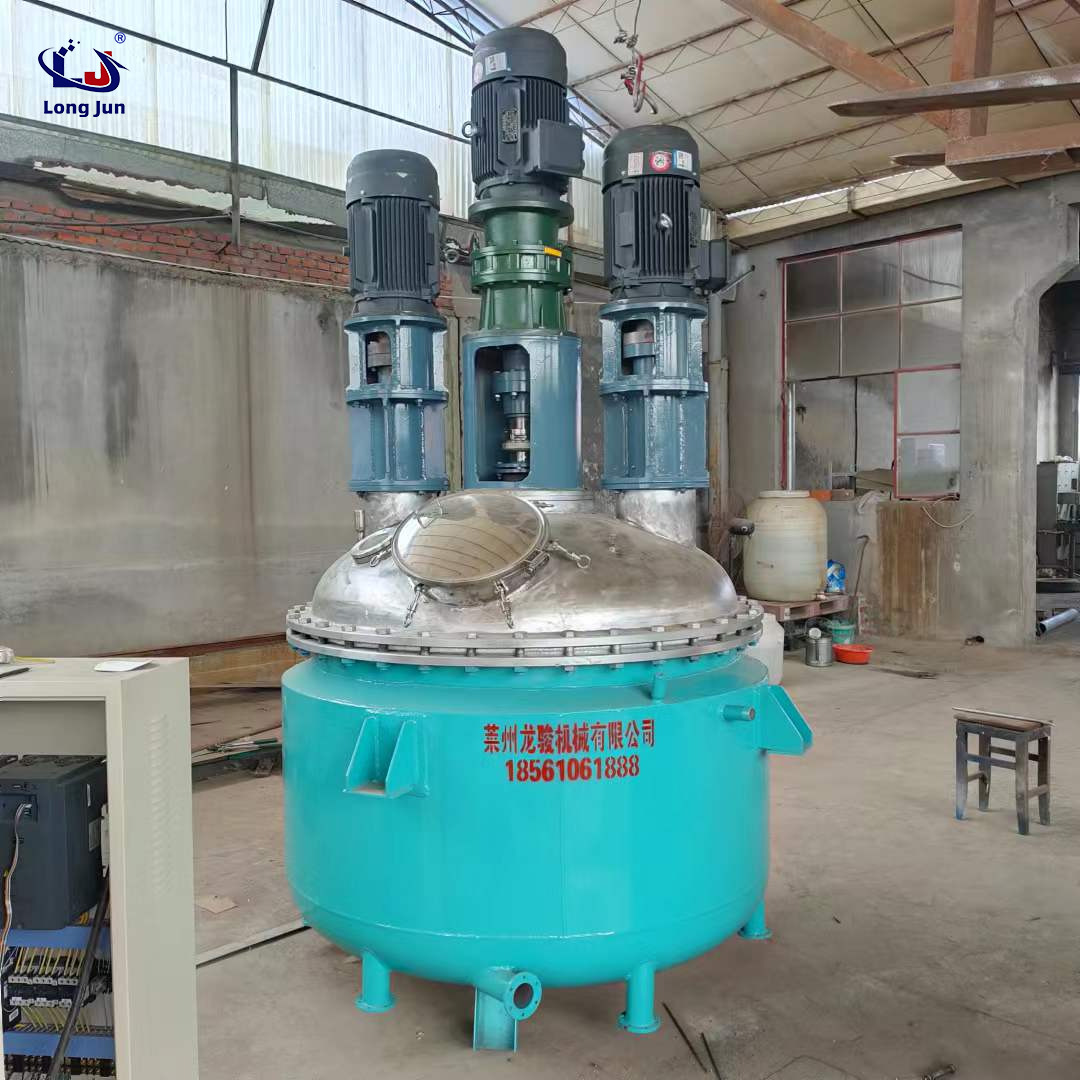

Multifunctional Reactor with Wall Scraper and Hi-Speed Dissolver

A multifunctional reaction vessel is an industrial reaction equipment that achieves efficient mixing of materials through mechanical structural innovation. Its main structure consists of a vessel body, a stirring system, and a temperature control device. Made of stainless steel/carbon steel material, equipped with a three-dimensional mixing device and a variable frequency speed control motor, supporting adjustable speeds from 0-2800rpm, meeting the needs of various chemical reactions such as differentiation, polymerization, and condensation. The equipment integrates electric heating, steam heating, and vacuum pump systems, with a temperature control range covering -50 ℃ to 300 ℃. Some models have PLC automation control systems and safety warning functions. Mainly used in industrial production scenarios such as petroleum refining, chemical production, and rubber vulcanization.

Quantity:
Availability:





Inquire Add to Basket

Model:
2000L
Brand:
Longjun

Product Description

Product Description

1. Chemical Processing Machine: Multifunctional Reactor

1.Heated by electrical heating tubes with Jacket

2.Cooling via water in internal spiral coil or jacket

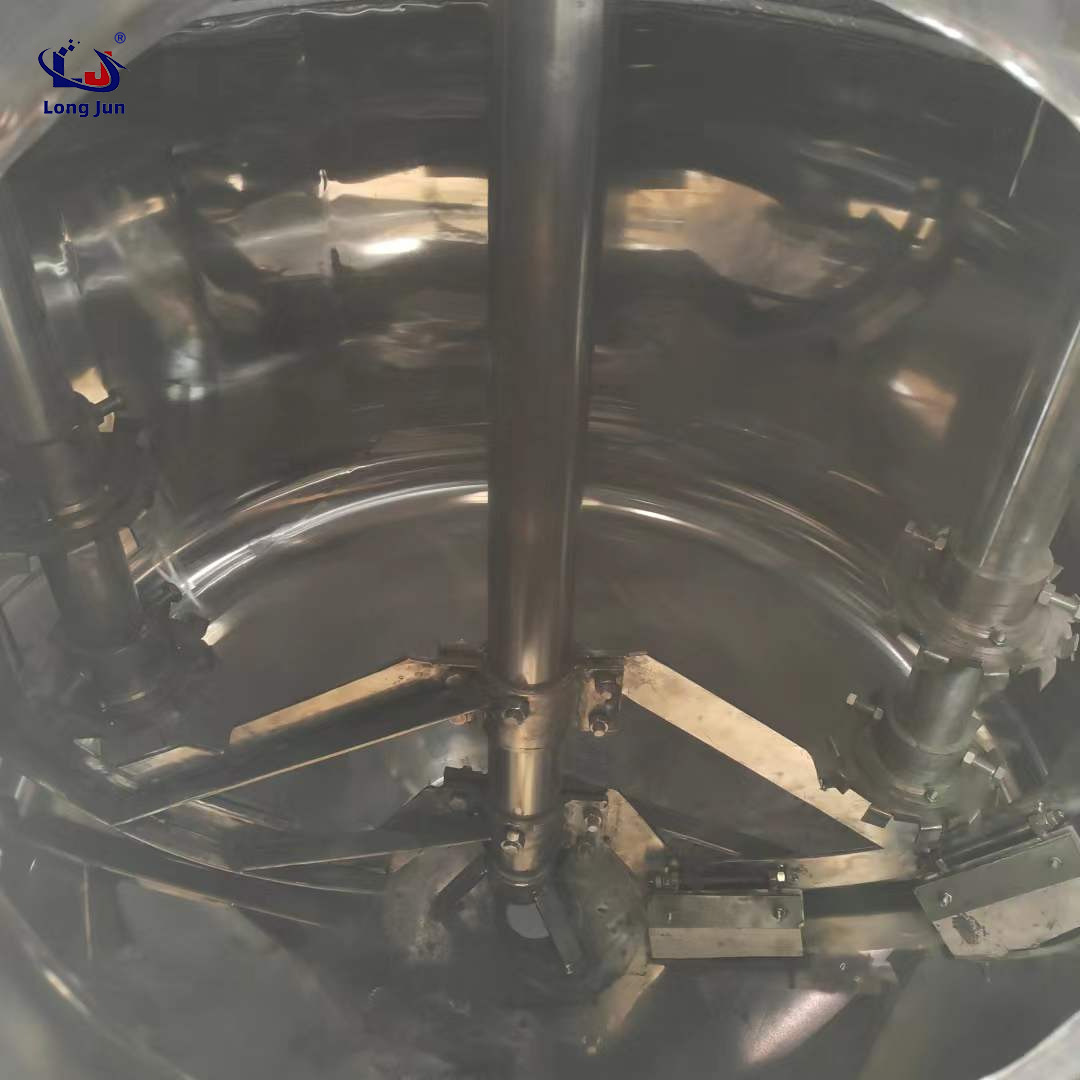

3. One or two high speed disperser and one low speed stirrer

4. Application: high viscosity prouct

Chemical Processing Machine FS series Multifunctional Mixing Dispersing Tank is integrations of powerful mixer and high speeddisperser, which is applicable for mixing, dispersing, dissolution and color mixing of medium/high viscosity and thixotropy materials. Mixing and dispersing can proceed simultaneously and reach ideal effect. It is ideal mixing and dispersing equipment which is easy to operate and widely applicable.

Operating principle:

Break down or recombined the materials through mixing, filling and cooling, to promote the reaction of polymerization.

Components: Body, gears, mixing devices, heating devices, cooling devices, seal, etc.

Auxiliary Equipment: Distillation column, head tank, condenser, water separator, collecting cans, filters, etc..

Widely used in: Resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production.

Applicable Field: All the liquid-liquid, liquid-powder reaction industry.

Application industry:

Specification of Multifunctional Reactor

Model#		FS-2	FS-3	FS-5	FS-6	FS-8	FS-10	FS-12
Volume of Tank(m 3 )		2	3	5	6	8	10	12
Power of Mixing Motor(kw)		5.5	5.5	7.5	7.5	11	15	18.5
Speed of Mixing Shaft(rpm)		50	50	50	50	41	41	41
Dia. of Mixer Blade(mm)		1300	1500	1700	1700	1900	2100	2300
Power of Dispersing Motor(kw)		13/16	13/16	22/28	22/28	22/28	26/34	30/42
Speed of Dispersing Shaft(rpm)		960/1450	960/1450	960/1450	960/1450	970/1470	970/1470	750/1480
Qnty. of Dispersing Shaft		2	2	2	2	2	2	2
Dimension(mm)	D	1400	1600	1800	1800	2000	2200	2400
	H	1650	1765	2048	2400	2800	2950	3100
	H1	1930	2000	2200	2200	2500	2570	2620

Note: The technical parameters of the reaction kettle in the table are standard parameters, which are only for reference. We can design customized solutions according to customer needs.
