| Quantity: | |
|---|---|
1000L
Longjun

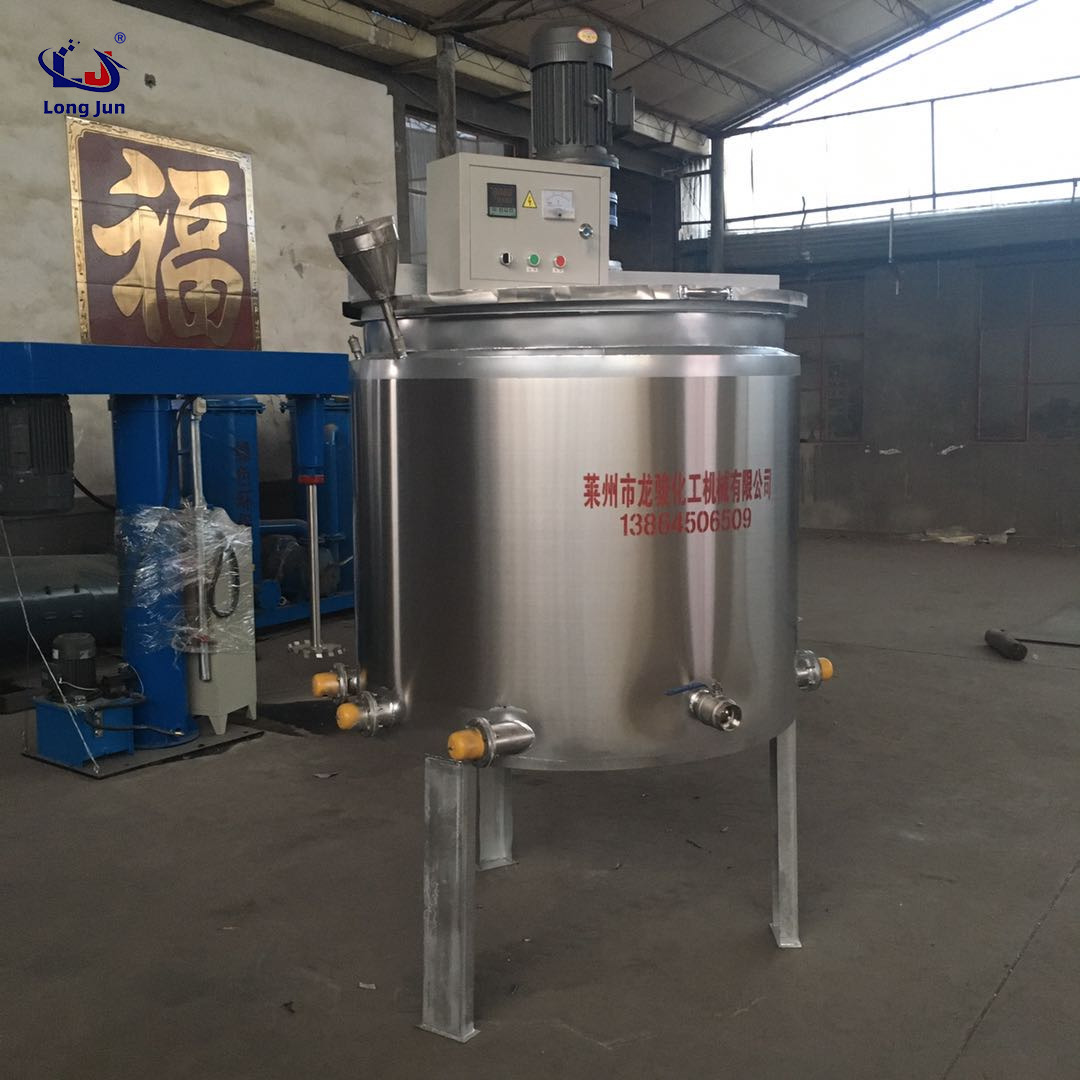

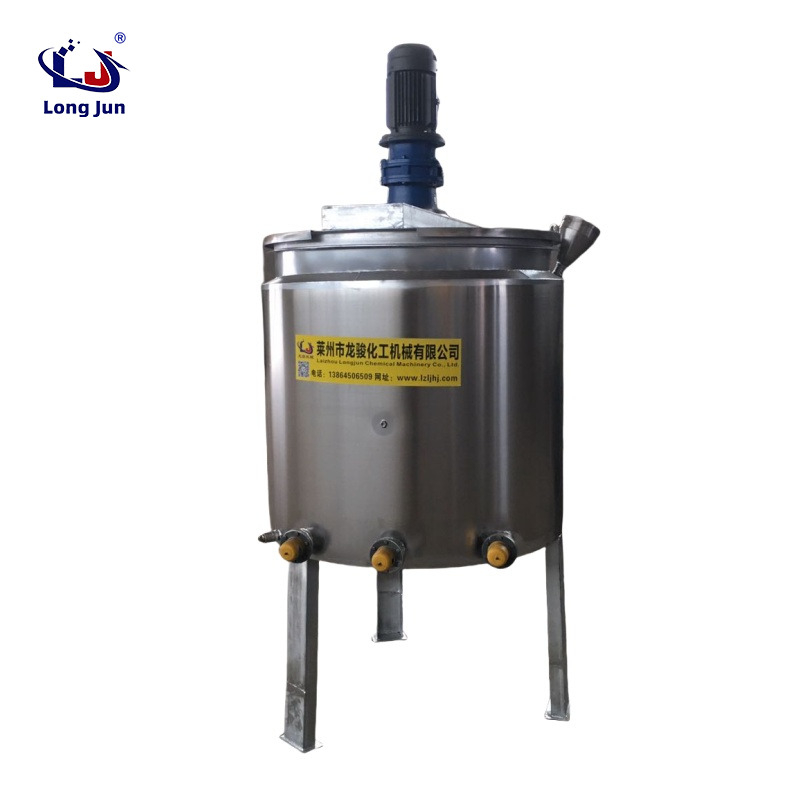

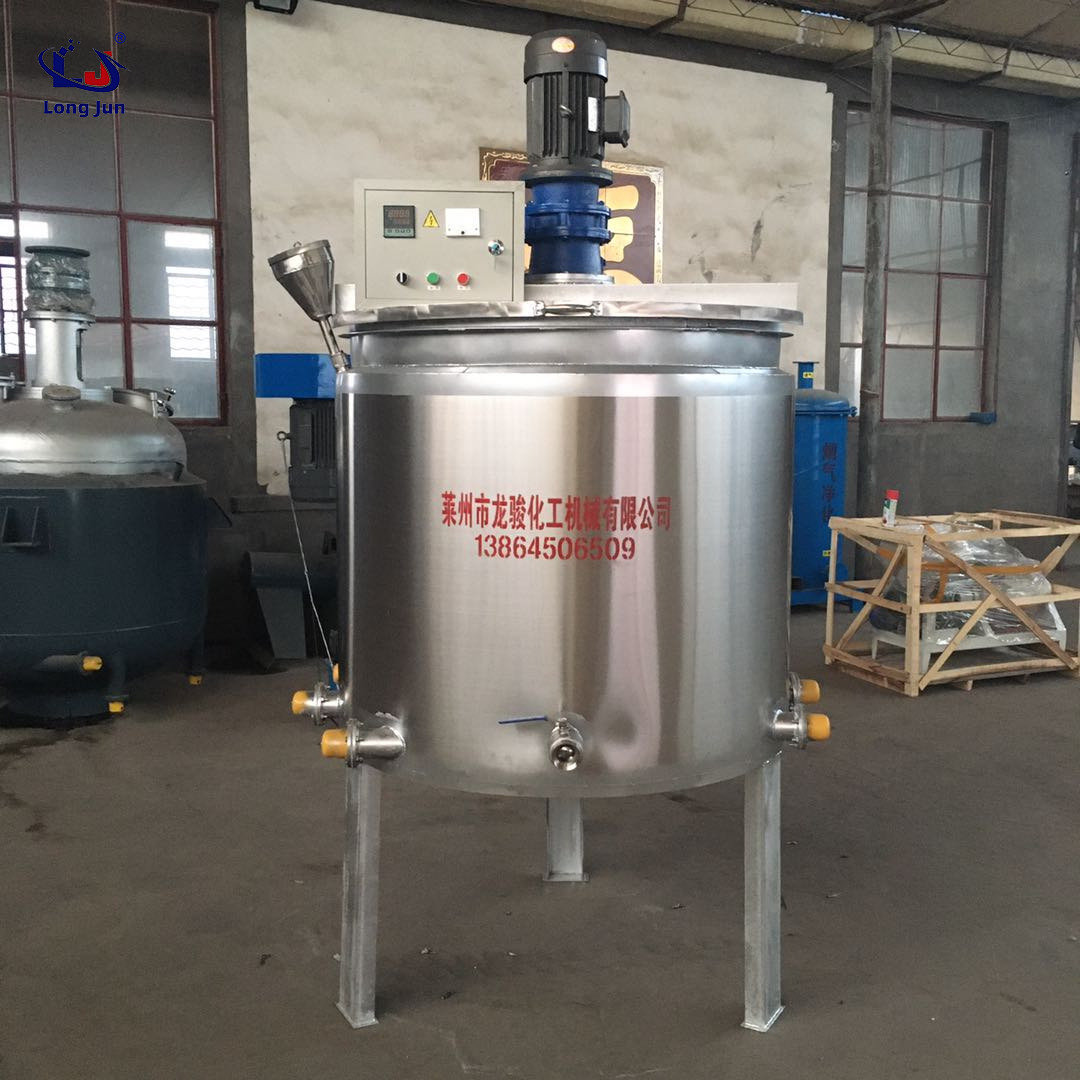

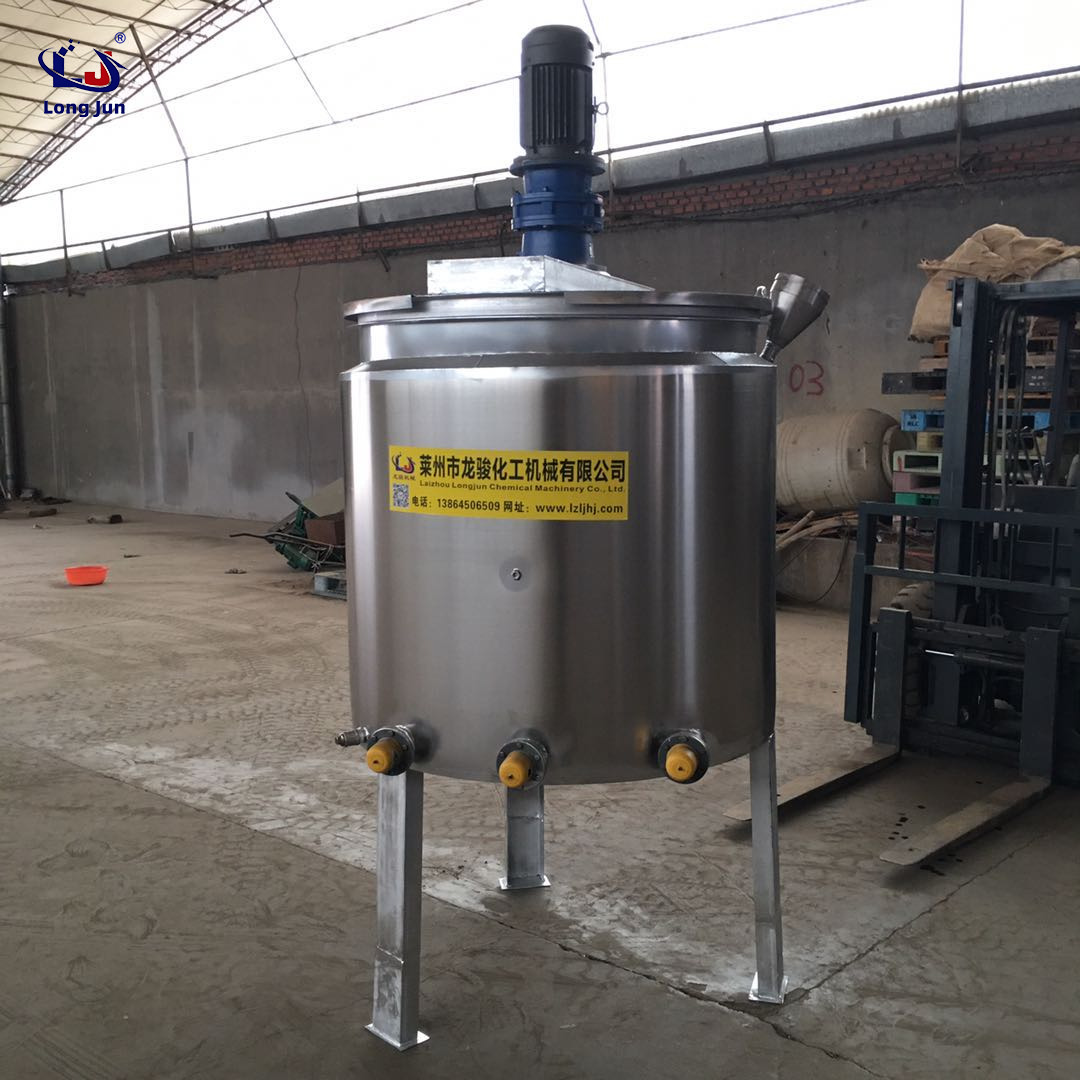

Product structure of electric heating glue pot
Structure of mixing tank: The mixing tank consists of a mixing tank body, a mixing tank cover, a mixer, a support, a transmission device, a shaft seal device, etc. Heating or cooling devices can also be configured according to process requirements.

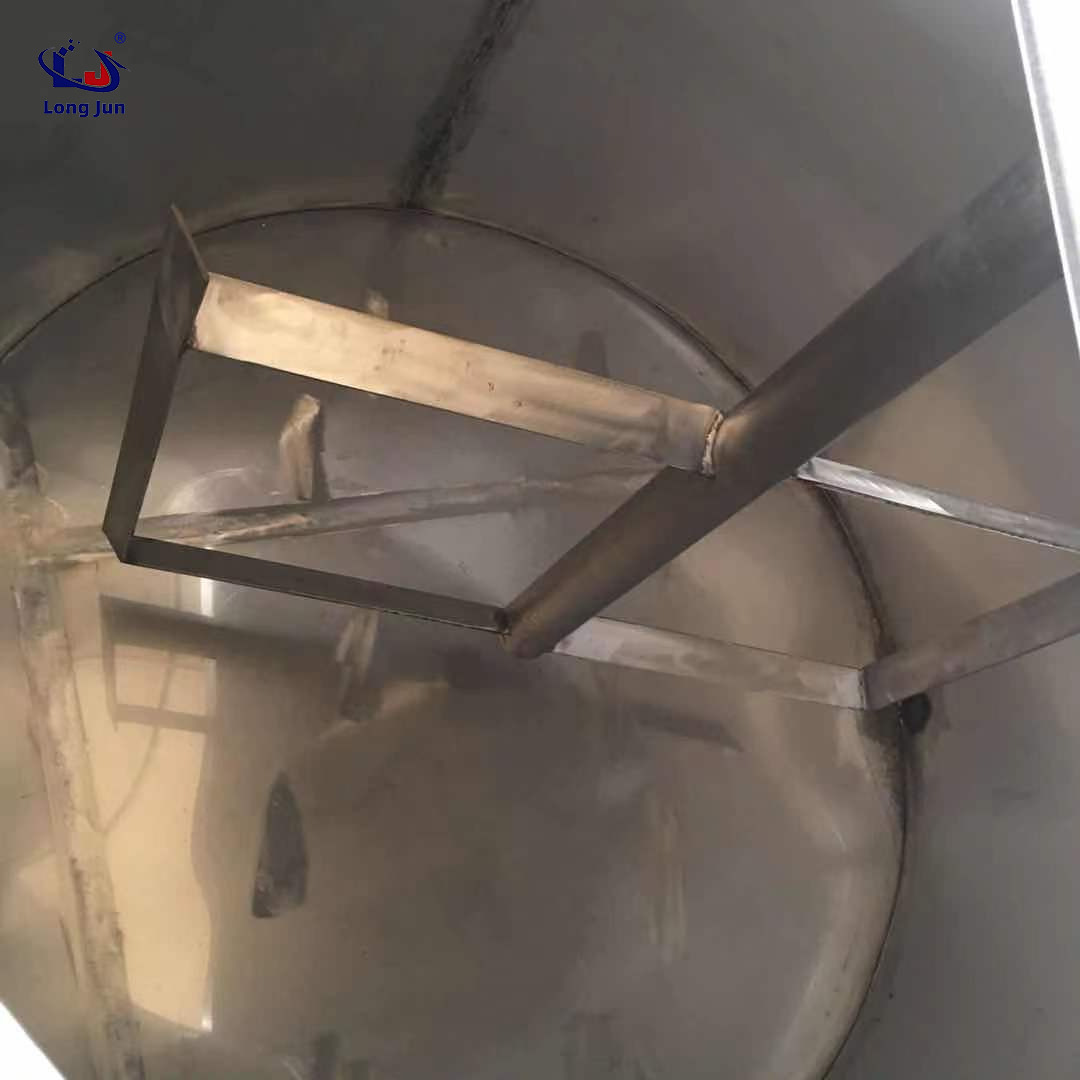

The materials used for the mixing tank body, mixing tank cover, mixer, shaft seal, etc. can be made of carbon steel or stainless steel according to different process requirements. The mixing tank body and mixing tank cover can be connected by flange sealing or welding. The mixing tank body and mixing tank cover can be equipped with process pipe holes for feeding, discharging, observation, temperature measurement, pressure measurement, steam distillation, and full emptying according to process requirements. The upper part of the mixing tank cover is equipped with a transmission device (motor or reducer), which drives the mixer inside the mixing tank through the transmission shaft. The shaft seal device can adopt various forms such as machine seal, packing, labyrinth seal, etc. (depending on user needs). Due to different production process requirements of users, the mixer can be configured in various forms such as slurry, anchor, frame, spiral, etc.
Application industry:
The atmospheric pressure electric heating mixing tank has the characteristics of rapid heating, high temperature resistance, corrosion resistance, hygiene, no environmental pollution, no need for boiler automatic heating, easy use, and low price. Widely used in industries such as chemical, pharmaceutical, and food, the material is made of 304 stainless steel.
