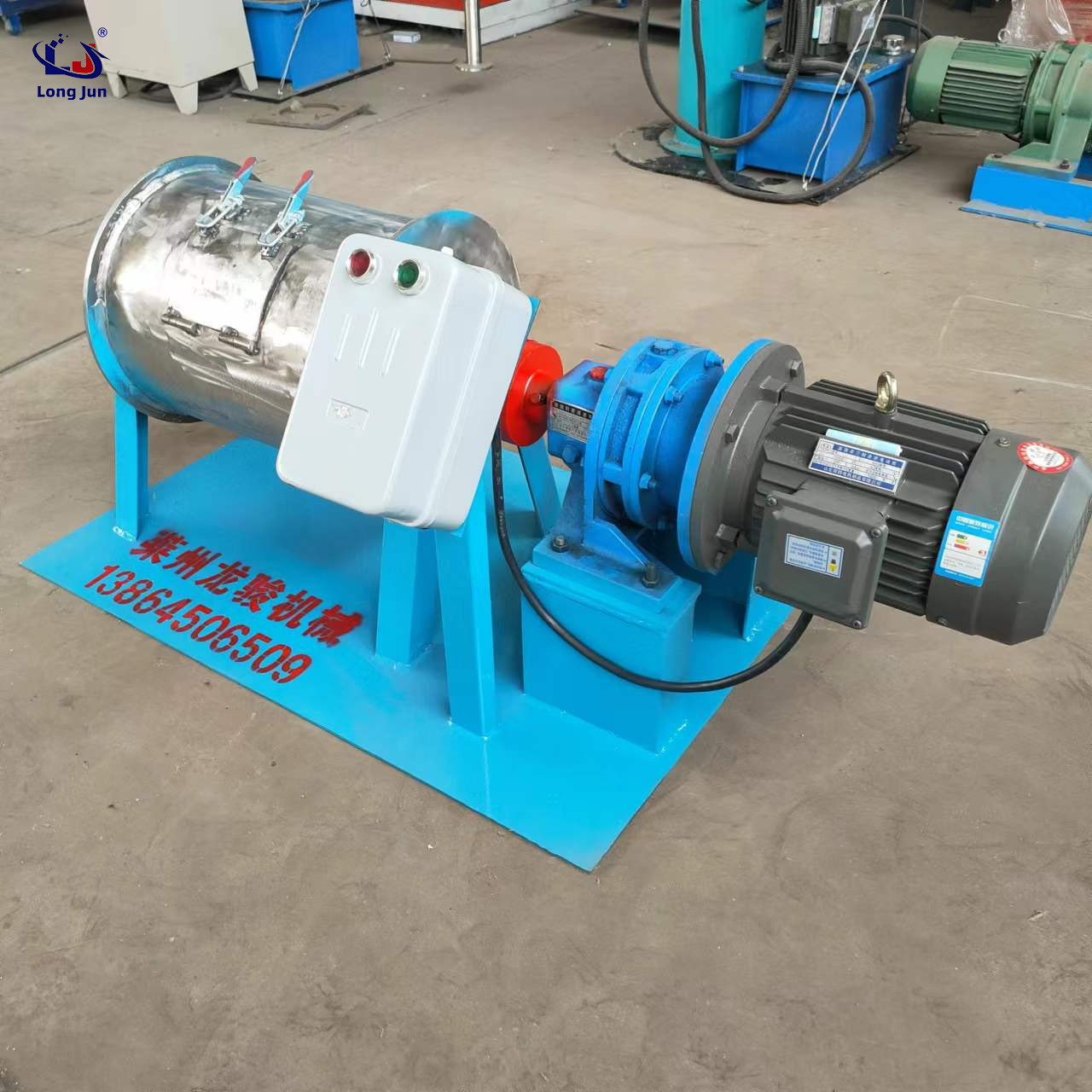

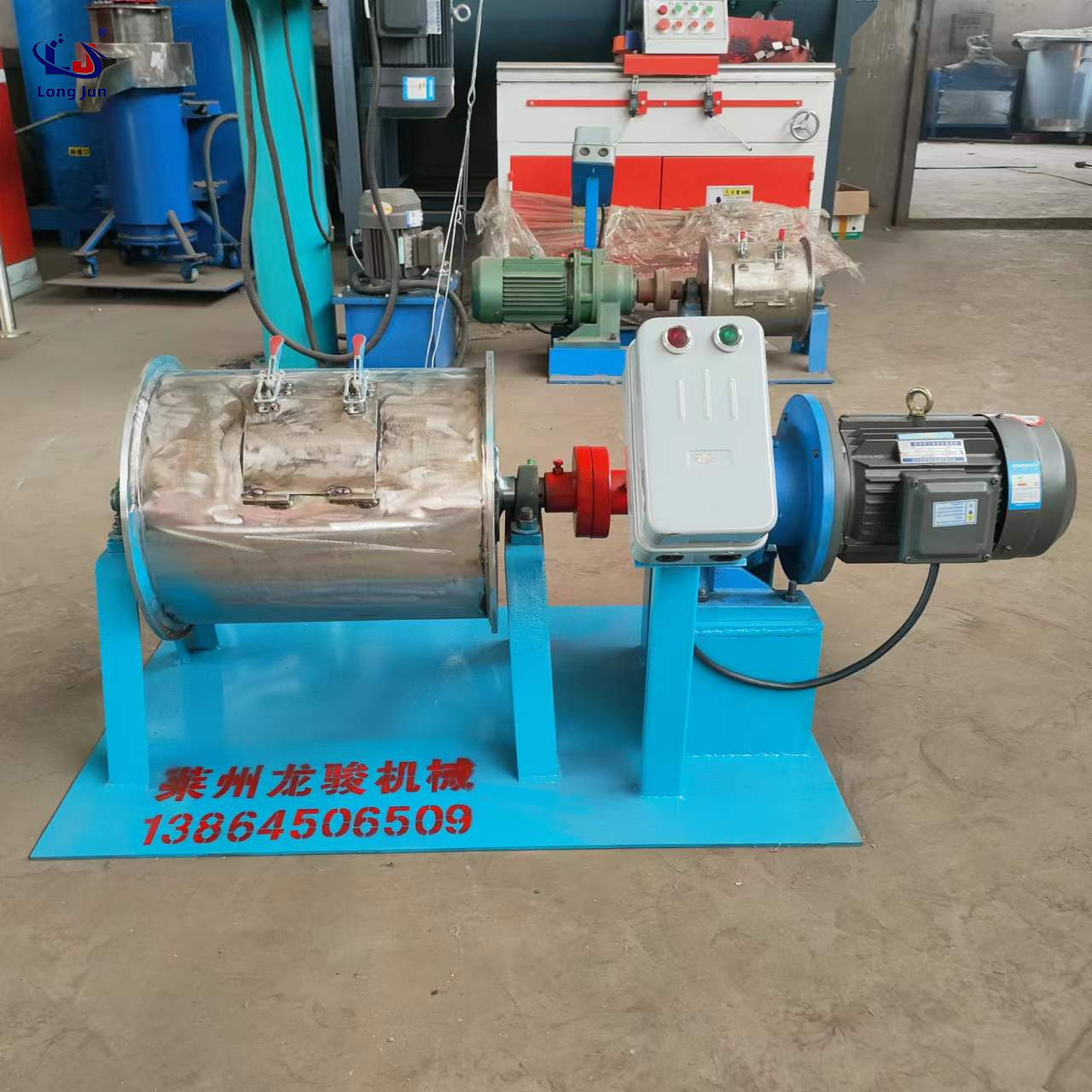

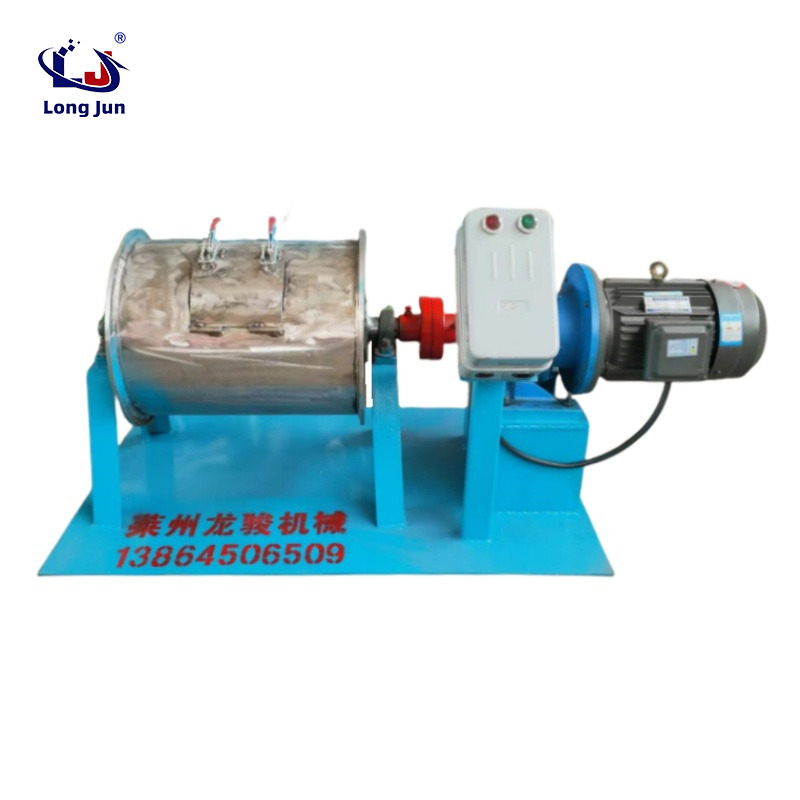

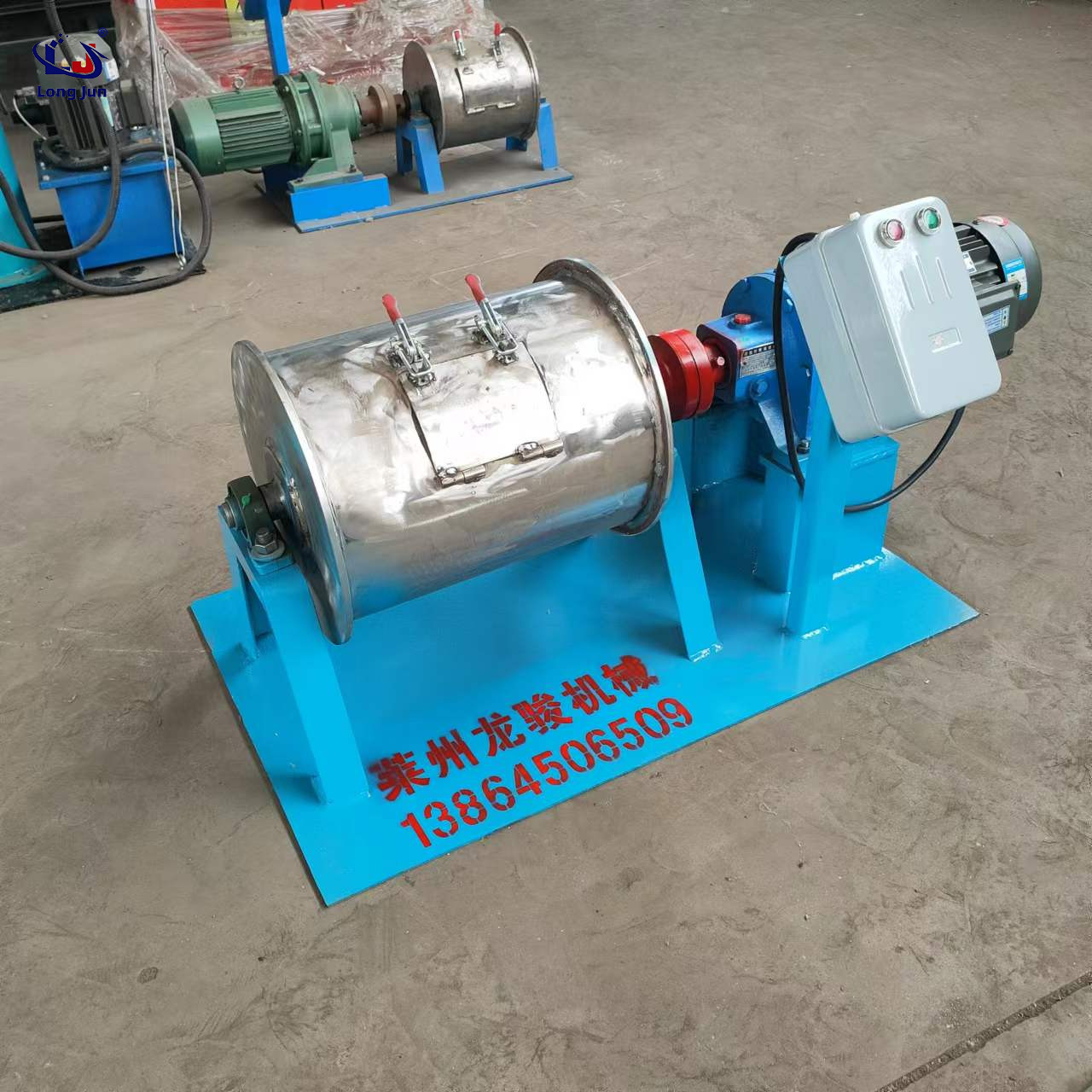

Small laboratory horizontal ball mill

Product Overview

Sourcing reliable grinding equipment is a critical step for precise material processing and industrial research. As a dedicated manufacturer and supplier of advanced milling machinery, we present this compact grinding solution engineered specifically for rigorous laboratory environments. It delivers exceptional particle reduction through highly calibrated mechanical motion, ensuring consistent and repeatable results across various demanding industrial applications.

• Engineered for both high-efficiency dry and wet milling operations.

• Constructed with heavy-duty materials to withstand continuous abrasive forces.

• Optimized for high-precision material crushing, blending, and homogenization.

• Designed for seamless integration into existing research and development workflows.

Product Description

The small laboratory horizontal ball mill stands as a cornerstone piece of equipment for post-crushing material refinement. When you run your hands along the robust cylindrical body, you can immediately feel the cold, industrial-grade integrity of the embedded wear-resistant plates, meticulously designed to withstand relentless abrasive friction. As the machine powers up, the smooth, rhythmic hum of the casting hobbing gears engaging with the reducer reflects its superior mechanical calibration, completely devoid of the harsh, erratic clanking found in inferior models. The faint, metallic tang of the heavy-duty cast steel hollow shaft underscores the raw kinetic power contained within the rotating section. This mill is masterfully crafted to handle the demanding environments of cement production, silicate product development, and non-ferrous metal beneficiation. Whether processing dry powders that billow into micro-fine dust or wet slurries that require thorough, fluid homogenization, the internal kinetic energy ensures every single particle is subjected to optimal impact and attrition. The transition from the feeding section to the discharging section is engineered for seamless material movement, preventing internal bottlenecks and ensuring a consistently high yield of finely milled product ready for subsequent analytical testing or pilot manufacturing phases.

Product Specifications

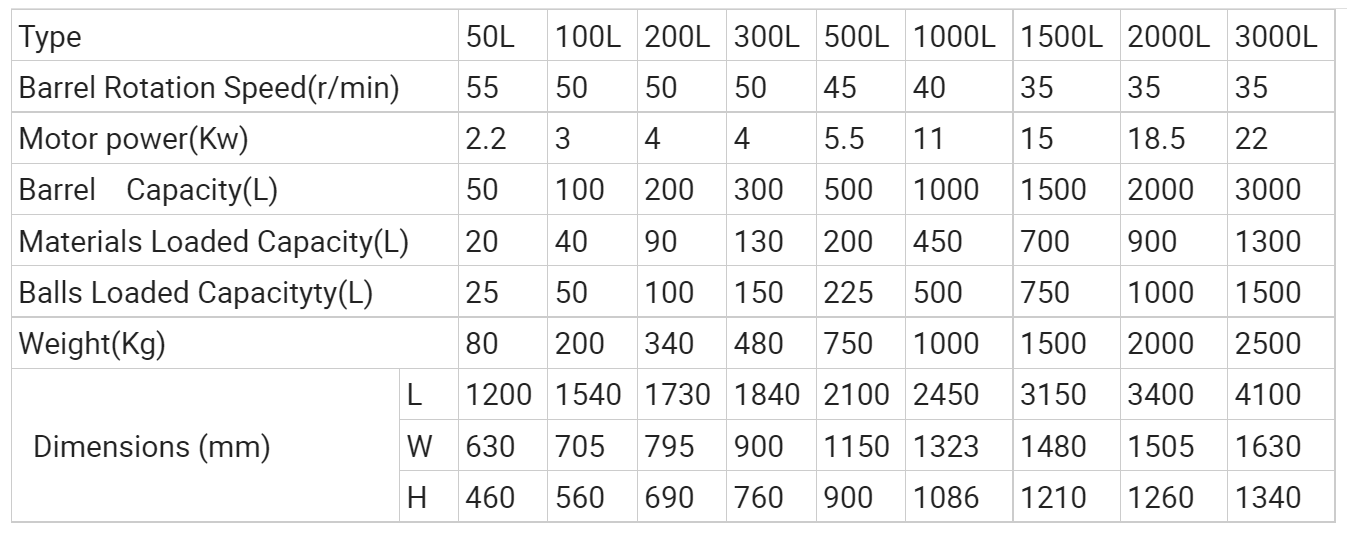

Technical parameters of ball mill:

Key Features & Highlights

Elevate your material processing capabilities with a machine explicitly designed for longevity, precision, and ease of use. Every individual component is selected to maximize operational uptime and minimize maintenance overhead for your facility.

• Heavy-Duty Hollow Shaft: Forged from premium cast steel, providing immense structural rigidity against continuous rotational stress and heavy media loads.

• Cost-Effective Maintenance: The replaceable inner lining drastically reduces long-term operational costs by allowing quick swaps of the wear surfaces rather than replacing the entire cylinder.

• Precision Power Transfer: The large gear utilizes a specialized casting hobbing process, ensuring tight mechanical tolerances, smooth kinetic transfer, and significantly reduced gear wear.

• Comprehensive Drive System: Integrated with a high-efficiency motor, a robust reducer, and a precise electric control panel for highly responsive operational adjustments.

• Broad Industrial Application: Seamlessly adapts to processing highly abrasive refractory materials, dense fertilizers, and delicate glass ceramics without compromising the machine's structural integrity.

Core Engineering & Performance Dimensions

Grinding Performance & Fineness

Achieving the exact particle size distribution is paramount for advanced research and strict quality control protocols. This equipment is meticulously calibrated to push the boundaries of micro-powder preparation, delivering unparalleled consistency.

• Processes coarse feed materials down to ultra-fine, sub-micron, or even nanometer-scale dimensions depending on the selected media.

• Delivers high-impact kinetic energy to effectively break down stubborn crystalline structures and dense ores.

• Ensures exceptional uniformity in the final batch, virtually eliminating the need for repetitive sieving and time-consuming re-milling.

• Provides predictable and repeatable particle size reduction, crucial for standardizing laboratory formulations.

Material Configuration & Contamination Control

Maintaining absolute sample purity is a non-negotiable standard in advanced material research. The internal architecture of this mill is specifically engineered to isolate your product from unwanted metallic shedding or environmental cross-contamination.

• Features a highly durable replaceable inner lining that acts as a secure, impermeable barrier between the raw material and the exterior steel shell.

• Embedded wear-resistant plates minimize internal abrasion, drastically reducing particulate generation from the machine itself.

• Accommodates various specialized grinding media (such as agate, zirconia, or polyurethane) to suit the specific chemical compatibility of your sensitive samples.

• Protects the integrity of high-purity glass ceramics and non-ferrous metals from heavy metal contamination during prolonged milling cycles.

Operational Stability & Noise Control

A focused laboratory environment requires equipment that operates without disruptive vibrations or deafening acoustics. The structural geometry of this mill is optimized for superior acoustic dampening and absolute physical balance.

• Utilizes a strategically low-center-of-gravity design to anchor the machine firmly, preventing lateral walking or shaking during high-speed rotation.

• The precision-machined gear transmission eliminates the slippage, friction, and squealing often associated with standard belt-driven alternatives.

• Produces a steady, muffled operational sound profile, protecting laboratory personnel from auditory fatigue over long shifts.

• Ensures smooth continuous rotation, which translates to a more uniform tumbling action of the internal grinding media.

Automation & Safety Control

Modern material processing demands intelligent oversight and robust fail-safe mechanisms. The integrated electric control system provides operators with precise command over every phase of the milling cycle while prioritizing workplace safety.

• Equipped with highly responsive motor controls to manage start-up torque, preventing electrical surges and mechanical jolts.

• Features secure electrical terminals and comprehensive overload protection to safeguard internal circuitry from power fluctuations.

• Supports advanced operational programming, including variable speed adjustments, timed forward/reverse rotation, and intermittent running modes.

• Designed with immediate safe-stop protocols to halt the rotating section instantly in the event of unauthorized access or mechanical anomalies.

Structural Advantages & Anti-sinking Design

The horizontal orientation of the cylinder is not merely an aesthetic choice; it is a fundamental engineering necessity for optimal fluid dynamics and particle trajectory during the milling process.

• Completely eradicates the issue of dense materials sinking and compacting at the bottom, a common flaw found in vertical milling configurations.

• Promotes a continuous, cascading waterfall effect of the grinding media, ensuring every single particle receives equal mechanical impact and shear force.

• Prevents sticky wet slurries from adhering stubbornly to the cylinder walls, maintaining a clean and highly active grinding zone.

• Maximizes the contact area between the media and the material, resulting in significantly higher grinding efficiency and shorter batch times.

Versatility & Multi-processing

Facility space constraints and tight procurement budgets require machinery that can pivot between different operational modes seamlessly. This mill serves as a highly versatile, multi-disciplinary tool for diverse processing needs.

• Transitions effortlessly between dry powder milling and wet slurry homogenization without requiring complex mechanical reconfigurations.

• Capable of processing a vast spectrum of materials, ranging from highly abrasive black metal ores to fragile, moisture-sensitive silicate products.

• Supports specialized environments, allowing for vacuum or inert gas protection grinding when equipped with the appropriate sealed milling jars.

• Simplifies the laboratory workflow by consolidating multiple crushing, mixing, and dispersion stages into a single, highly efficient operation.

Throughput & Scalability

Whether you are conducting initial feasibility studies or preparing intermediate batches for pilot-scale production, the volumetric capacity of this equipment is perfectly scaled for transitional workflows.

• The precisely engineered 10L cylinder volume provides ample internal space for the optimal 2/3 loading ratio of grinding media and raw material.

• Facilitates the easy calculation of scale-up parameters for larger industrial mills based on the consistent, reliable results achieved at the laboratory level.

• Ensures rapid batch turnover times, allowing researchers to process multiple distinct material samples within a single operational shift.

• Offers a flexible processing range that bridges the gap between micro-sample testing and small-batch manufacturing requirements.

Ball mill application industry:

Why Choose Us

Partnering with a dedicated equipment manufacturer means gaining direct access to unparalleled engineering expertise and robust post-installation support. We deeply understand the stringent demands of industrial sourcing and professional laboratory outfitting.

• Rigorous Quality Assurance: Every single unit undergoes exhaustive rotational, load, and acoustic testing before leaving our facility, ensuring it meets exact operational tolerances.

• Premium Material Sourcing: We utilize only high-grade cast steel, specialized alloys, and premium wear-resistant plates, guaranteeing the long-term resilience of your investment.

• Expert Technical Guidance: Our seasoned engineering team provides comprehensive support for foundation preparation, initial installation, and optimal grinding media selection.

• Streamlined Maintenance Architecture: Designed thoughtfully with accessible components, allowing your internal technicians to perform routine cleanings and part replacements with minimal operational downtime.

• Proven Industry Track Record: Trusted globally by leading research facilities and production plants in the cement, metallurgy, and advanced ceramics sectors for consistent, unwavering performance.

FAQ

Review our most frequently asked questions to ensure optimal installation, operation, and longevity of your milling equipment.

Q1: How should the foundation be prepared prior to installing the equipment?
The equipment must be placed perfectly flat on a pre-prepared, reinforced concrete foundation. It is absolutely critical to secure the base tightly with heavy-duty anchor bolts. This prevents any micro-vibrations from causing the machine to shift or compromising its structural integrity during prolonged, high-speed grinding sessions.

Q2: What are the essential pre-operation checks before initiating a grinding cycle?
Before driving the motor, operators must manually verify that all rotating sections move smoothly without any physical obstruction. Additionally, you must ensure that the motor and electrical terminals are firmly connected, and confirm that the reducer is sufficiently lubricated to prevent destructive gear friction.

Q3: Can the grinding media be activated before loading the raw materials?
Absolutely not. It is strictly forbidden to drive the grinding media inside the cylinder before adding the target materials. Doing so will cause severe metal-on-metal impact, leading to accelerated, irreversible wear of the inner lining and potential fracturing or flaking of the grinding balls.

Q4: What is the recommended post-operation maintenance routine?
Immediately after parking the machine, the interior cylinder and the discharging section must be thoroughly cleaned. This prevents residual wet slurries or moisture-activated powders from drying and solidifying inside the chamber, which could severely impede the next driving cycle and cross-contaminate future material batches.

Q5: How does the replaceable inner lining benefit long-term operational efficiency?
The replaceable inner lining is designed to absorb the vast majority of the abrasive impact during the milling process. Instead of replacing the entire cast steel cylinder when inevitable wear occurs, maintenance teams can simply swap out the internal lining. This drastically reduces equipment downtime, lowers replacement part costs, and significantly extends the total lifespan of the machine.
