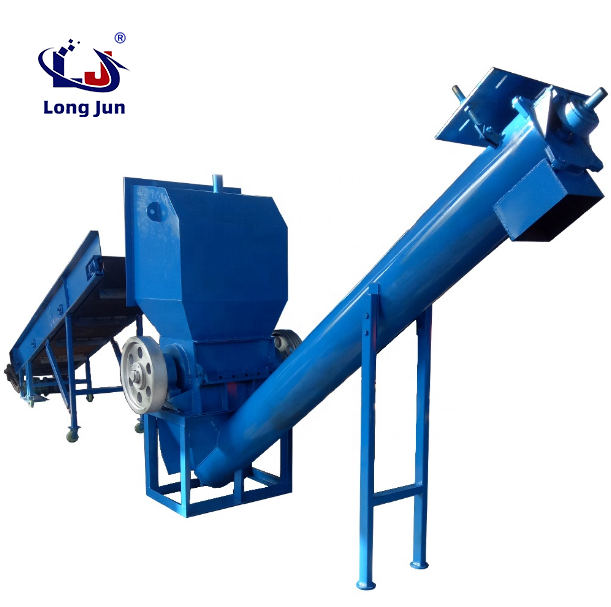

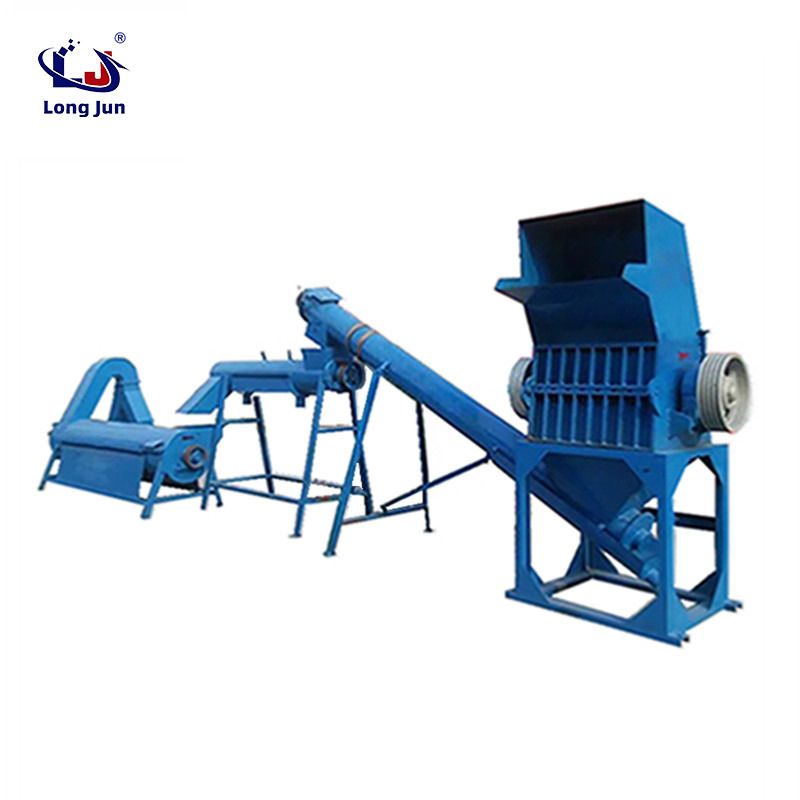

The plastic crushing and cleaning machine is an integrated structure. It can be cleaned twice at the same time, making full use of space and having reasonable cost-effectiveness.
| Quantity: | |
|---|---|

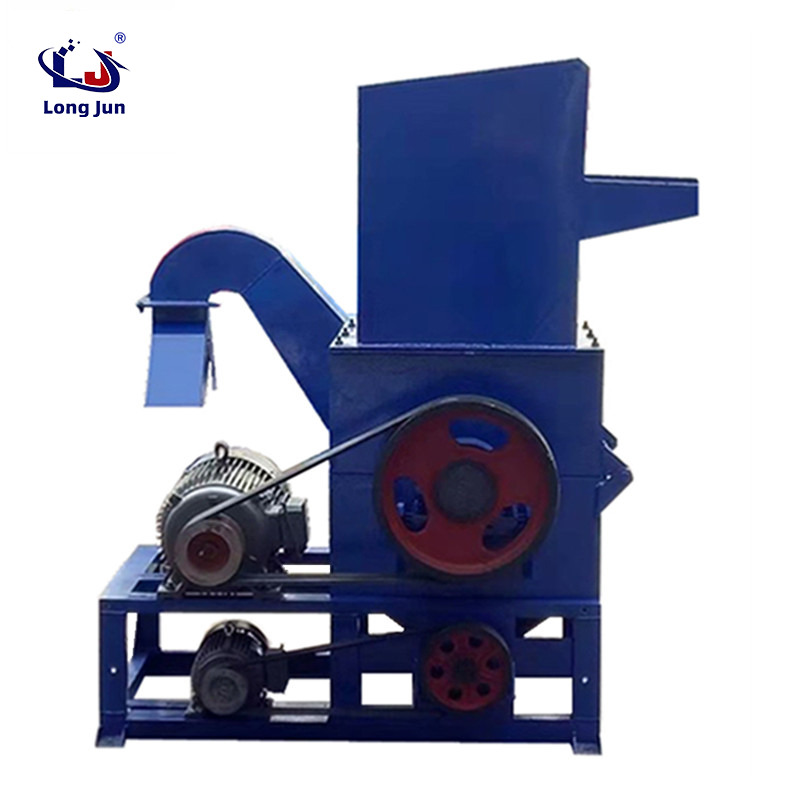

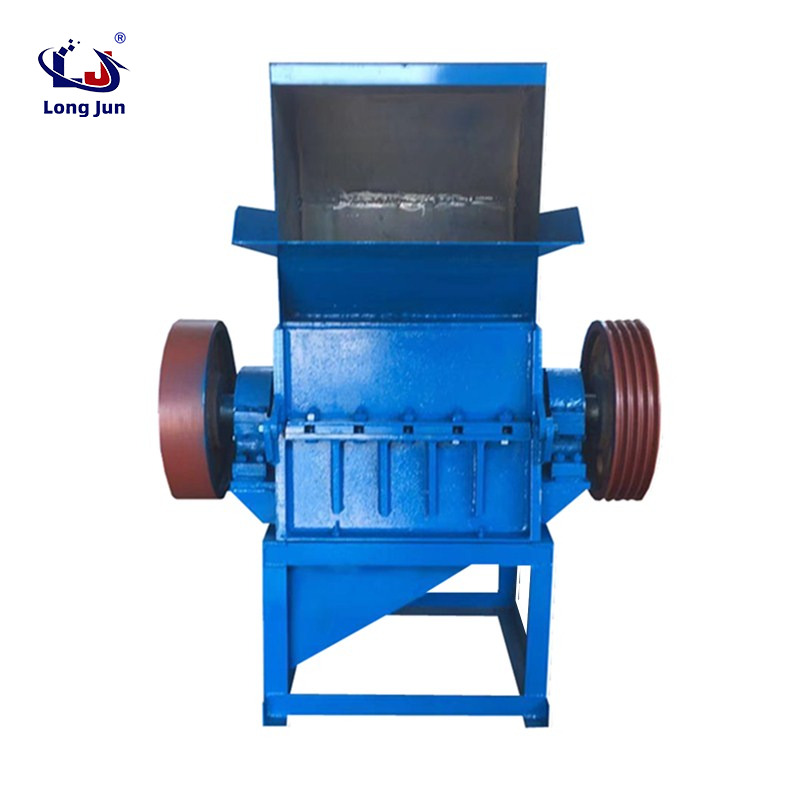

The Plastic Bottle Beverage Bottle Crusher is a specialized industrial equipment designed to efficiently reduce plastic beverage bottles, including PET bottles, HDPE bottles, and PP bottles, into small, uniform fragments. This machine features a robust crushing chamber with high-speed rotating blades made from hardened alloy steel, which can easily handle bottles of various sizes, from small 200ml drink bottles to large 5L beverage containers. It is equipped with an advanced feeding system that prevents bottle jamming, ensuring continuous and stable operation. Whether dealing with empty, lightly soiled, or label-attached bottles, this crusher can process them effectively, making it an essential piece of equipment in plastic recycling facilities, beverage factories, and waste management centers. The crushed fragments are ideal for subsequent washing, drying, and pelletizing processes, significantly improving the efficiency of the entire plastic recycling chain.
Parameter | Specification |
Crushing Capacity | 500 - 2000 kg/h |
Motor Power | 15kW - 45kW |
Blade Rotation Speed | 800 - 1500 rpm |
Crushed Particle Size | 10 - 30mm (adjustable by replacing the screen) |
Blade Material | High-chromium cast iron (HRC 60 - 65) |
Machine Dimension (L×W×H) | 2200×1500×2300mm - 3500×2000×2800mm |
Weight | 2500kg - 8000kg |
High Efficiency Crushing: The unique blade arrangement and high rotation speed enable the machine to crush up to 2000kg/h of plastic bottles, which is 20 - 30% higher than conventional crushers. The specially designed blade angle ensures that each bottle is cut into uniform pieces in a single pass.
Anti-jamming System: Equipped with an intelligent sensor that detects jamming situations. When a jam occurs, the machine automatically reverses the blade rotation for 2 - 3 seconds to clear the blockage, reducing downtime by over 40% compared to manual clearing.
Dust Collection: A built-in high-power dust collector with a filtration efficiency of 99% captures plastic dust and debris generated during crushing, maintaining a clean working environment and protecting the health of operators.
Durable Construction: The crushing chamber is made of 16mm thick manganese steel, which has excellent wear resistance and impact resistance, ensuring a service life of 5 - 8 years under normal operating conditions.
Easy Operation: The machine is controlled by a user-friendly touchscreen panel, allowing operators to set parameters such as crushing speed and monitor the working status in real-time. It also has automatic and manual operation modes for different working scenarios.
This crusher is widely used in various industries and scenarios:
Plastic Recycling Plants: Processing large quantities of collected plastic beverage bottles into fragments for subsequent recycling processes, such as washing, drying, and pelletizing.
Beverage Manufacturing Factories: Crushing waste and defective bottles generated during production for in-house recycling, reducing raw material costs and environmental pollution.
Waste Management Centers: Reducing the volume of plastic bottle waste by 70 - 80%, making it easier to transport and store, and facilitating further recycling or disposal.
Supermarkets and Retail Stores: Crushing empty beverage bottles collected from customers to save storage space and improve the efficiency of waste recycling.
Catering Industry: Handling a large number of used beverage bottles generated daily, contributing to environmental protection and sustainable development.
Customization Options: We offer customized solutions according to the specific needs of customers, including adjusting the crushing particle size, modifying the feeding system to handle special-shaped bottles, and adding sorting functions to separate bottle caps from bottle bodies.
Energy-saving Performance: The machine is equipped with a variable frequency drive that adjusts the motor speed according to the input quantity of bottles, reducing energy consumption by 15 - 25% compared to fixed-speed crushers.
Reliable Quality: All components of the machine are sourced from well-known brands, and the entire production process undergoes strict quality inspection, ensuring that the product meets international standards such as CE and ISO 9001.
Comprehensive After-sales Service: We provide a 2-year warranty for the machine, including free replacement of wearing parts such as blades within the first 6 months. Our professional technical team offers 24/7 online support and on-site maintenance services when needed.
High Cost Performance: With its high efficiency, low energy consumption, and long service life, the machine can help customers recover the investment cost within 10 - 14 months of normal operation.
