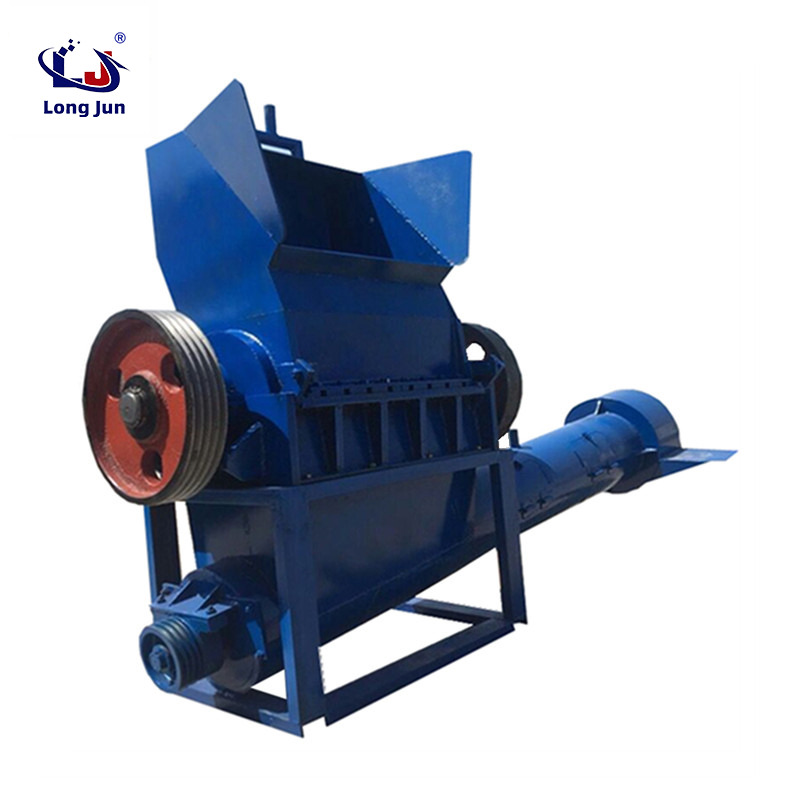

The PE Plastic Film Crusher is a specialized piece of equipment designed for reducing polyethylene (PE) plastic films into small, uniform fragments. It features a high - speed rotating blade system housed in a sturdy chamber. The blades, made of high - quality alloy steel, efficiently cut through PE films, whether they are clean, dirty, or have labels attached. This machine is an essential pre - processing tool in plastic recycling operations, as it reduces the size of PE films, making them easier to transport, store, and further process in pelletizing machines. It is known for its high crushing efficiency and ability to handle large volumes of PE films.
Parameter | Specification |
Crushing Capacity | 100 - 800 kg/h |
Motor Power | 7.5kW - 30kW |
Blade Speed | 800 - 1500 rpm |
Crushing Particle Size | 5 - 20mm (adjustable) |
Material of Blades | High - speed steel (HSS) or tungsten carbide - coated |
Machine Dimension (L×W×H) | 1200×800×1500mm - 2500×1200×2200mm (depending on model) |
Efficient Crushing: The unique blade arrangement and high rotation speed allow the machine to crush up to 800kg/h of PE films, significantly increasing processing throughput.
Adjustable Particle Size: By changing the screen mesh, the size of the crushed fragments can be adjusted between 5mm and 20mm to meet the requirements of subsequent processing steps.
Durable Blades: The HSS blades have a hardness of HRC 55 - 60, ensuring long - term sharpness and a service life of up to 500 hours of continuous operation before needing sharpening.
Safety Design: Equipped with a safety interlock system that stops the machine immediately when the chamber door is opened, preventing accidents.
Plastic Recycling Plants: Preprocessing PE films collected from various sources before pelletizing.
Packaging Factories: Crushing waste PE films generated during production for reuse in the manufacturing process.
Agricultural Sector: Crushing used PE agricultural films (such as greenhouse films) for recycling.
Logistics Industry: Processing discarded PE packaging films from shipping and transportation operations.
Q: Can this machine crush wet PE films?
A: Yes, it can handle wet PE films, but the crushing efficiency may decrease by 10 - 15% compared to dry films. It is recommended to dry the films if possible for optimal performance.
Q: How loud is the machine during operation?
A: The noise level during operation is between 85 - 95 dB. For noise - sensitive environments, an optional soundproof enclosure can reduce the noise by 20 - 30 dB.
Q: What maintenance is required for the machine?
A: Regular maintenance includes lubricating the bearings every 40 hours of operation, checking the blade tightness weekly, and sharpening the blades when the crushing efficiency drops significantly.
