| Quantity: | |
|---|---|

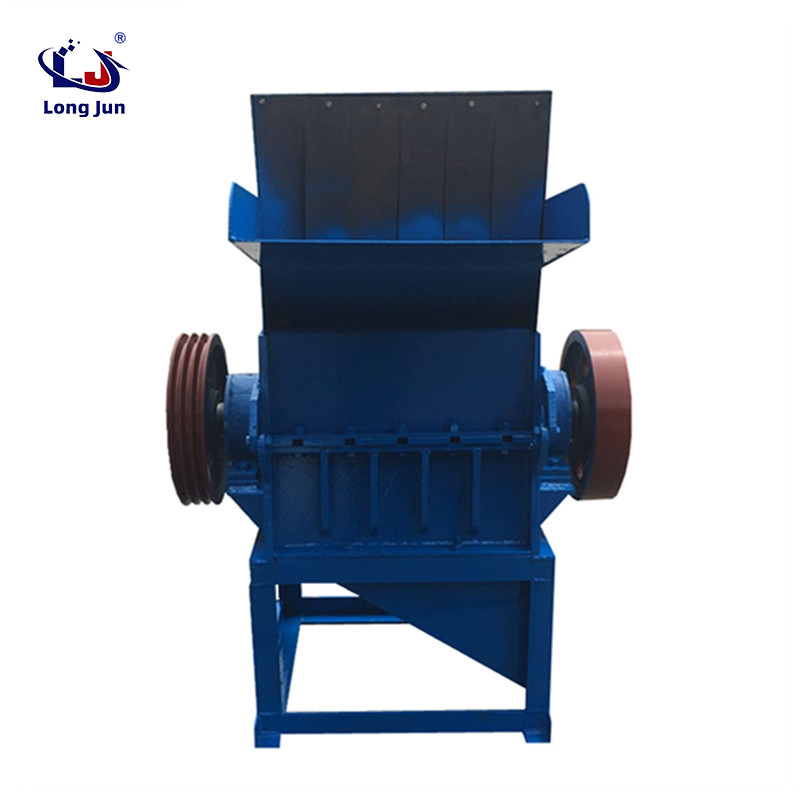

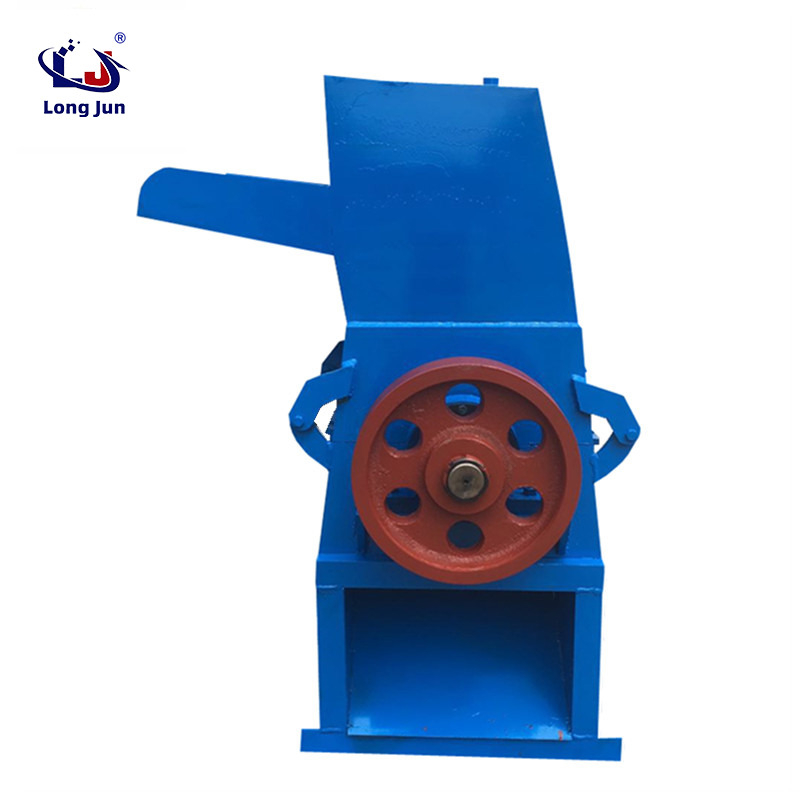

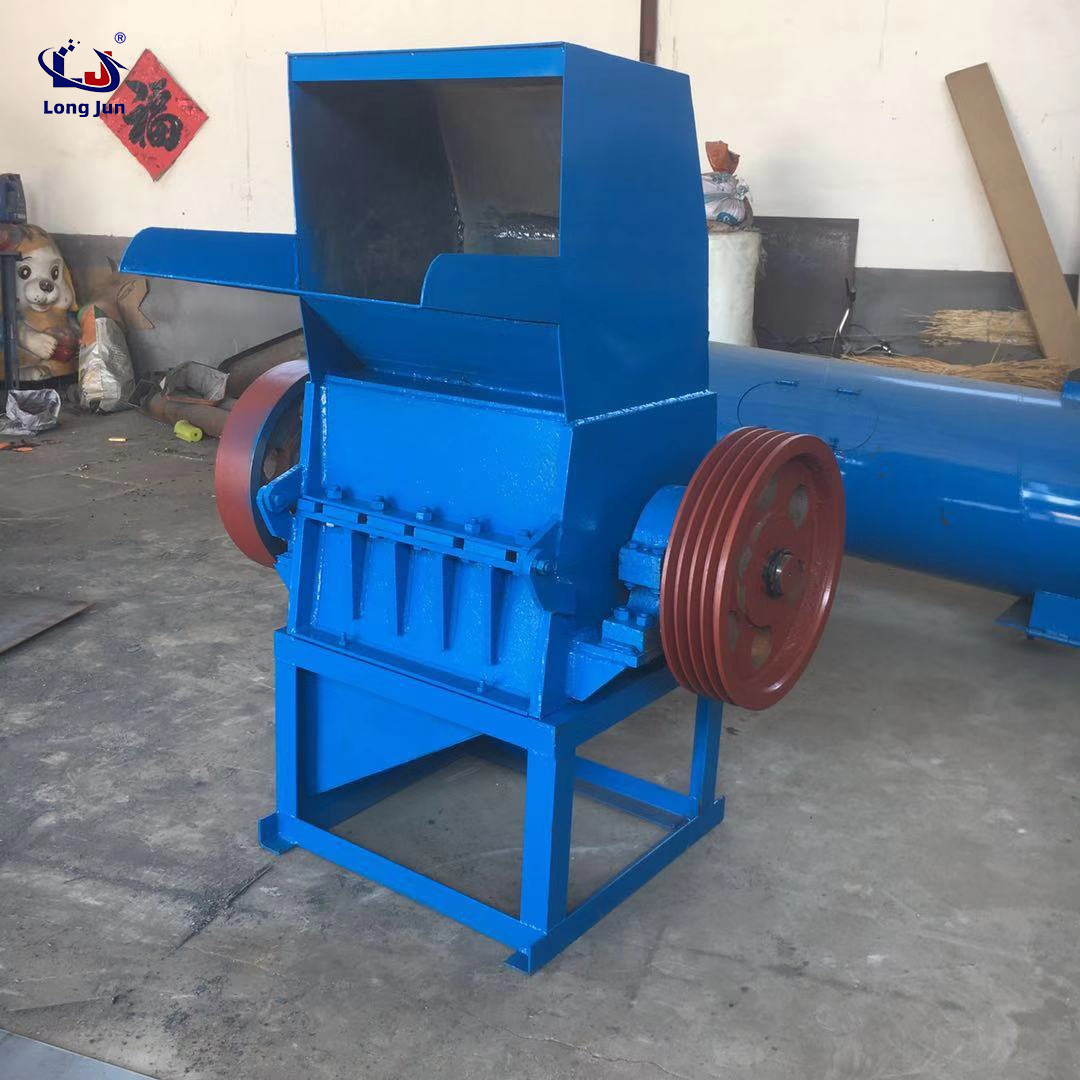

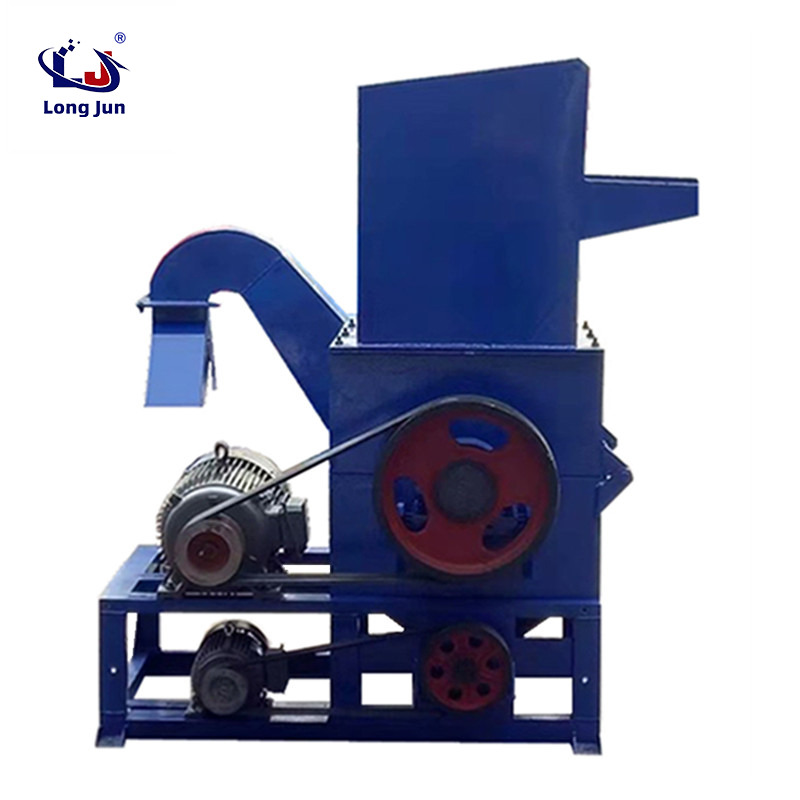

The ABS Car Bumper Crusher is a heavy-duty crushing machine specifically designed to break down acrylonitrile butadiene styrene (ABS) car bumpers and other automotive plastic components—including PC/ABS blends and PVC trims—into small, uniform particles. Its high-power motor drives a set of hardened steel blades arranged in a helical pattern, delivering intense shearing force to efficiently cut through the tough, impact-resistant ABS material, which typically has a tensile strength of 20 - 40 MPa. The machine features a reinforced crushing chamber with 20mm thick steel walls to withstand the rigors of processing thick-walled bumpers (up to 15mm thickness), including those with metal inserts, bolts, or paint coatings. It is an essential piece of equipment in automotive recycling facilities, enabling the recovery of valuable ABS plastic for reuse in manufacturing new automotive parts or consumer goods.
Parameter | Specification |
Crushing Capacity | 400 - 1200 kg/h (400kg/h for 15mm thick bumpers; 1200kg/h for 5mm thin trims) |
Motor Power | 15kW - 45kW (three-phase, 380V/440V) |
Blade Rotation Speed | 750 - 1200 rpm (with overload protection) |
Output Particle Size | 8 - 25mm (adjustable via screen changes: 8mm, 15mm, 25mm) |
Blade Material | Tungsten carbide-coated alloy steel (WC content ≥ 85%) |
Weight | 2000kg - 5000kg (depending on capacity) |
Metal Detection System: Integrated inductive sensors (detection sensitivity: ≥0.5mm ferrous metals) identify and eject metal inserts from bumpers via a pneumatic gate, preventing damage to blades and downstream equipment.
High-Torque Performance: Equipped with a planetary gearbox that delivers 20% higher torque than standard crushers, ensuring efficient crushing of thick ABS bumpers even when cold (below 10°C).
Dust Suppression: Equipped with a built-in cyclone dust collector that captures 95% of airborne particles (0.5 - 10μm), maintaining a clean working environment and reducing respiratory hazards.

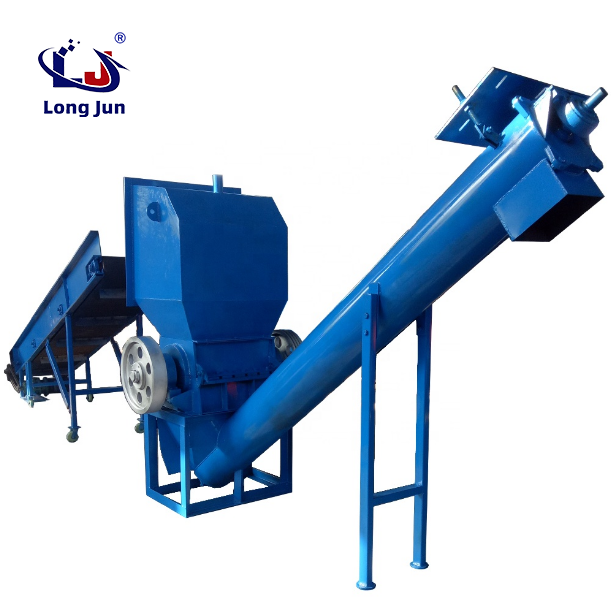

Automatic Feeding: Optional belt conveyor system with adjustable speed (0.5 - 2m/min) enables continuous feeding, reducing manual labor requirements by 3 - 4 person-hours per shift.
Remote Monitoring: Optional IoT-enabled control system allows real-time monitoring of crusher performance, including blade wear and throughput, via a mobile app.
Automotive Recycling Yards: Processing end-of-life car bumpers to recover ABS plastic, which can be resold to plastic manufacturers at 1.2 per kg.
Plastic Recycling Facilities: Preparing ABS fragments for washing (to remove paint and adhesives), drying, and pelletizing into recycled resin.
Automotive Manufacturing Plants: Crushing defective or off-cut bumper components for in-house recycling, reducing raw material costs by 15 - 20%.
Scrap Metal Facilities: Separating plastic bumpers from metal car parts, streamlining material flows for specialized recycling.
Blade Longevity: Tungsten carbide-coated blades last 3 - 5 times longer than standard steel blades, with a typical service life of 800 - 1200 hours under continuous operation, reducing replacement costs.
Quick Changeover: Modular design with tool-less blade access allows blade replacement in less than 2 hours, minimizing downtime compared to conventional crushers (4 - 6 hours).
Cost-Effective Operation: Low maintenance requirements and high throughput result in a return on investment (ROI) of 12 - 18 months for most facilities, with energy costs accounting for less than 10% of total operating expenses.
Tailored Designs: Offer mobile (trailer-mounted) or stationary models, with optional weatherproof enclosures for outdoor installation, to accommodate different workspace constraints.
Training Programs: Provide on-site operator training covering safety protocols, maintenance procedures, and optimal feeding practices to maximize efficiency.
