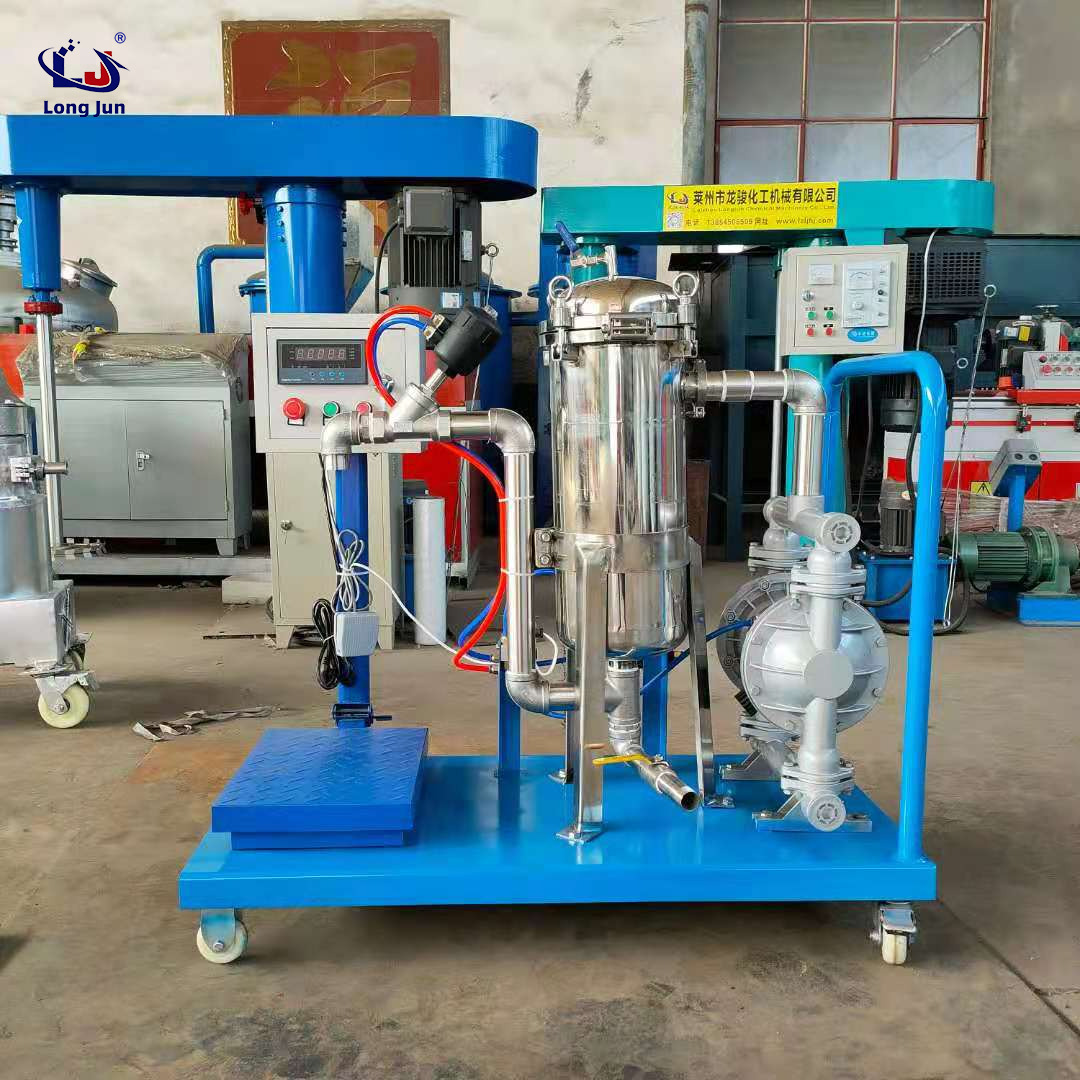

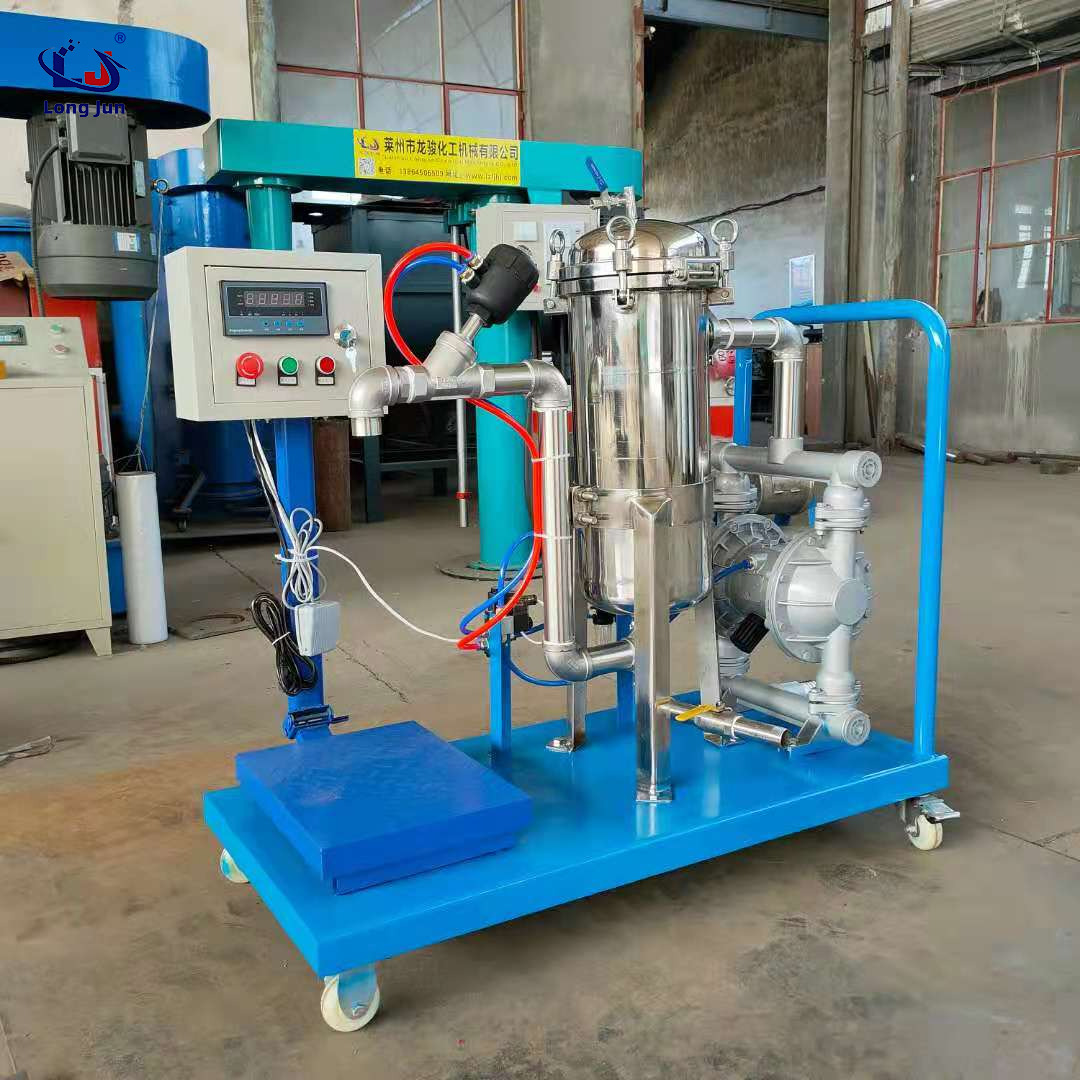

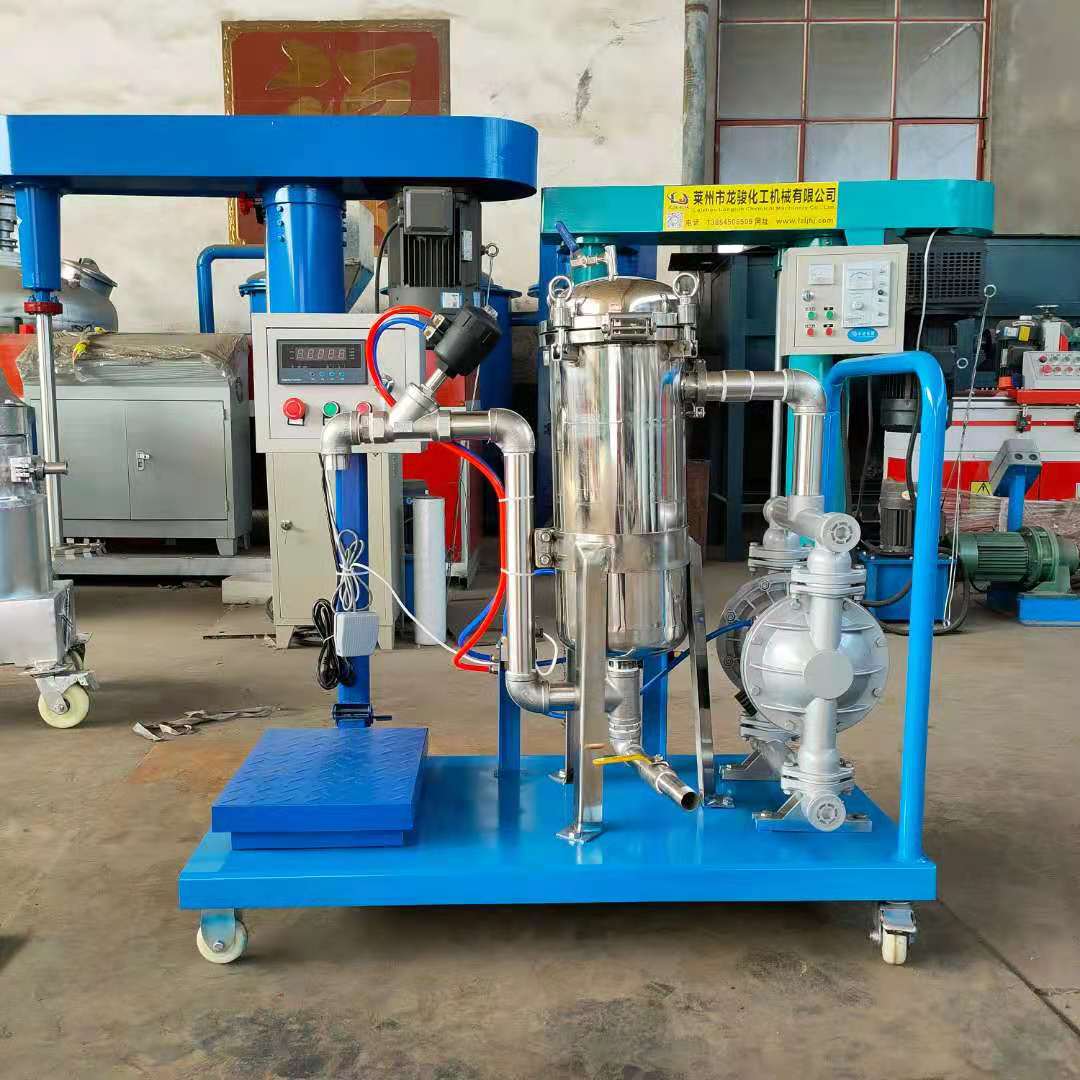

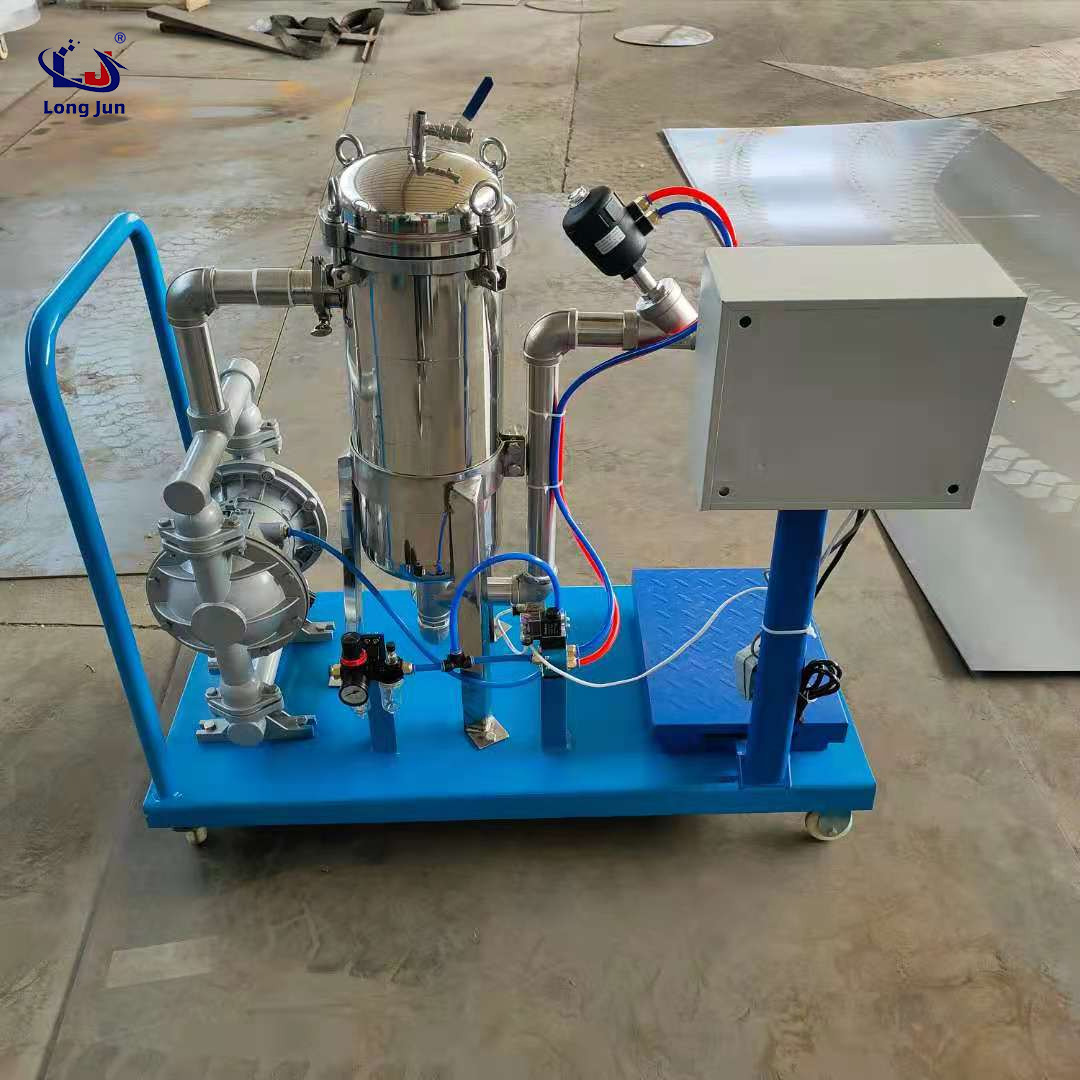

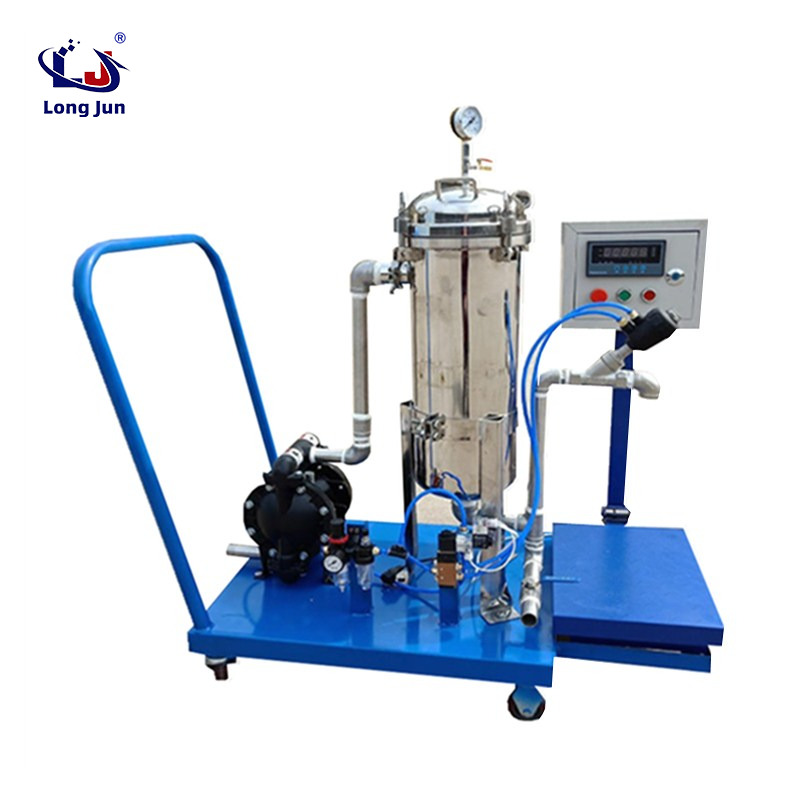

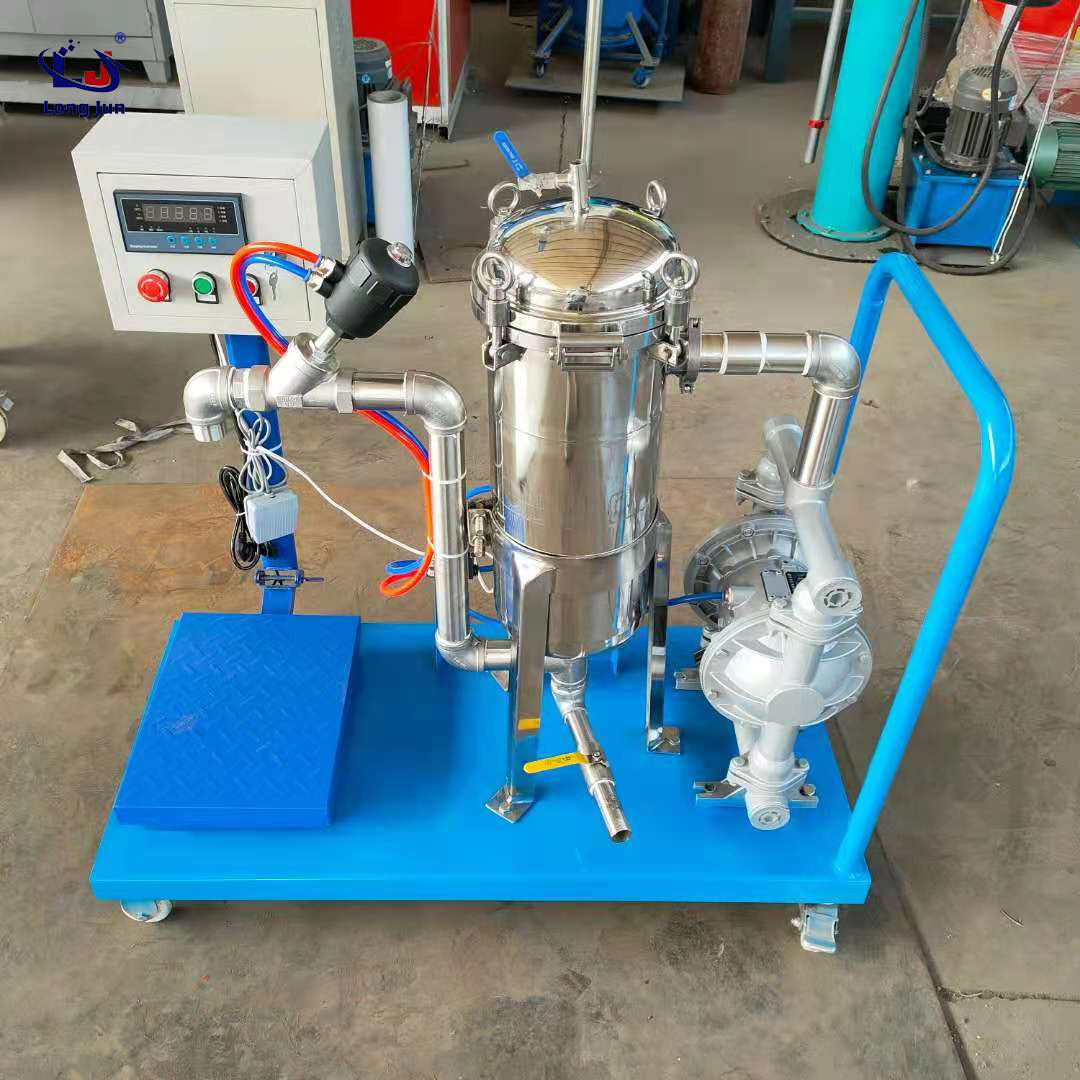

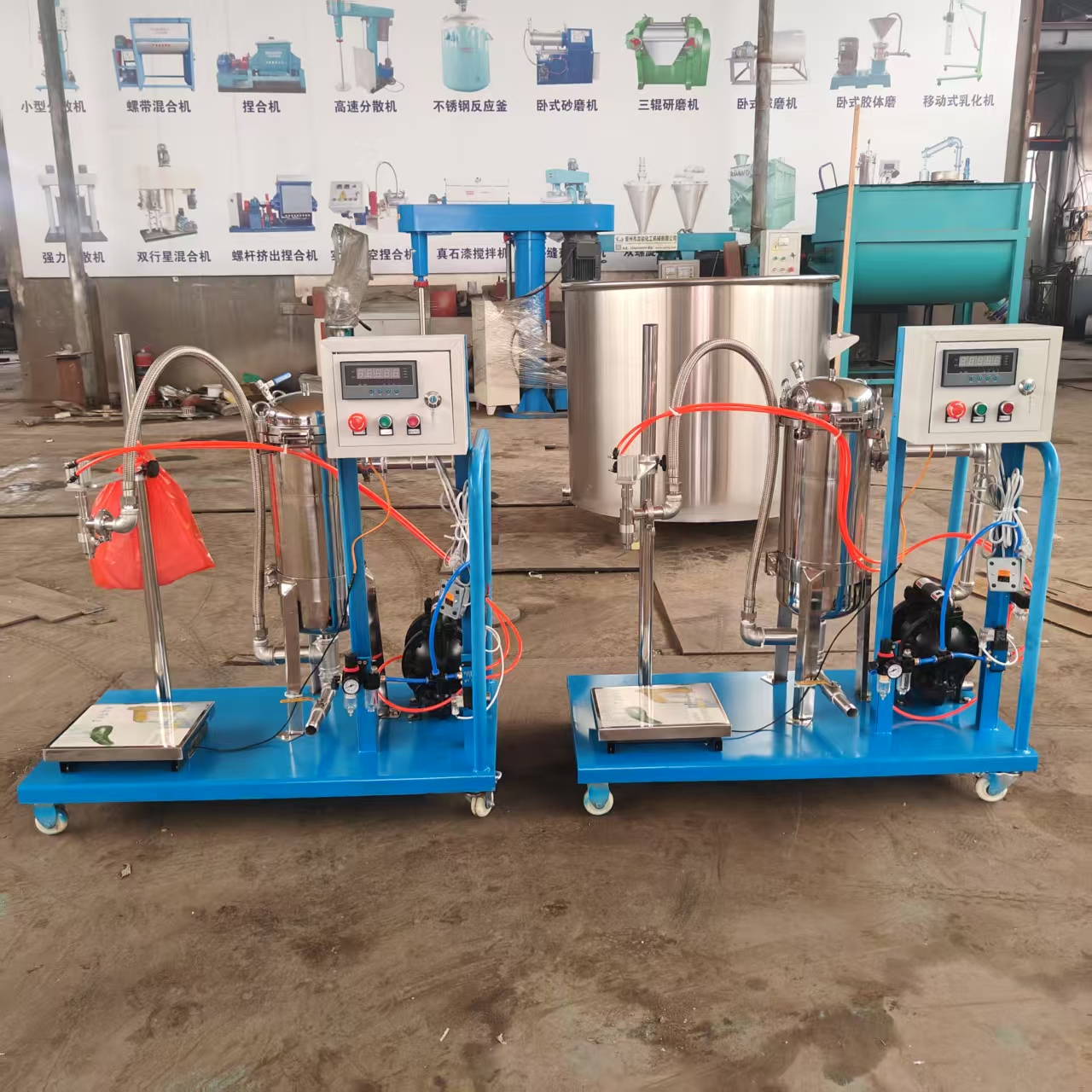

Paint bag filter machine

This device achieves convenient replacement of filter bags through a quick opening structure, and the sealing design can reduce the risk of side leakage. It is recommended to control the working pressure within 0.1-0.3 MPa. During operation, the input valve should be slowly opened to prevent the filter bag from breaking. When the pressure difference reaches 0.05~0.1MPa, the filter bag should be replaced. Widely used in liquid filtration in paint, medicine, petroleum, food, chemical and other fields

Application industries of bag filter: paint, beer, vegetable oil, pharmaceuticals, cosmetics, chemicals, petroleum products, textile chemicals, photosensitive chemicals, electroplating solutions, milk, mineral water, hot solvents, latex, industrial water, sugar water, resin, ink, industrial wastewater, fruit juice, edible oil, wax, etc.

Characteristics of bag filter:

1. Bag filters have a large processing capacity, small volume, and large pollutant holding capacity.

Based on the working principle and structure of the bag filtration system, it is convenient and fast to replace the filter bag, and the filter machine is free of cleaning, saving labor and time.

3. The filter bag has a low probability of leakage detection, which effectively ensures the quality of filtration.

4. Bag filters can withstand greater working pressure, have lower pressure loss, lower operating costs, and significant energy-saving effects.

5. The filtration accuracy of the filter bag continues to improve, reaching 0.5um.

6. Bag filters have a wide range of applications, suitable for filtering various solid and liquid liquids, with flexible use and diverse installation methods.
