Detailed explanation of five mainstream industrial mixers

Industrial Mixing Equipment Selection Guide: A Professional Analysis from Requirements to Implementation In the modern manufacturing system, industrial mixing is a core component that determines product quality, production efficiency, and cost control. An appropriate mixing equipment can improve material uniformity by more than 30%, while reducing energy consumption and material waste by 15%. Conversely, incorrect equipment selection can lead to a sharp decline in batch pass rate, production line stagnation, and even safety accidents. Therefore, accurately matching production requirements and selecting equipment suppliers with both professionalism and customization capabilities have become key decisions for manufacturing enterprises.

As a provider of industrial mixing solutions, Longjun Machinery, leveraging over 20 years of technical accumulation and service experience, offers stable and reliable customized equipment to customers in over 50 countries and regions. From fine powder mixing in food processing to specialized equipment in the aerospace industry, we always prioritize "adaptability, durability, and safety" as our core values, assisting enterprises in constructing efficient and stable production chains. Below, we will analyze how to accurately select equipment based on production scenarios, taking into account the characteristics of five major mainstream industrial mixing devices.

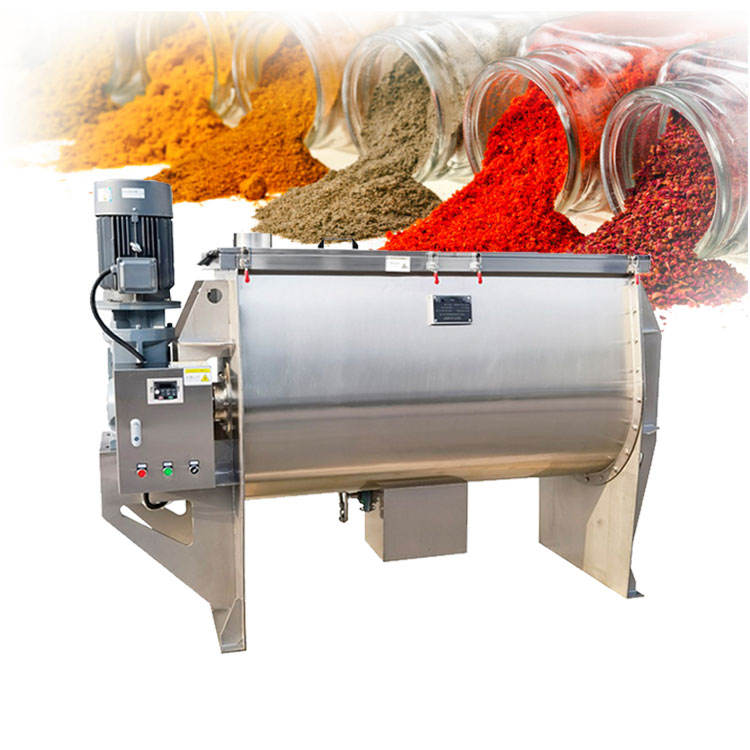

1. Dry powder mixing: Horizontal ribbon mixer is designed for the mixing needs of dry granules and powdery materials. With its unique bidirectional convection design, the horizontal ribbon mixer has become a mainstay equipment in industries such as food, building materials, and chemical engineering.

Inside its U-shaped closed container, the external spiral belt pushes the material from both ends towards the center, while the internal spiral belt spreads the material from the center to both sides, forming a "convection-shear-diffusion" three-dimensional mixing field. This field can achieve a mixing uniformity with a CV value of ≤5% within 3-8 minutes, which is far higher than the industry average.

In the field of food processing, Longjun's horizontal ribbon mixer utilizes 316L stainless steel that meets the European Union (EC) 1935/2004 standard. The inner wall undergoes mirror polishing treatment, achieving a roughness of Ra≤0.8μm, effectively preventing material residue and bacterial growth. The equipment is equipped with a negative pressure dust removal system, which can control the dust emission concentration below 10mg/m³, safeguarding worker health and avoiding cross-contamination. For large-scale production scenarios, it can be integrated with a spiral quantitative feeder and automatic packaging line to achieve full automation of the "ingredient mixing-packaging" process, reducing manual intervention by 80% and increasing production efficiency by 2.5 times.

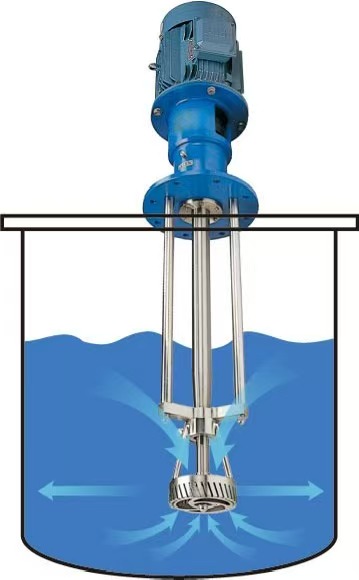

II. Liquid-Solid Dispersion Expert: High-Shear Mixer When it comes to processes such as liquid homogenization and liquid-solid dispersion, ordinary mixing equipment struggles to overcome the interfacial tension between materials, leading to issues like particle agglomeration and uneven droplet distribution. The high-shear mixer, through the strong shear force generated by its rotor-stator structure, can reduce particle size from millimeter level to micron or even nanometer level. It is a core equipment in the cosmetics, pharmaceutical, and coating industries.

The high shear mixer from Longjun adopts a modular design, allowing for the replacement of stator heads with different structures according to the viscosity and dispersion requirements of the material: the serrated stator is suitable for coarse particle crushing, the orifice plate stator excels at fine emulsification, and the mesh stator can achieve nanoscale dispersion. The equipment is equipped with a variable frequency speed regulation system, which can precisely adjust the speed within the range of 0-3600rpm. Coupled with an online viscosity monitoring module, it can adjust the shear strength in real time to ensure product consistency. In the pharmaceutical field, this equipment can achieve uniform dispersion of API (active pharmaceutical ingredient) in solvents, increase drug dissolution by more than 40%, and significantly shorten the research and development cycle.

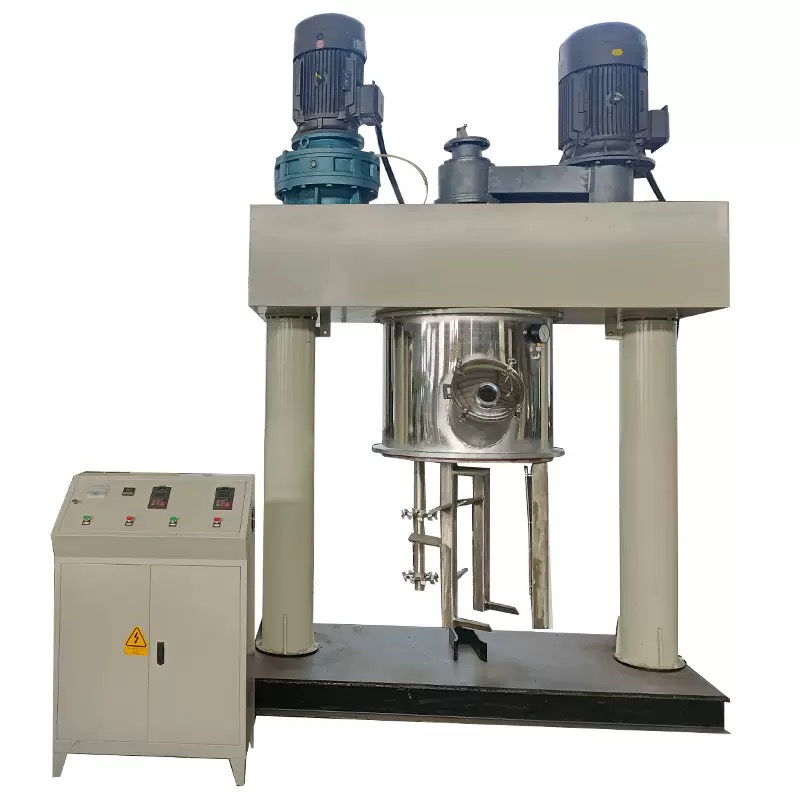

III. The Bane of High Viscosity Materials: Planetary Mixer For high-viscosity materials with viscosities exceeding 100,000 mPa·s, conventional mixing equipment can only achieve local flow and cannot achieve overall mixing. The planetary mixer, through the compound motion of "rotation + revolution" of the mixing paddle, can cover more than 98% of the area inside the container, eliminating mixing dead zones. It is the equipment of choice for industries such as lithium batteries, sealants, and dental materials.

Longjun's planetary mixer adopts a servo drive system, allowing for stepless adjustment of the mixing paddle's orbital speed within the range of 0-60rpm. The ratio of its rotational speed to orbital speed can be precisely set according to the characteristics of the material. For mixing lithium battery cathode materials, the equipment is equipped with a forced wall scraping system that can remove the material adhering to the cylinder wall in real time, preventing material degradation caused by localized overheating. The vacuum degassing system can reduce the pressure inside the container to -0.098MPa, effectively removing bubbles generated during the mixing process, reducing the porosity of battery electrode sheets by 15% and increasing the energy density by 10%. In the aerospace field, this equipment has successfully completed the mixing task of solid rocket fuel, ensuring the uniformity of fuel composition within ±1%, providing reliability for launch missions

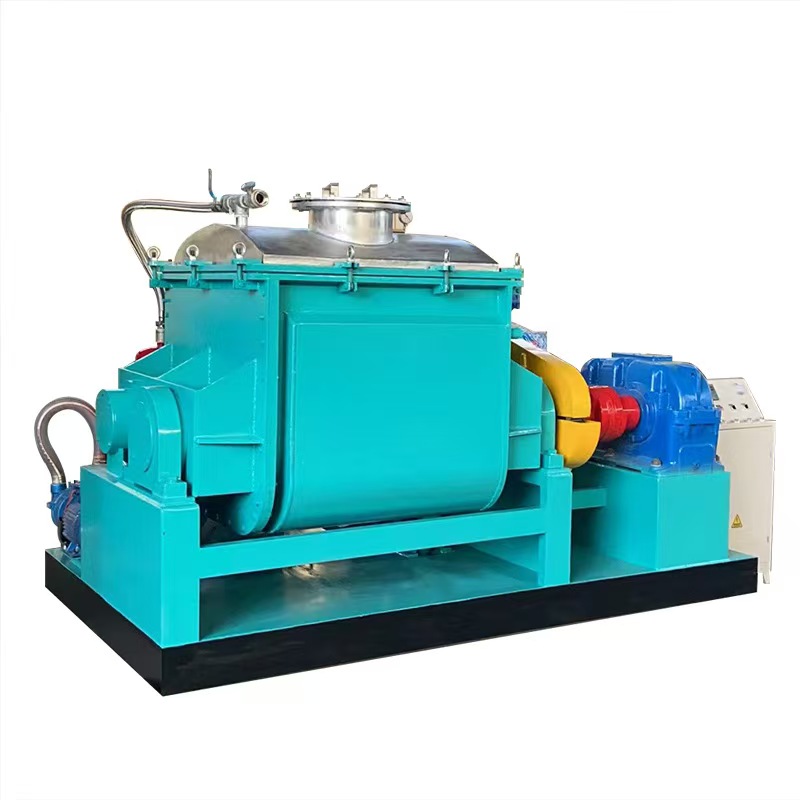

IV. Processing of Superhard Materials: When the hardness of the material approaches that of rubber or plastic, even planetary mixers struggle to provide sufficient shear force. Longjun's heavy-duty kneading machine, with its Z-shaped double paddles that perform a triple action of "shearing-stretching-folding", can deeply mix superhard and high-toughness materials. It is a core equipment in the rubber and adhesive industries. Longjun's heavy-duty kneading machine uses high-strength alloy steel paddles with a surface treated by carburizing and quenching, achieving a hardness of HRC58-62 and capable of withstanding a compressive force of over 100kN. The double paddles adopt a differential reverse rotation design with a speed ratio of 1.2:1-2:1, forming a strong shear gap that quickly crushes and evenly mixes blocky materials. In the manufacturing field, the equipment is equipped with an explosion-proof system and an inert gas protection device, effectively preventing static electricity accumulation and material oxidation, ensuring production safety. In the food industry, it can achieve uniform mixing of chewing gum base and additives, enhancing the chewing texture of the product by over 20%.

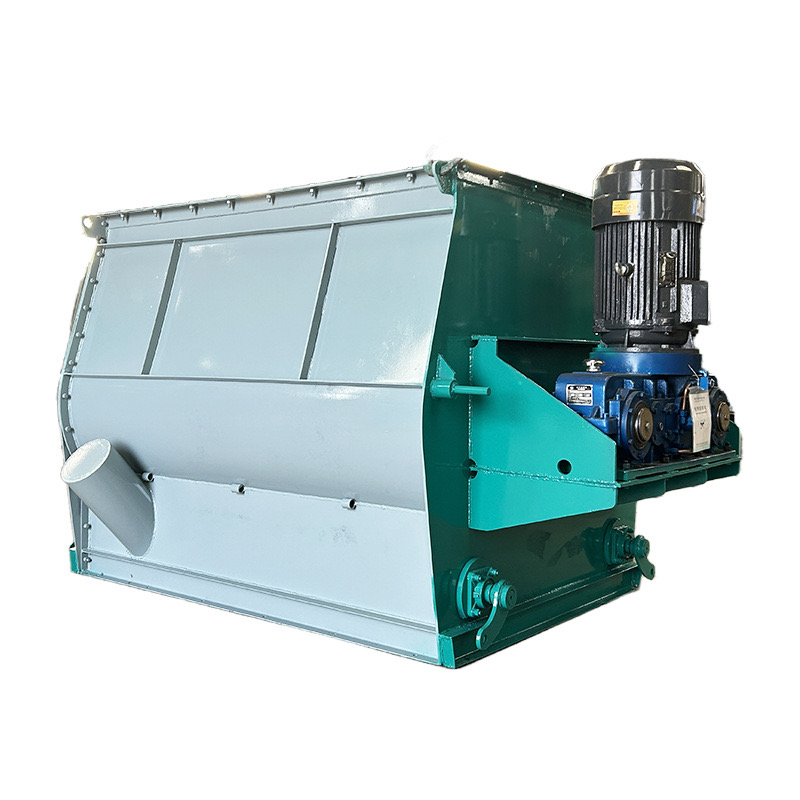

V. Efficient mixing of lightweight materials: For fluffy and fragile lightweight materials, the ribbon mixer may cause material damage due to excessive shear force, while the paddle mixer, with its gentle mixing method, becomes an ideal choice for such materials. The flat or inclined paddles used in the paddle mixer can form overall fluidized mixing at low speeds, ensuring both mixing uniformity and avoiding damage to the material structure.

Longjun's paddle mixer can customize the blade angle (0-45°) and speed (0-120rpm) according to the characteristics of the material. For materials prone to agglomeration, such as milk powder and coffee powder, a high-speed dispersing device can be integrated to break down the agglomerated particles to below 100 mesh before mixing. For heat-sensitive materials, the equipment is equipped with a jacket cooling system that can control the material temperature within ±2℃, avoiding material denaturation caused by frictional heat. In the field of feed processing, this equipment can achieve uniform mixing of various vitamins, trace elements, and feed raw materials, with a mixing uniformity CV value of ≤3%, ensuring balanced animal nutrition.

Core Principle of Model Selection: Matching Requirements and Customizing for Future Options When selecting industrial mixing equipment, comprehensive considerations should be made from four dimensions: material characteristics, production scale, process requirements, and safety standards. Material characteristics: Based on parameters such as material state (solid/liquid/paste), viscosity, hardness, and heat sensitivity, equipment with the corresponding mixing principle should be selected. Production scale: For laboratory research and development, small-scale equipment ranging from 5-50L can be used. For large-scale production, industrial-grade equipment ranging from 100-10,000L should be matched. Process requirements: Clarify core indicators such as mixing uniformity, dispersed particle size, and degassing efficiency, and select equipment with corresponding functional modules. Safety standards: According to industry norms (such as GMP, explosion-proof certification, etc.), select equipment configurations that meet safety requirements.

As your long-term partner, Longjun not only provides standardized equipment but also offers in-depth customization tailored to your unique needs. From process simulation, equipment design, to installation and commissioning, as well as personnel training, Longjun's professional team will provide you with support throughout the entire process, ensuring seamless integration between the equipment and the production line, and safeguarding your production efficiency and product quality.
