What specific industrial application scenarios is the vacuum sigma kneader mixer suitable for?

The vacuum sgima kneader mixer is particularly suitable for industrial scenarios with high requirements for bubble control, material purity, and mixing uniformity due to its characteristics of vacuum defoaming, closed operation, and efficient mixing. Its core advantage lies in its ability to effectively eliminate bubbles in high viscosity materials, prevent oxidation, and ensure product density and batch stability.

The following is a detailed explanation of the application of vacuum kneading machines in specific industrial fields:

1、 Chemical and Adhesive Industry

Production of silicone rubber, sealant, and glass adhesive

The vacuum environment can effectively remove bubbles from the rubber material, avoid pinholes or air bubbles in the finished product, and improve the strength and appearance quality of the product. For example, in the manufacturing of neutral glass adhesive, the vacuum kneading machine can control the residual rate of bubbles below 0.1%.

Preparation of hot melt adhesive, ink, pigment, and dye

High viscosity systems are prone to air entrainment, and vacuum kneading can achieve uniform dispersion, preventing color differences and coating defects.

2、 New Energy and Battery Materials

Preparation of battery slurry (such as lithium and sodium batteries)

During the mixing process of positive and negative electrode slurries, the vacuum kneading machine can effectively remove bubbles between the conductive agent and the binder, improve the stability and coating consistency of the slurry, and thereby enhance the battery cycle life and safety.

Mixing of electrode material precursors

Has good kneading and dispersing ability for high filling and high viscosity systems (such as slurries containing carbon black and graphene).

3、 Polymer Materials and Plastic Processing

Blending of modified plastics and engineering plastics

When adding flame retardants and toughening agents to resins such as PC, PA, PBT, etc., a vacuum environment can prevent high-temperature degradation and bubble formation, improving the consistency of material properties.

Production of chewing gum, bubble gum, and gum based candies

Vacuum kneading can fully plasticize the adhesive base, achieve uniform texture, delicate taste, and avoid bubbles affecting the chewing experience.

4、 Pharmaceutical and Food Industry

Preparation of medical ointment, ointment and gel preparations

Mixing under vacuum conditions can prevent oxidation of active ingredients, ensure drug stability and uniformity, and meet GMP cleanliness requirements.

Production of food gum base, filling, and chocolate paste

If the food grade adhesive base needs to be mixed in a sterile and bubble free environment, the vacuum kneading machine can achieve closed operation to ensure food safety.

5、 Electronics and Special Materials

Production of conductive silver paste, chip packaging adhesive, and LED potting adhesive

Small bubbles can cause circuit short circuits or poor heat dissipation, and vacuum degassing is a key process step.

Carbon, graphite, cellulose, CMC (carboxymethyl cellulose) processing

High viscosity elastoplastic materials require strong shearing and vacuum dehydration, and vacuum kneading machines can achieve uniform kneading and dense forming.

6、 Other high-end manufacturing fields

Production of cosmetics cream and toothpaste

Vacuum environment avoids microbial contamination and improves product delicacy and stability.

Preparation of magnetic materials, refractory materials, and ceramic slurries

The requirements for powder dispersion uniformity and slurry density are high, and vacuum kneading helps to improve the performance of the final product.

The shape of the stirring blade determines the shear force and dispersion ability:

Z-type stirring blade: With a simple structure, it is suitable for dispersing and mixing pigments in high viscosity materials.

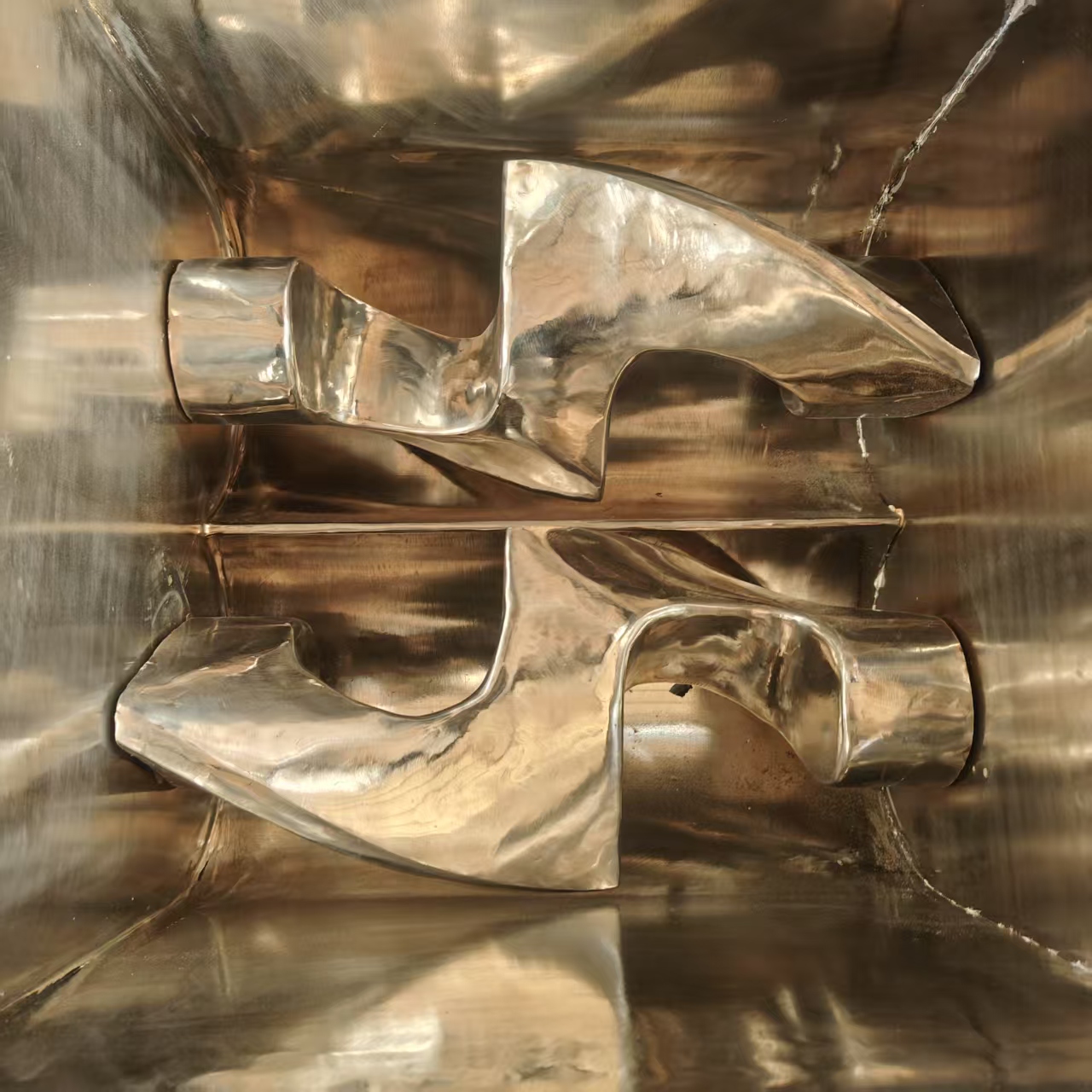

Sigma type agitator: the most common form, suitable for large-scale material movement, especially for extrusion dewatering operations.

Cutting type agitator: High strength, suitable for ultra-high viscosity and heavy load conditions, such as rubber, magnetic materials, etc.

Fish tail type stirring blade: specially designed for kneading cellulose materials.

Classified by Material

The material selection directly affects the corrosion resistance, service life, and applicable material range of the equipment:

Carbon steel kneading machine: Low cost, suitable for ordinary non corrosive materials.

Stainless steel kneading machine: It has excellent corrosion resistance and is widely used in fields such as food, medicine, and chemical engineering.

Special material kneading machine: such as Hastelloy, manganese steel, etc., used for strong corrosion or high wear conditions.
